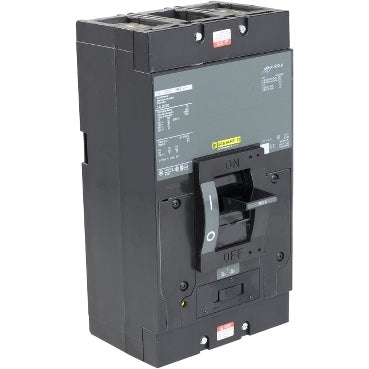

Square D LAL26125 Circuit Breaker | 600V 125A 2P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL26125 is a Molded Case Circuit Breaker from the LAL Series family. It features a 2-pole design with a 600V, 125A rating and a 30kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LAL26125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 078590148619
✔ GTIN: 00785901486190

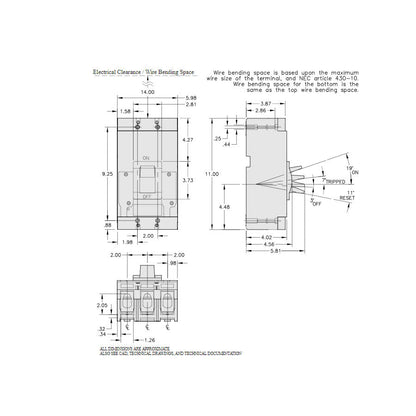

✔ Dimensions: Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.4
