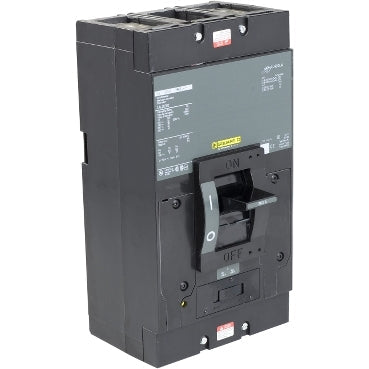

Square D LAL26200 Circuit Breaker | 600V 200A 2P 30kA@480V LAL Series

Product Description:
The Square D LAL26200 is a Molded Case Circuit Breaker from the LAL Series family. It features a 2-pole design with a 600V, 200A rating and a 30kA@480V AIC rating. This breaker uses a Plug In Panelboard connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LAL26200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 30kA@480V
✔ Connection: Plug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901848448
✔ GTIN: 00785901848448
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 6.4
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
