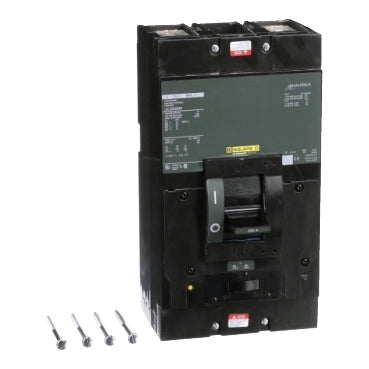

Square D LAL26250MB Circuit Breaker | 600V 250A 2P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL26250MB is a Molded Case Circuit Breaker from the LAL Series. It is a 2-pole, 250 amp breaker rated for 600 volts with an AIC rating of 30kA@480V. This circuit breaker features a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: LAL26250MB
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 250
✔ Poles: 2
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: L Frame
✔ Functions: LI - Long-Time and Instantaneous
✔ Phase: 1
✔ Certification: UL, CSA, IEC
✔ UPC: 785901525356
✔ GTIN: 00785901525356
✔ Country of Origin: Mexico
✔ Dimensions: Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.48
✔ Wire Size: AWG 1, 600 kcmil Aluminium/Copper)1, AWG 1, 250 kcmil Aluminium/Copper)2
