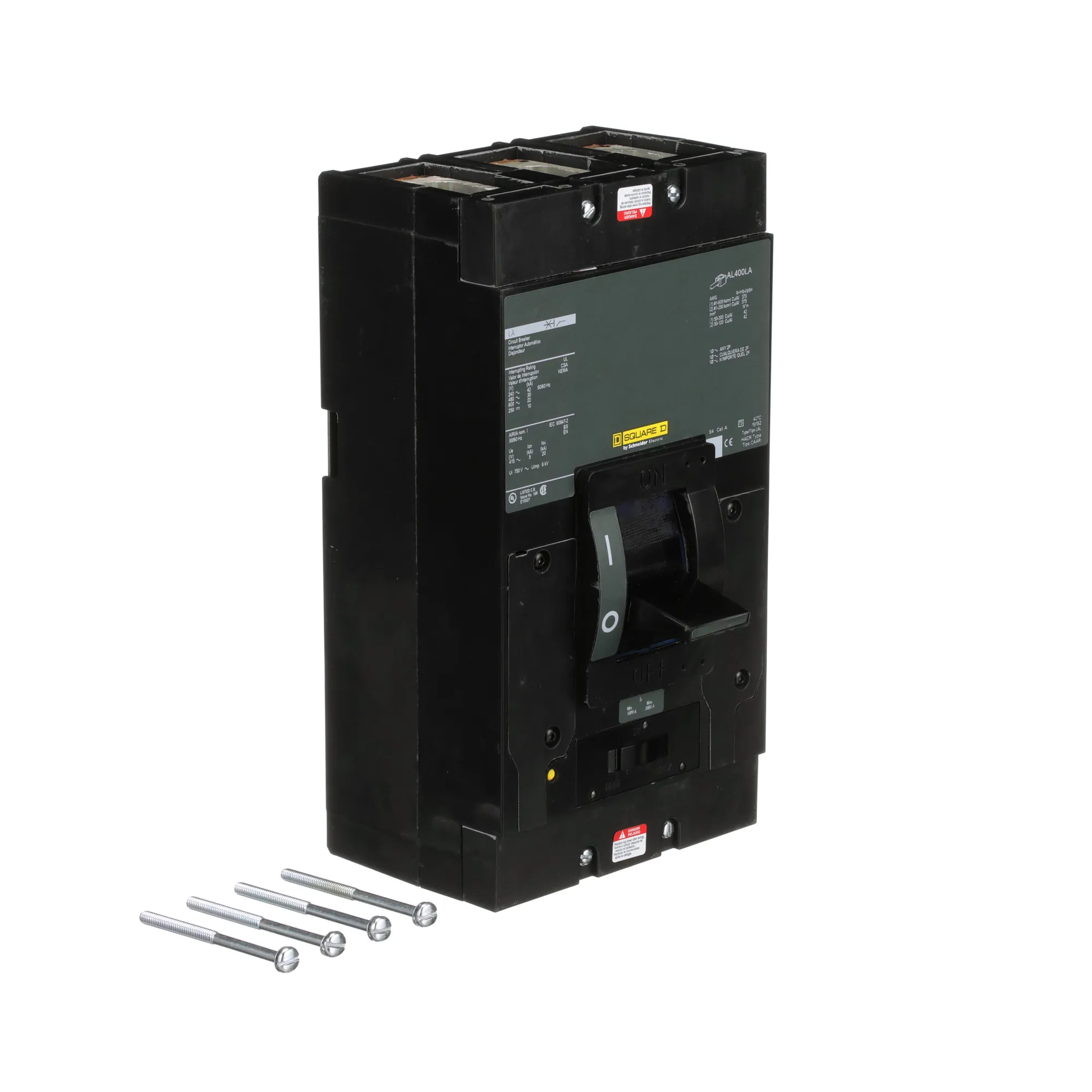

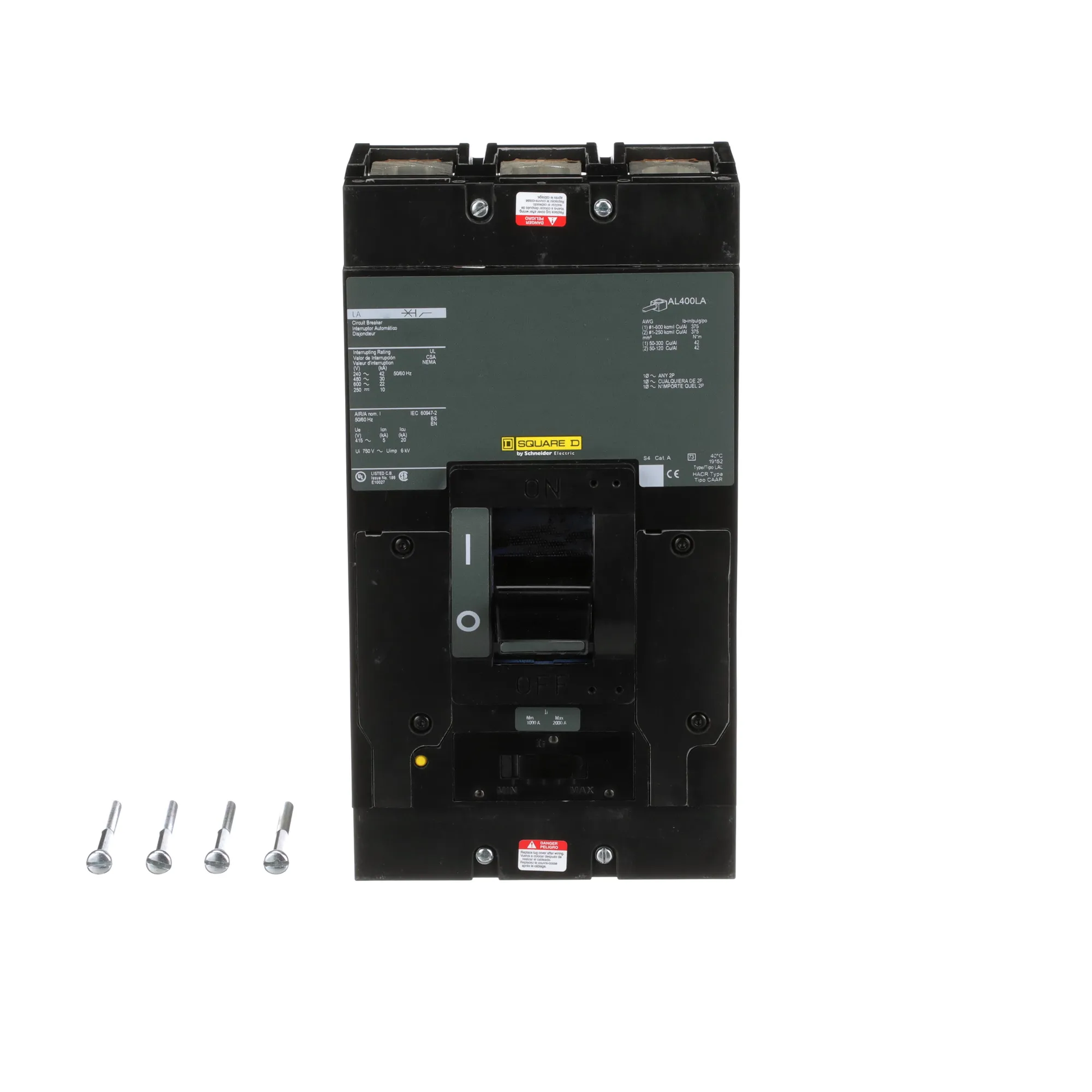

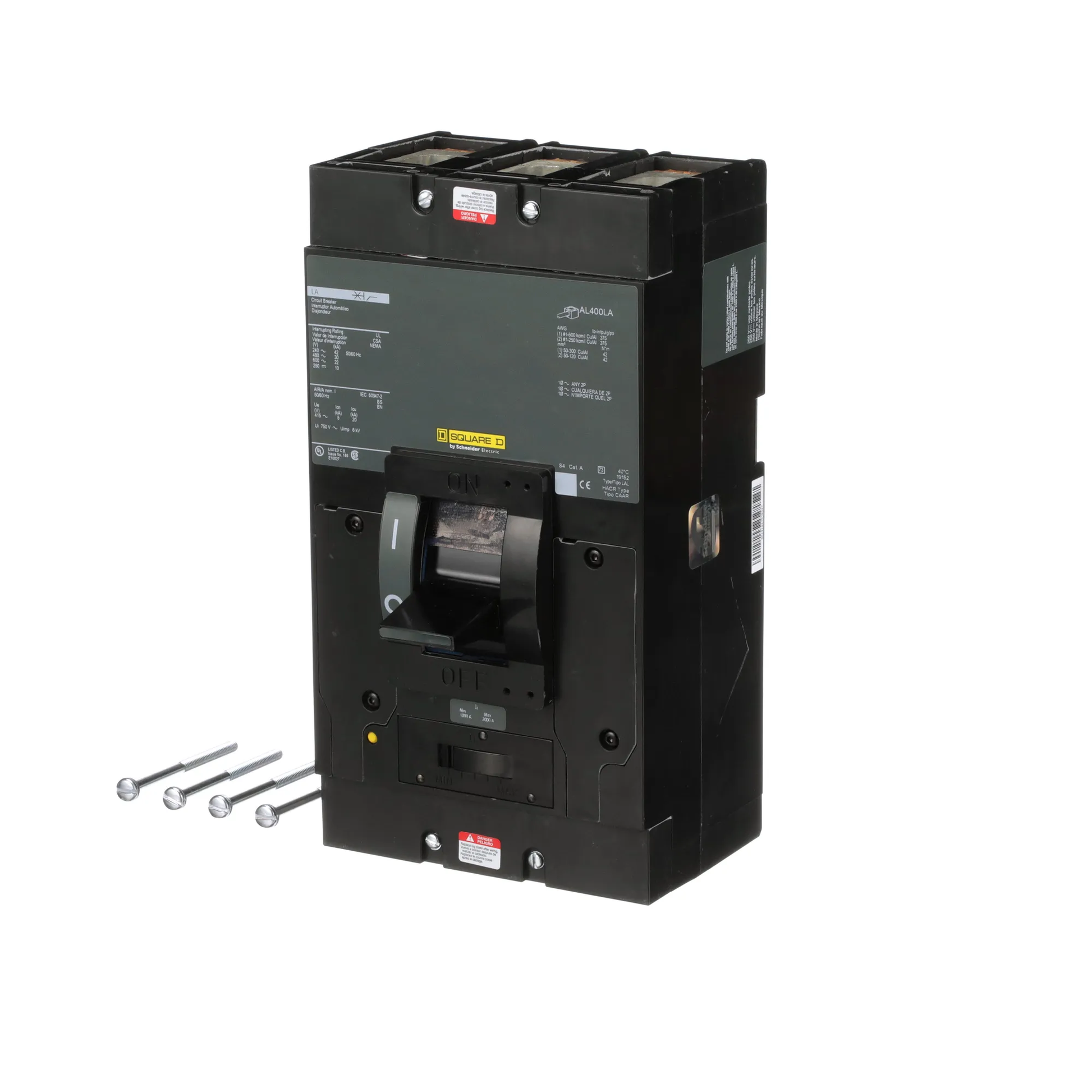

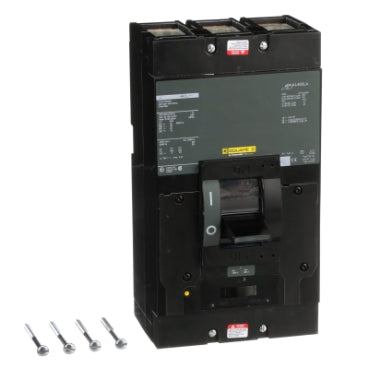

Square D LAL36150 Circuit Breaker | 600V 150A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL36150 is a Molded Case Circuit Breaker from the LAL Series. It features a 3-pole design with a 600V, 150A rating and a 30kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance. It is suitable for various panel types including motor control centers and switchboards.

Key Features:
✔ Part Number: LAL36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous

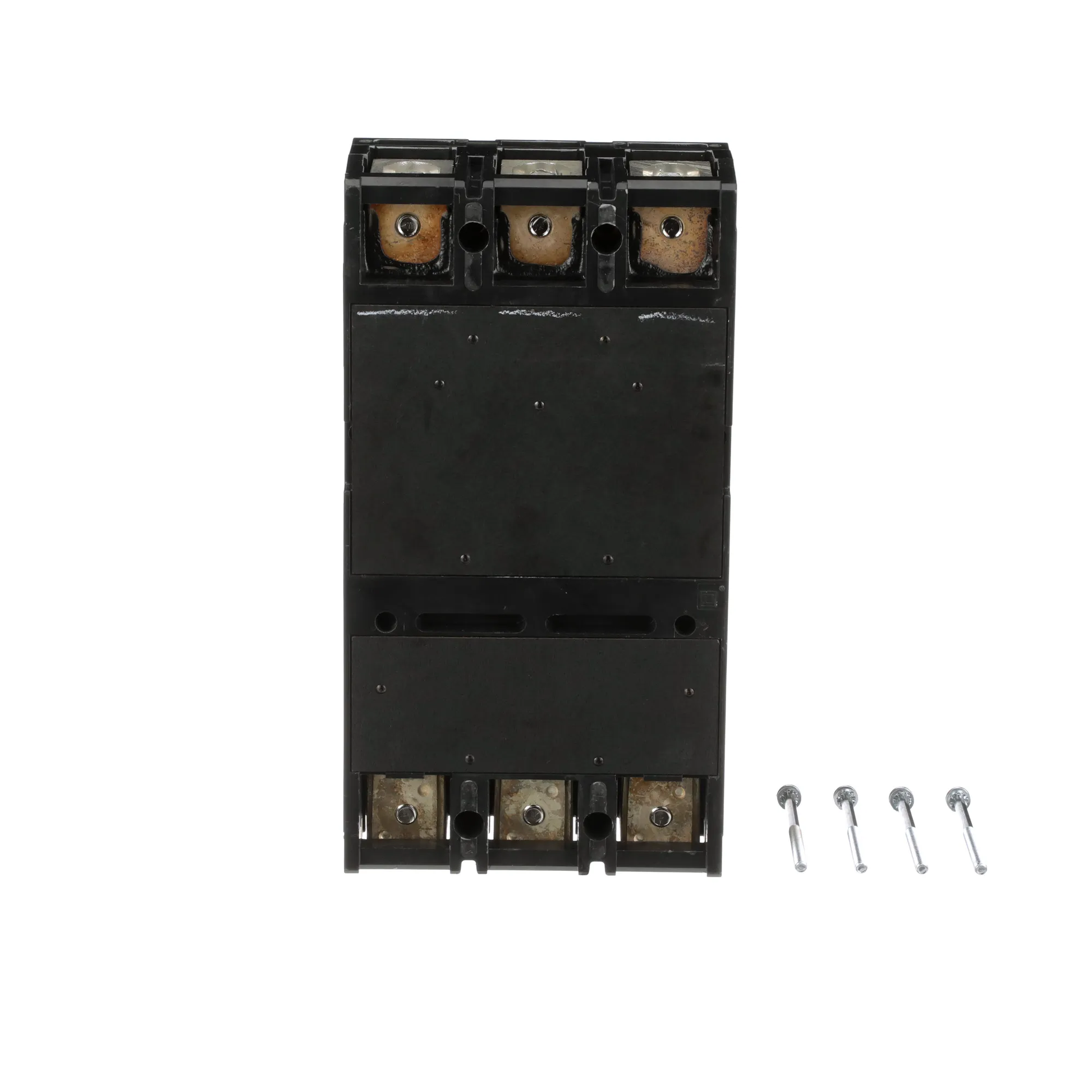

✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901563228
✔ GTIN: 00785901563228
✔ Country of Origin: Mexico

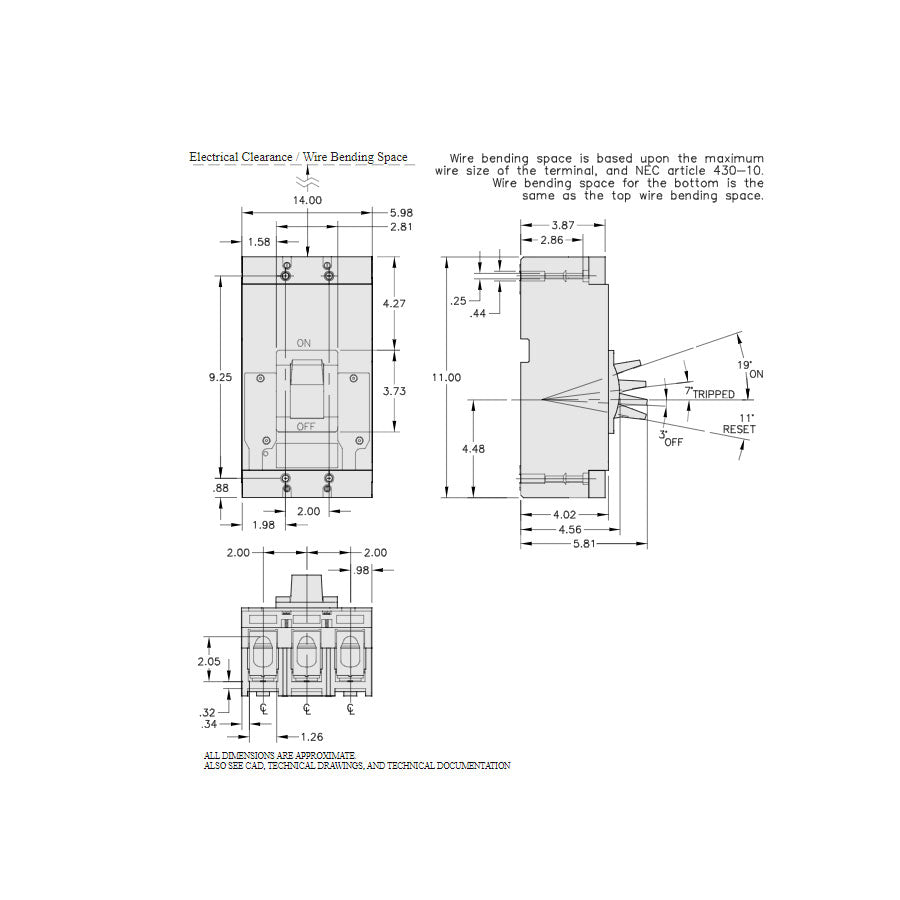

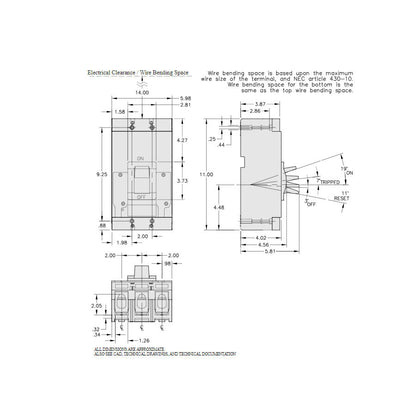

✔ Dimensions: 6 in x 11 in
✔ Weight: 7.22
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL listed
✔ Certification: CSA, IEC, UL listed
