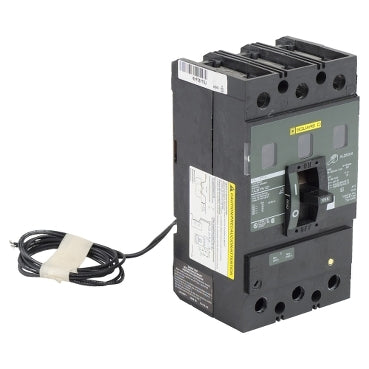

Square D LAL36175 Circuit Breaker | 600V 175A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL36175 is a Molded Case Circuit Breaker from the LAL Series, designed for robust electrical protection. It is a 3-pole, 175 amp breaker rated for 600 Volts with an AIC rating of 30kA at 480V. This unit features a Feed-Thru connection and provides reliable Thermal Magnetic protection for industrial and commercial applications.

Key Features:
✔ Part Number: LAL36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901563235
✔ GTIN: 00785901563235
✔ Country of Origin: Mexico
✔ Dimensions: Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.22
✔ Certification: UL Listed CSA Certified
