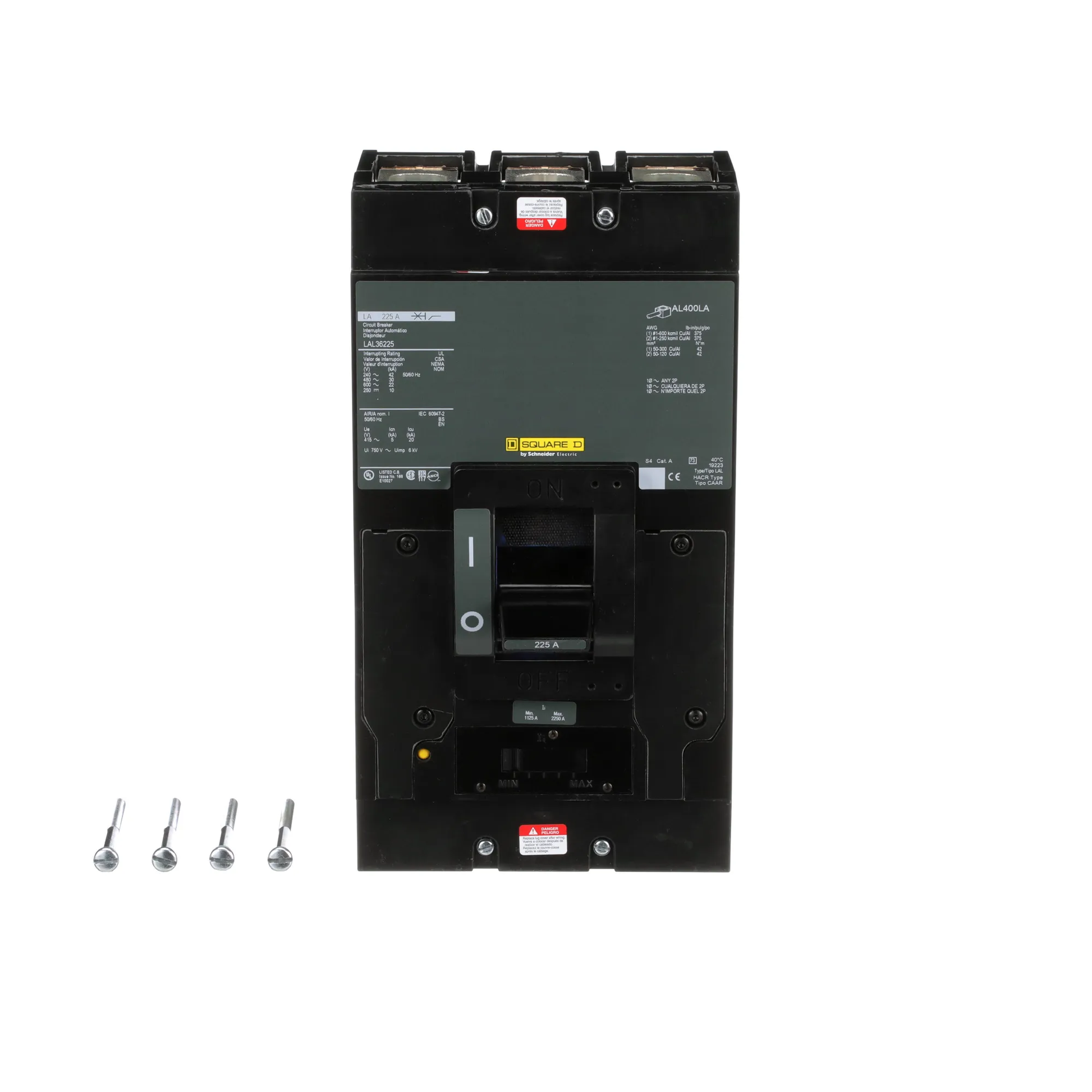

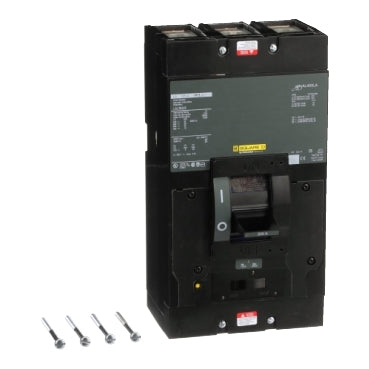

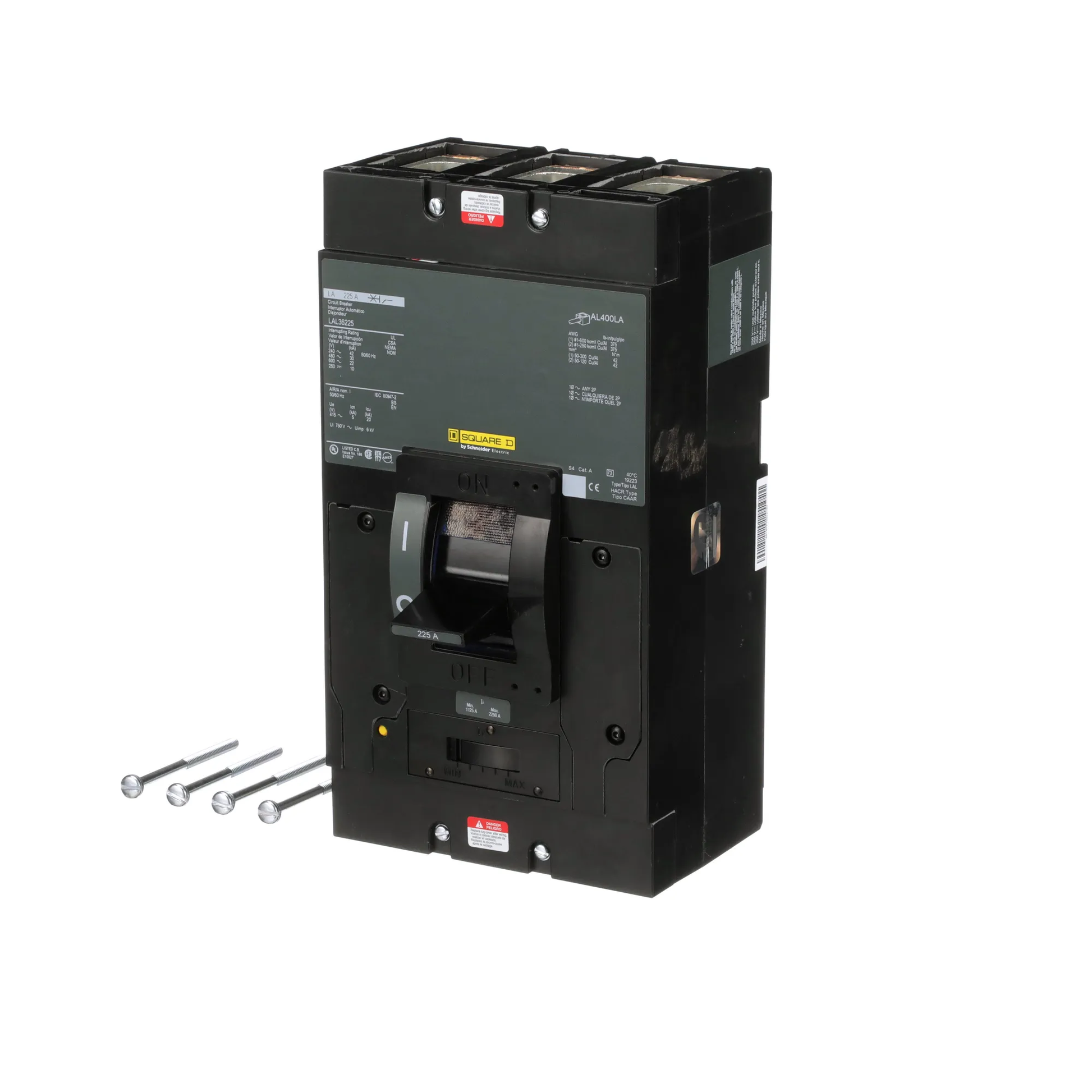

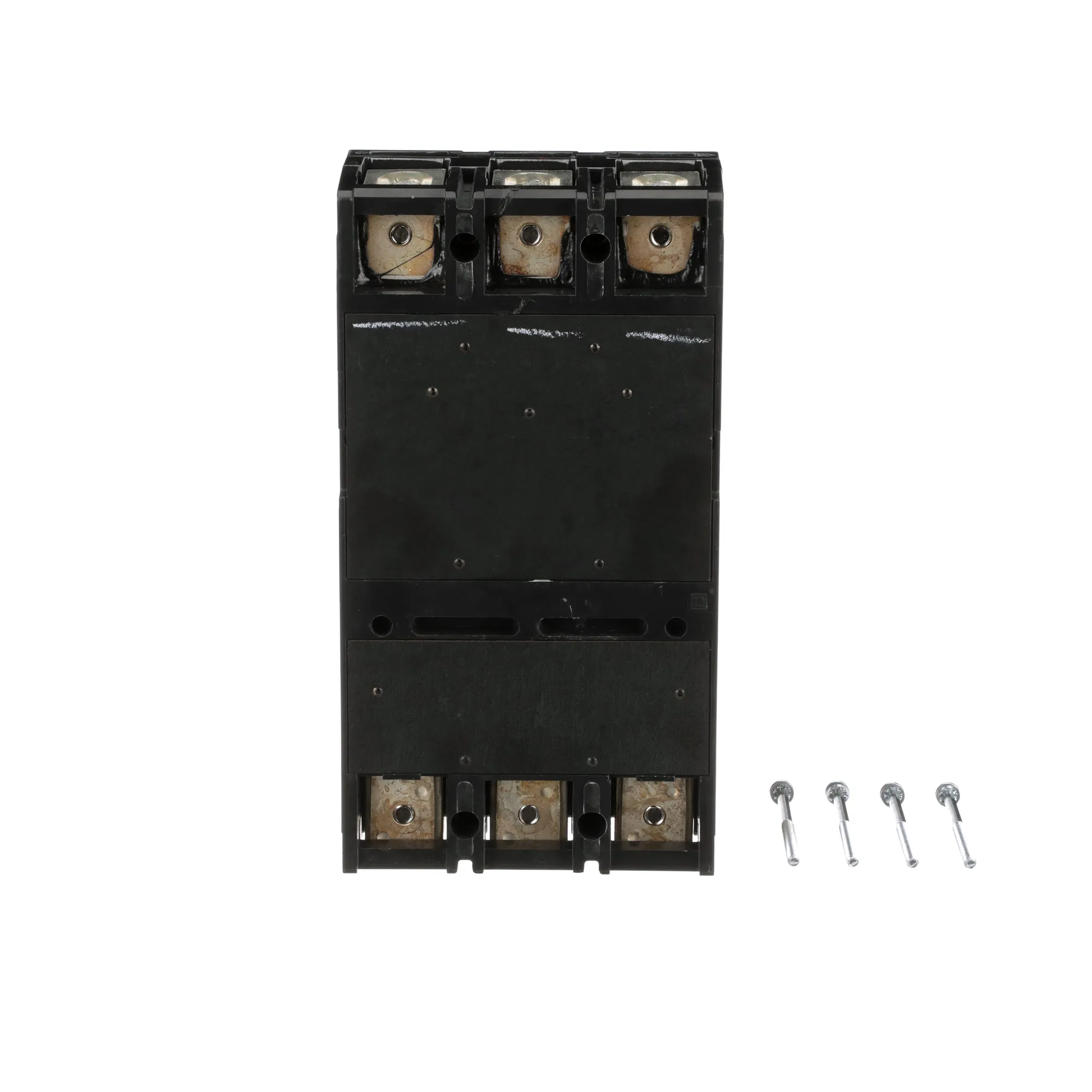

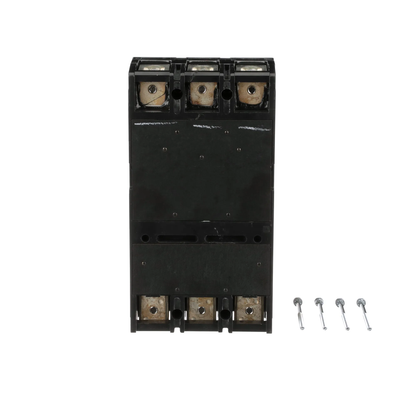

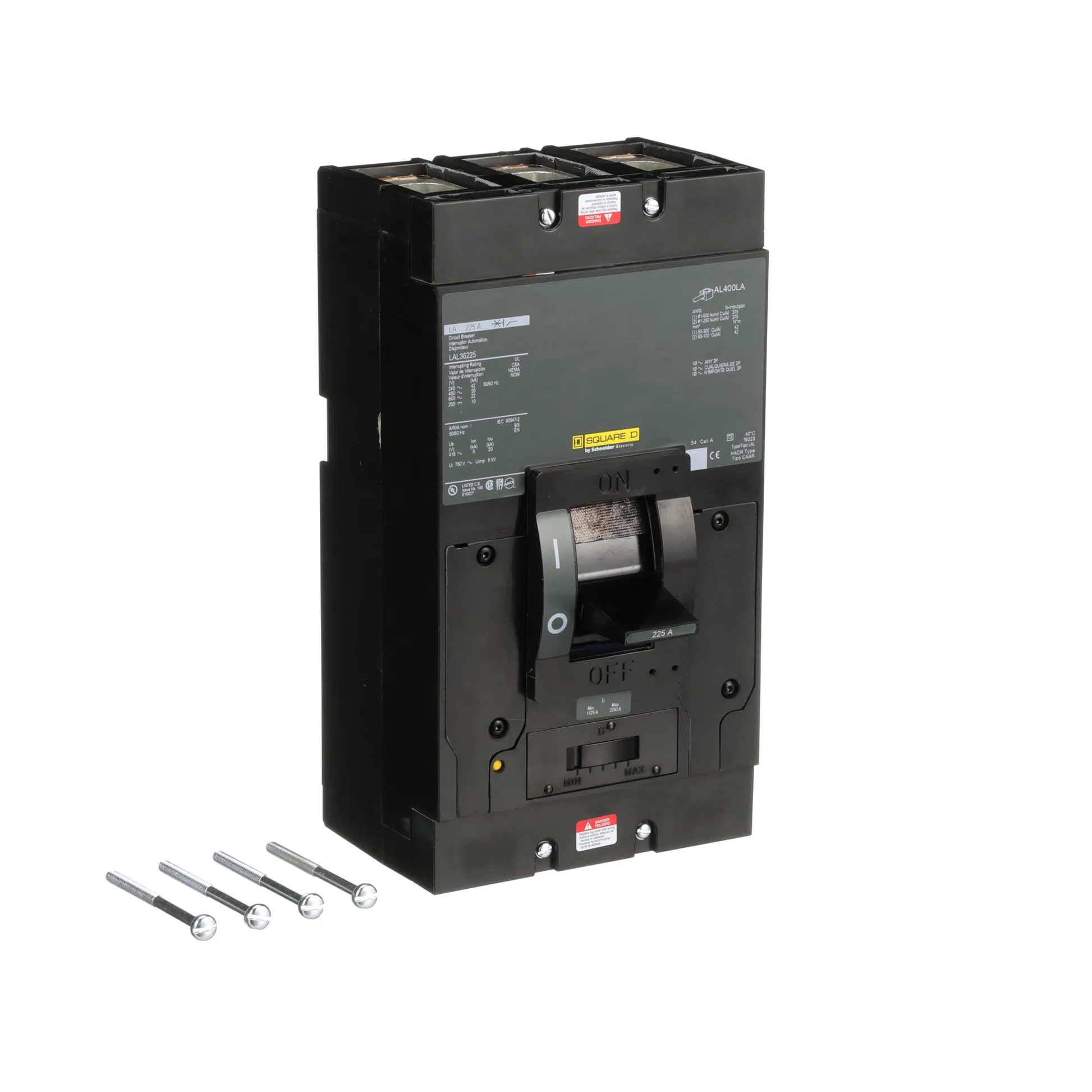

Square D LAL36225 Circuit Breaker | 600V 225A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL36225 is a 3-pole molded case circuit breaker rated for 600 Volts and 225 amps. It features a 30kA interrupting rating at 480V and utilizes thermal magnetic protection for reliable circuit safety. This breaker is designed with a feed-thru connection and is suitable for use in panelboards, switchboards, and motor control centers.

Key Features:
✔ Part Number: LAL36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901009818
✔ GTIN: 00785901009818
✔ Country of Origin: United States

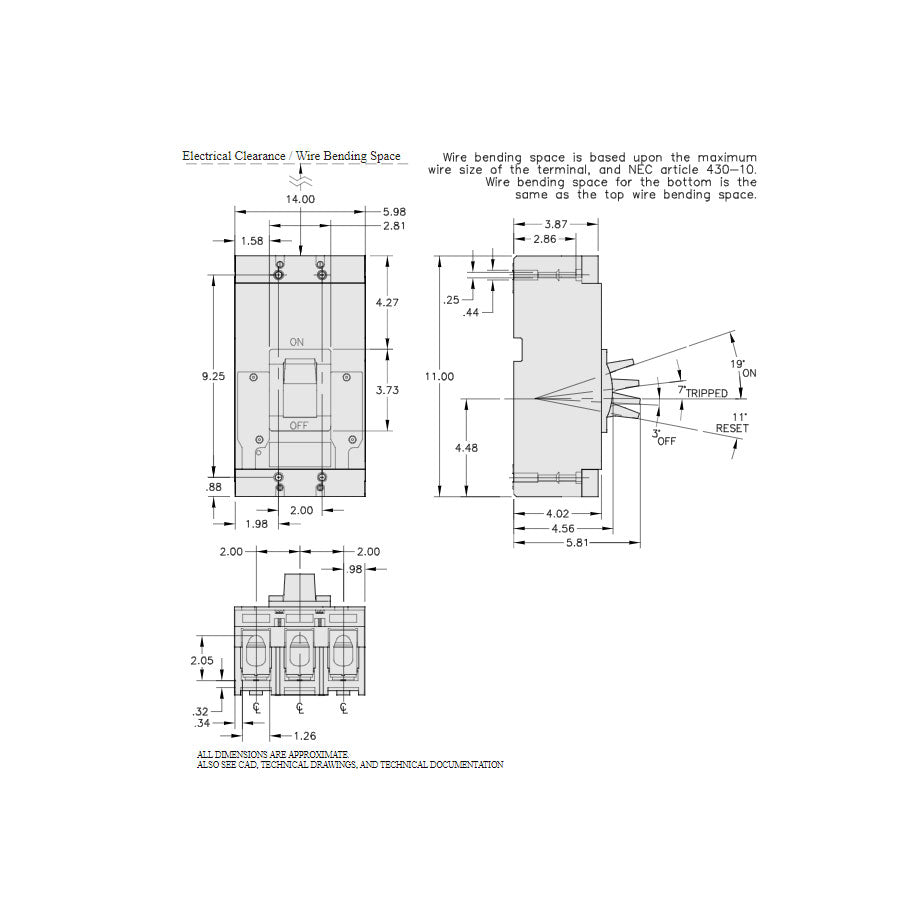

✔ Dimensions: Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.43
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
