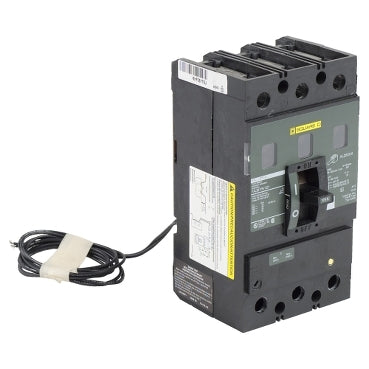

Square D LAL362251021 Molded Case Circuit Breaker | 600V 225A 3P 30kA@480V Bolt-On LAL Series

Product Description:
The Square D LAL362251021 is a 3-pole molded case circuit breaker with a 600V, 225A rating and 30kA@480V AIC rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the LAL Series and includes a 120/240Vac shunt trip. It meets UL, IEC, and CSA standards for reliable performance. Key Features:
✔ Part Number: LAL362251021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901119029
✔ GTIN: 00785901119029
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.61
✔ Standards: UL Listed, IEC, CSA
✔ Certification: UL Listed, IEC, CSA
