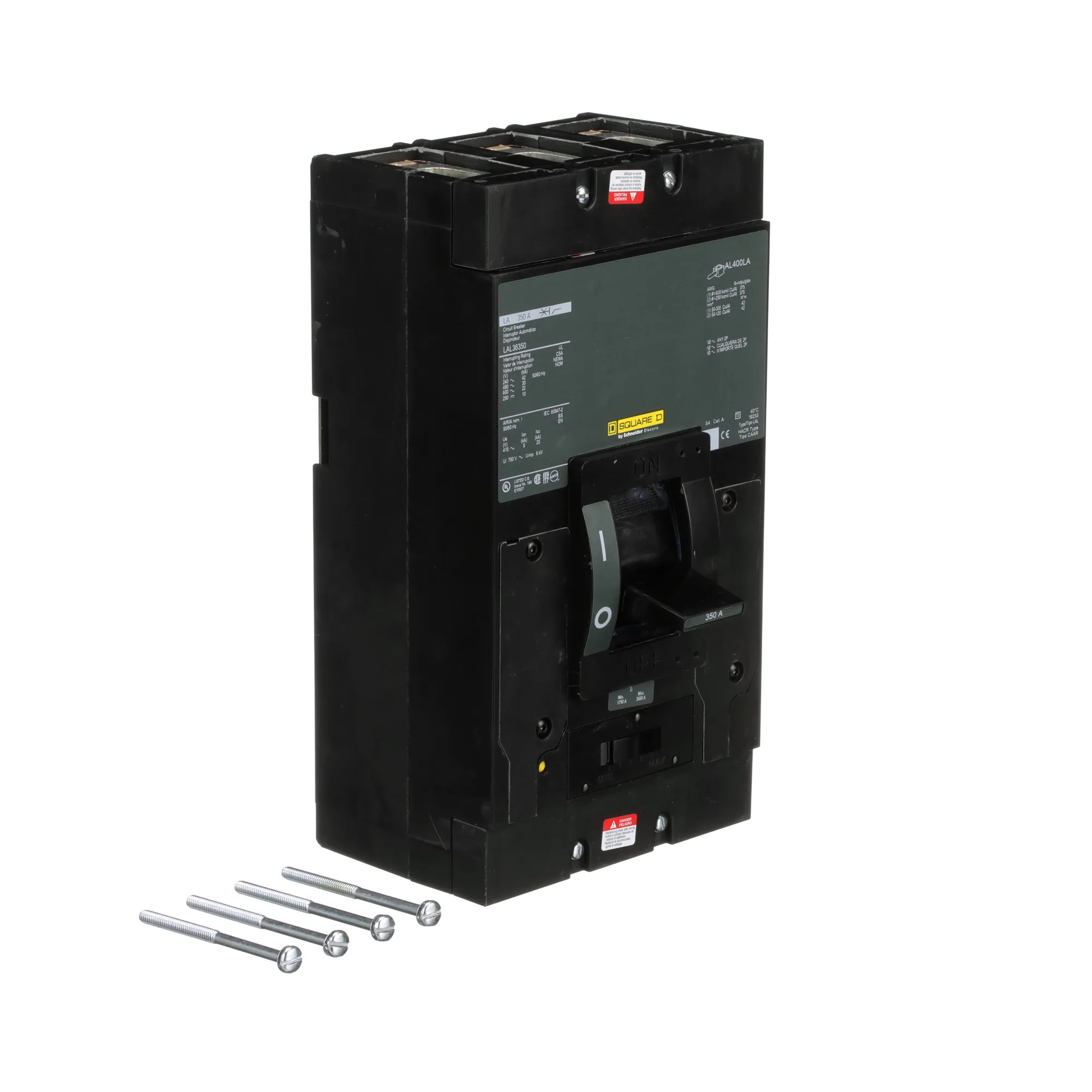

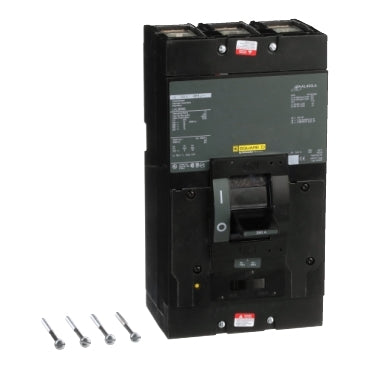

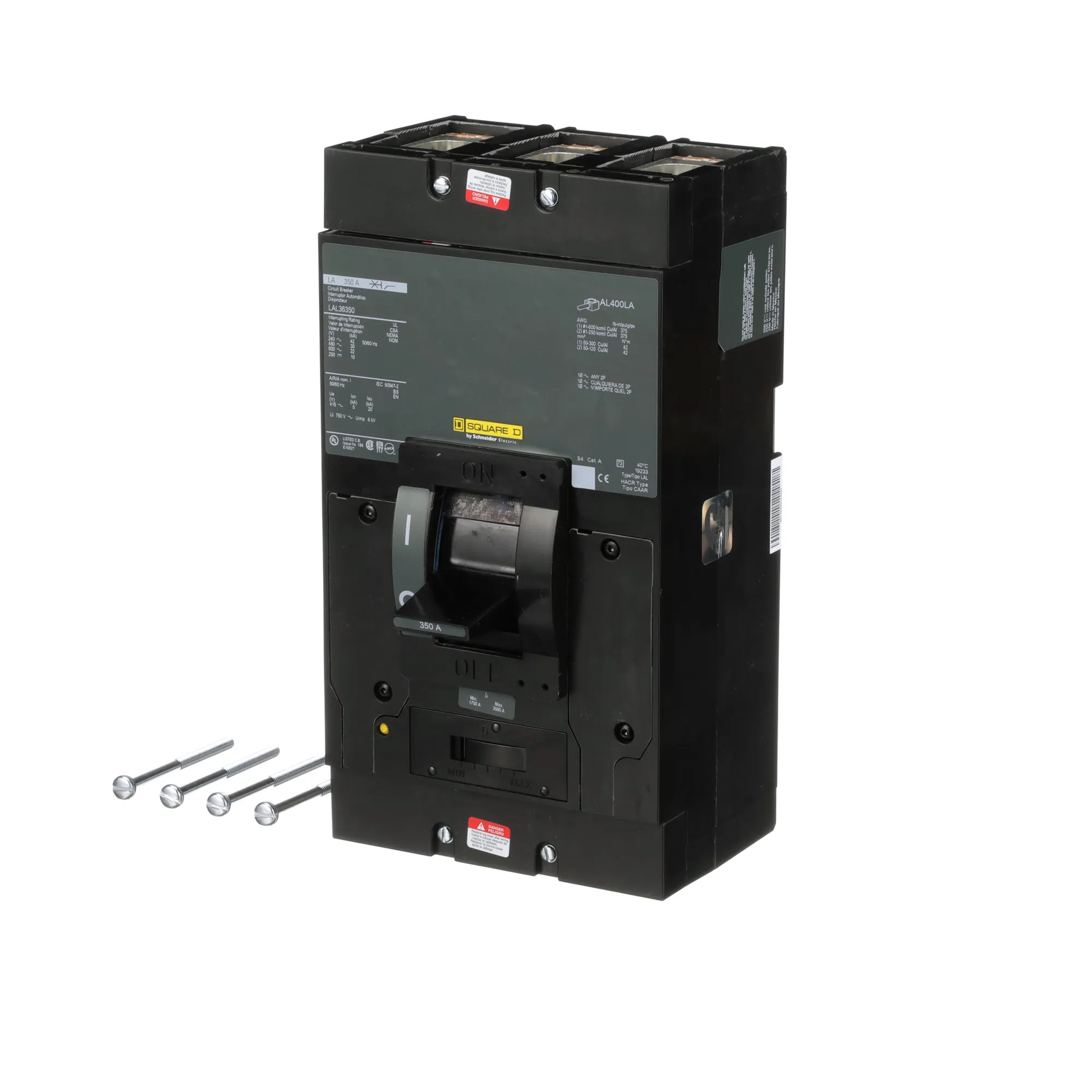

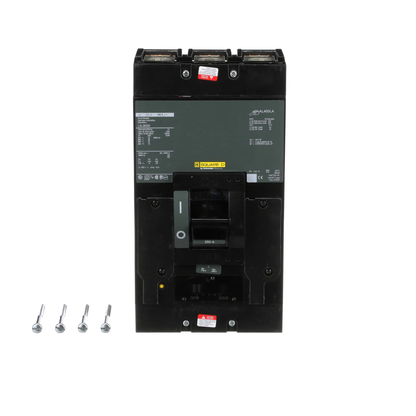

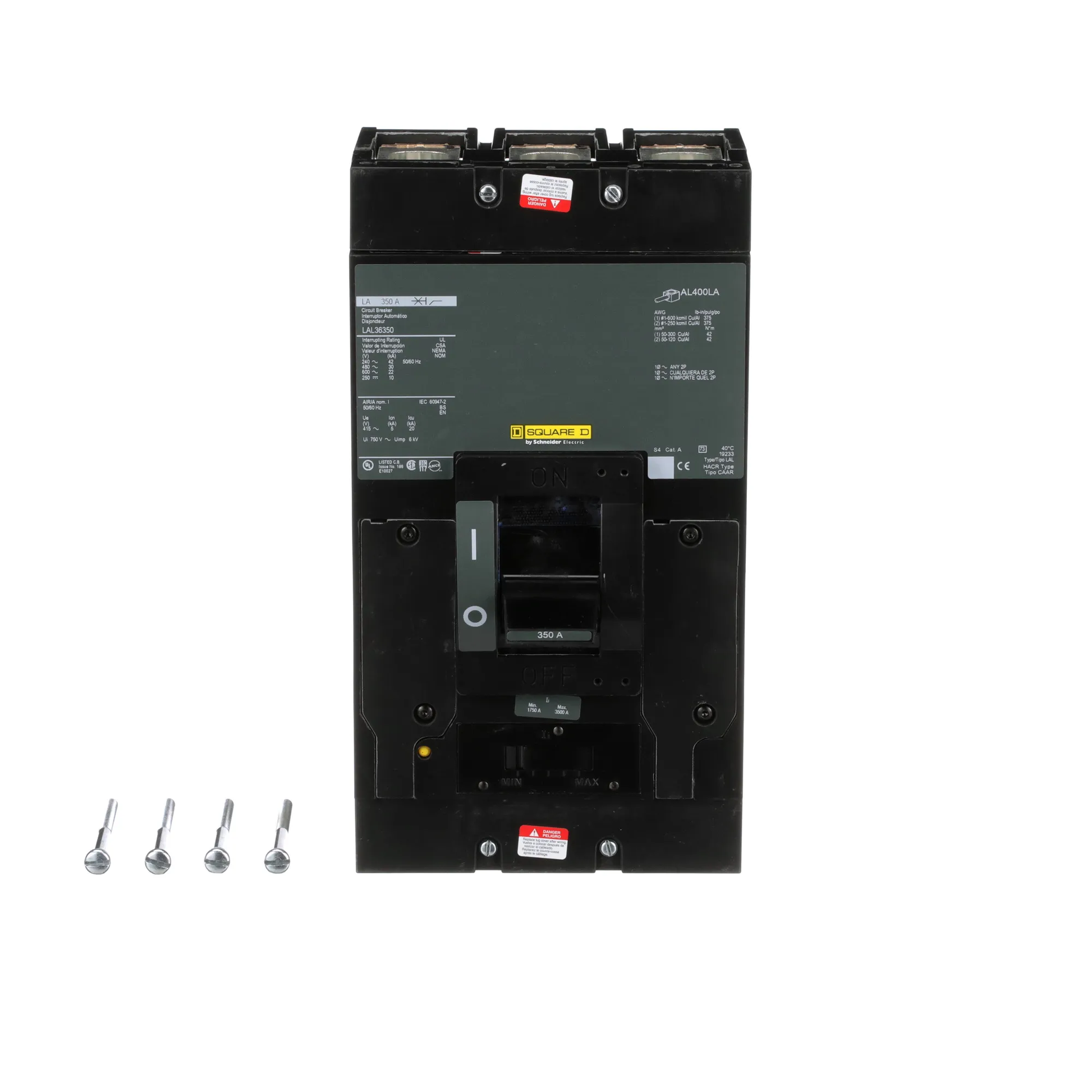

Square D LAL36350 Circuit Breaker | 600V 350A 3P 30kA@480V Feed-Thru LAL Series

Product Description:
The Square D LAL36350 is a Molded Case Circuit Breaker from the LAL Series. It is a 3-pole, 350 amp breaker rated for 600 Volts with an AIC rating of 30kA@480V. This circuit breaker features a Feed-Thru connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: LAL36350
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LAL Series
✔ Type: LAL
✔ Voltage: 600
✔ Amperage: 350
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 30kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous

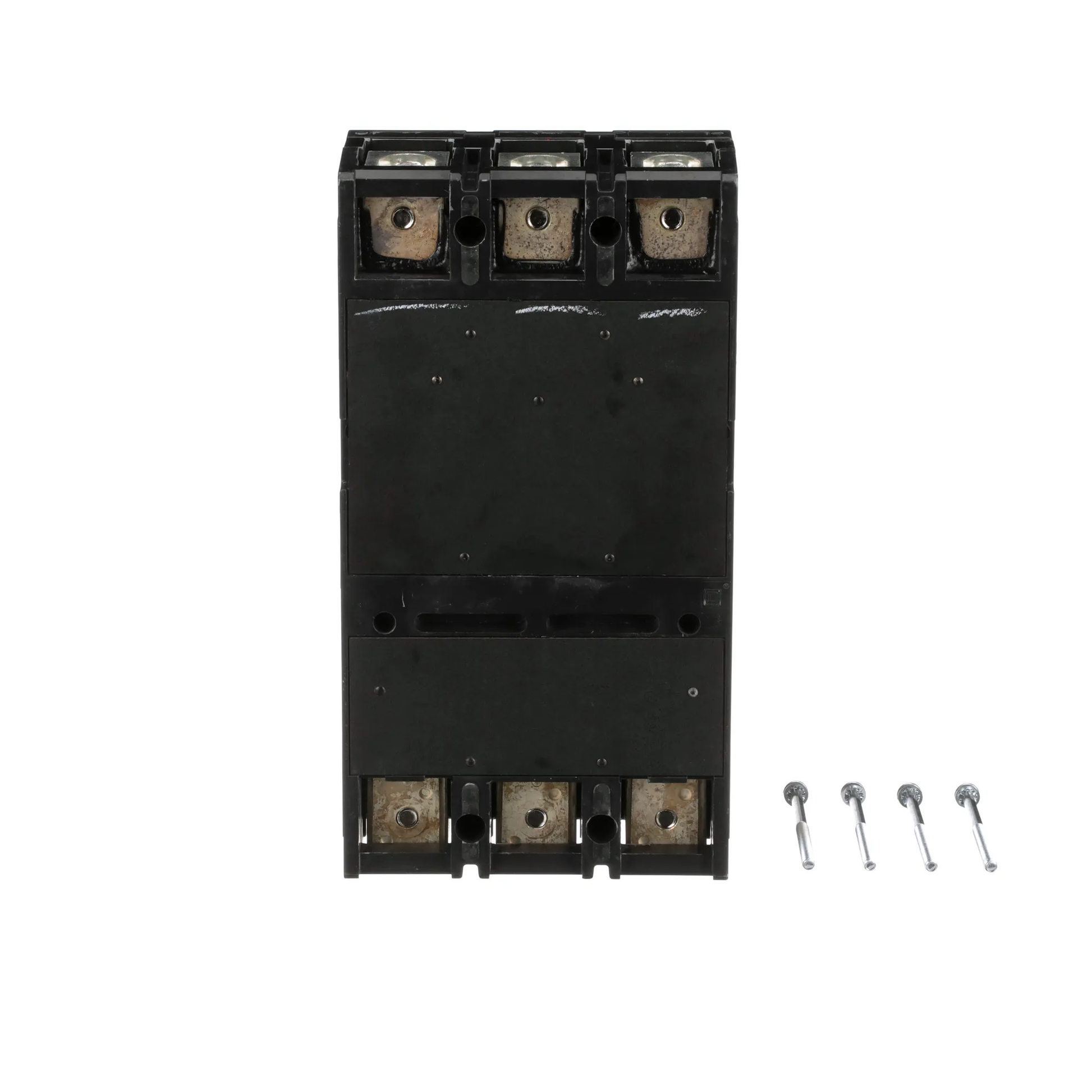

✔ Terminal Connection: Lug
✔ Frame Size: 400A/LA
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901426820
✔ GTIN: 00785901426820
✔ Country of Origin: Mexico

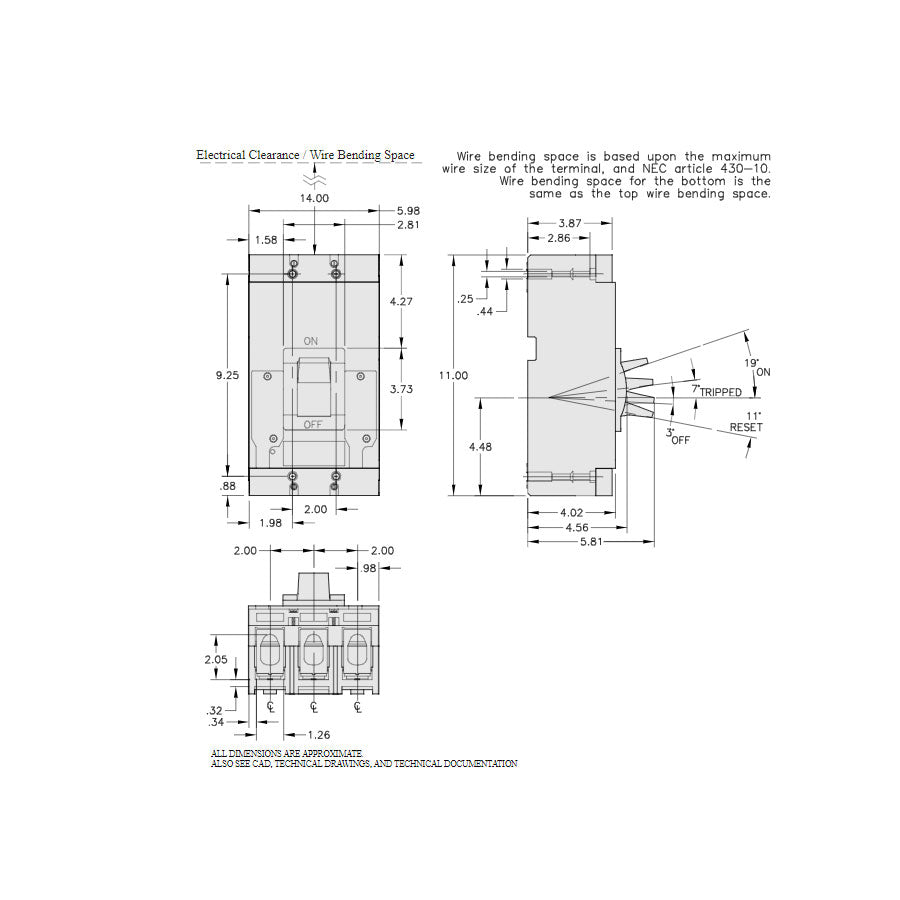

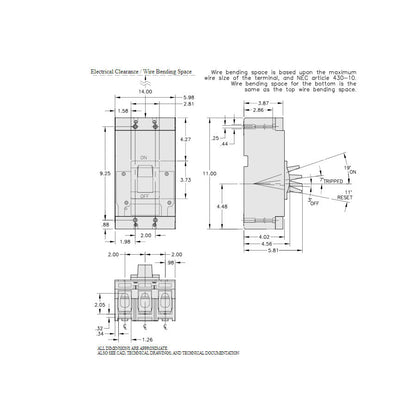

✔ Dimensions: 6 in x 11 in
✔ Weight: 7.35
✔ Panel Type: Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
