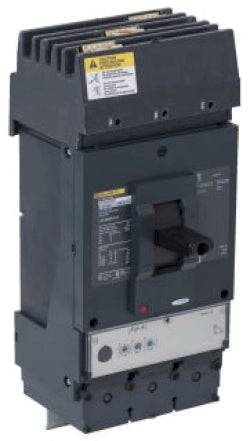

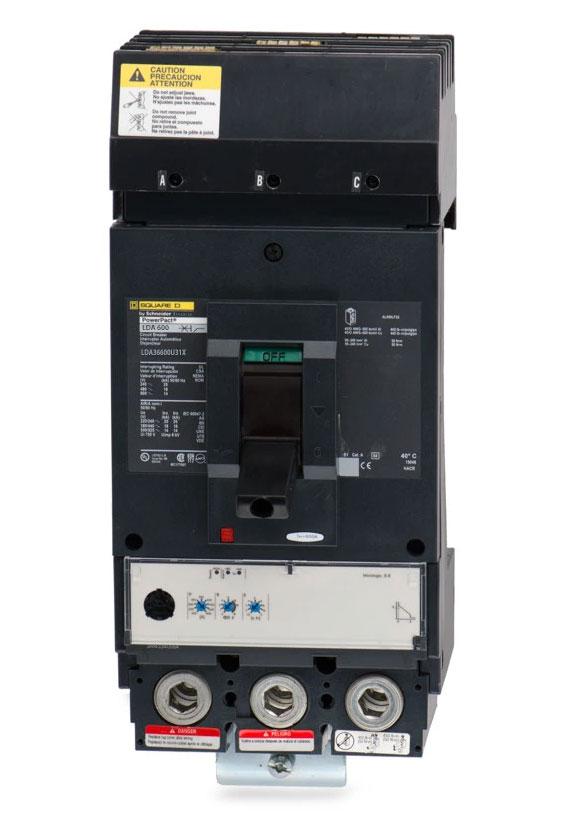

Square D LDA36600U31X Circuit Breaker | 600V 600A 3P 18kA@480V Bolt-On Powerpact
Square D LDA36600U31X Circuit Breaker | 600V 600A 3P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$3,365.84 USD
Regular price
$7,404.00 USD
Sale price
$3,365.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 6 left
Couldn't load pickup availability
Product Description:
The Square D LDA36600U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and an 18kA@480V AIC rating. This bolt-on circuit breaker includes solid-state protection and is suitable for industrial applications. It meets UL, CSA, NEMA, NOM, and IEC standards.
Key Features:
✔ Part Number: LDA36600U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901986737
✔ GTIN: 00785901986737
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 8.51 lb
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
