Images are for reference only
Square D

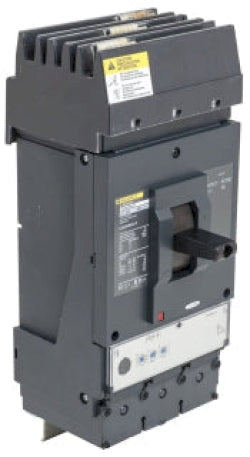

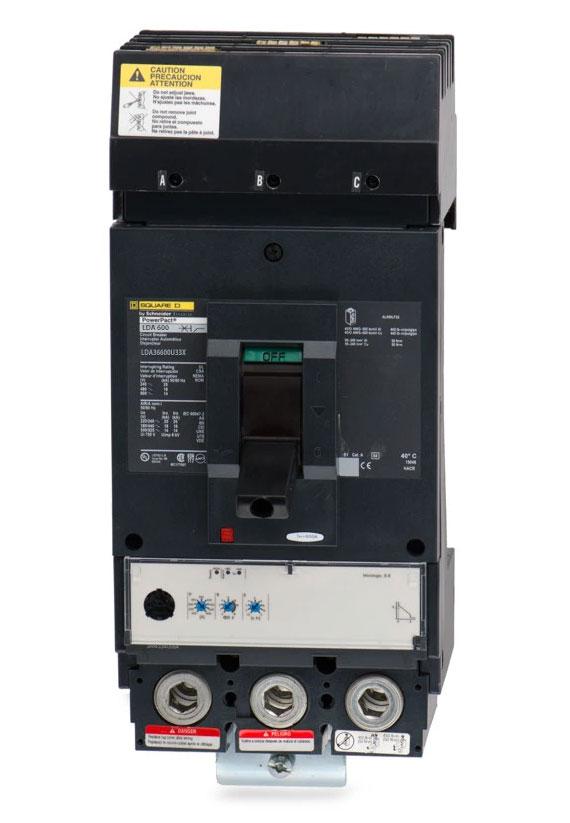

Square D LDA36600U33X Circuit Breaker | 600V 600A 3P 18kA@480V Powerpact
Square D LDA36600U33X Circuit Breaker | 600V 600A 3P 18kA@480V Powerpact
Price:
Sale
Sold out
Regular price
$3,930.34 USD
Regular price
$7,968.00 USD
Sale price
$3,930.34 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D LDA36600U33X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 600 amp rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LDA36600U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 060648628373
✔ GTIN: 03606486283738
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.71
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
The Square D LDA36600U33X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 600 amp rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LDA36600U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 060648628373
✔ GTIN: 03606486283738
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.71
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
