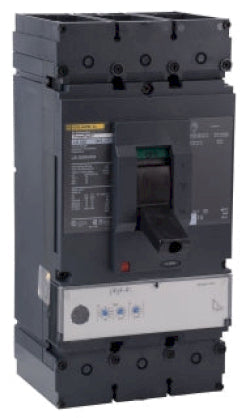

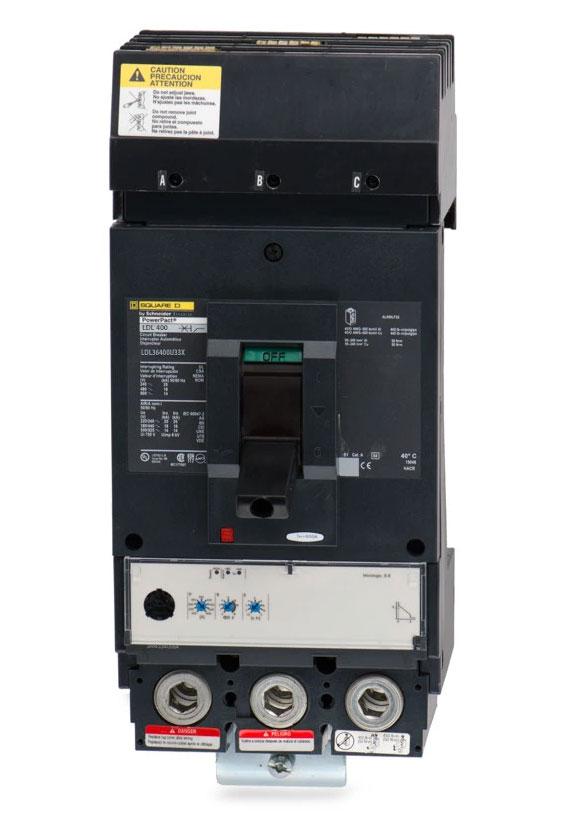

Square D LDL36400U33X Circuit Breaker | Powerpact LDL 600V 400A

Product Description:
The Square D LDL36400U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.

Key Features:
✔ Part Number: LDL36400U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDL
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 078590195435
✔ GTIN: 00785901954354
✔ Dimensions: 13.39" H x 3.09" D x 4.44" W
✔ Weight: 15 lb
✔ Wire Size: 2 x AWG 2/0
