Square D LGF36400U31X Circuit Breaker | 600V 400A 3P 35kA@480V Bolt-On Powerpact

Product Description:

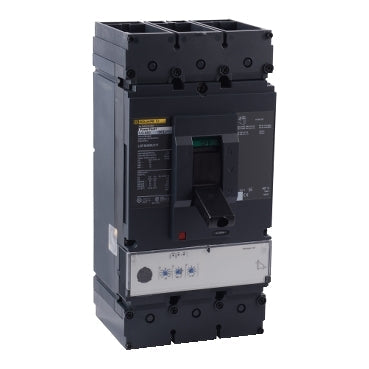

The Square D LGF36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This frame-only unit includes solid-state protection and a bolt-on connection for secure installation.

Key Features:
✔ Part Number: LGF36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGF
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: L
✔ MCM Size: Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901521785
✔ GTIN: 00785901521785
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 7.72
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
