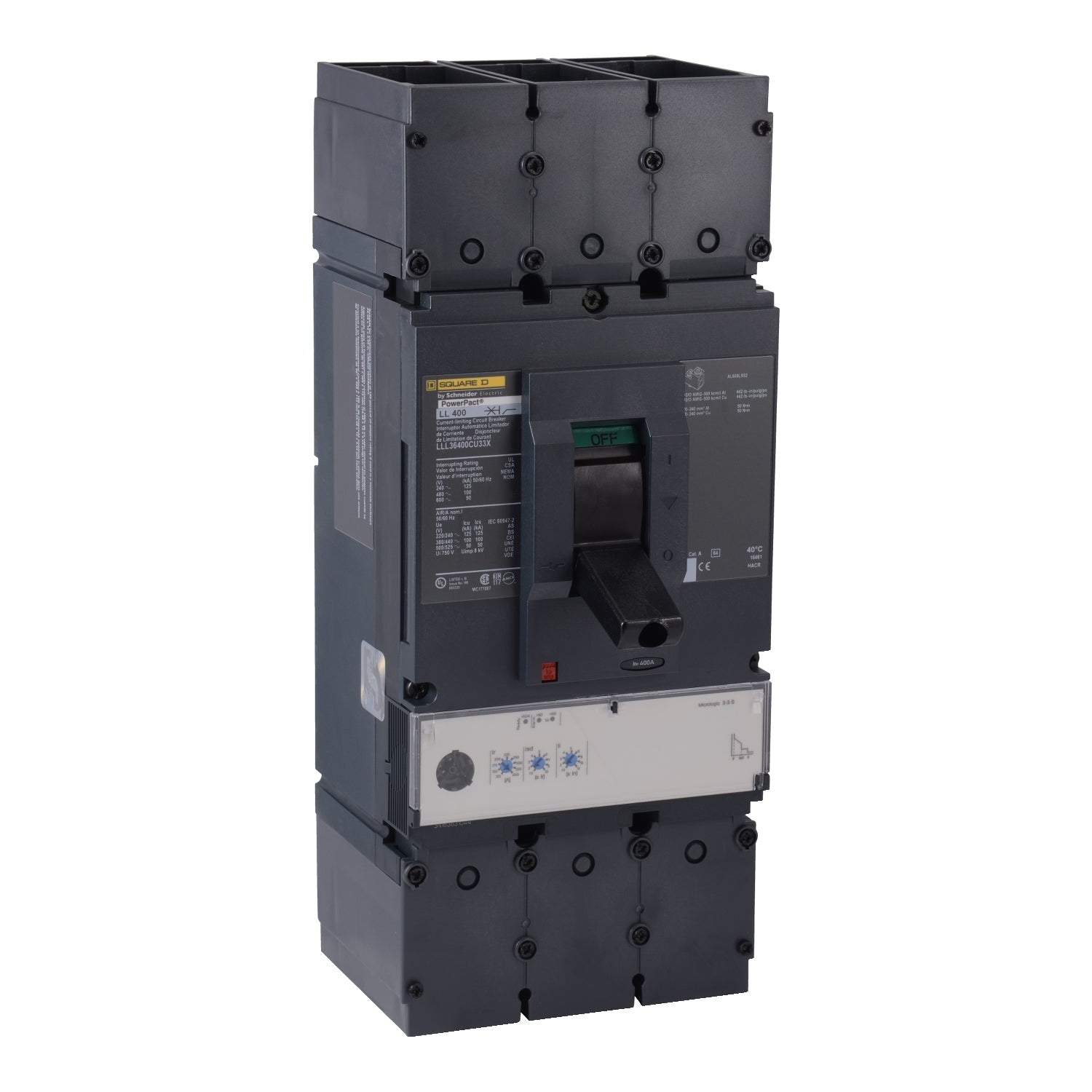

Square D LGL36400CU33X Circuit Breaker | 600V 400A 3P 35kA@480V Feed-Thru

Product Description:
The Square D LGL36400CU33X is a 3-pole molded case circuit breaker designed for industrial and commercial electrical systems. It is rated for 400 amps and 600 volts, providing reliable circuit protection with a 35kA interrupting capacity at 480V. This breaker features solid-state protection and a feed-thru connection for efficient power distribution.

Key Features:
✔ Part Number: LGL36400CU33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Solid State
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ UPC: 78590148683
✔ GTIN: 00785901486831
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.8
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
