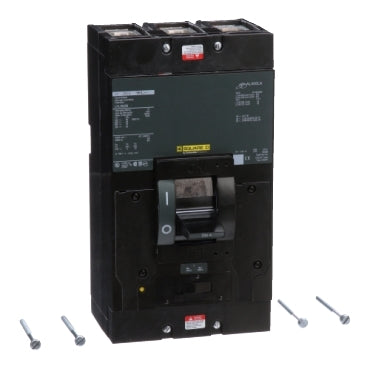

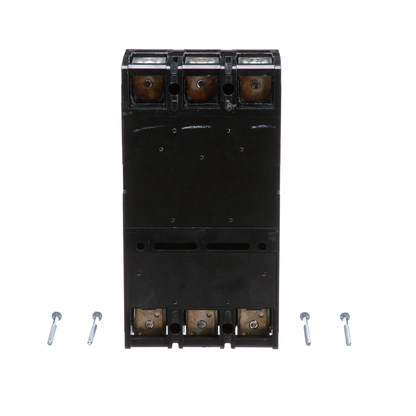

Square D LHL36250 Circuit Breaker | 600V 250A 3P 35kA@480V Feed-Thru LHL Series

Product Description:
The Square D LHL36250 is a Molded Case Circuit Breaker from the LHL Series, designed for robust electrical protection. It is a 3-pole, 250 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This model features thermal magnetic protection and a feed-thru connection for reliable performance in industrial applications.

Key Features:
✔ Part Number: LHL36250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LHL Series
✔ Type: LHL
✔ Voltage: 600
✔ Amperage: 250
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: 400A/LA
✔ Certification: CSA, IEC, UL Listed
✔ UPC: 785901339366
✔ GTIN: 00785901339366
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.4
