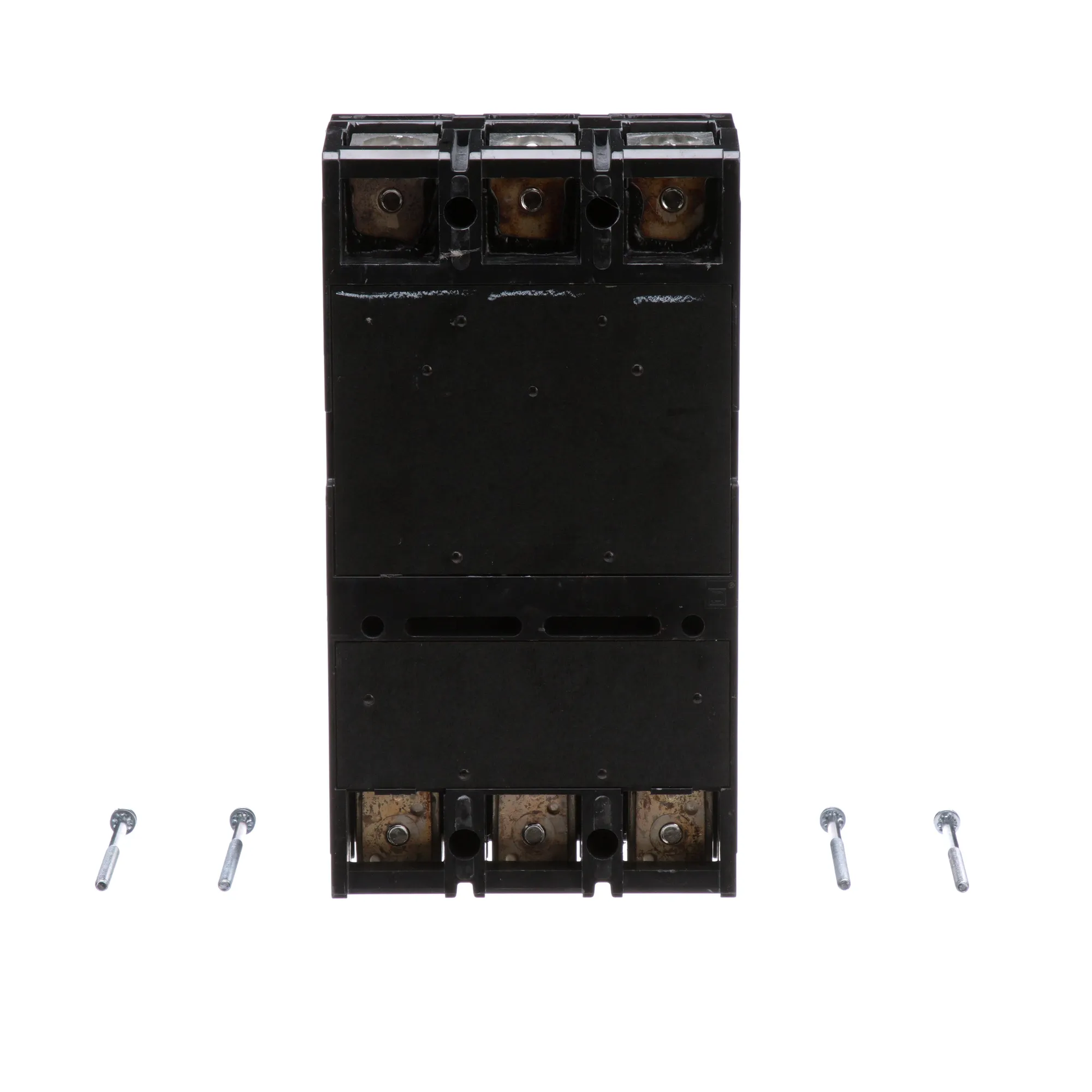

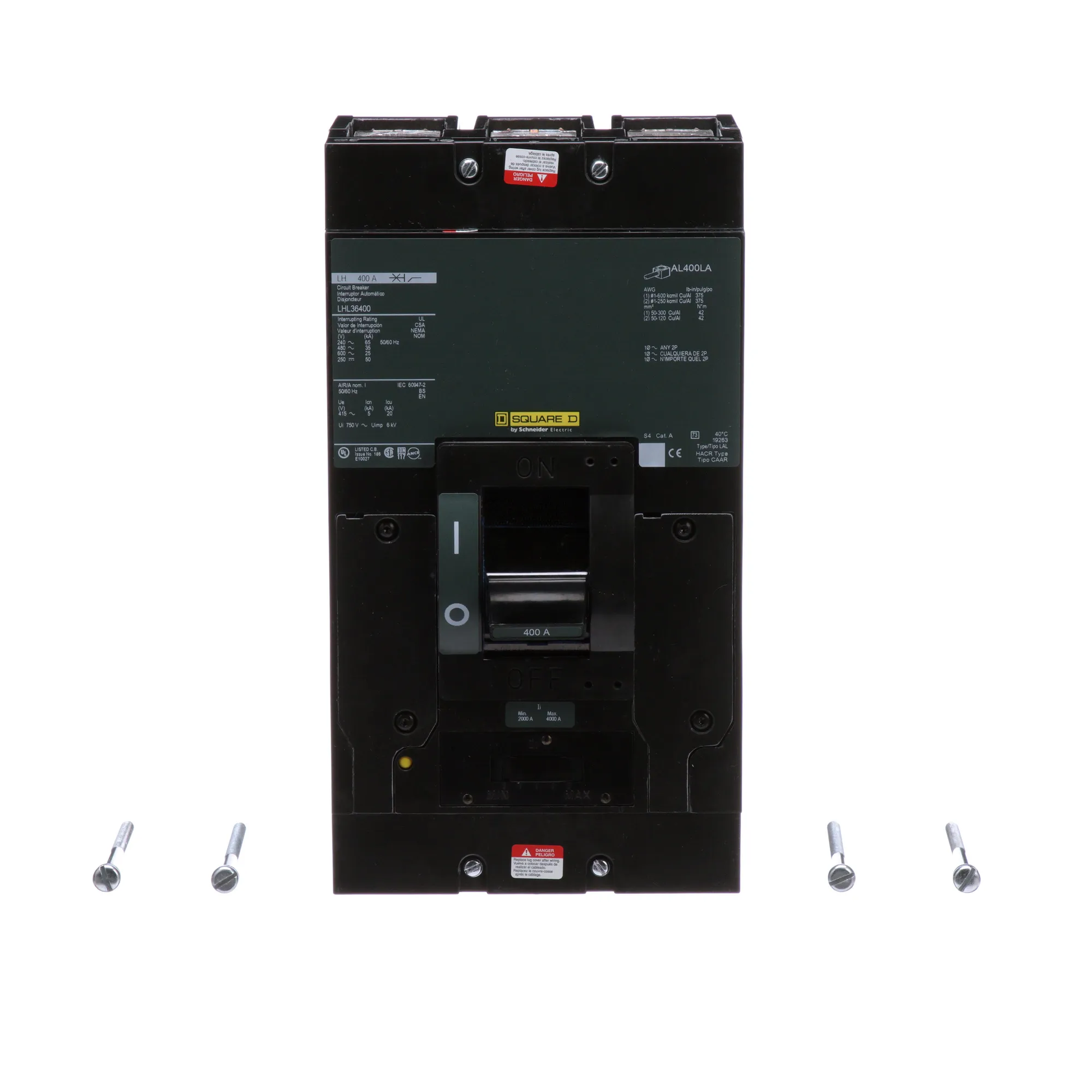

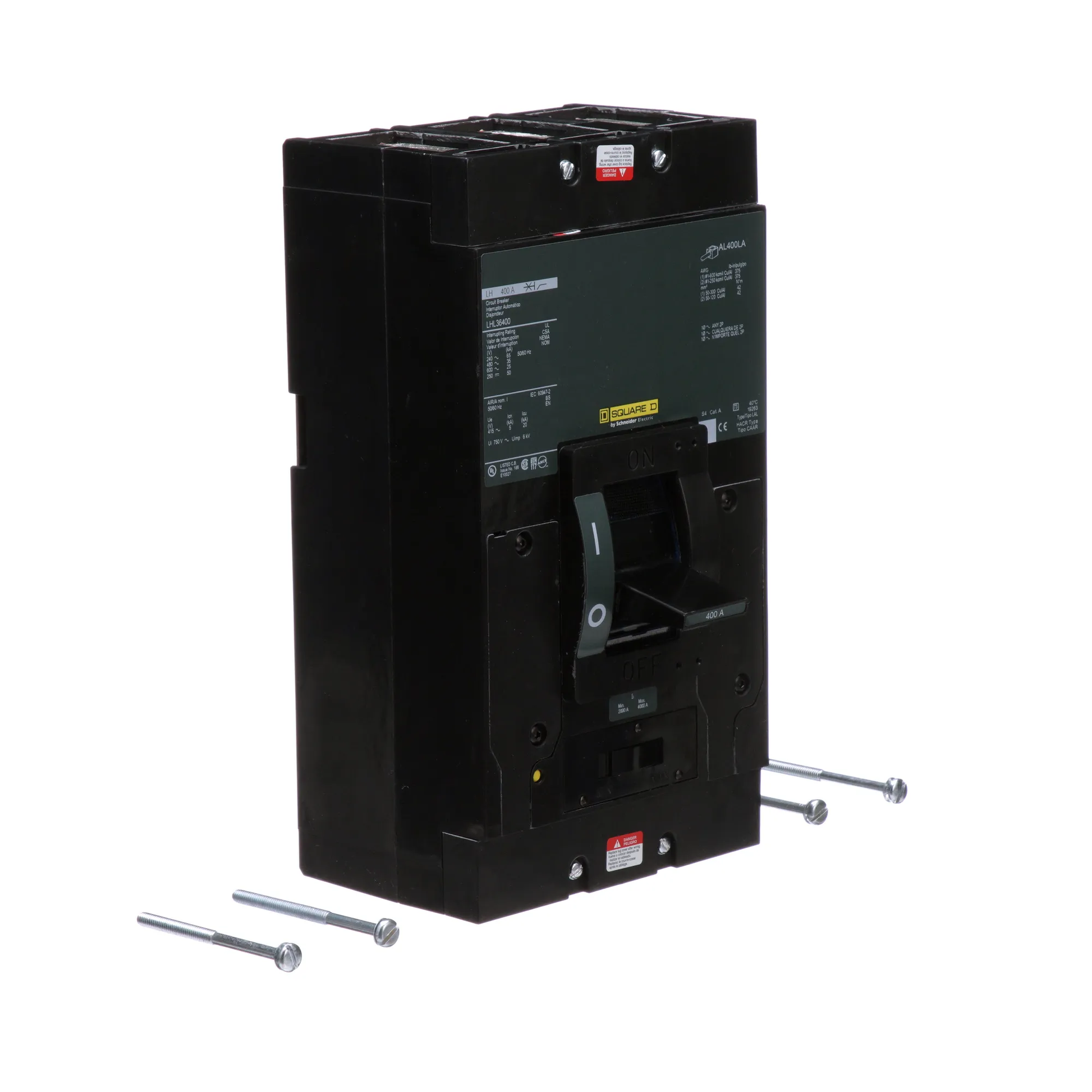

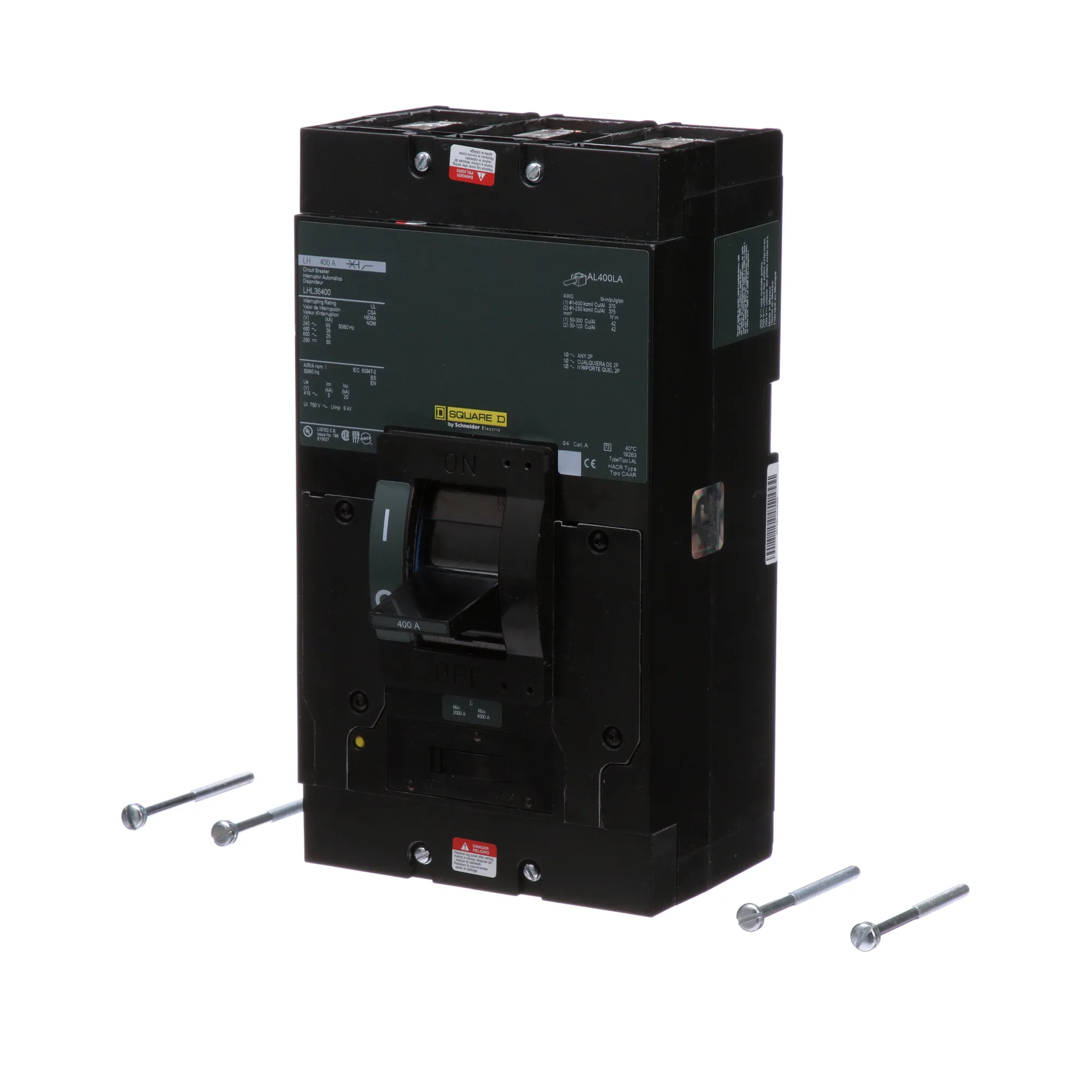

Square D LHL36400 Molded Case Circuit Breaker | 600V 400A 3P 35kA@480V Bolt-On LHL Series

Product Description:
The Square D LHL36400 is a Molded Case Circuit Breaker from the LHL Series. It is a 3-pole, 400 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: LHL36400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LHL Series
✔ Type: LHL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Protection: Thermal Magnetic
✔ UPC: 785901339380
✔ GTIN: 00785901339380
✔ Country of Origin: Mexico

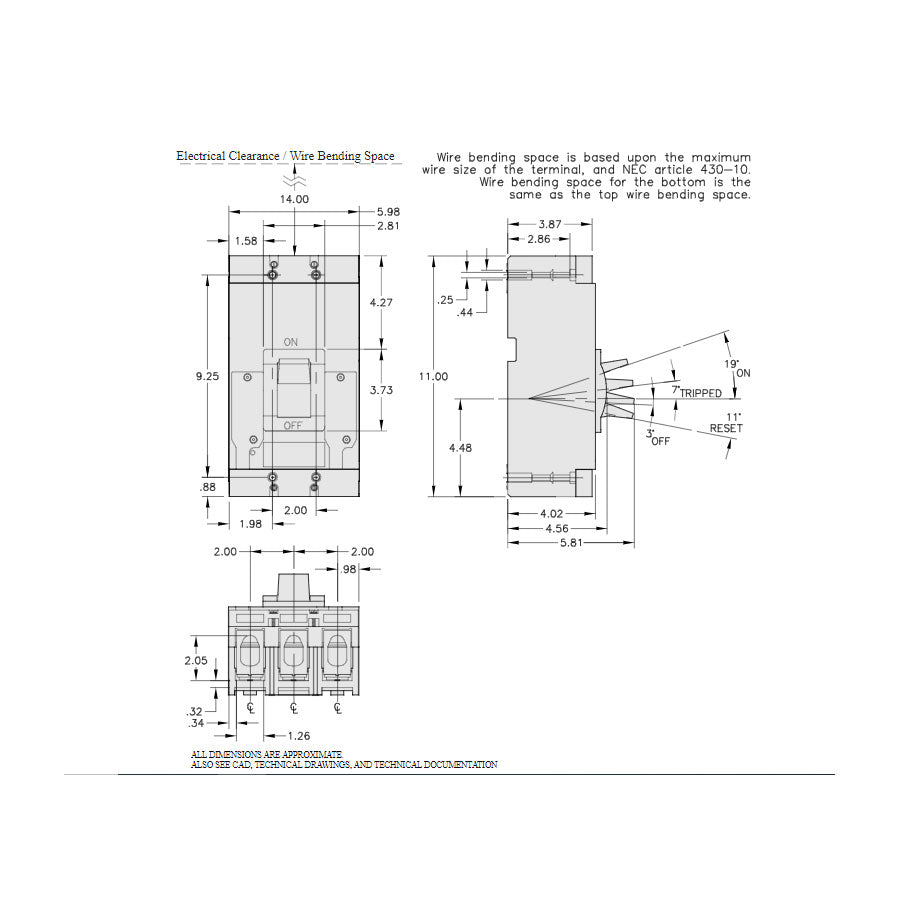

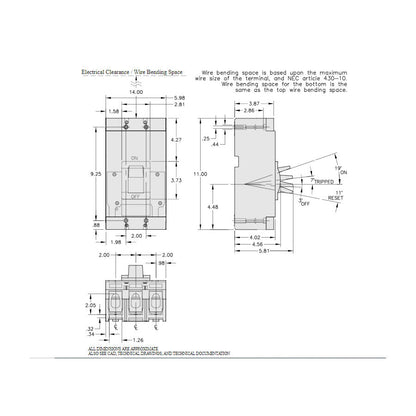

✔ Dimensions: 6 in x 11 in
✔ Weight: 7.31
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
