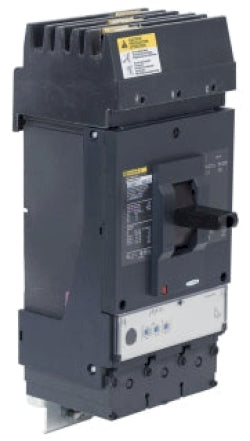

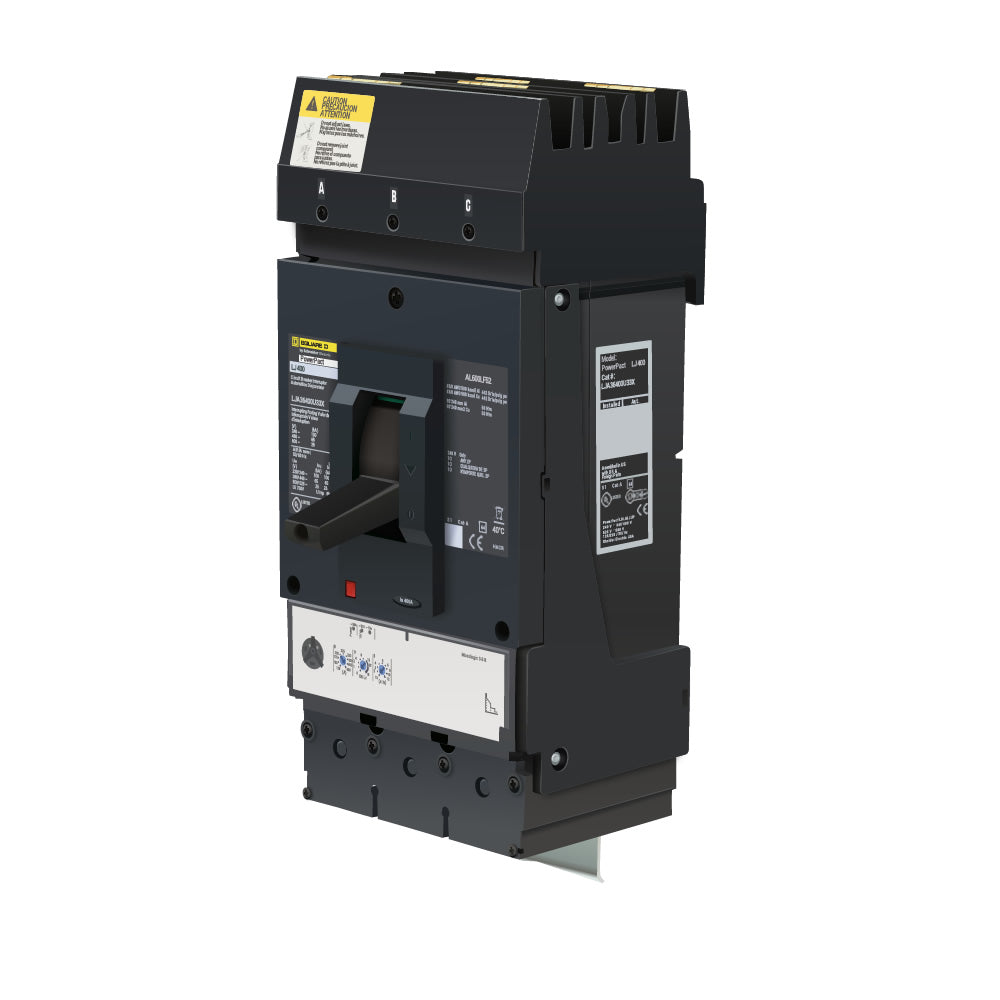

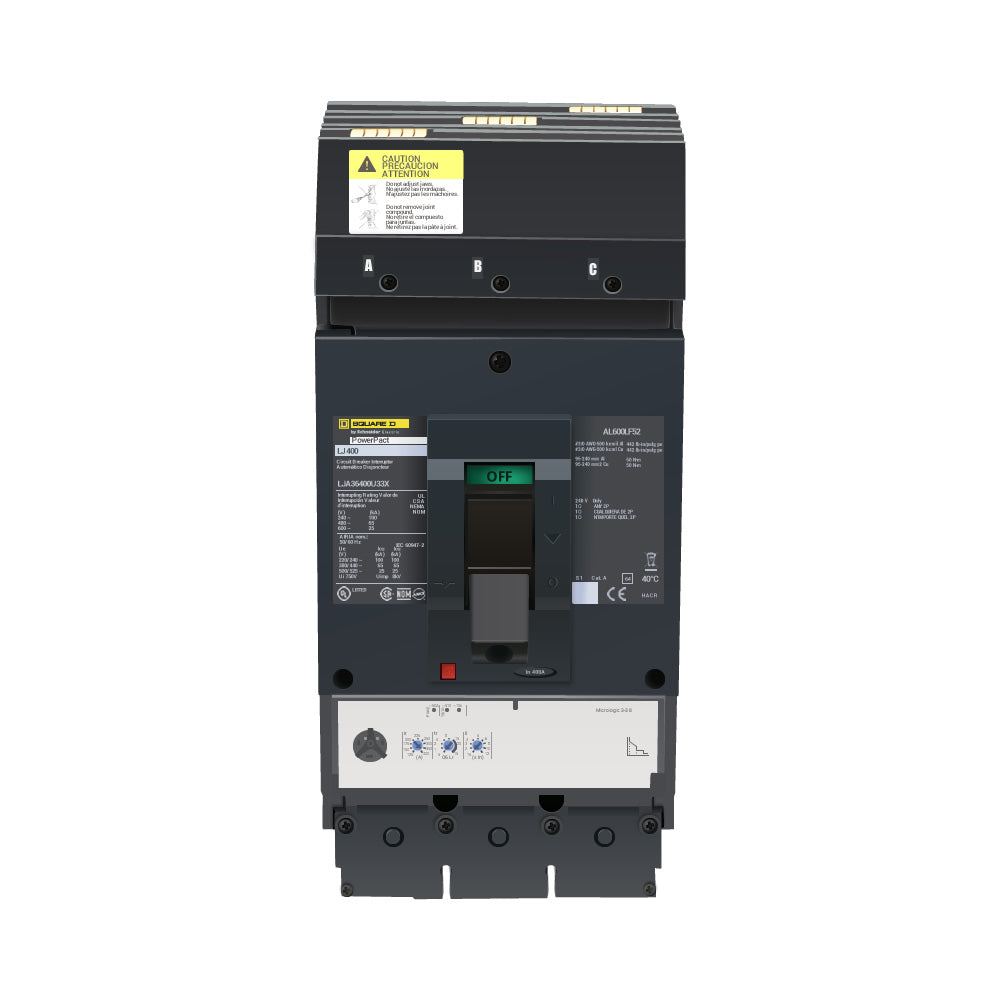

Square D LJA36400U33X Circuit Breaker | 600V 400A 3P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:

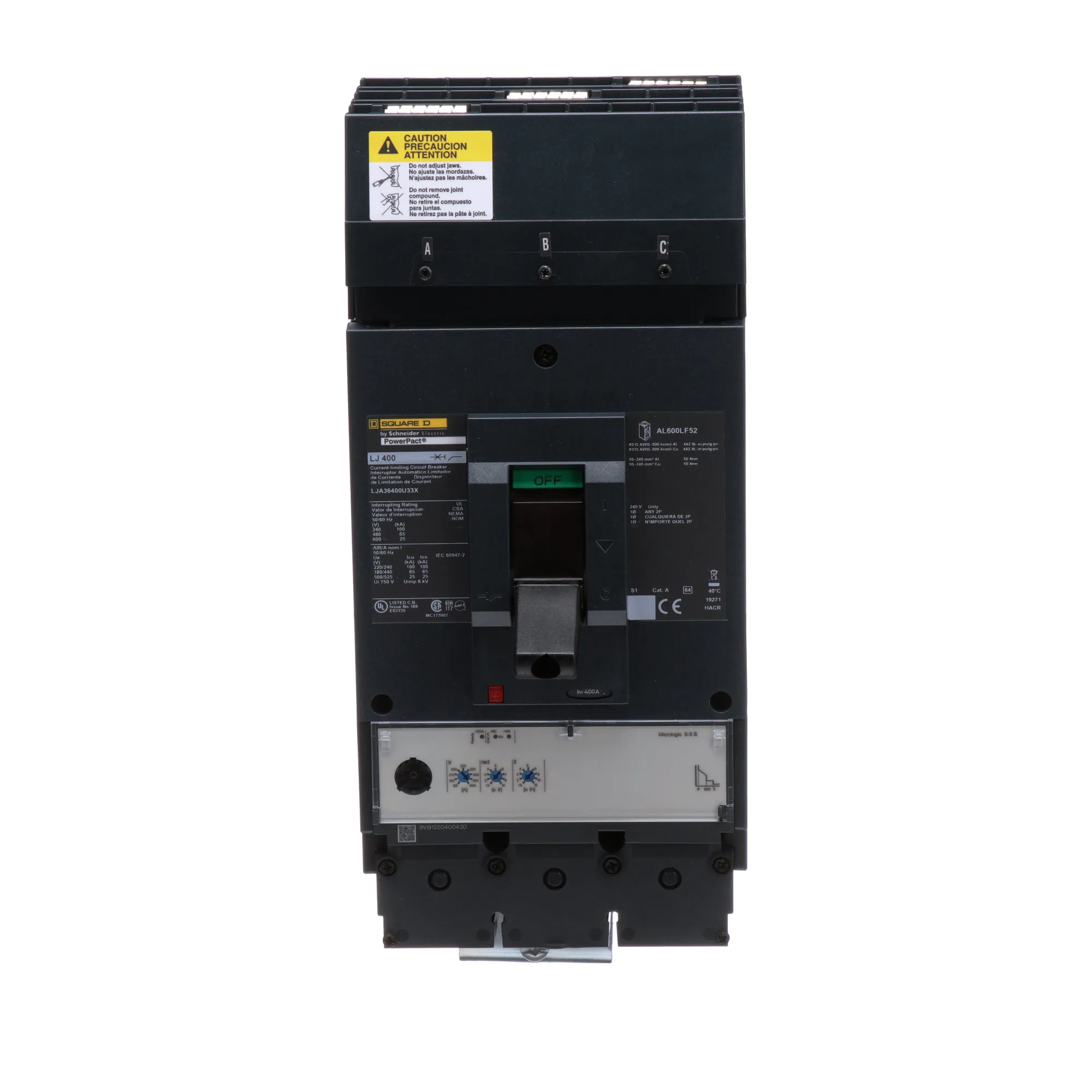

The Square D LJA36400U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is designed for reliable performance in industrial and commercial applications.

Key Features:
✔ Part Number: LJA36400U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901807957
✔ GTIN: 00785901807957
✔ Country of Origin: United States

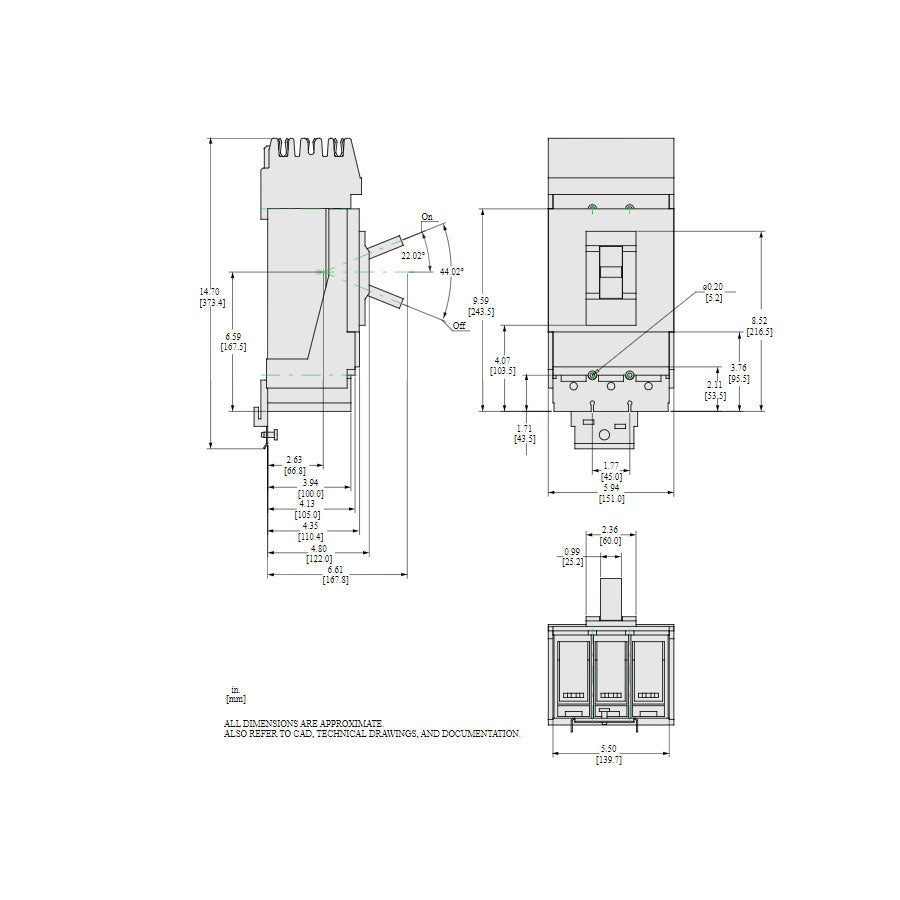

✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 8.27 lb
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: AWG 3/0...500 kcmil aluminum/copper
