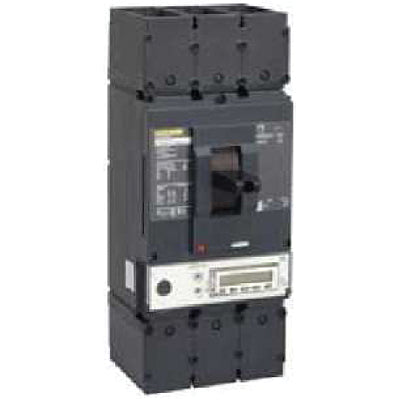

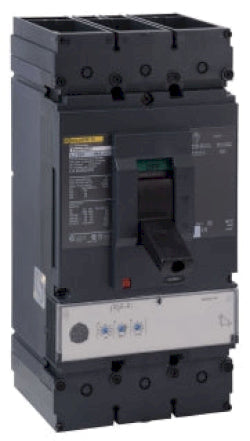

Square D LJL36250U33X Molded Case Circuit Breaker | 600V 250A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D LJL36250U33X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 250 amps and 600 volts, with an AIC rating of 65kA at 480V. This unit features solid state protection and a feed-thru connection for reliable performance.

Key Features:
✔ Part Number: LJL36250U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901597186
✔ GTIN: 00785901597186
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.8
✔ Wire Size: AWG 2...600 kcmil copper, AWG 2...500 kcmil aluminum
