Square D LRA36400U43X Circuit Breaker | 600V 400A 3P 200kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LRA36400U43X is a Molded Case Circuit Breaker from the Powerpact family. This 3-pole breaker is rated for 600V and 400A, with a 200kA@480V AIC rating. It features I-Line Style Plug-In connection and solid-state protection for reliable performance.

Key Features:
✔ Part Number: LRA36400U43X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LRA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time Short-Time and Instantaneous
✔ Protection: Solid State

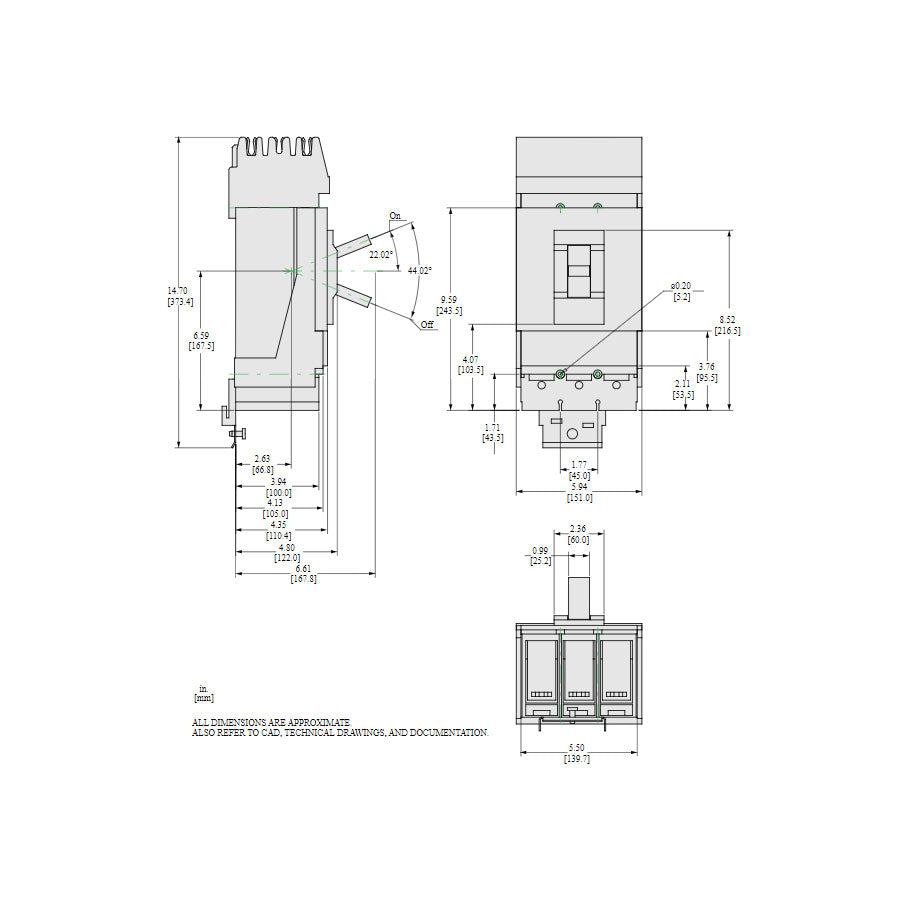

✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 20
✔ Wire Size: AWG 3/0...500 kcmil aluminum/copper
