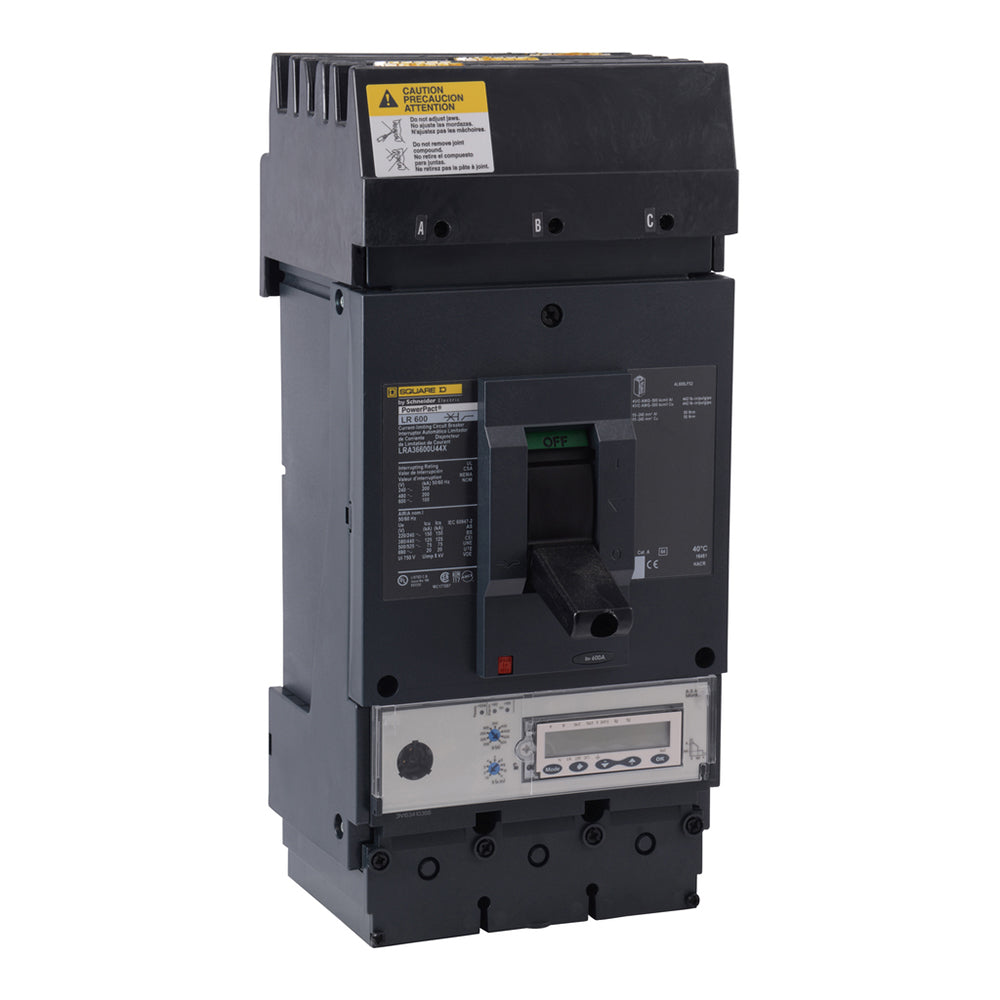

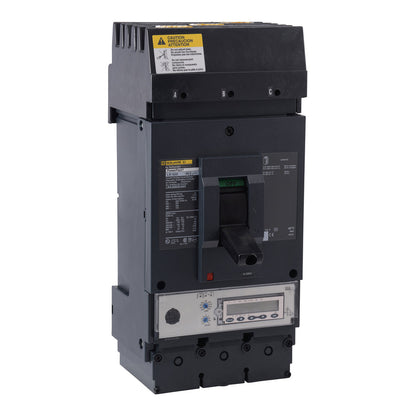

Square D LRA36600U44X Circuit Breaker | Powerpact LRA 600V 600A
Square D LRA36600U44X Circuit Breaker | Powerpact LRA 600V 600A
Price:
Sale
Sold out
Regular price
$24,464.84 USD
Regular price
$0.00 USD
Sale price
$24,464.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D LRA36600U44X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 200kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state LSIG protection for long-time, short-time, instantaneous, and ground fault protection.
Key Features:
✔ Part Number: LRA36600U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LRA
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Solid State (LSIG)
✔ Dimensions: 13.39" H x 3.09" D x 4.44" W
✔ Weight: 14 lbs
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
The Square D LRA36600U44X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 200kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state LSIG protection for long-time, short-time, instantaneous, and ground fault protection.
Key Features:
✔ Part Number: LRA36600U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LRA
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Solid State (LSIG)
✔ Dimensions: 13.39" H x 3.09" D x 4.44" W
✔ Weight: 14 lbs
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
