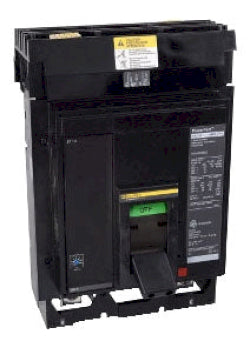

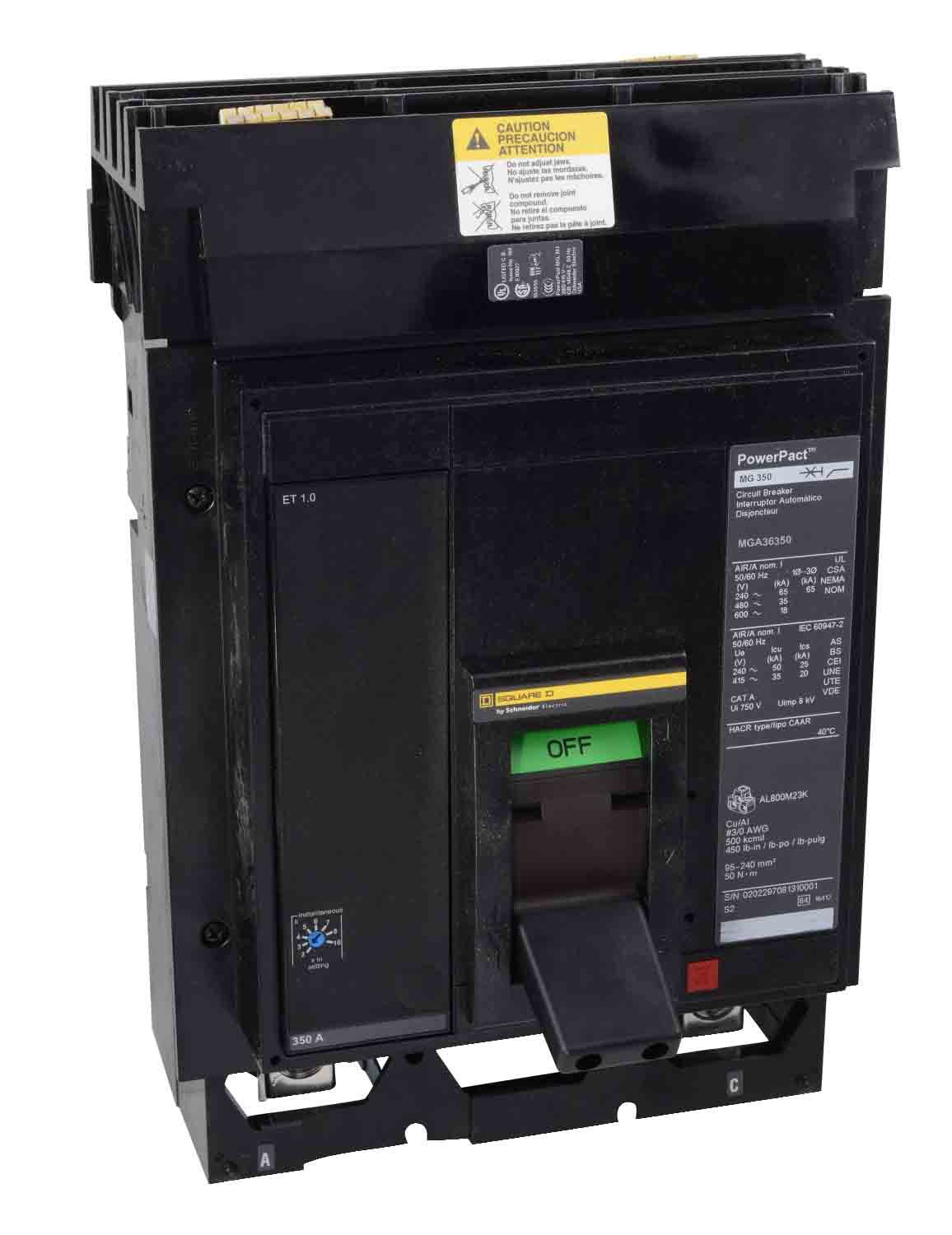

Square D MGA36350 Circuit Breaker | 600V 350A 3P 35kA@480V I-Line Style Plug-In Powerpact
Square D MGA36350 Circuit Breaker | 600V 350A 3P 35kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$3,880.84 USD
Regular price
$8,161.00 USD
Sale price
$3,880.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MGA36350 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 350A amperage rating with a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: MGA36350
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGA
✔ Voltage: 600
✔ Amperage: 350
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: M
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901496090
✔ GTIN: 00785901496090
✔ Country of Origin: United States

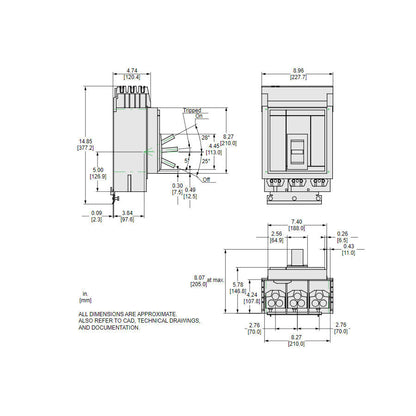

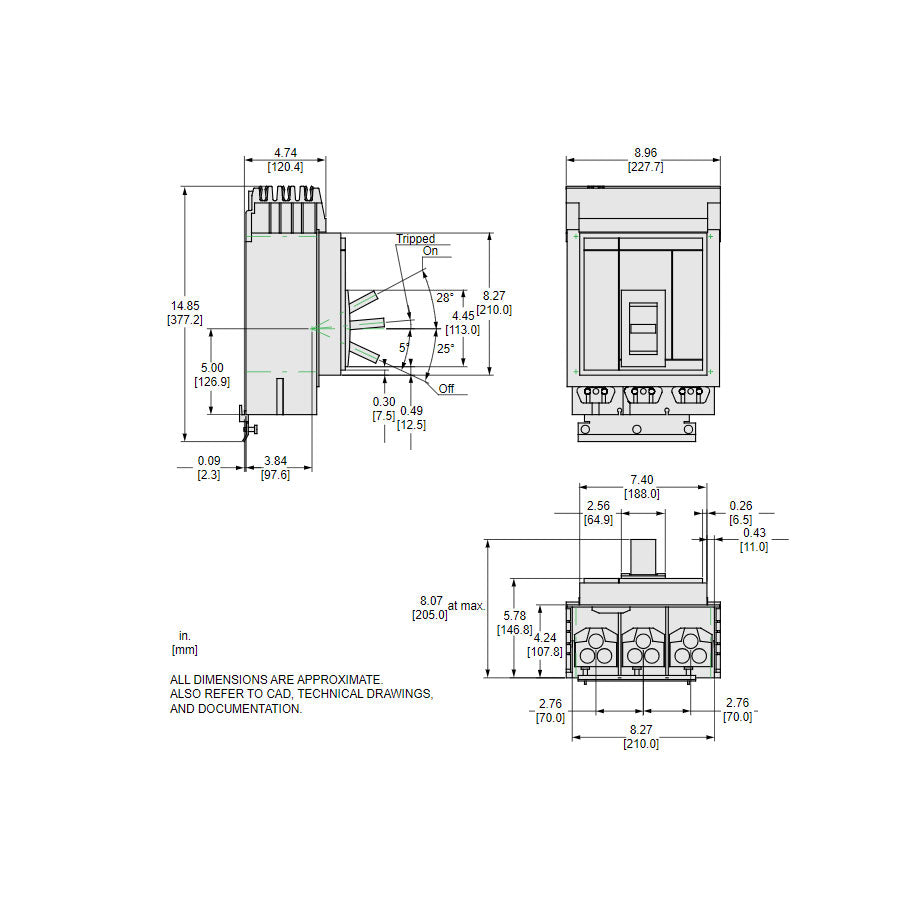

✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 13.15
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
The Square D MGA36350 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 350A amperage rating with a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
