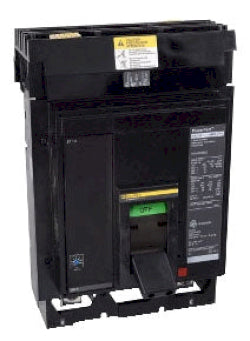

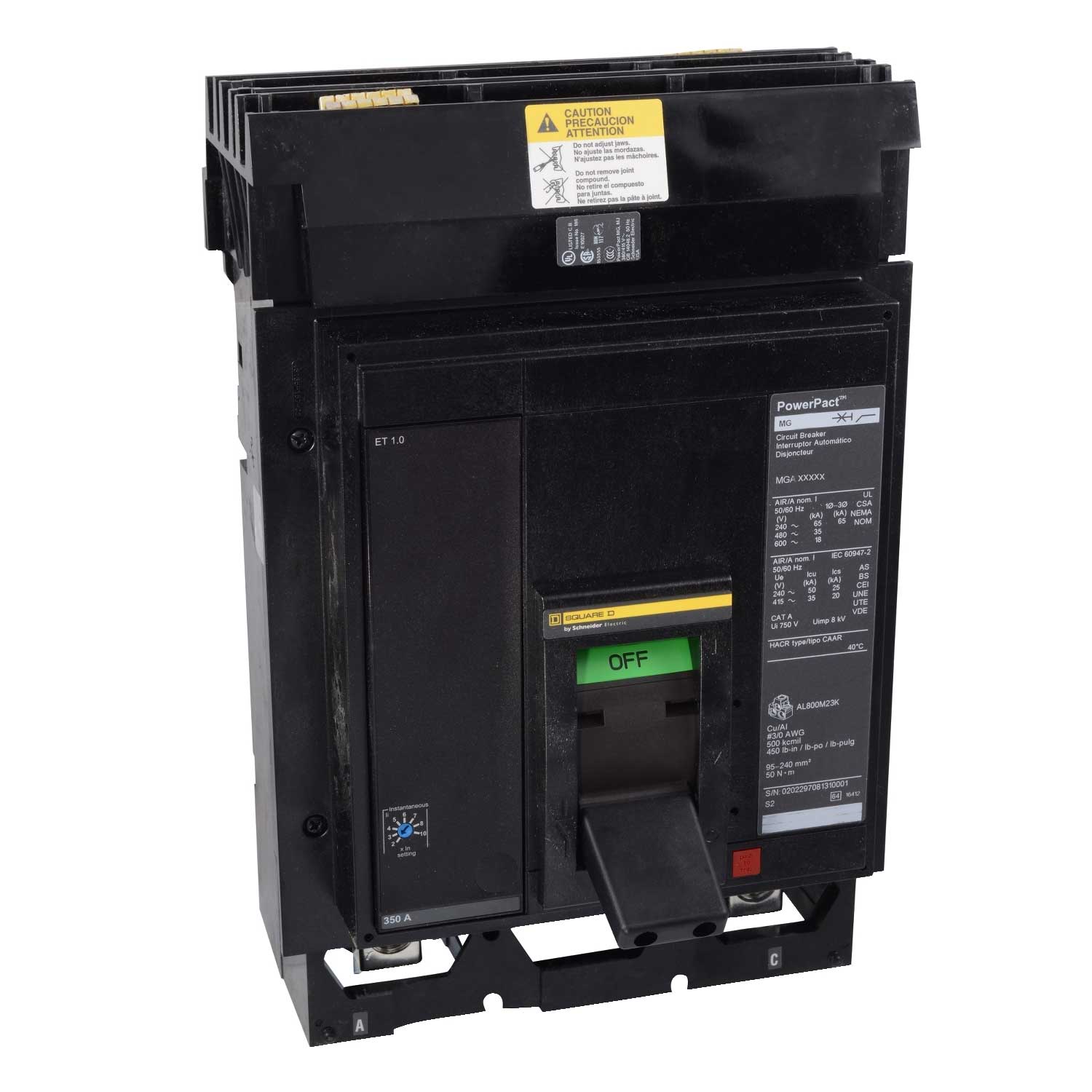

Square D MGA36400 Circuit Breaker | 600V 400A 3P 35kA@480V I-Line Plug-In Powerpact MGA

Product Description:
The Square D MGA36400 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 400 amp breaker rated for 600 volts with an AIC rating of 35kA@480V. This unit features I-Line Style Plug-In connections and solid-state protection for reliable performance.

Key Features:
✔ Part Number: MGA36400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: M
✔ MCM Size: Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901496144
✔ GTIN: 00785901496144
✔ Country of Origin: United States
✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 13.15
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
