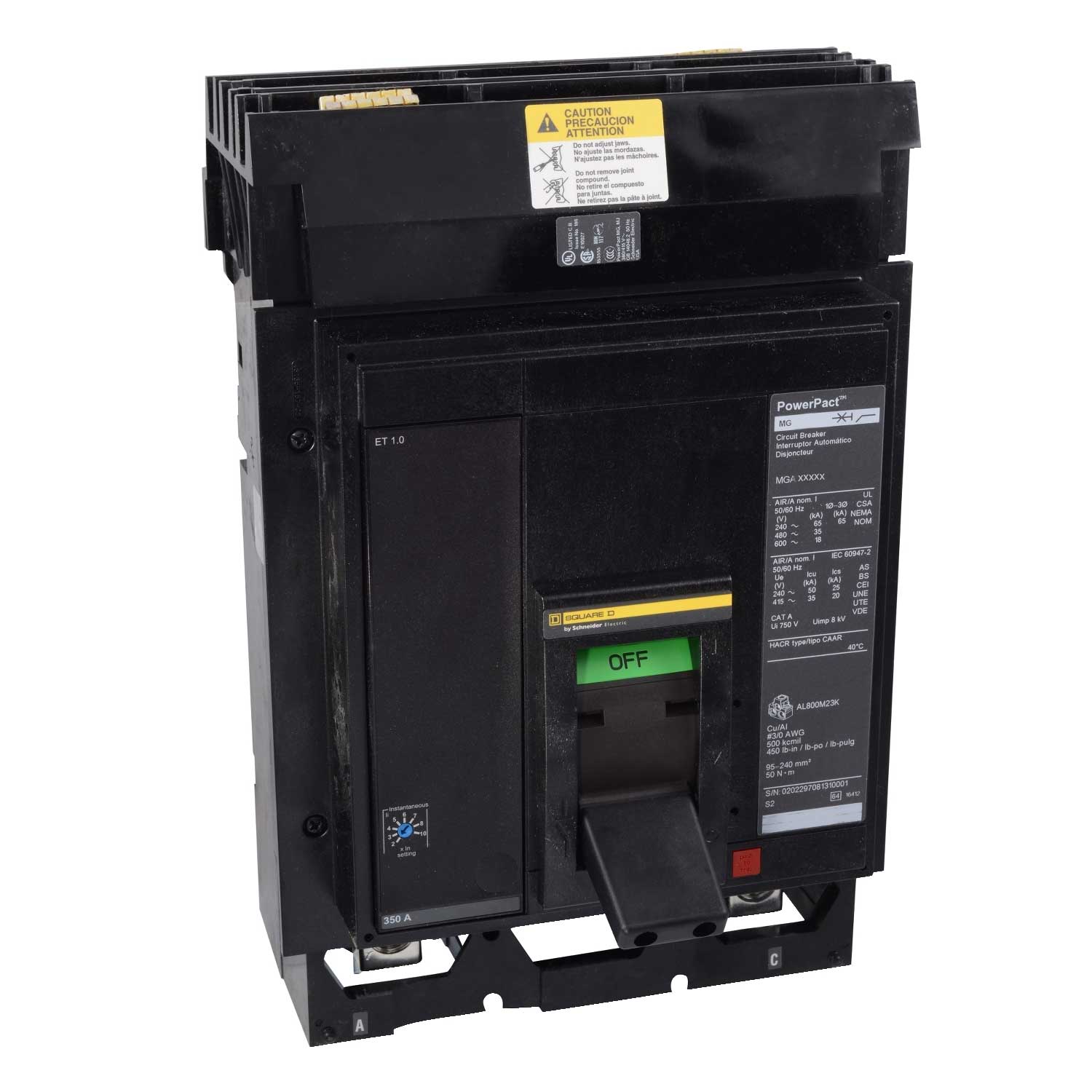

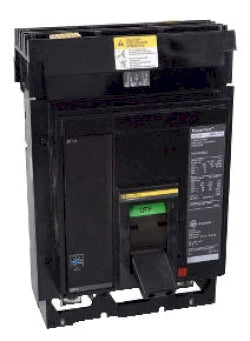

Images are for reference only
Square D
Square D MGA36700 Circuit Breaker | 600V 700A 3P 35kA@480V I-Line Plug-In Powerpact MGA
Square D MGA36700 Circuit Breaker | 600V 700A 3P 35kA@480V I-Line Plug-In Powerpact MGA
Price:
Sale
Sold out
Regular price
$4,377.99 USD
Regular price
$10,608.00 USD
Sale price
$4,377.99 USD
Unit price
per
Shipping calculated at checkout.
Stock:
30 in stock
Couldn't load pickup availability
Product Description:
The Square D MGA36700 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 700 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This unit features I-Line Style Plug-In connections and solid state protection for reliable performance.
Key Features:
✔ Part Number: MGA36700
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGA
✔ Voltage: 600
✔ Amperage: 700
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: M
✔ MCM Size: Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901507512
✔ GTIN: 00785901507512
✔ Country of Origin: United States
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 13.15
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
