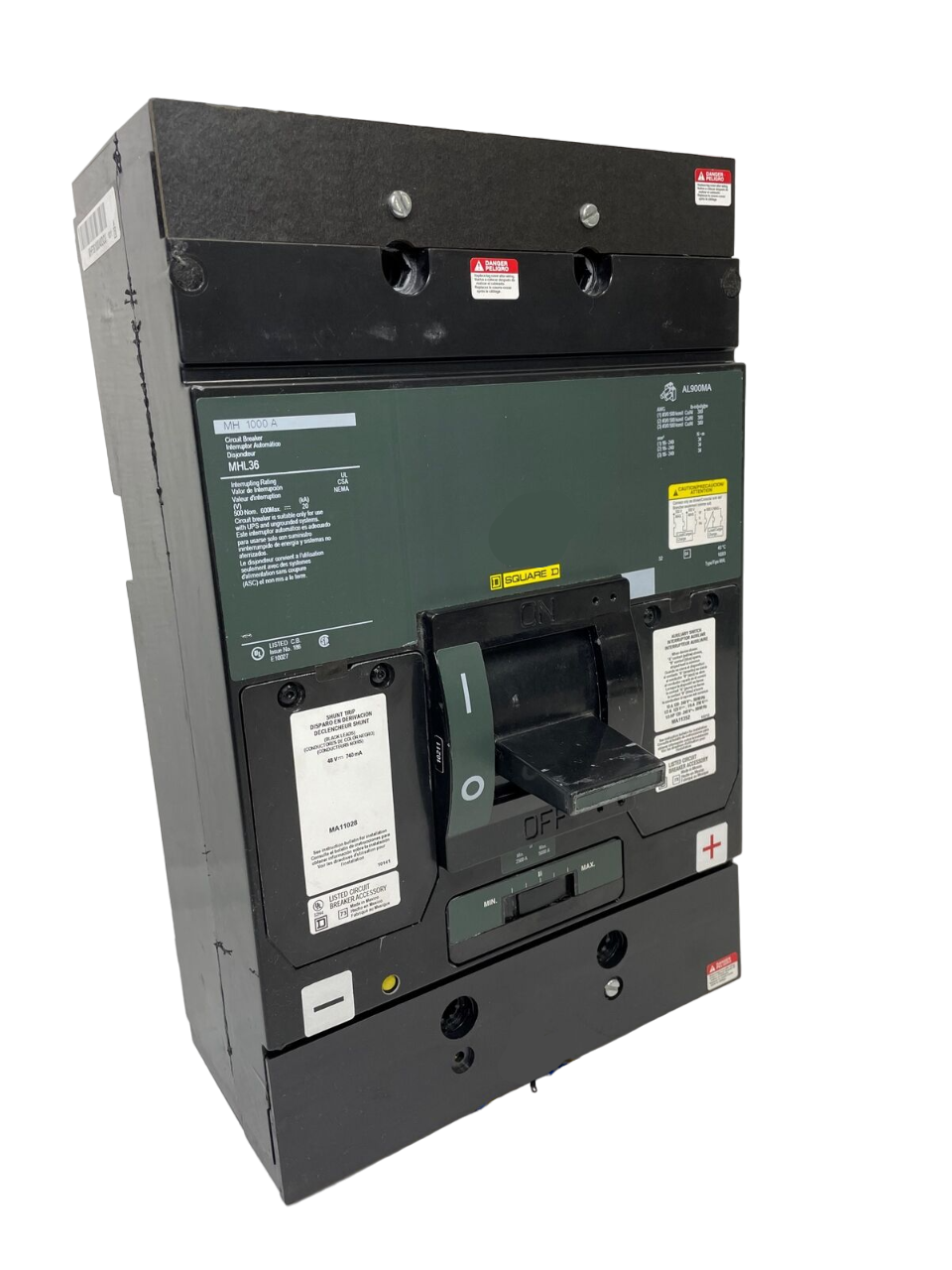

Square D MHL3680036DC2351 Circuit Breaker | MHL Series MHL 600V 800A
Square D MHL3680036DC2351 Circuit Breaker | MHL Series MHL 600V 800A
Price:
Sale
Sold out
Regular price
$7,751.03 USD
Regular price
Sale price
$7,751.03 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MHL3680036DC2351 is a Molded Case Circuit Breaker from the MHL Series. It features a 3-pole design with a 600V, 800A rating and a 20kA@500VDC AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It comes with a 277/480V shunt trip and a 1A/1B auxiliary switch.
Key Features:
✔ Part Number: MHL3680036DC2351
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: MHL Series
✔ Type: MHL
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 20kA@500VDC
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Depth 8.05 in (204.47 mm), Width 8.27 in (210.06 mm), Height 12.86 in (326.64 mm)
✔ Weight: 40 lbs
The Square D MHL3680036DC2351 is a Molded Case Circuit Breaker from the MHL Series. It features a 3-pole design with a 600V, 800A rating and a 20kA@500VDC AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It comes with a 277/480V shunt trip and a 1A/1B auxiliary switch.
Key Features:
✔ Part Number: MHL3680036DC2351
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: MHL Series
✔ Type: MHL
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 20kA@500VDC
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Depth 8.05 in (204.47 mm), Width 8.27 in (210.06 mm), Height 12.86 in (326.64 mm)
✔ Weight: 40 lbs
