Square D

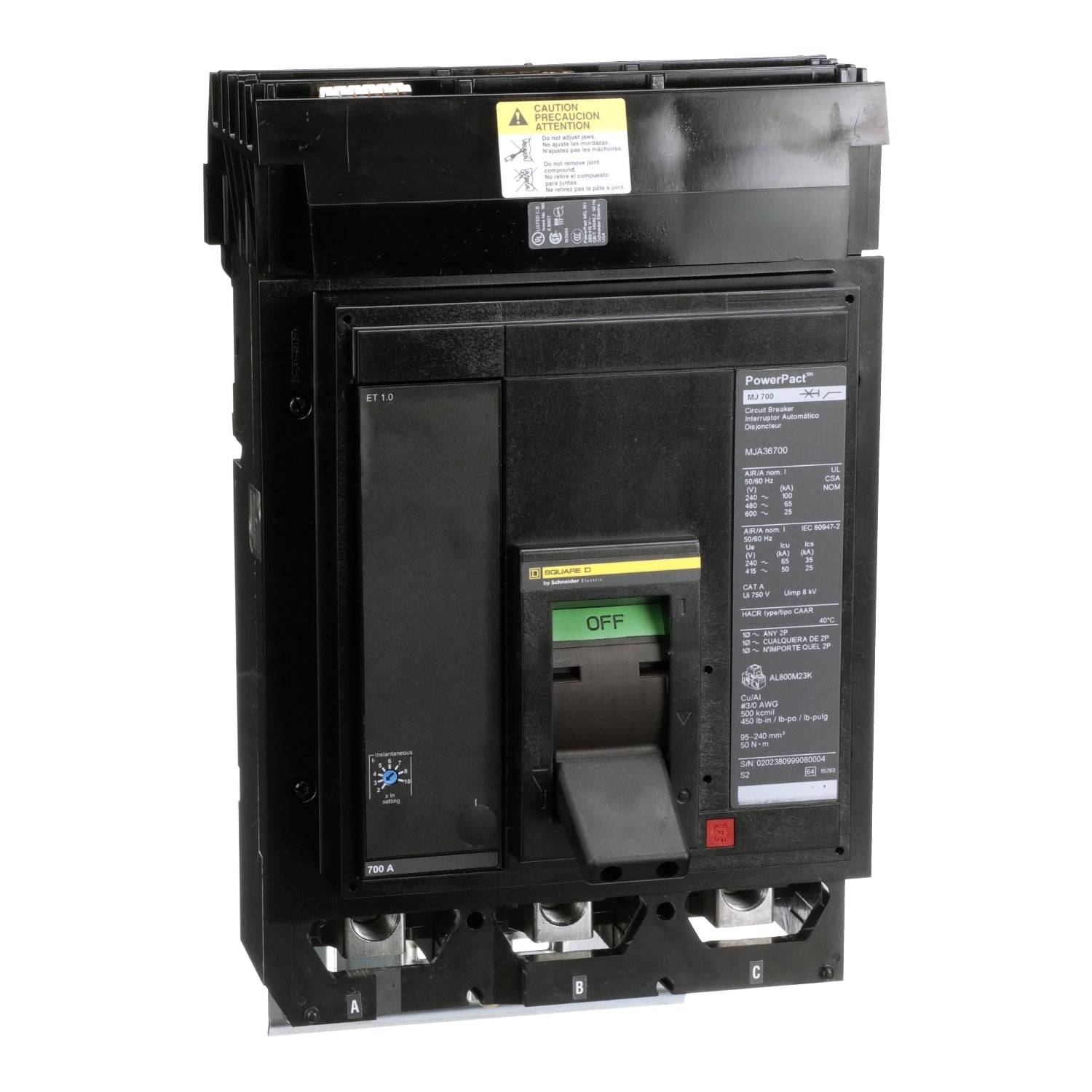

Square D MJA36700YP Circuit Breaker | 600V 700A 3P 65kA@480V I-Line Plug-In Powerpact
Square D MJA36700YP Circuit Breaker | 600V 700A 3P 65kA@480V I-Line Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$2,278.66 USD
Regular price
Sale price
$2,278.66 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MJA36700YP is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 700A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: MJA36700YP
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600
✔ Amperage: 700
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Solid State
✔ Dimensions: Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
✔ Weight: 34
