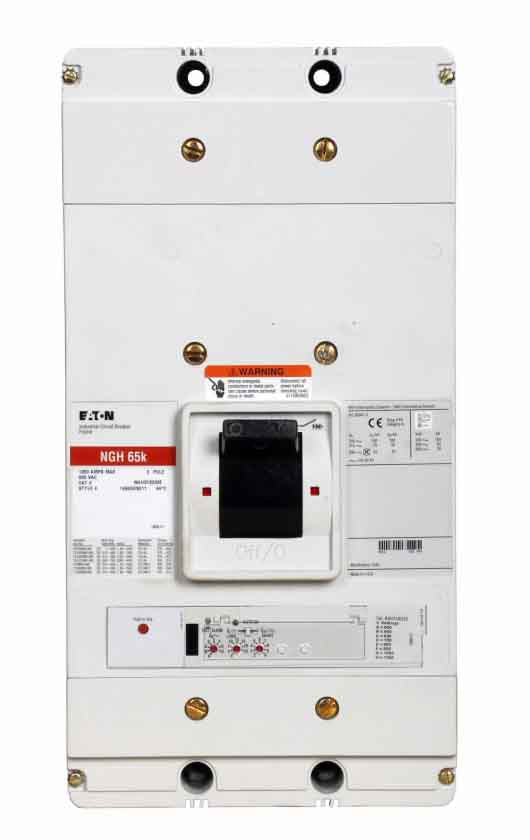

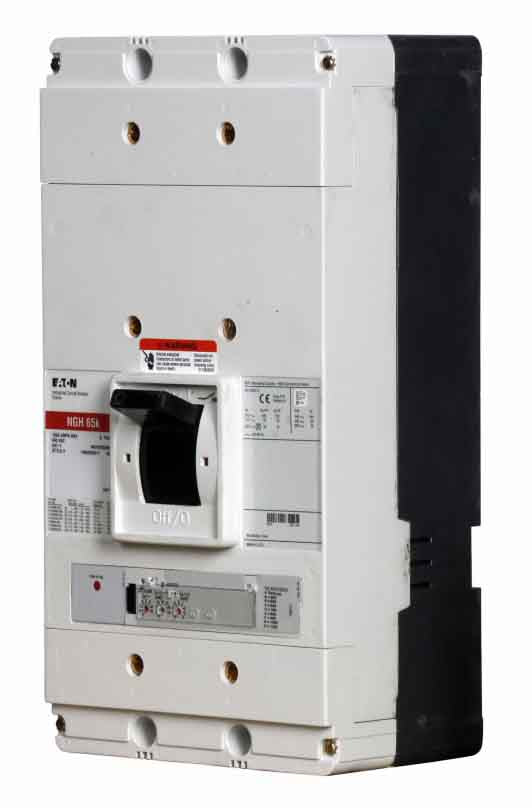

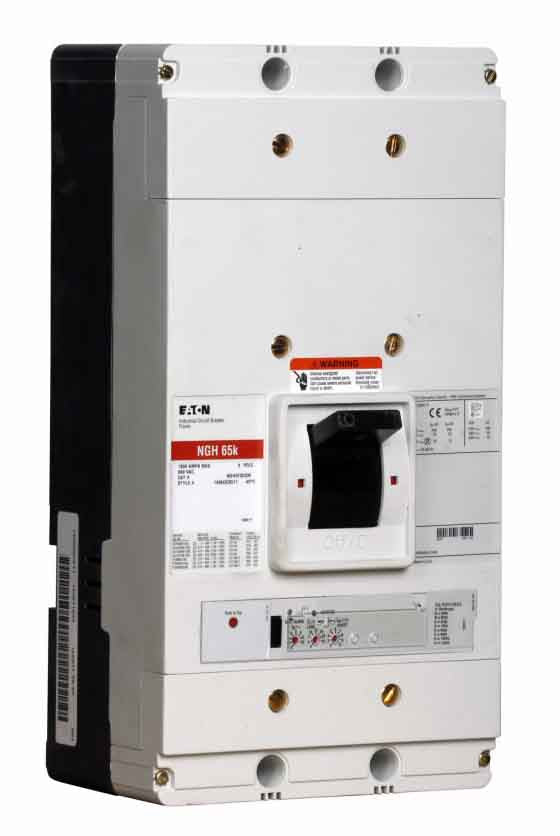

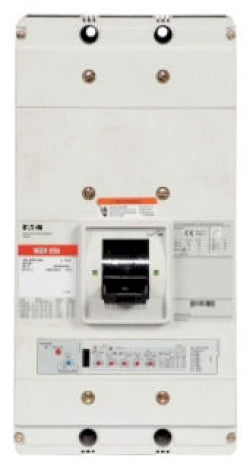

Eaton Cutler-Hammer NGH312036E Circuit Breaker | 1200A 3P 60

Product Description:
The Eaton Cutler-Hammer NGH312036E is a Series G molded case circuit breaker designed for reliable overcurrent protection in demanding electrical applications. It features a bolt-on connection, electronic LSIG trip functions, and a 3-pole, 3-phase configuration. This breaker is rated for 600 V and 1200 A, with a 65 kA AIC rating and solid state protection.

Key Features:
Manufacturer: Eaton Cutler-Hammer
Brand: Eaton Cutler-Hammer
Item Subcategory: Molded Case
Family: Series G
Type: NGH
Voltage Rating: 600 VV
Current Rating: 1200 AA
Phase: 3
Poles: 3
AIC rating: 65 kA
Connection: Bolt-On
Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
Terminal Connection: Line/Load Lug
Frame Size: NG
Temp Rating: Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
MCM Size: Min. Wire Size 4 AWG Max. Wire Size 500 MCM
Breaker Type: Molded Case
Hz: 50-60 Hz
Protection: Solid State
Phase Connection: ABC
Trip Type: Electronic LSIG
