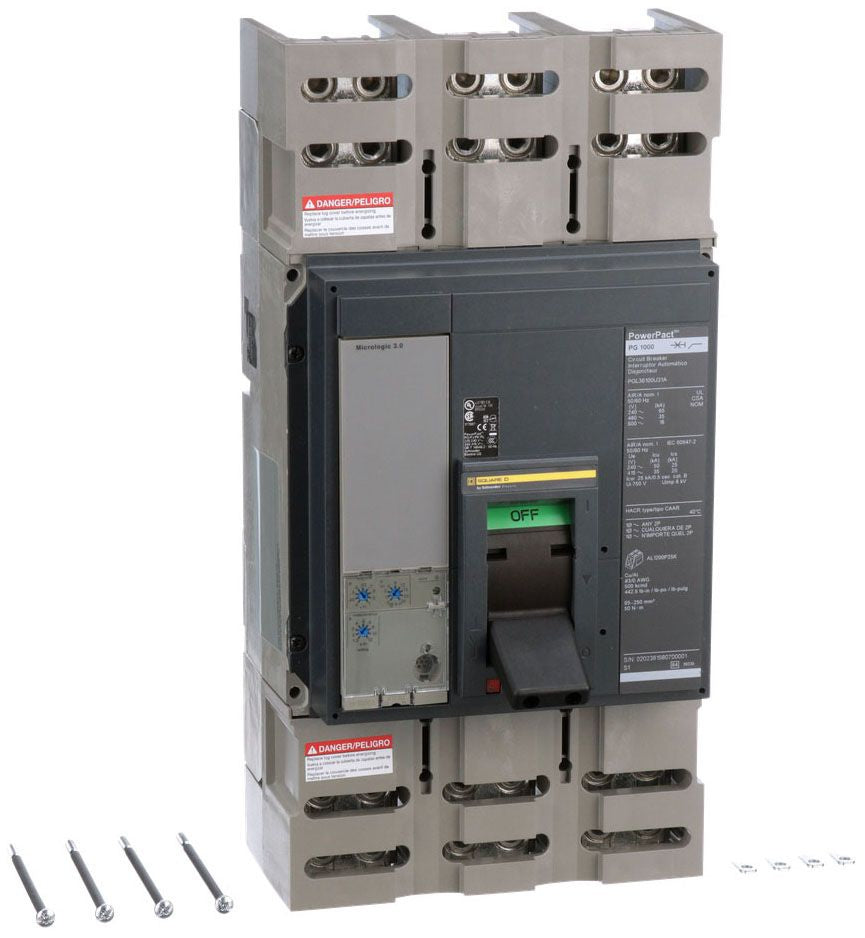

Square D PGL36100U31A Circuit Breaker | Powerpact PGL 600V 1000A

Product Description:
The Square D PGL36100U31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection. It comes with AL1200P25K lugs and supports 4 x AWG 3/0...500 kcmil aluminum/copper wire sizes.

Key Features:
✔ Part Number: PGL36100U31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901571254
✔ GTIN: 00785901571254
✔ Country of Origin: Mexico
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H (204.47 x 210.06 x 326.64 mm)
✔ Weight: 38.14 lbs
