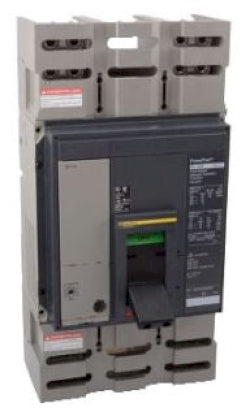

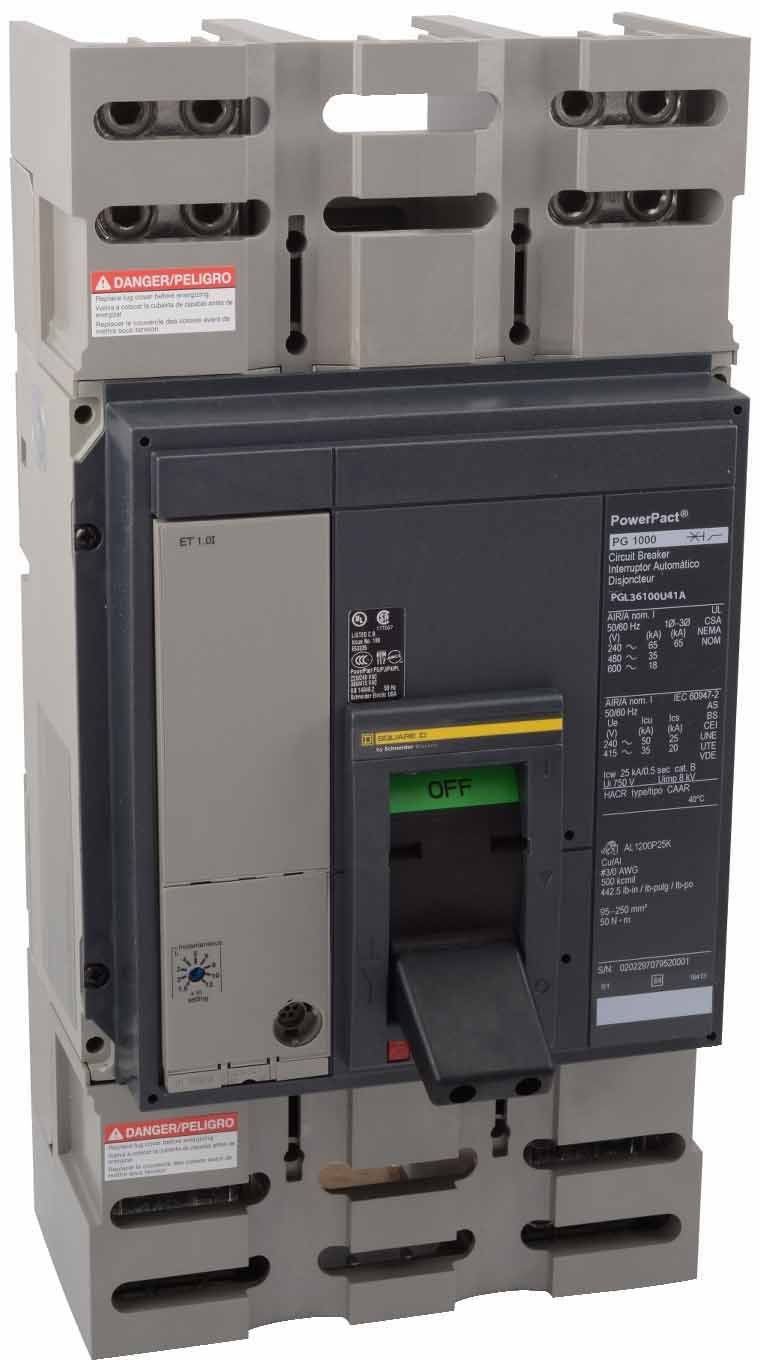

Square D PGL36100U41A Circuit Breaker | Powerpact PGL 600V 1000A

Product Description:
The Square D PGL36100U41A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection. It is compatible with 4 x AWG 3/0...500 kcmil aluminum/copper wire.

Key Features:
✔ Part Number: PGL36100U41A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification: UL Listed
✔ UPC: 785
