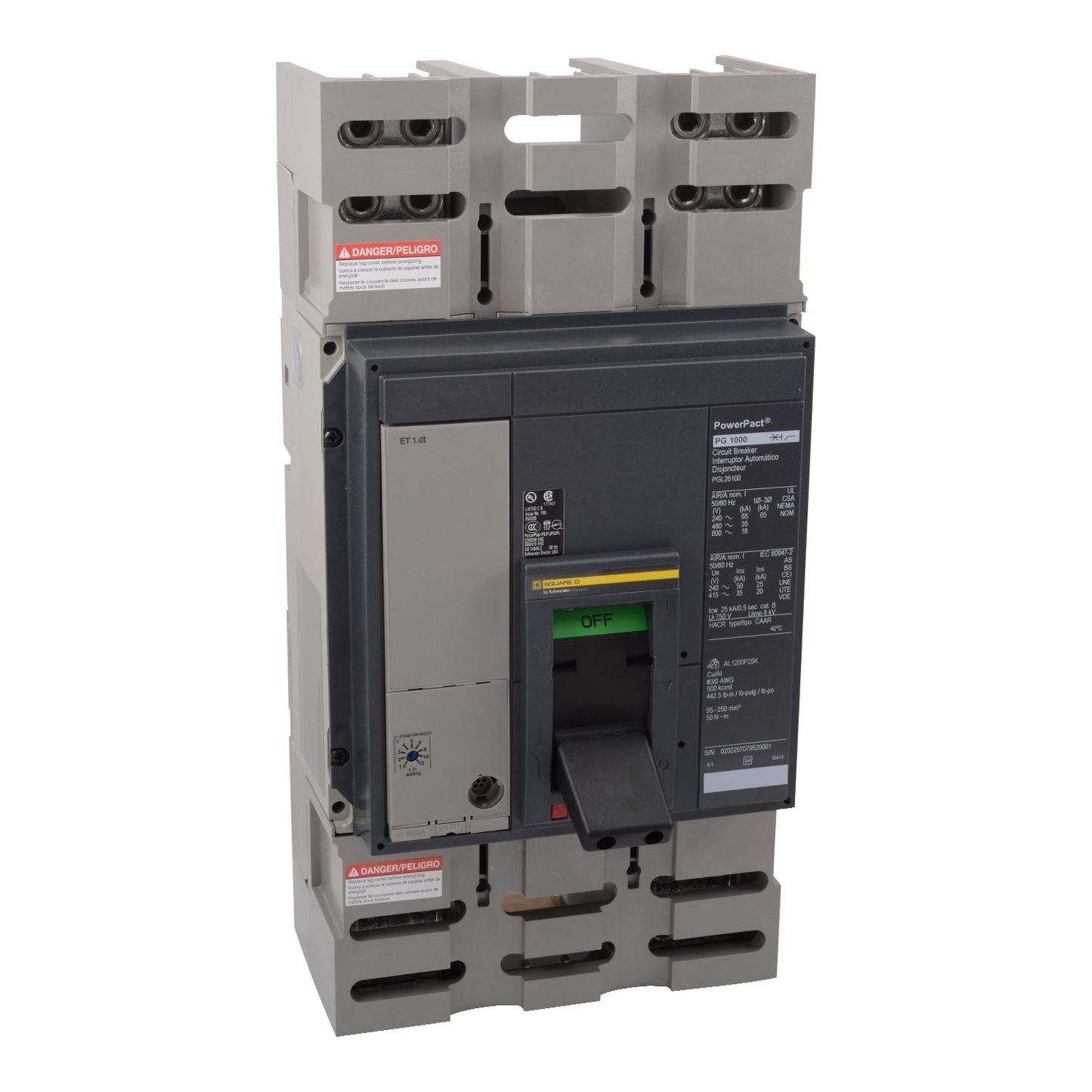

Square D PGL36100U43A Circuit Breaker | Powerpact PGL 600V 1000A

Product Description:
The Square D PGL36100U43A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection. It supports wire sizes from 4 x AWG 3/0 to 500 kcmil for aluminum or copper.

Key Features:
✔ Part Number: PGL36100U43A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ UPC: 60648628525
✔ GTIN: 03606486285251
✔ Dimensions: 16.16 x 3.09 x 4.44 in (410.46 x 78.49 x 112.78 mm)
✔ Weight: 32 lbs
