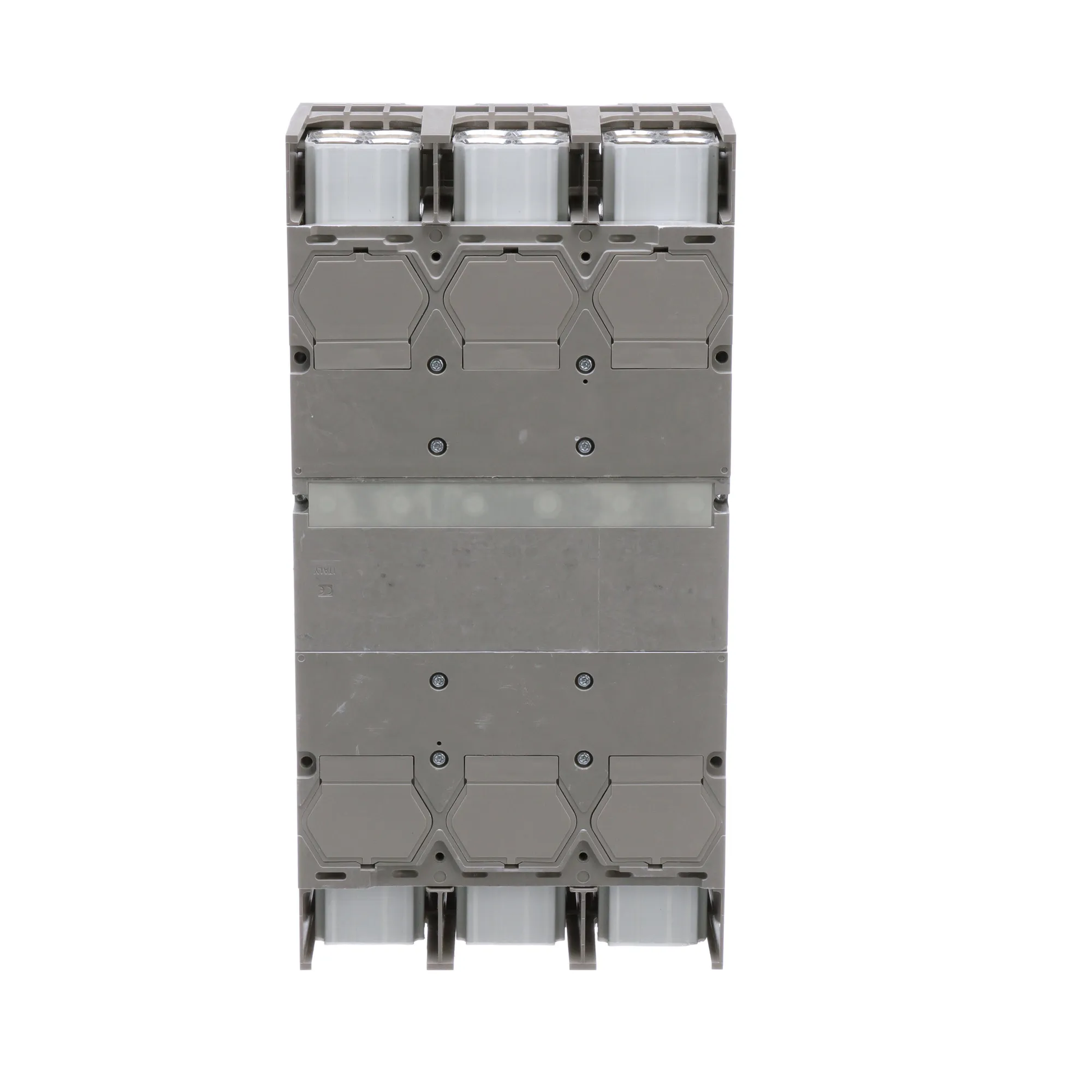

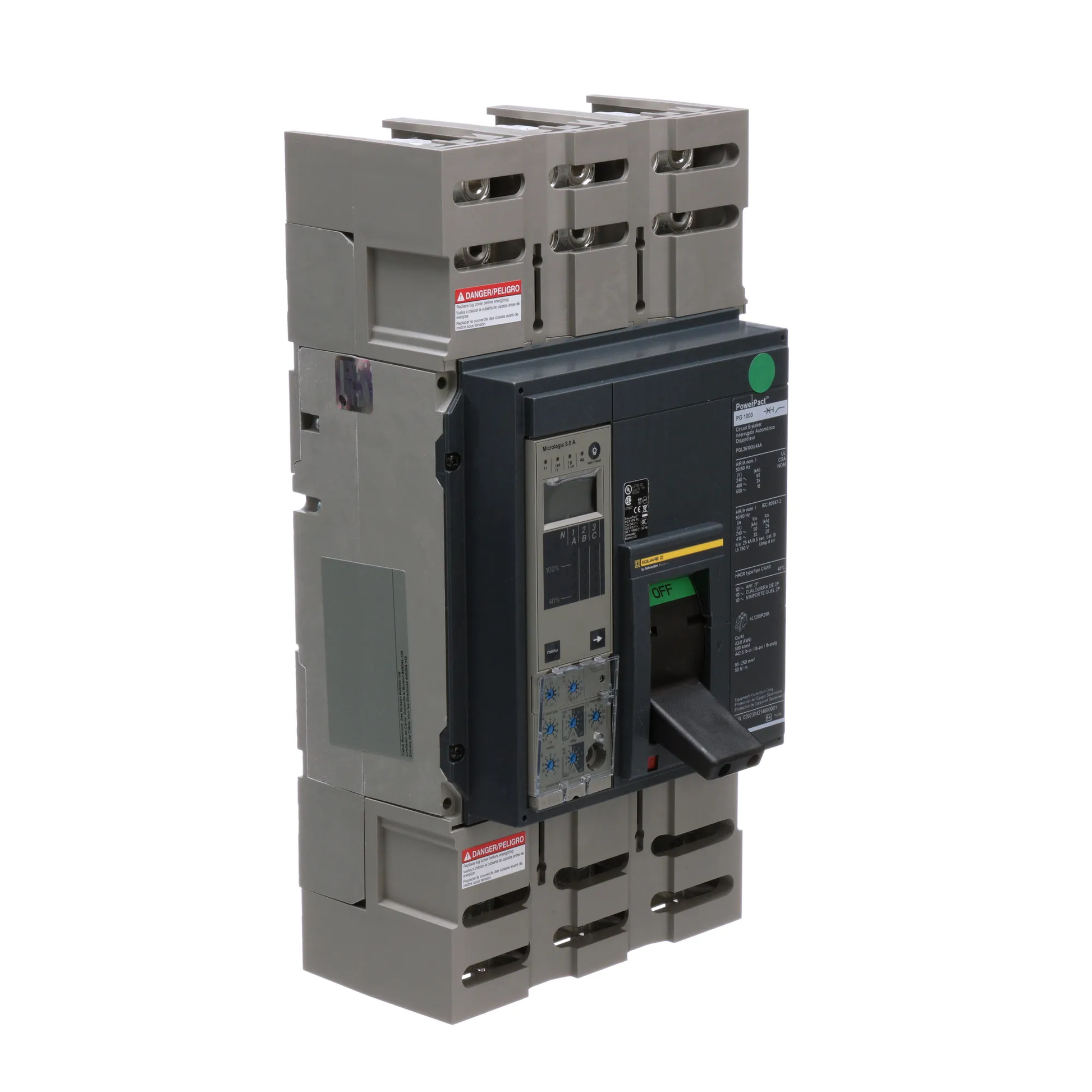

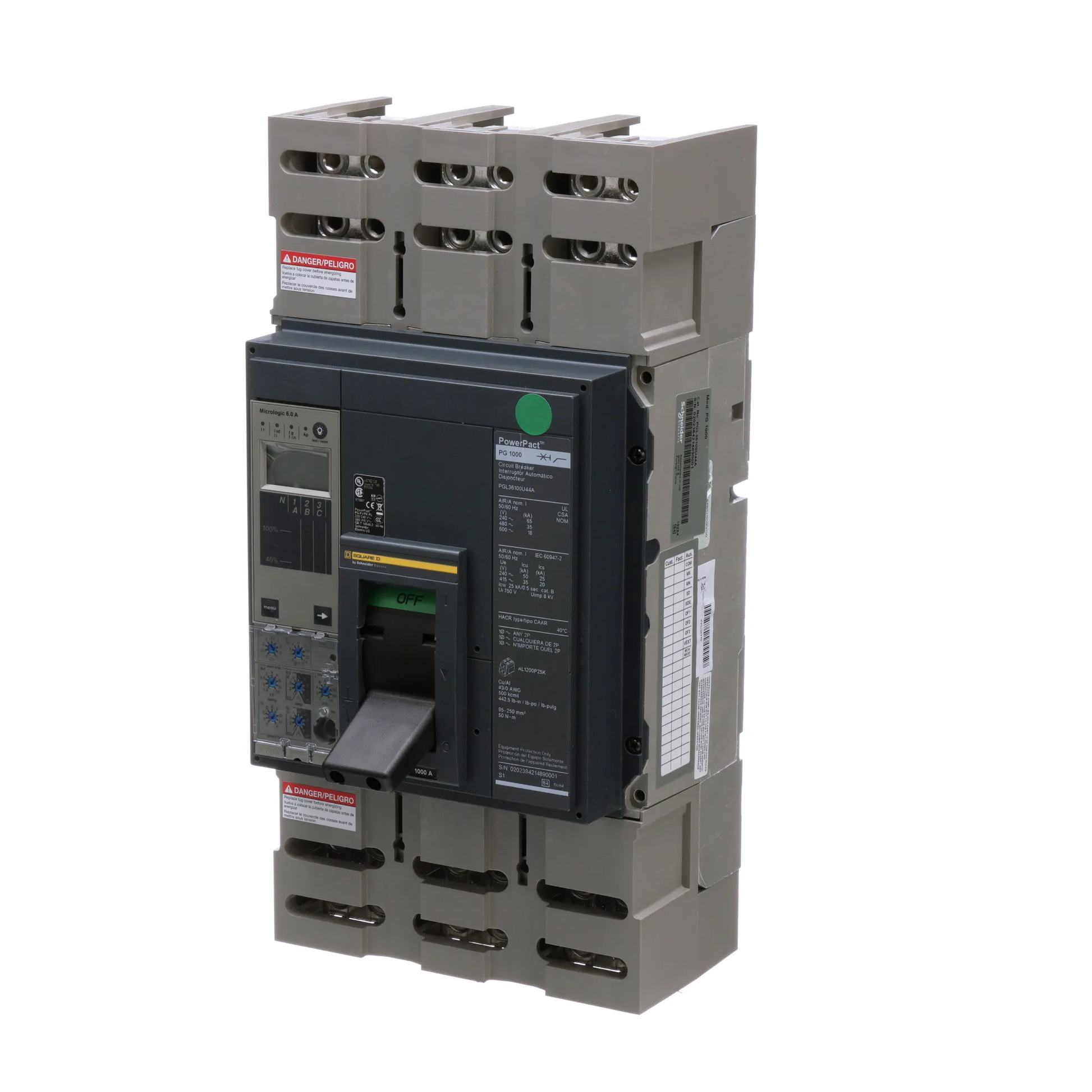

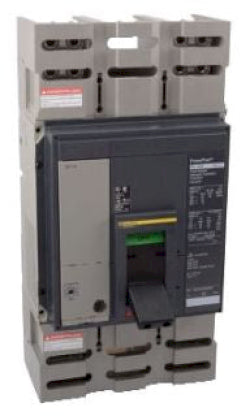

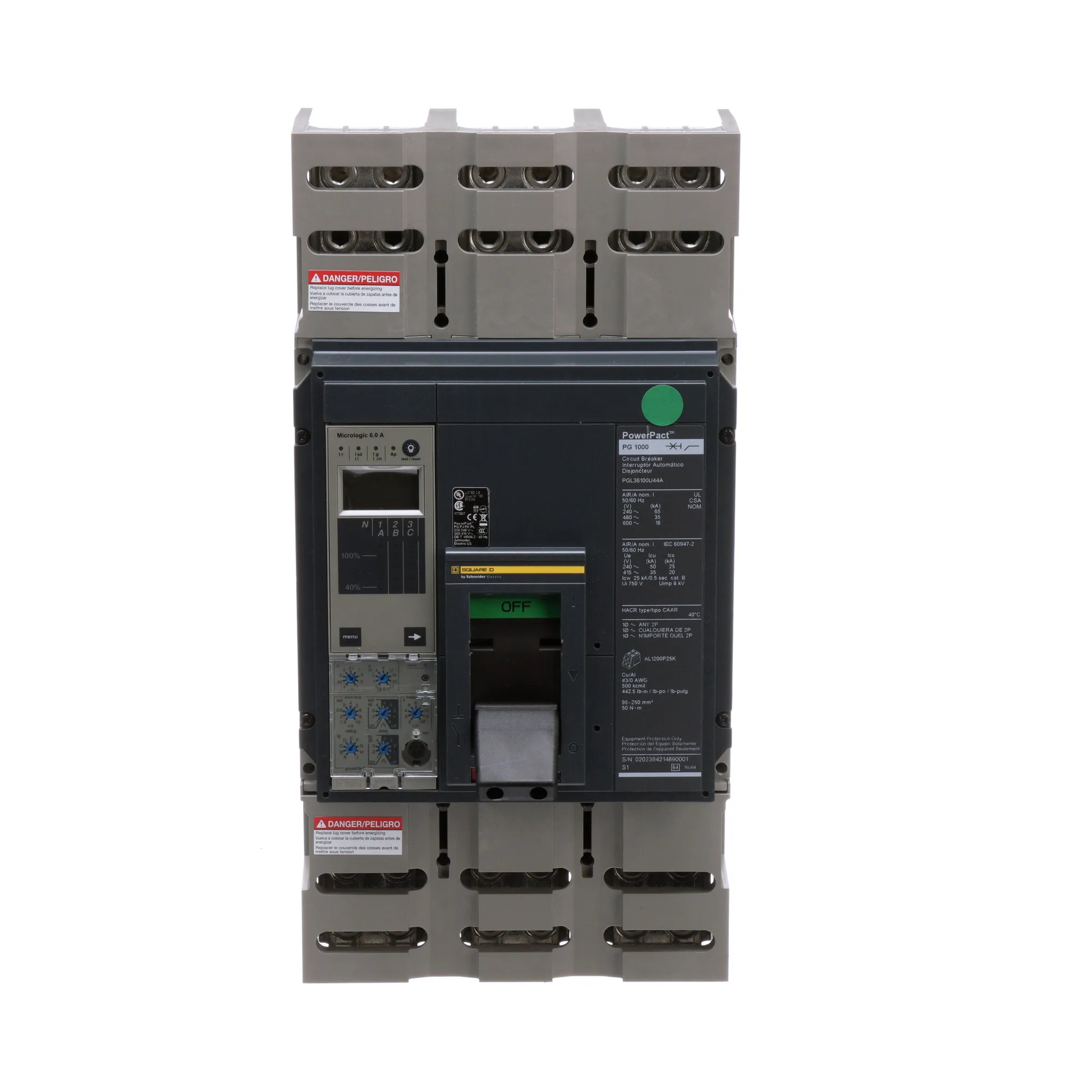

Square D PGL36100U44A Circuit Breaker | Powerpact PGL 600V 1000A
Square D PGL36100U44A Circuit Breaker | Powerpact PGL 600V 1000A
Price:
Sale
Sold out
Regular price
$10,095.81 USD
Regular price
$24,054.00 USD
Sale price
$10,095.81 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 7 left
Couldn't load pickup availability
Product Description:
The Square D PGL36100U44A is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 1000A amperage rating with a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection with LSIG functions. It is UL, CSA, NEMA, NOM, and CE certified for safety and compliance.
Key Features:
✔ Part Number: PGL36100U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Frame Size: P Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification
