Square D PJJ36200GN Bus Plug | I-Line PJJ 600V 200A

PJJ36200GN

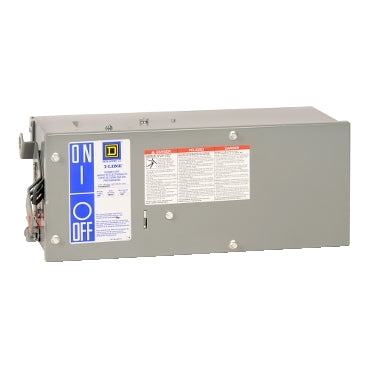

PJJ36200GN is a Schneider Electric Square D I-Line Busway plug-in unit designed for flexible power distribution in commercial and industrial busway systems. This J-frame, 3-phase, 4-wire unit is rated 200A at 600VAC with a 25kA short-circuit rating, and includes both ground and neutral connections for complete circuit protection.

Compatible with Square D I-Line Busway straight sections and fittings, the PJJ36200GN supports fusible or circuit breaker configurations, with electronic trip and communication packages available. Reduced installation time with mounting hook alignment to busway openings.

At Circuit Breaker Guys, we offer fast shipping, competitive pricing, and expert support to help you find the right busway plug-in unit every time.

Key Specifications

• Part Number: PJJ36200GN
• Manufacturer: Schneider Electric
• Brand: Square D
• Category: Bus Plug
• Item Subcategory: Breaker Type
• Family: I-Line Busway
• Frame: J-Frame
• Amperage: 200A
• Voltage: 600VAC
• Phase: 3
• Wires: 4-Wire (Ground & Neutral Included)
• AIC Rating: 25kA
• Configuration: Plug-In Unit

Specifications

• Part Number: PJJ36200GN
• Manufacturer: Schneider Electric
• Brand: Square D
• Category: Bus Plug
• Item Subcategory: Breaker Type
• Family: I-Line Busway
• Frame: J-Frame
• Voltage: 600VAC
• Amperage: 200A
• Phase: 3
• Wires: 4
• AIC Rating: 25kA
• Ground: Included
• Neutral: Included
• Configuration: Plug-In

Product Data

• Country of Origin: USA
• Dimensions: 9.13 in D x 8.5 in H x 21.7 in W (232 mm D x 216 mm H x 551 mm W)
