Square D PJL36120U33A Circuit Breaker | Powerpact PJL 600V 1200A

Product Description:

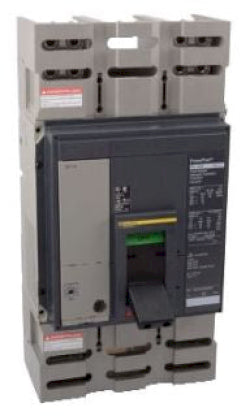

The Square D PJL36120U33A is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 1200A amperage rating with a 65kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection with LSI functions. It is designed for use in temperatures ranging from 28-158°F (-2-70°C).

Key Features:
✔ Part Number: PJL36120U33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: P Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification: CE, UL, CSA, NEMA, IEC, NOM
✔ UPC: 785901500100
✔ GTIN: 00785901500100
✔ Country of Origin: Italy
✔ Dimensions: 16.16 x 3.09 x 4.44 in (410.46 x 78.49 x 112.78 mm)
