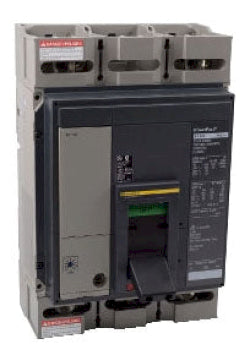

Square D PJL36120U41A Molded Case Circuit Breaker | 600V 1200A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D PJL36120U41A is a Powerpact family Molded Case Circuit Breaker. It is a 3-pole breaker rated for 1200 amps and 600 volts, with an AIC rating of 65kA at 480V. This unit features solid-state protection and a convenient feed-thru connection for efficient installation.

Key Features:
✔ Part Number: PJL36120U41A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600
✔ Amperage: 1200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Protection: Solid State
✔ UPC: 762179036388
✔ Dimensions: Height 16.16 in (410.46 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 37
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
