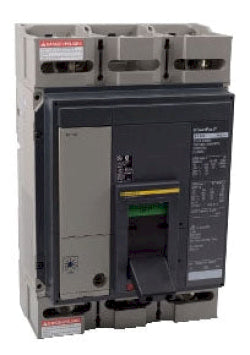

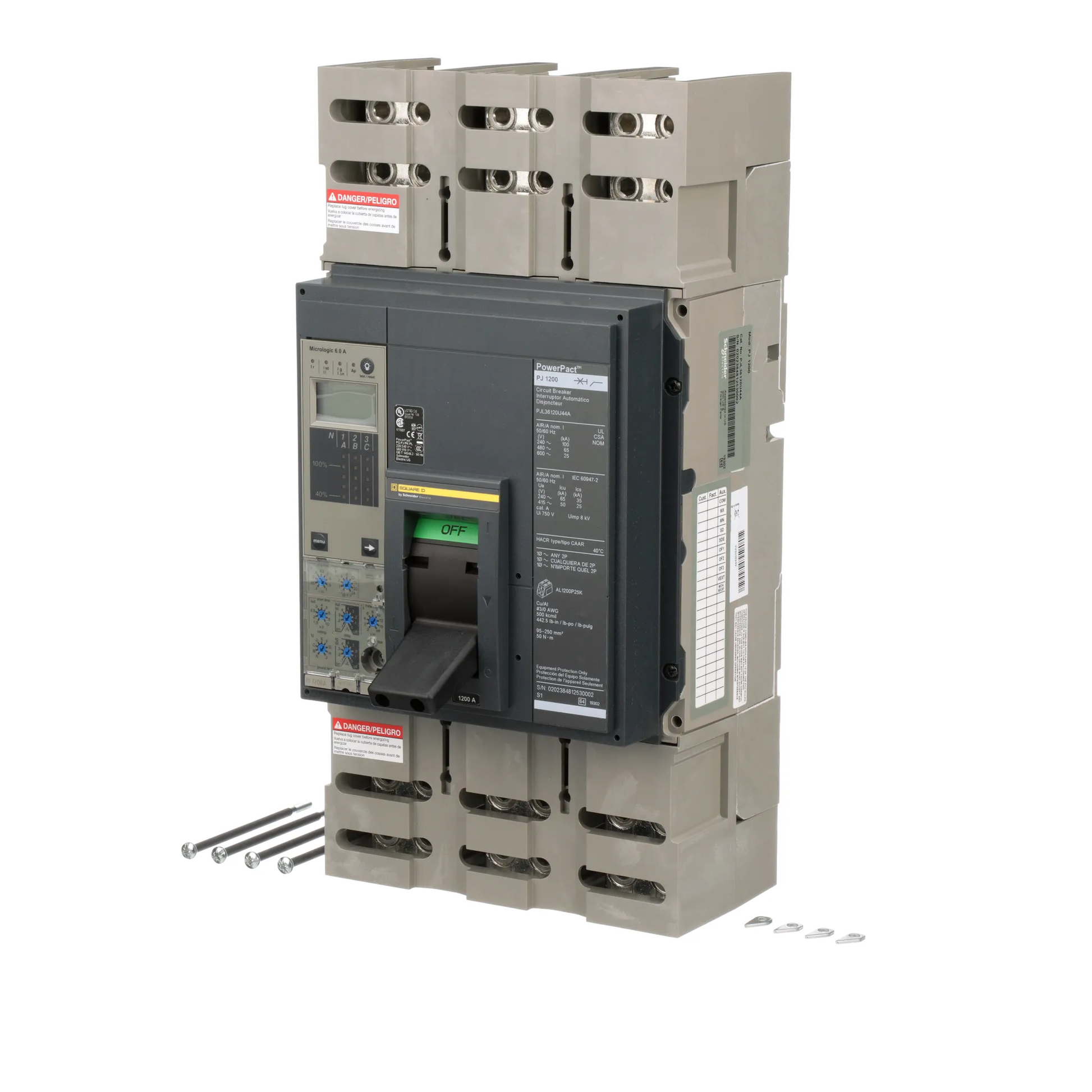

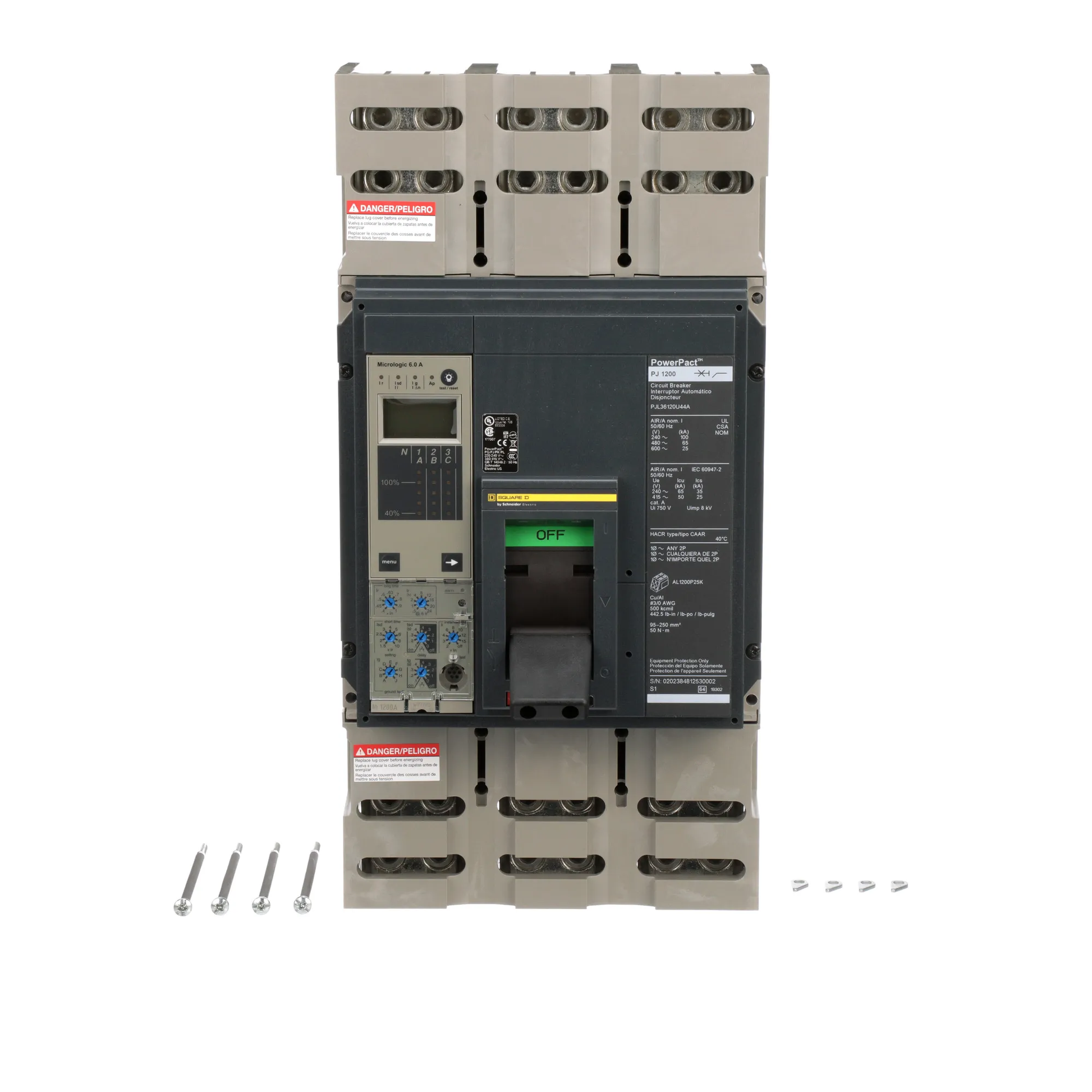

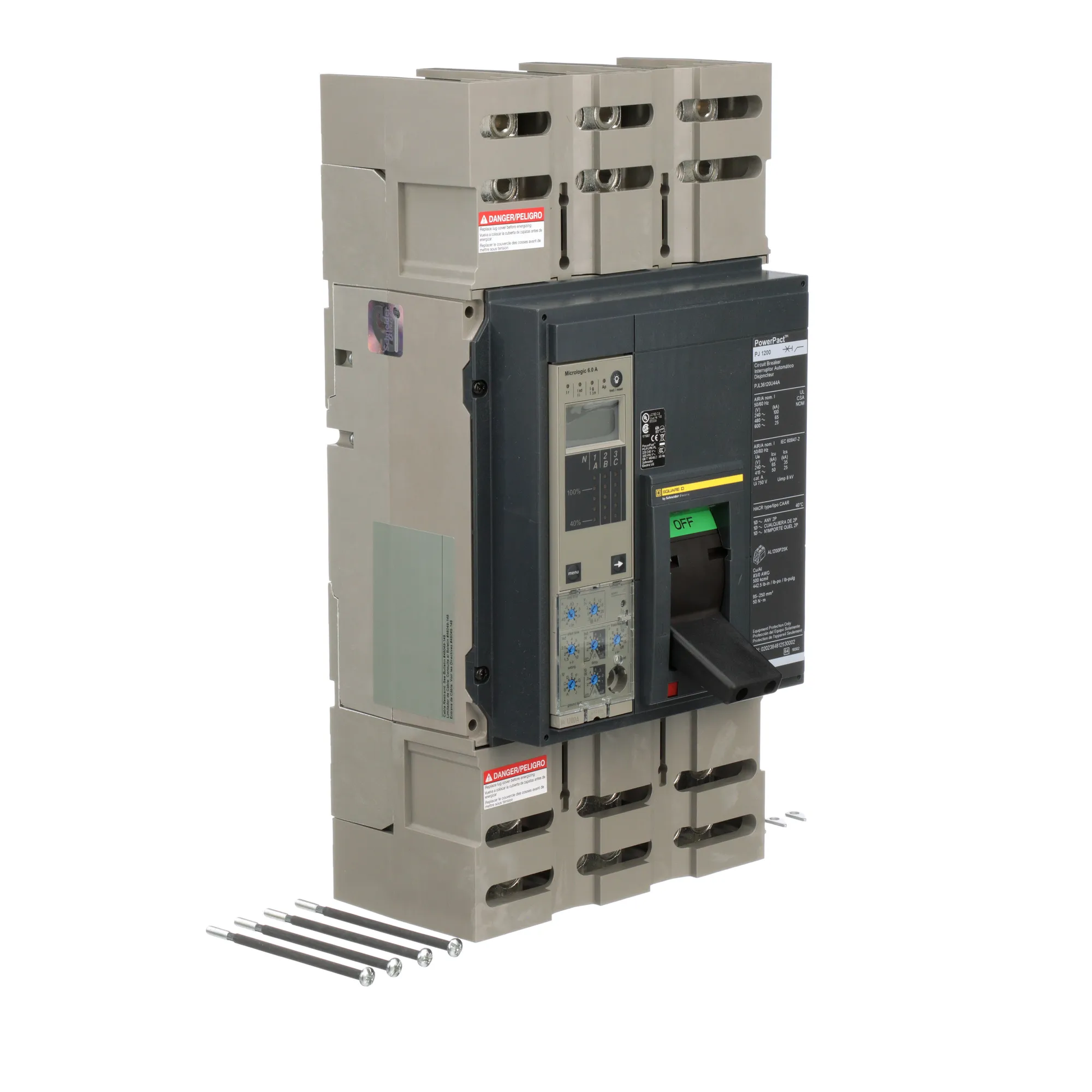

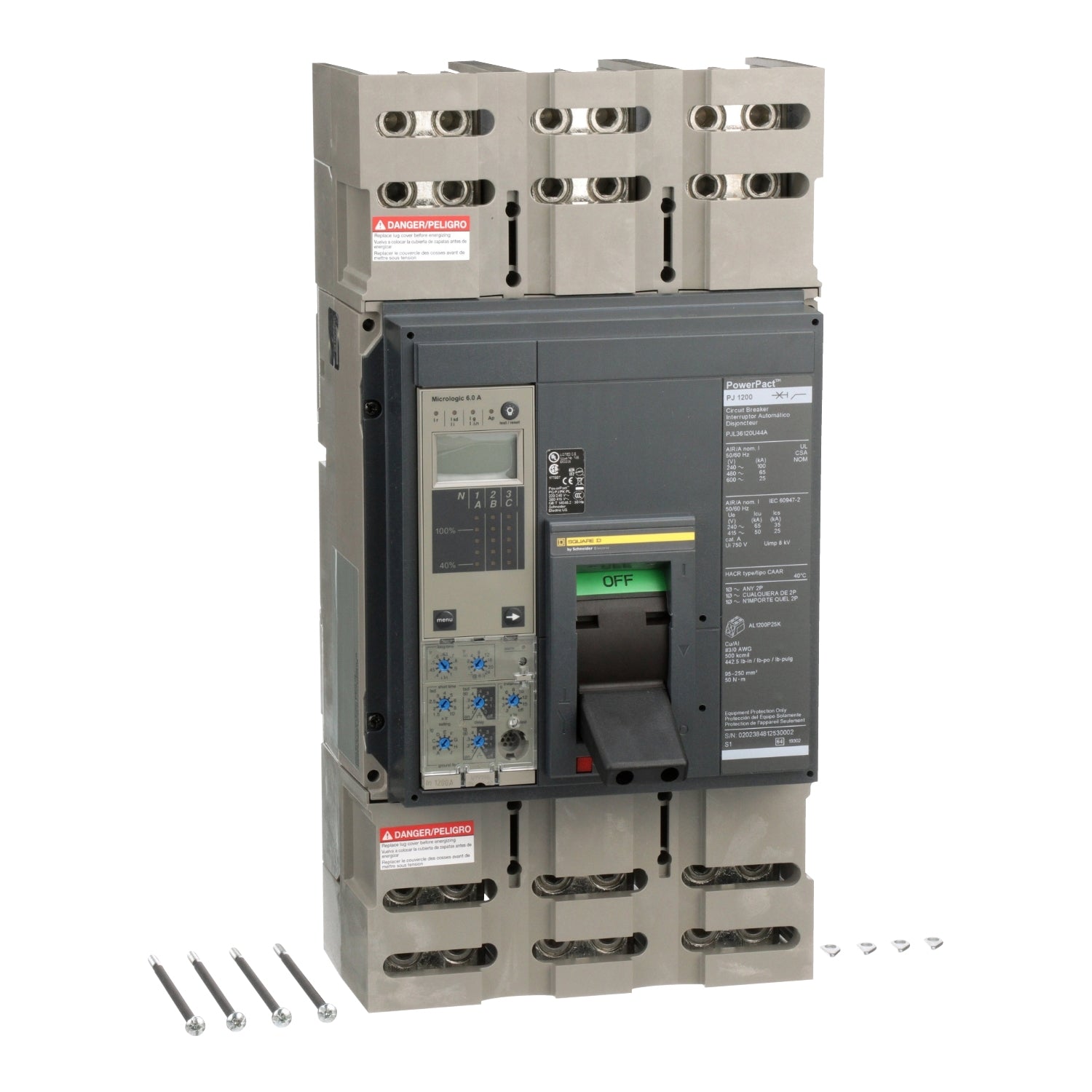

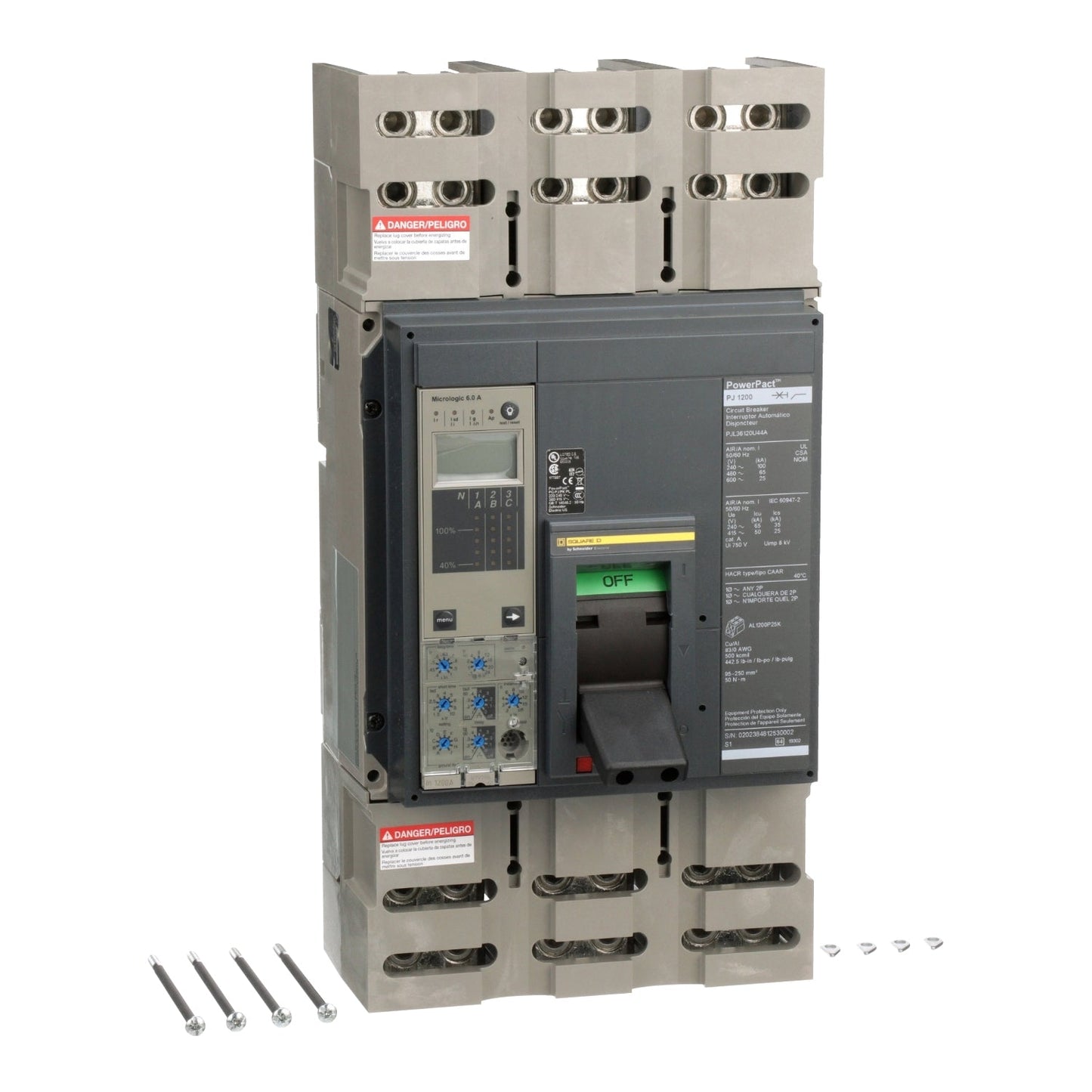

Square D PJL36120U44A Circuit Breaker | 600V 1200A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D PJL36120U44A is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 1200 amp breaker rated for 600 volts with an AIC rating of 65kA at 480V. This unit features a Feed-Thru connection and includes solid state protection with LSIG functions.

Key Features:
✔ Part Number: PJL36120U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJL
✔ Voltage: 600
✔ Amperage: 1200
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Current Rating: 80%
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Frame Size: P Frame
✔ Protection: Solid State
✔ Trip Type: Electronic, ammeter, MicroLogic 6.0 A, LSIG
✔ UPC: 785901863731
✔ GTIN: 00785901863731
✔ Country of Origin: United States
✔ Dimensions: 8.27 in x 16.16 in x 8.05 in
✔ Weight: 17.69 lb
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
