Square D PKL36060CU33A Circuit Breaker | Powerpact PKL 600V 600A
Square D PKL36060CU33A Circuit Breaker | Powerpact PKL 600V 600A
Price:
Sale
Sold out
Regular price
$10,480.92 USD
Regular price
$0.00 USD
Sale price
$10,480.92 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:

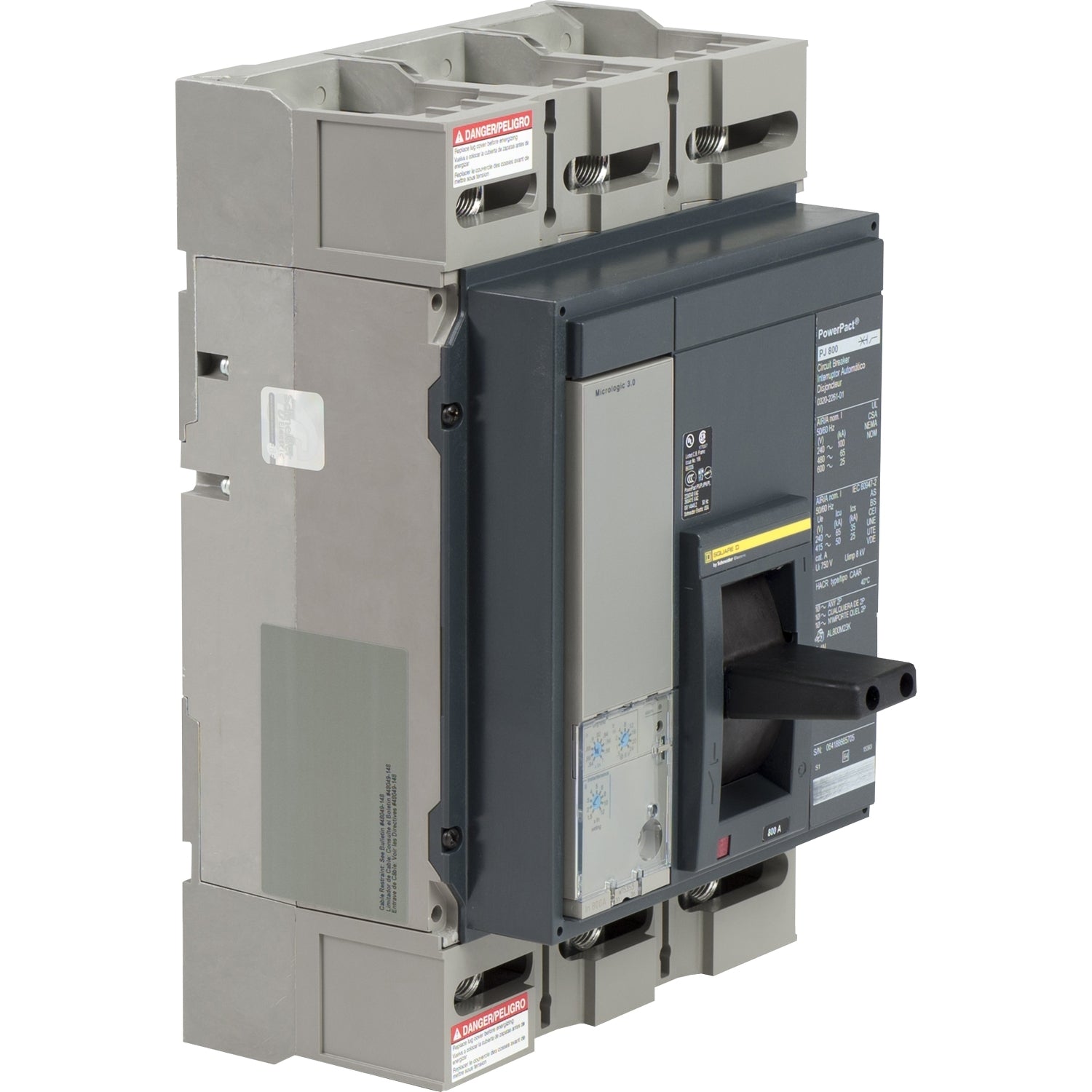

The Square D PKL36060CU33A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 50kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection with LSI functions. It is suitable for use with aluminum or copper wiring. Key Features:
✔ Part Number: PKL36060CU33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PKL
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 50kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: P Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
✔ Dimensions: 12.86 x 3.09 x 4.44 in (
The Square D PKL36060CU33A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 50kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection with LSI functions. It is suitable for use with aluminum or copper wiring. Key Features:
✔ Part Number: PKL36060CU33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PKL
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 50kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: P Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
✔ Dimensions: 12.86 x 3.09 x 4.44 in (
