Product Description:

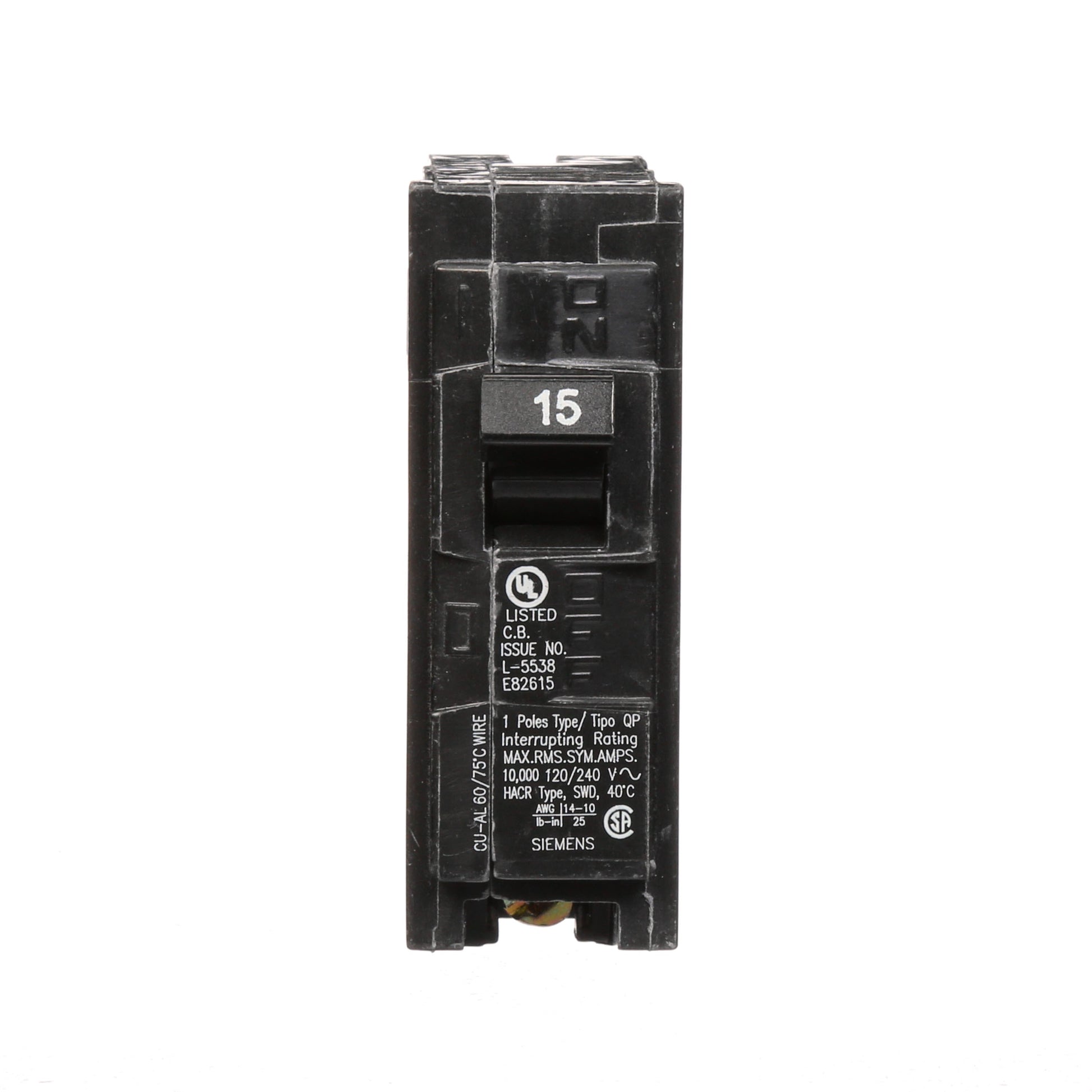

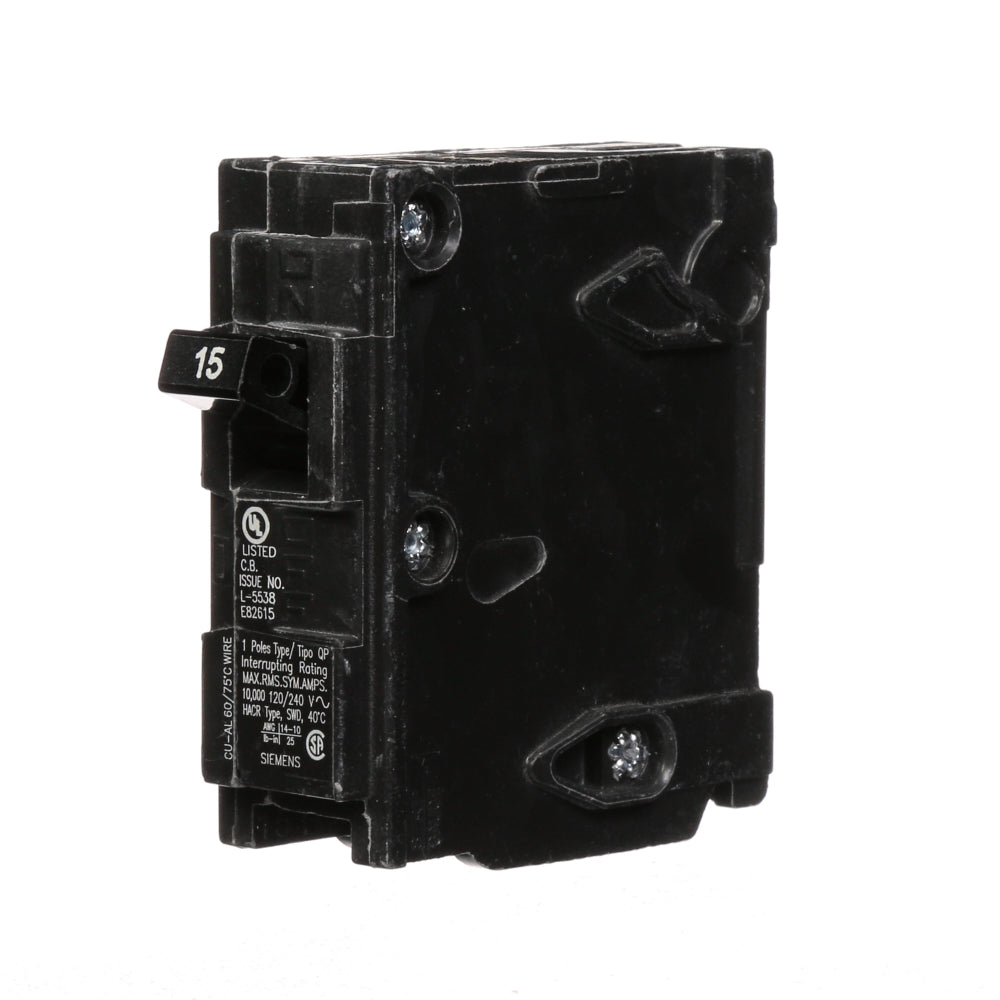

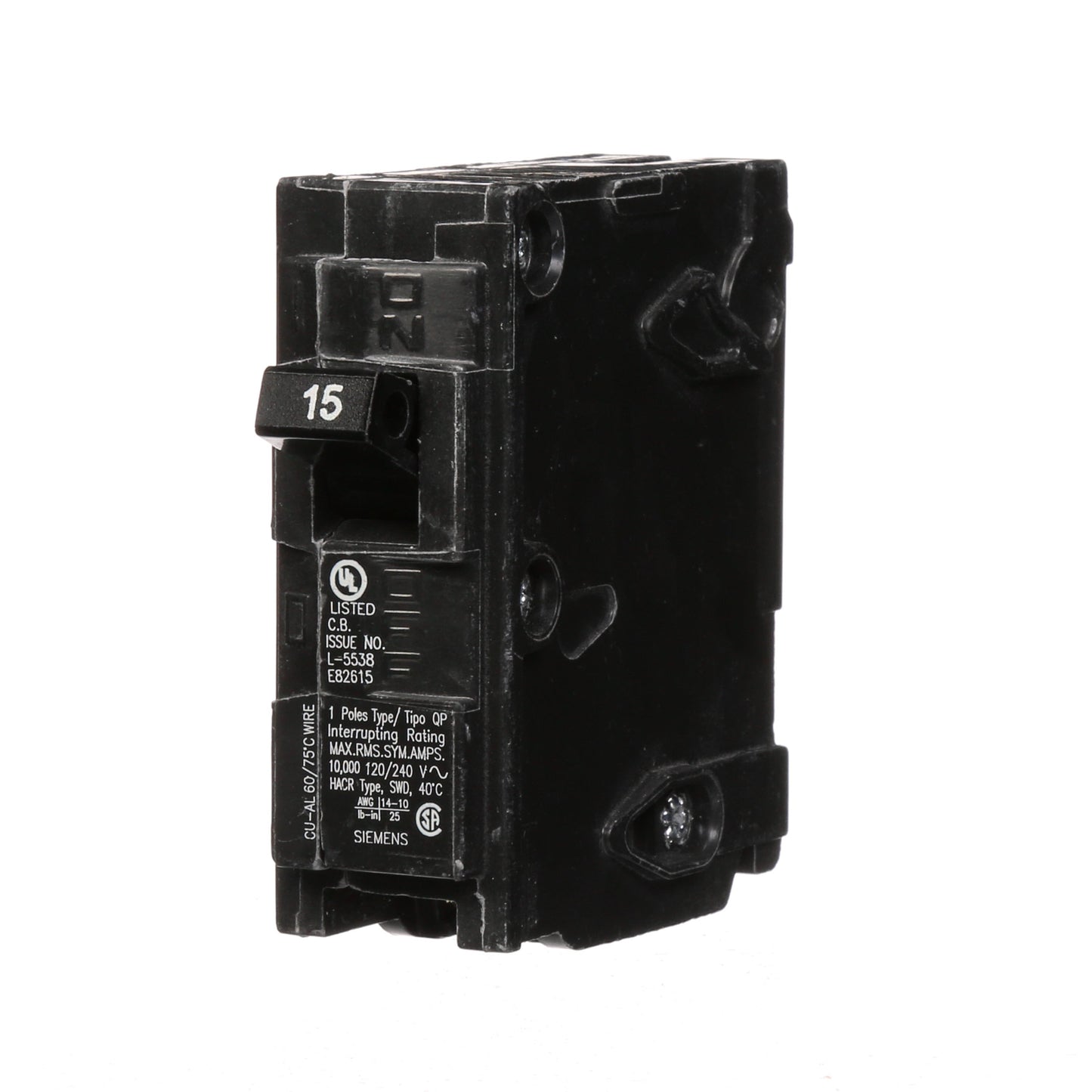

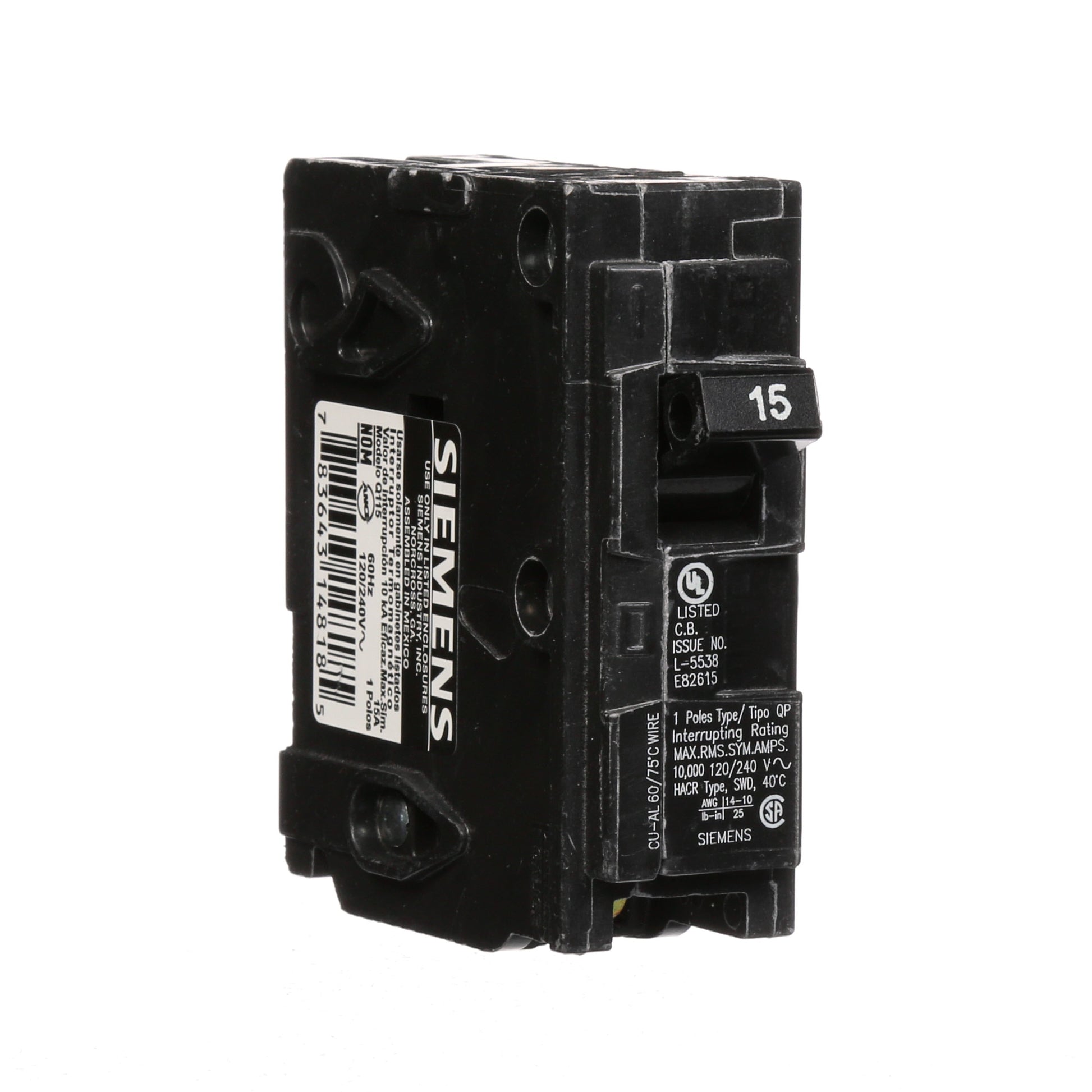

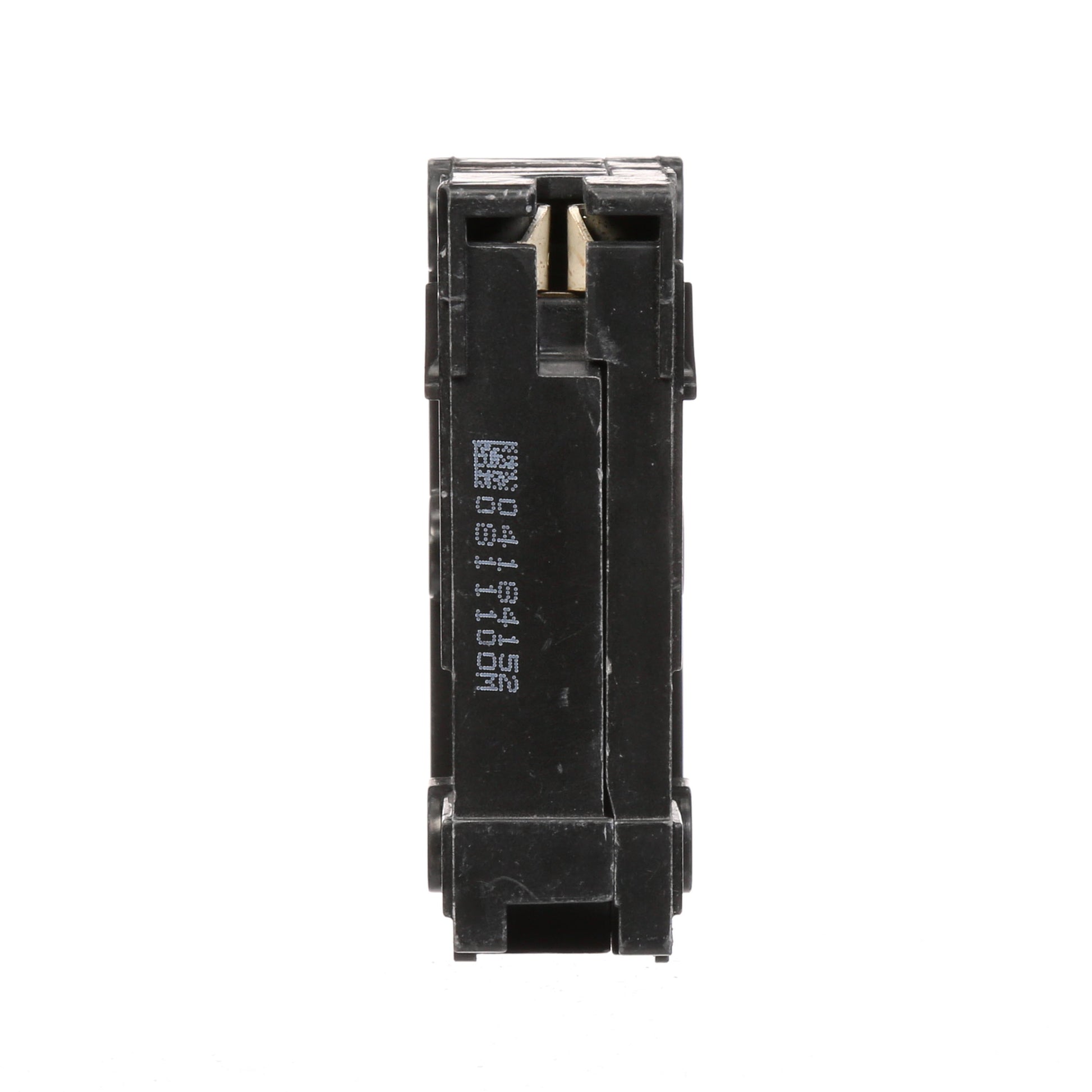

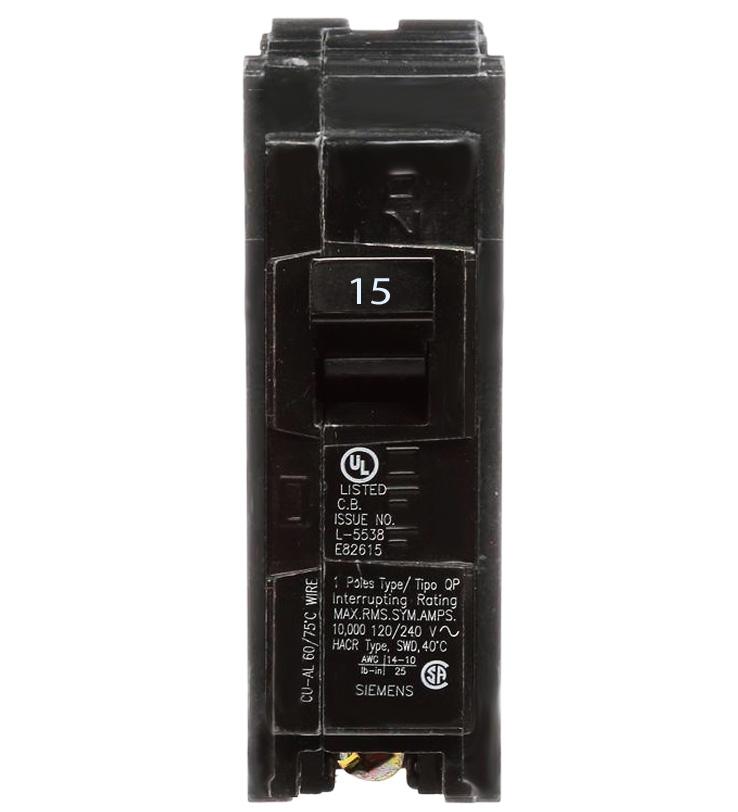

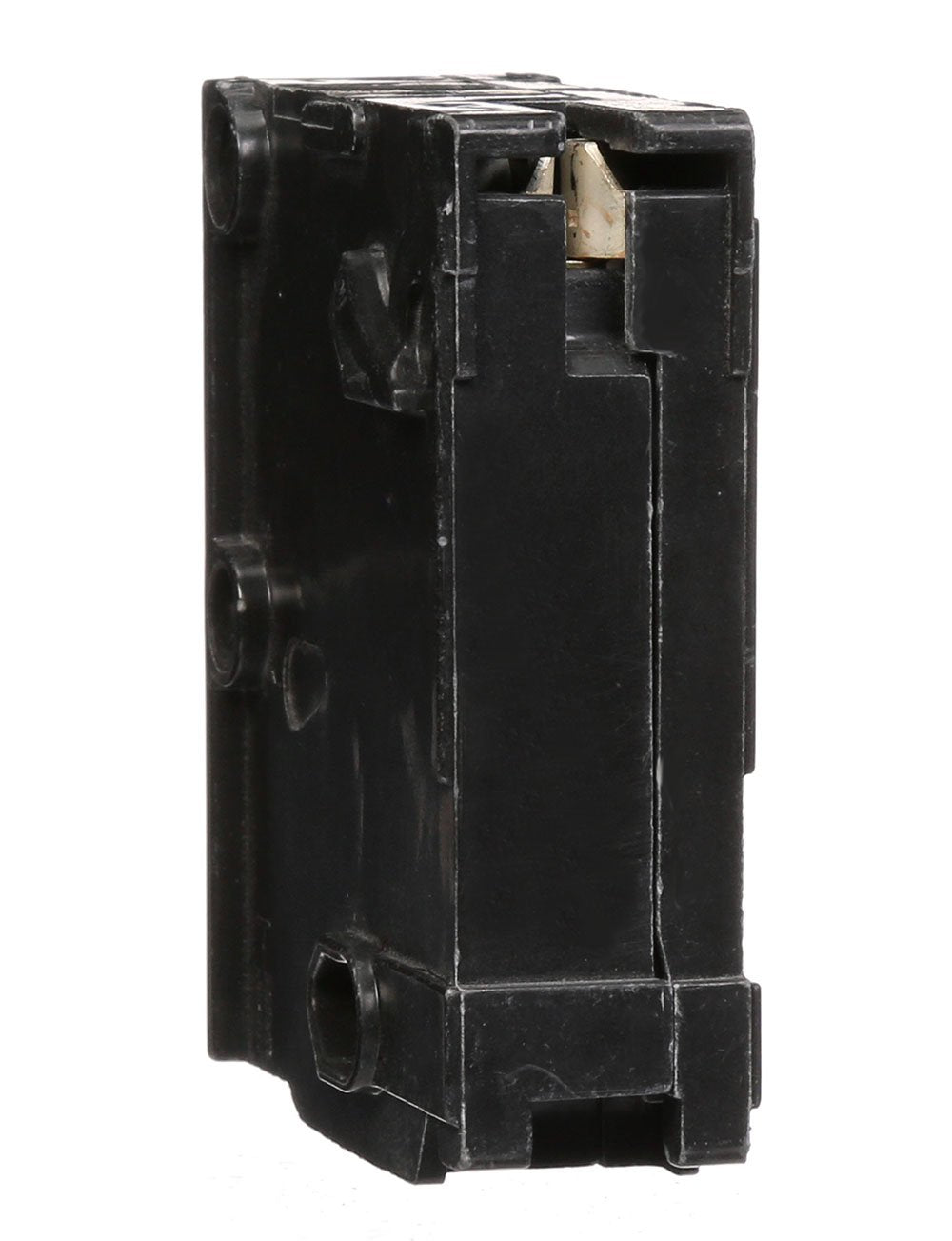

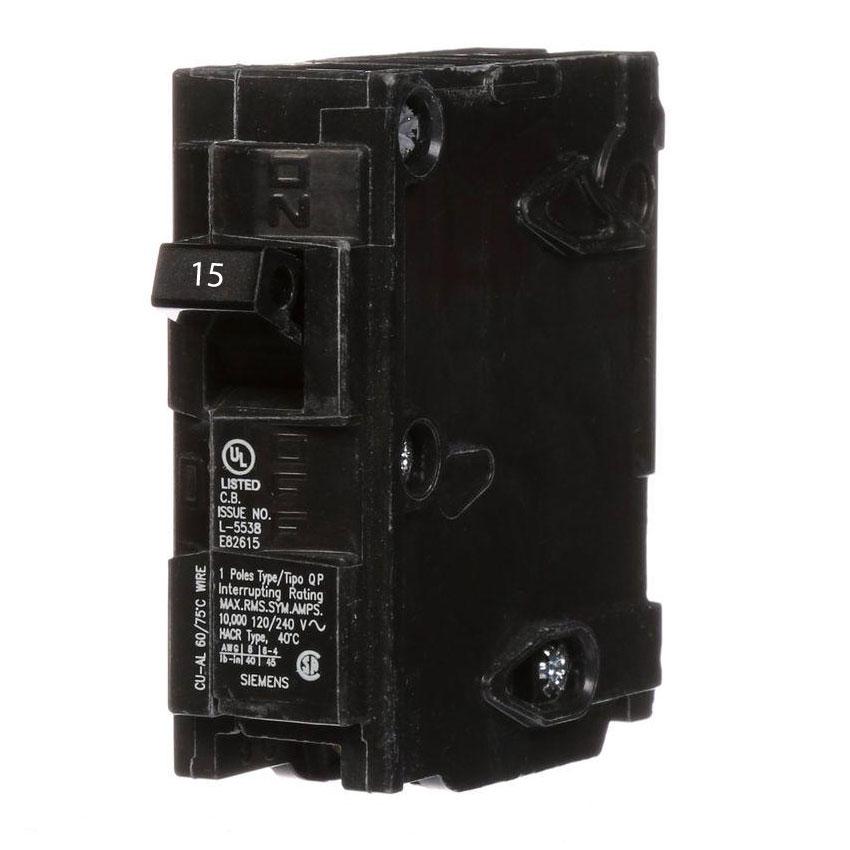

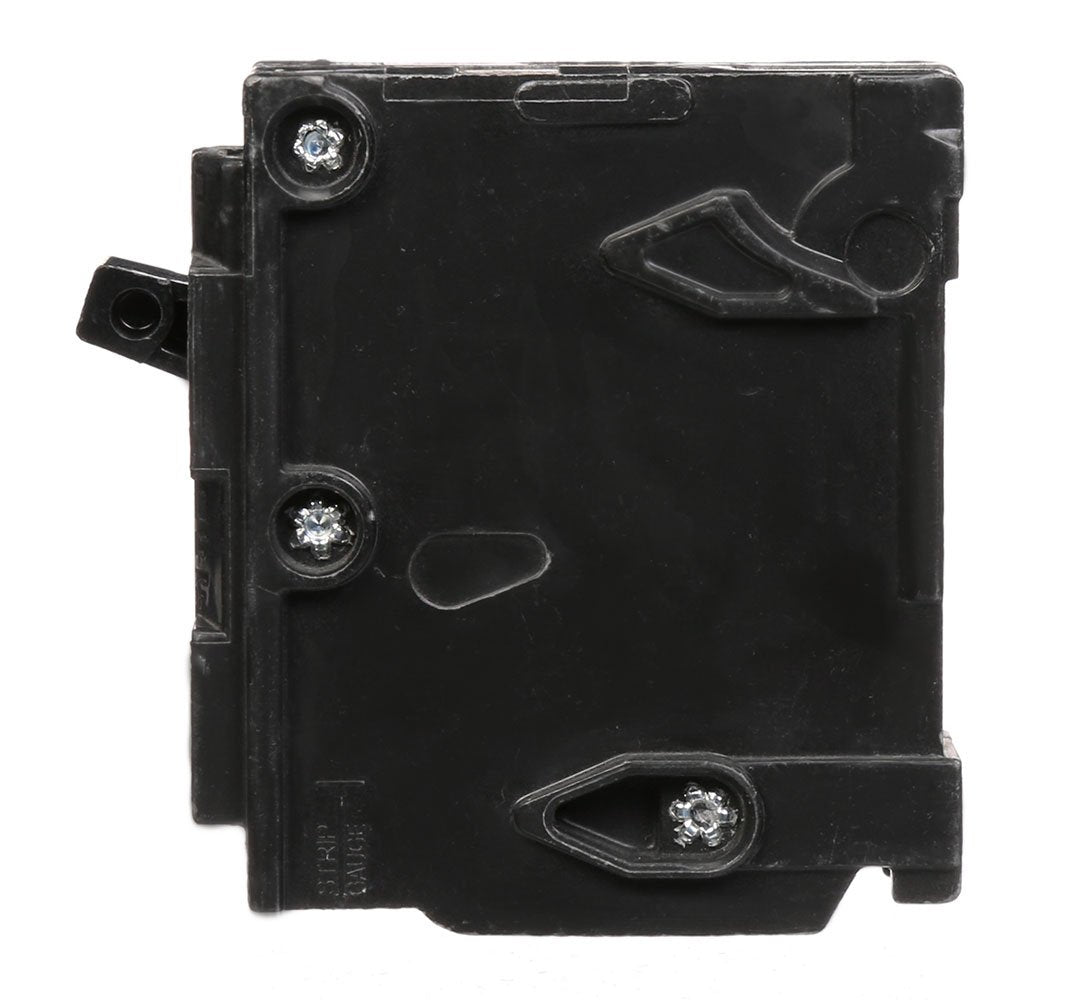

The Siemens Q115 is a Molded Case Circuit Breaker from the Q Series family. It is a 1-pole, 15 amp breaker rated for 120VAC with a 10kA interrupting capacity. This model features thermal magnetic protection and a plug-in connection design for easy installation.
Key Features:
✔ Part Number: Q115
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QP
✔ Voltage: 120VAC
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/QP
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643148185
✔ GTIN: 00783643148185
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 3 in x 3 in
✔ Weight: 1 lb
✔ Panel Type: Siemens EQ Load Centers
✔ Certification: UL Listed
