Product Description:

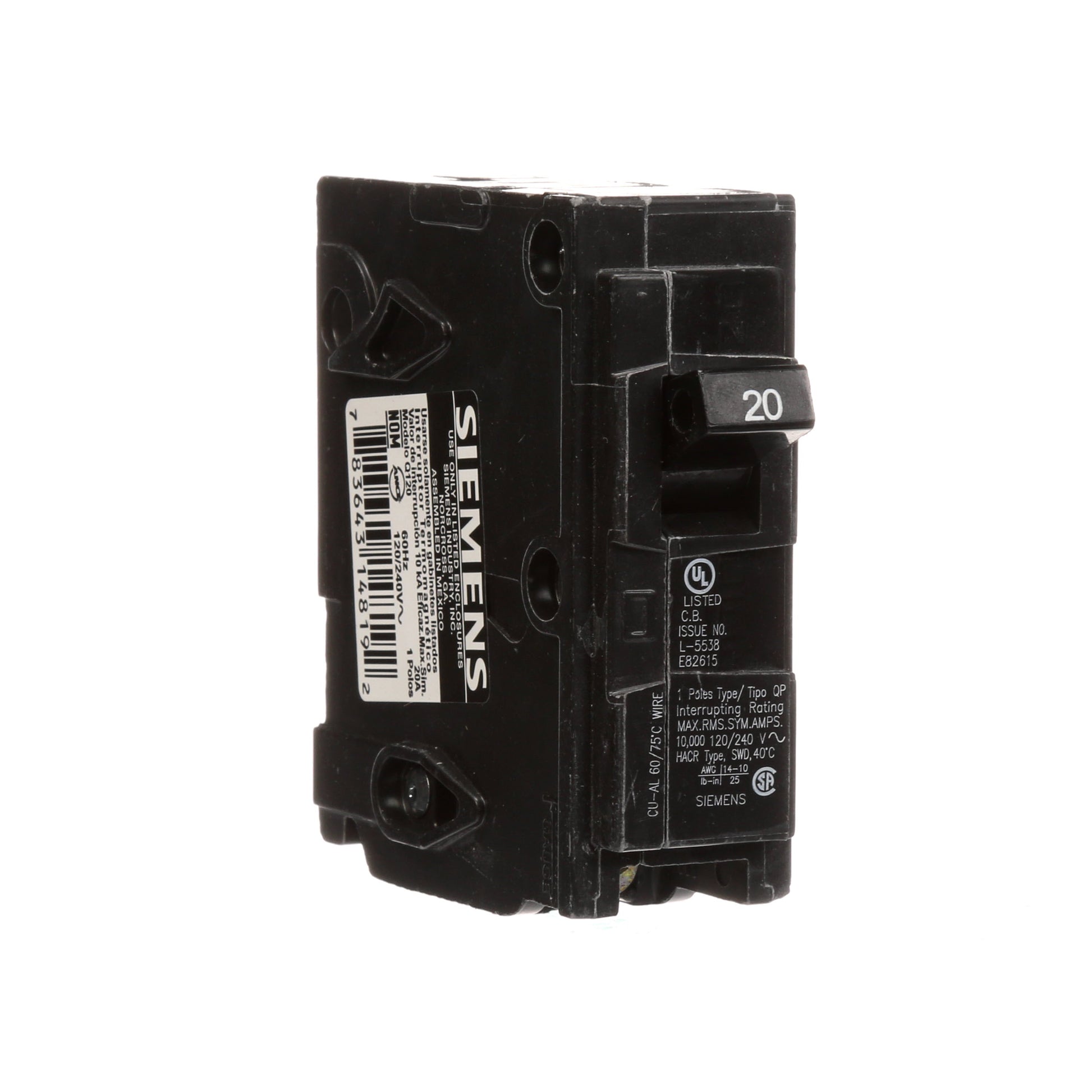

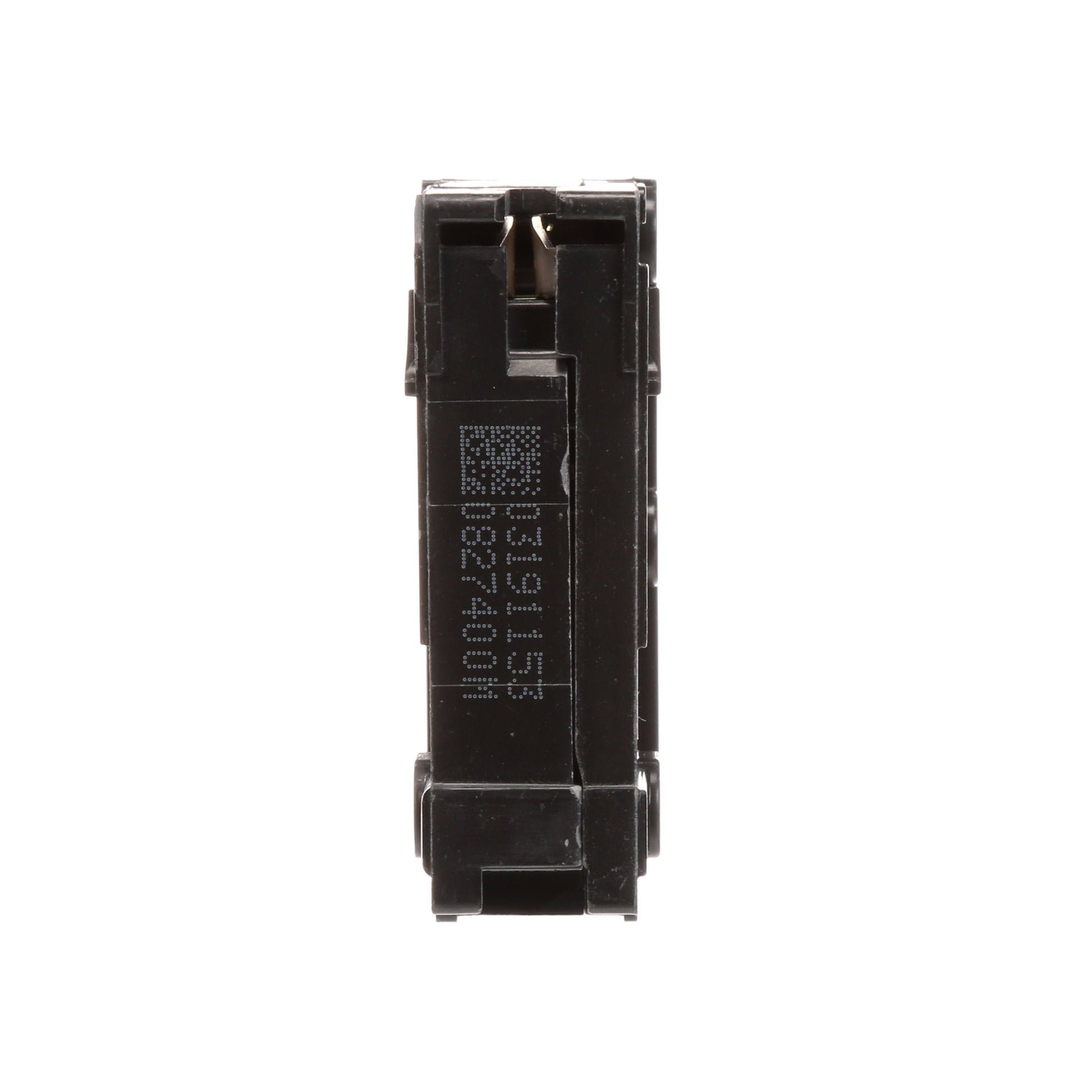

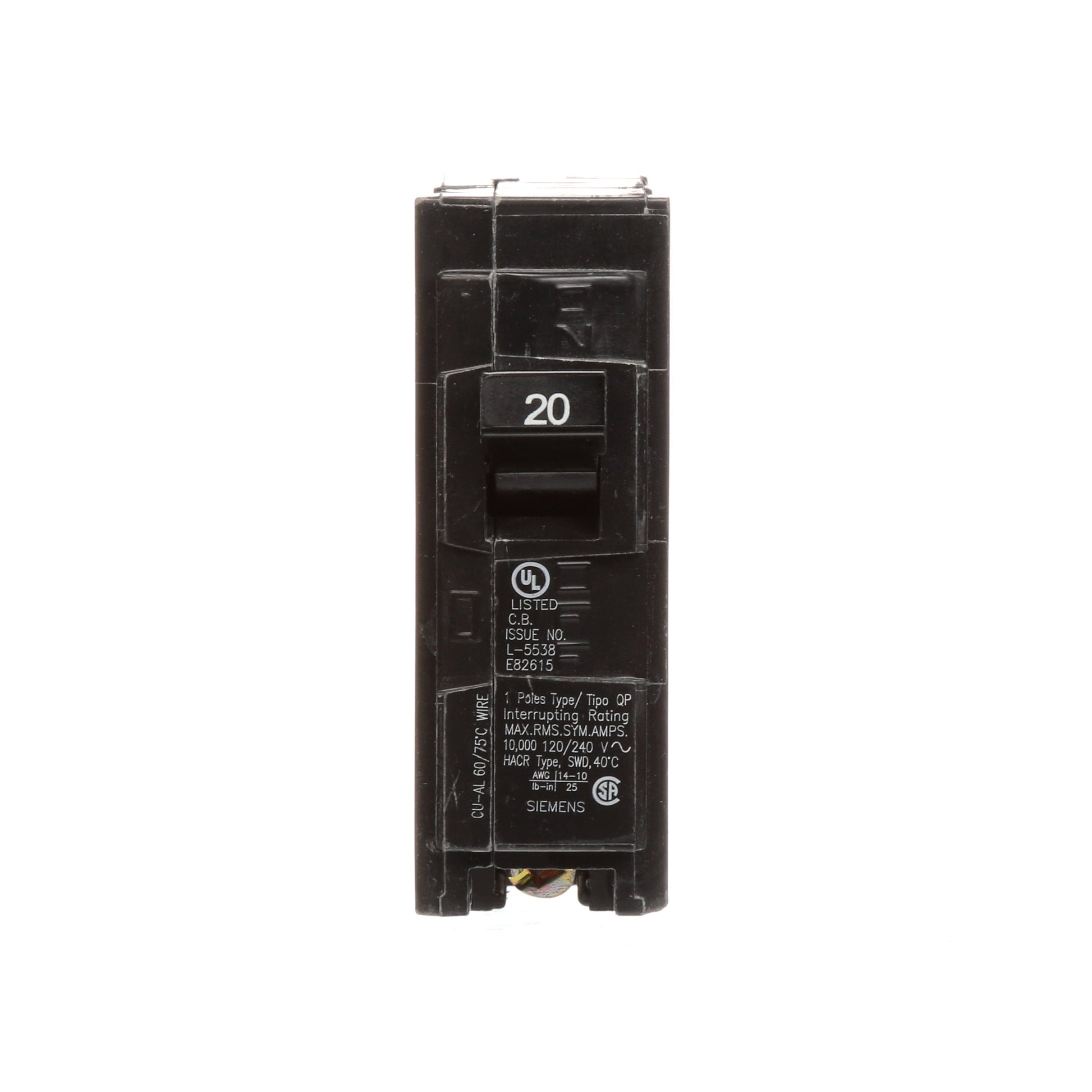

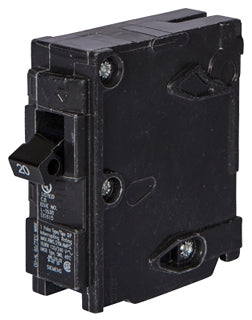

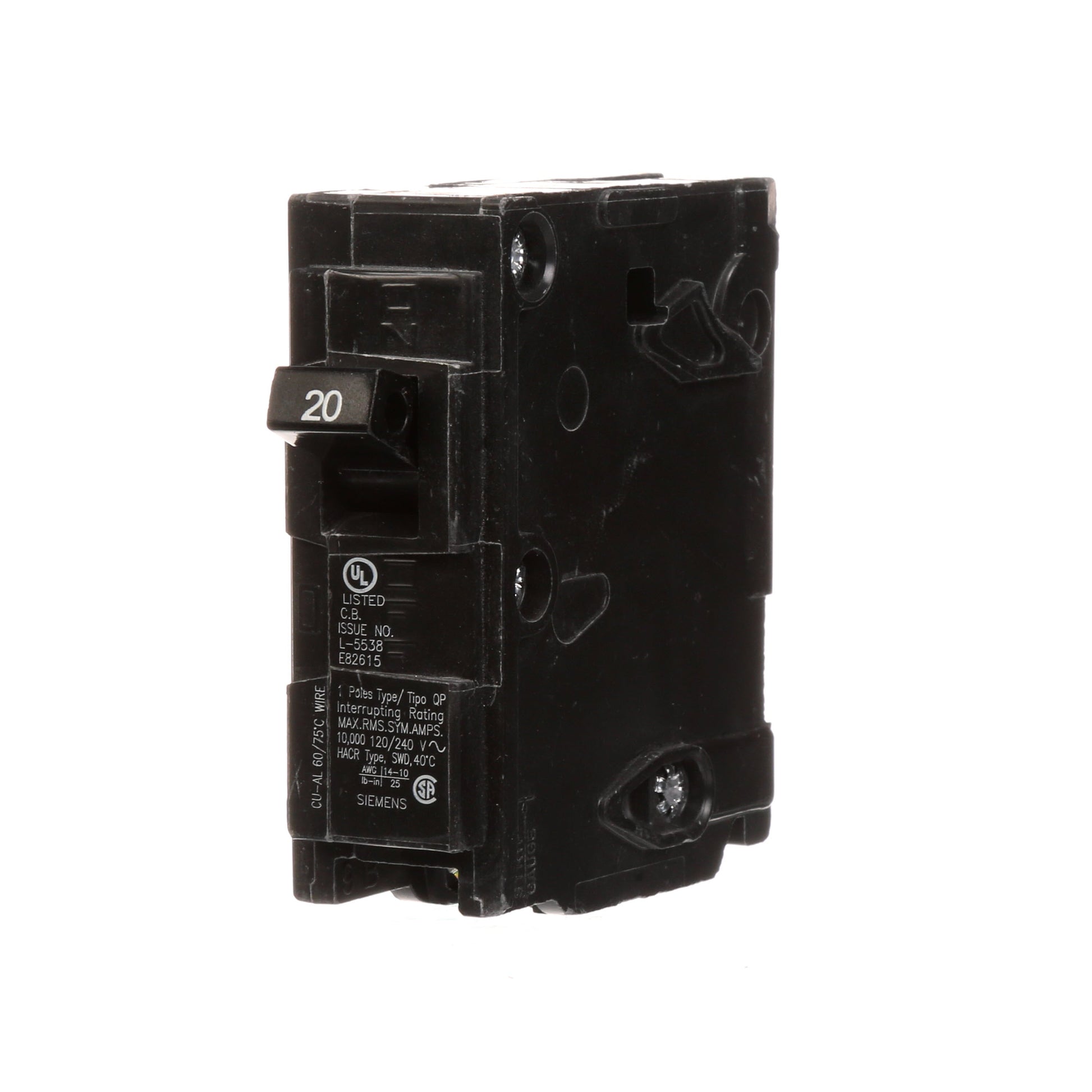

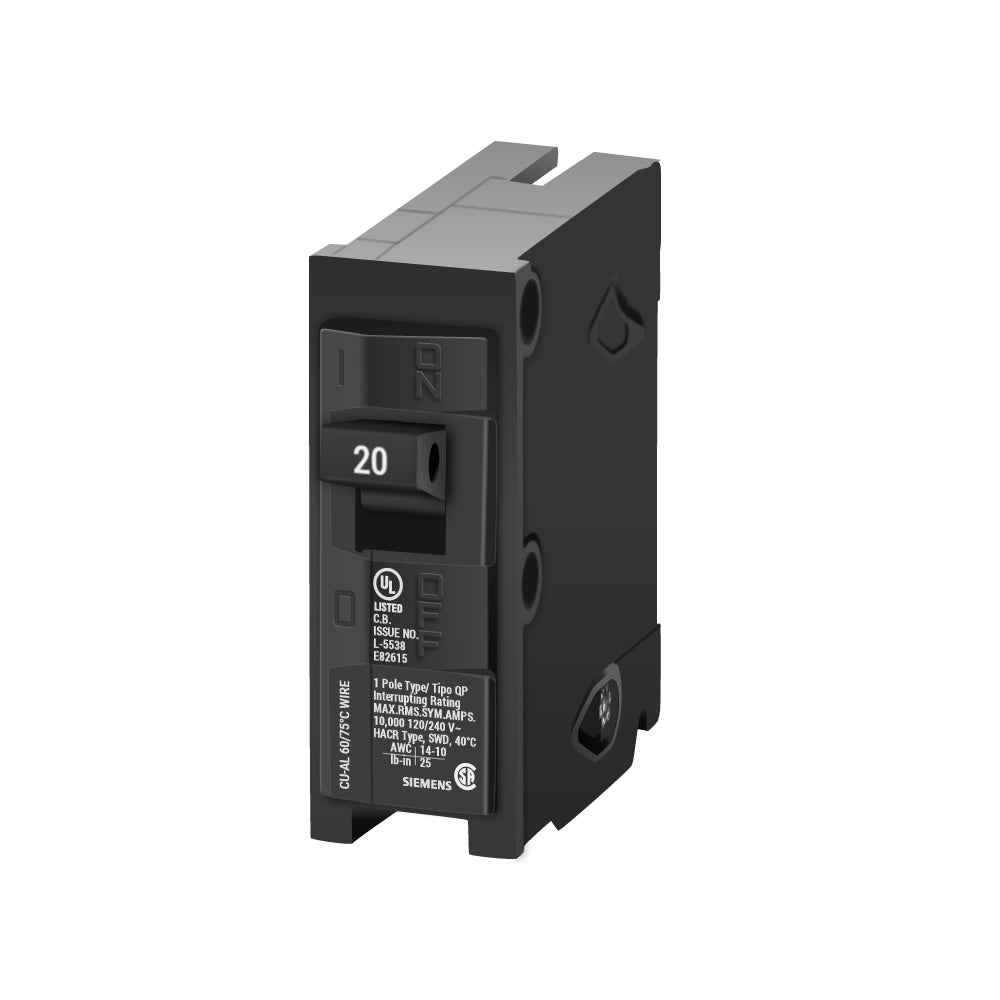

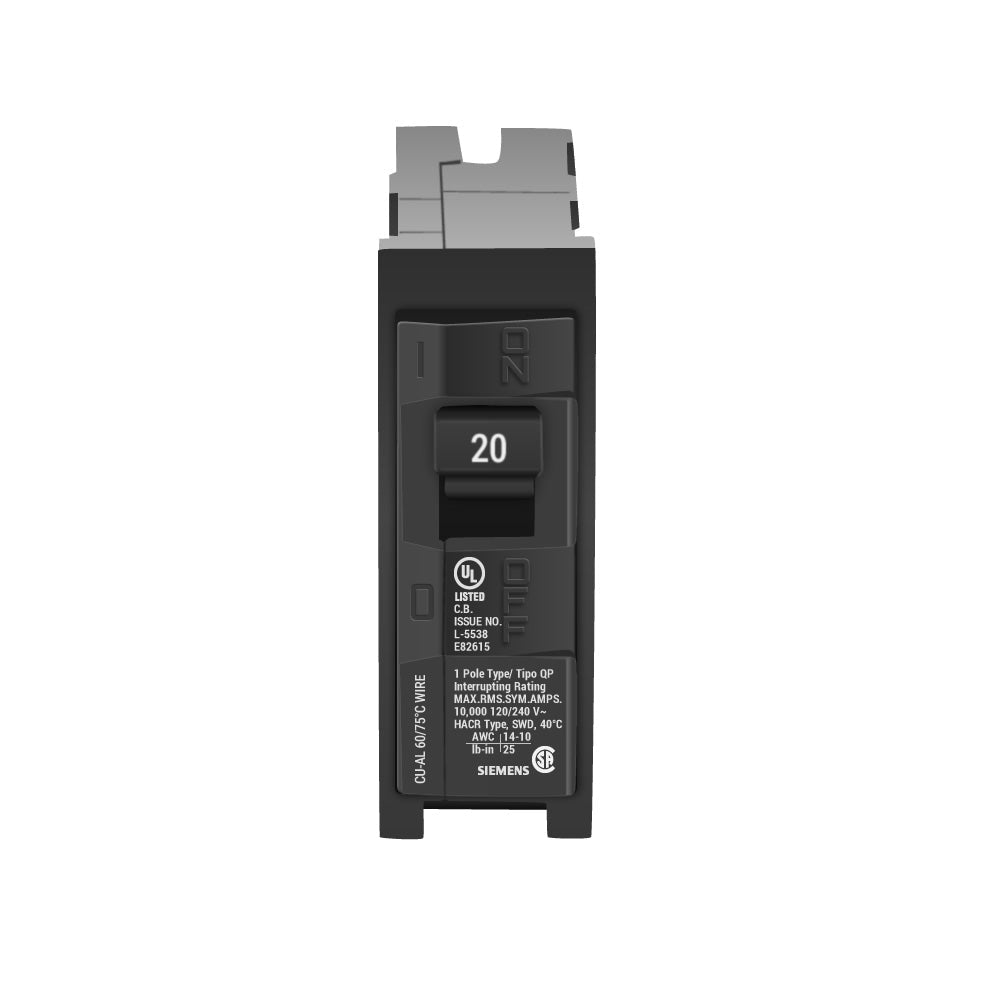

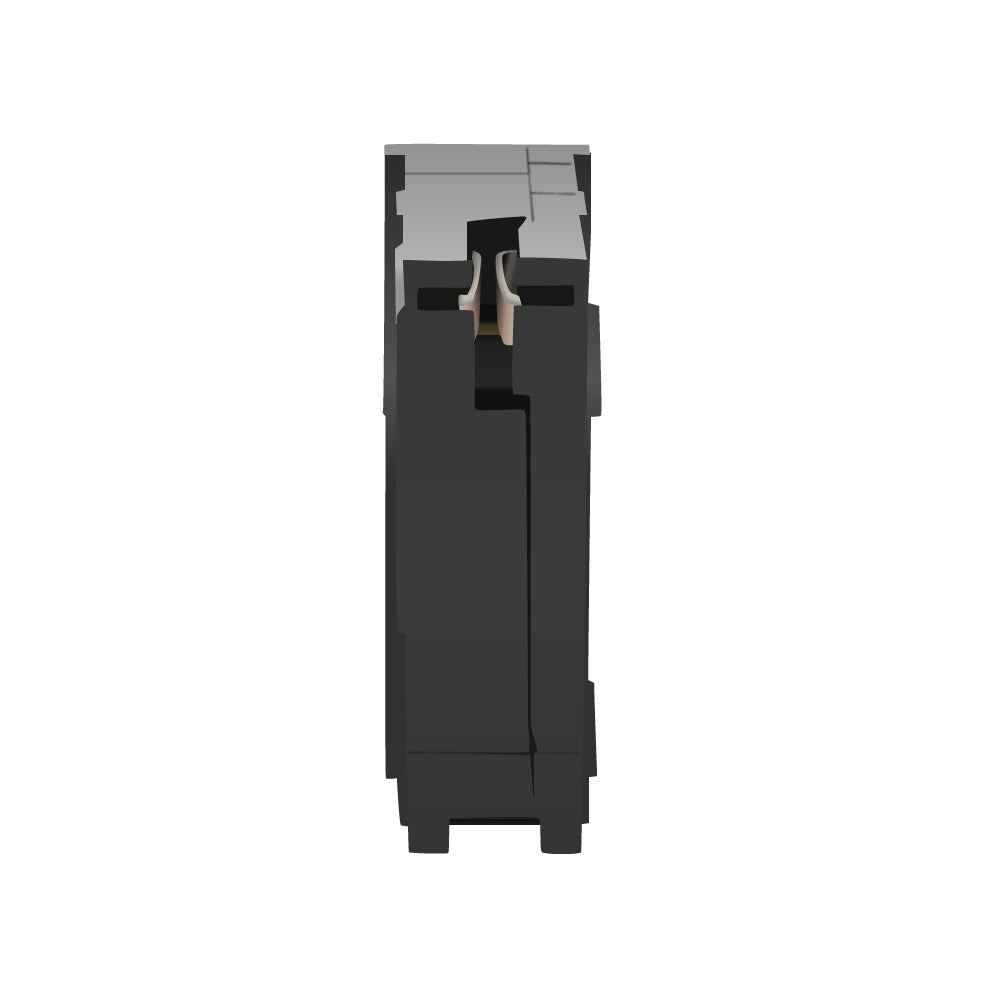

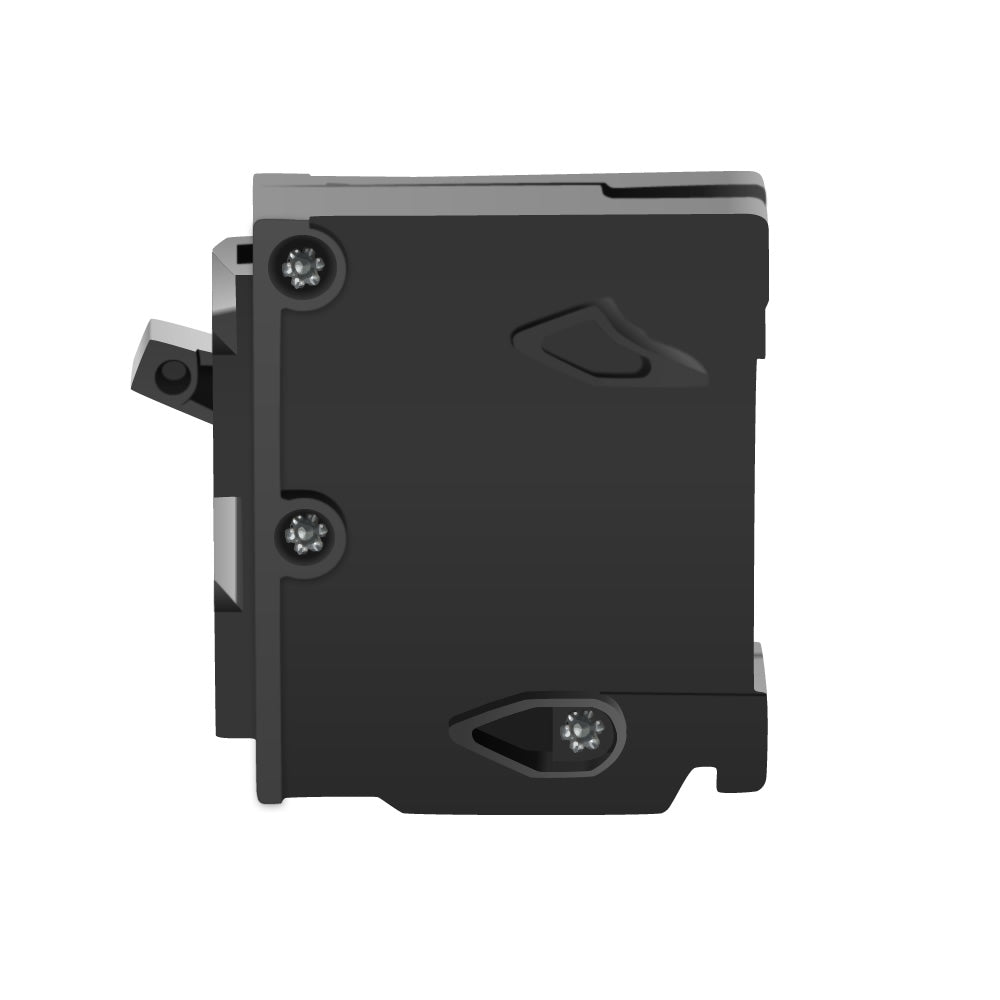

The Siemens Q120 is a Molded Case Circuit Breaker from the Q Series family. It is a 1-pole, 20 amp breaker rated for 120VAC with a 10kA interrupting capacity. This QP type breaker features Plug-In connections and Thermal Magnetic protection for reliable circuit management.
Key Features:
✔ Part Number: Q120
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QP
✔ Voltage: 120VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/QP
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643148192
✔ GTIN: 00783643148192
✔ Country of Origin: Mexico
✔ Dimensions: 1.3 in x 3.5 in x 3-1/2 in
✔ Weight: 1 lb
✔ Panel Type: Siemens EQ Load Centers
✔ Standards: UL Listed
✔ Certification: UL Listed
