Product Description:

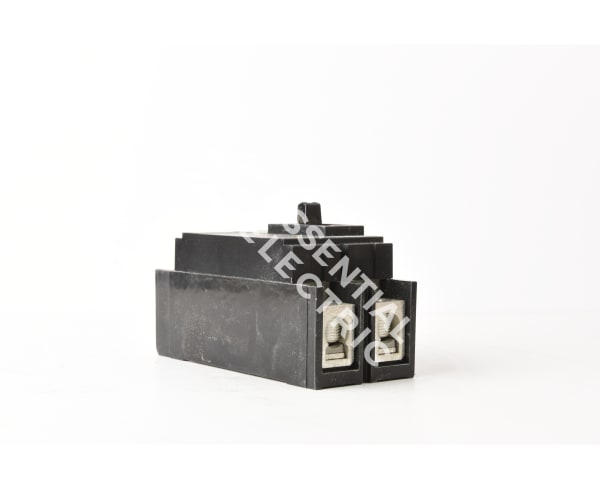

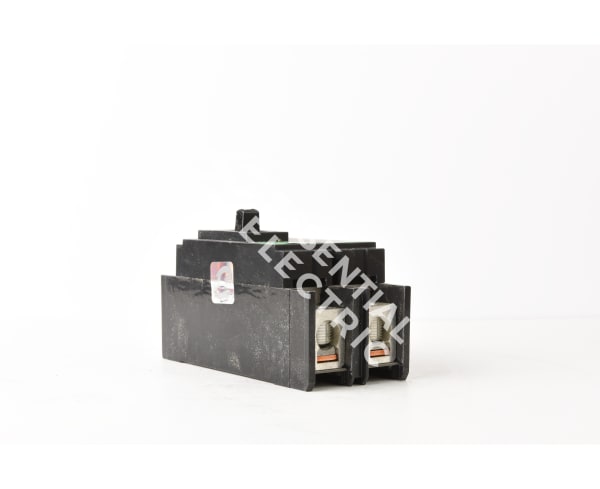

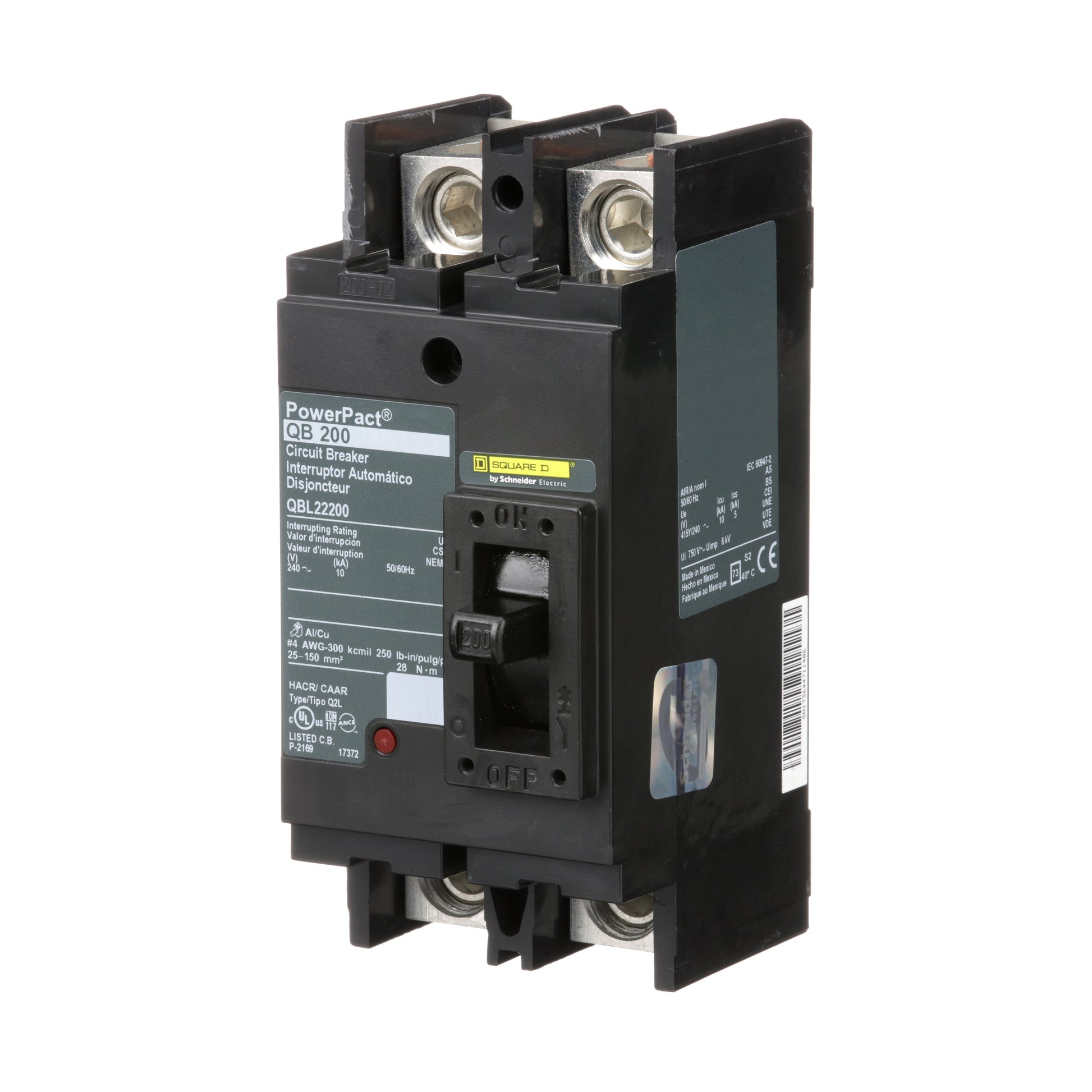

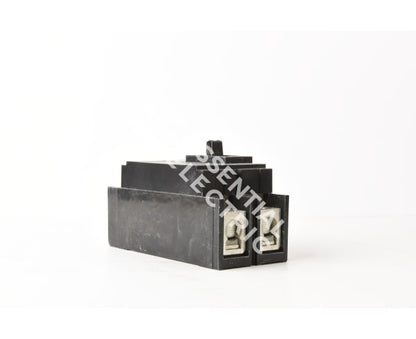

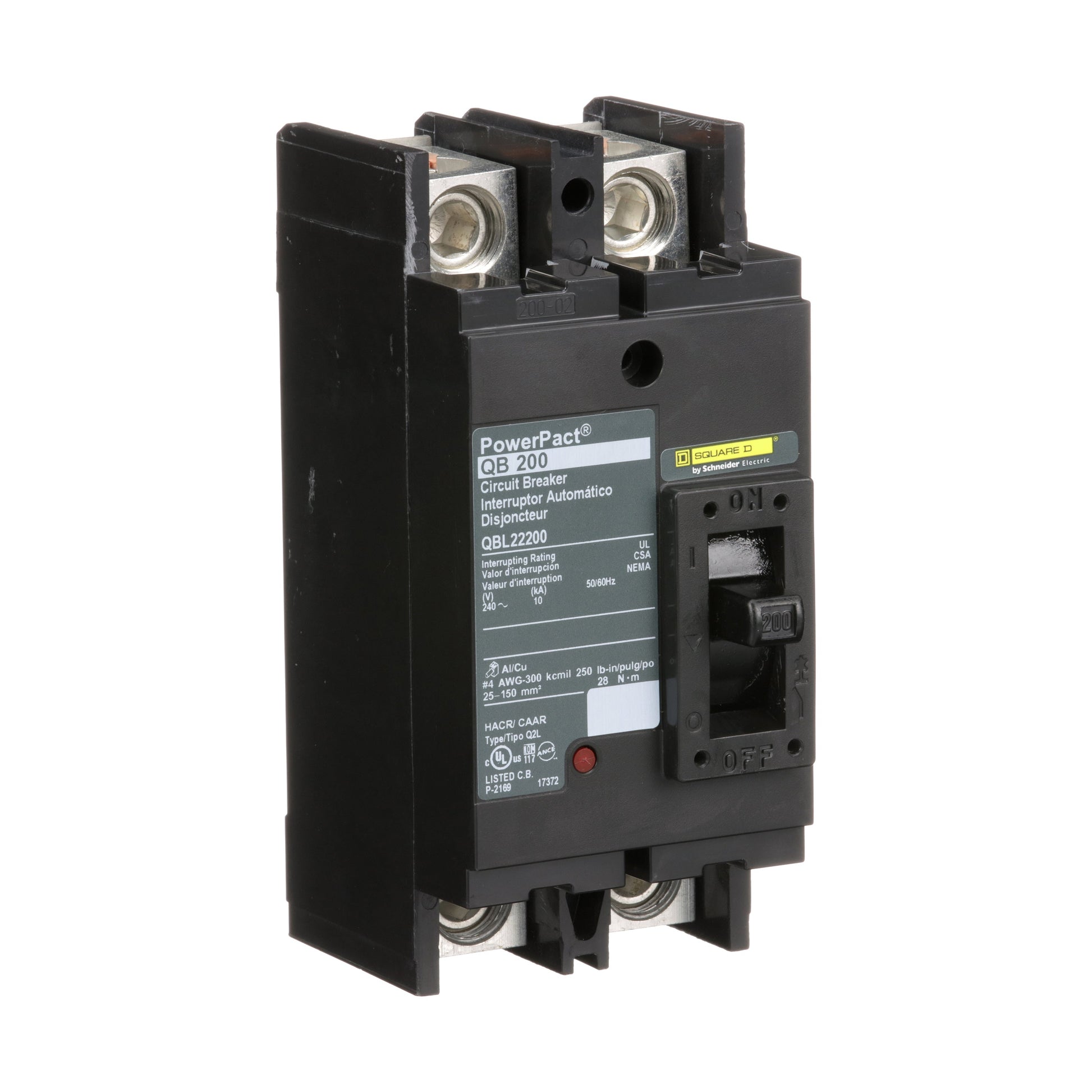

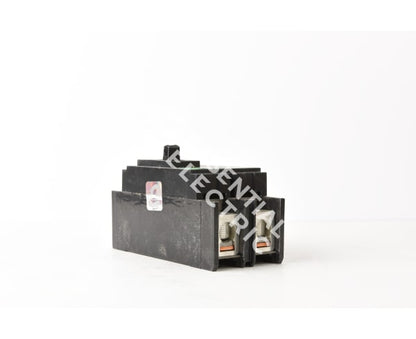

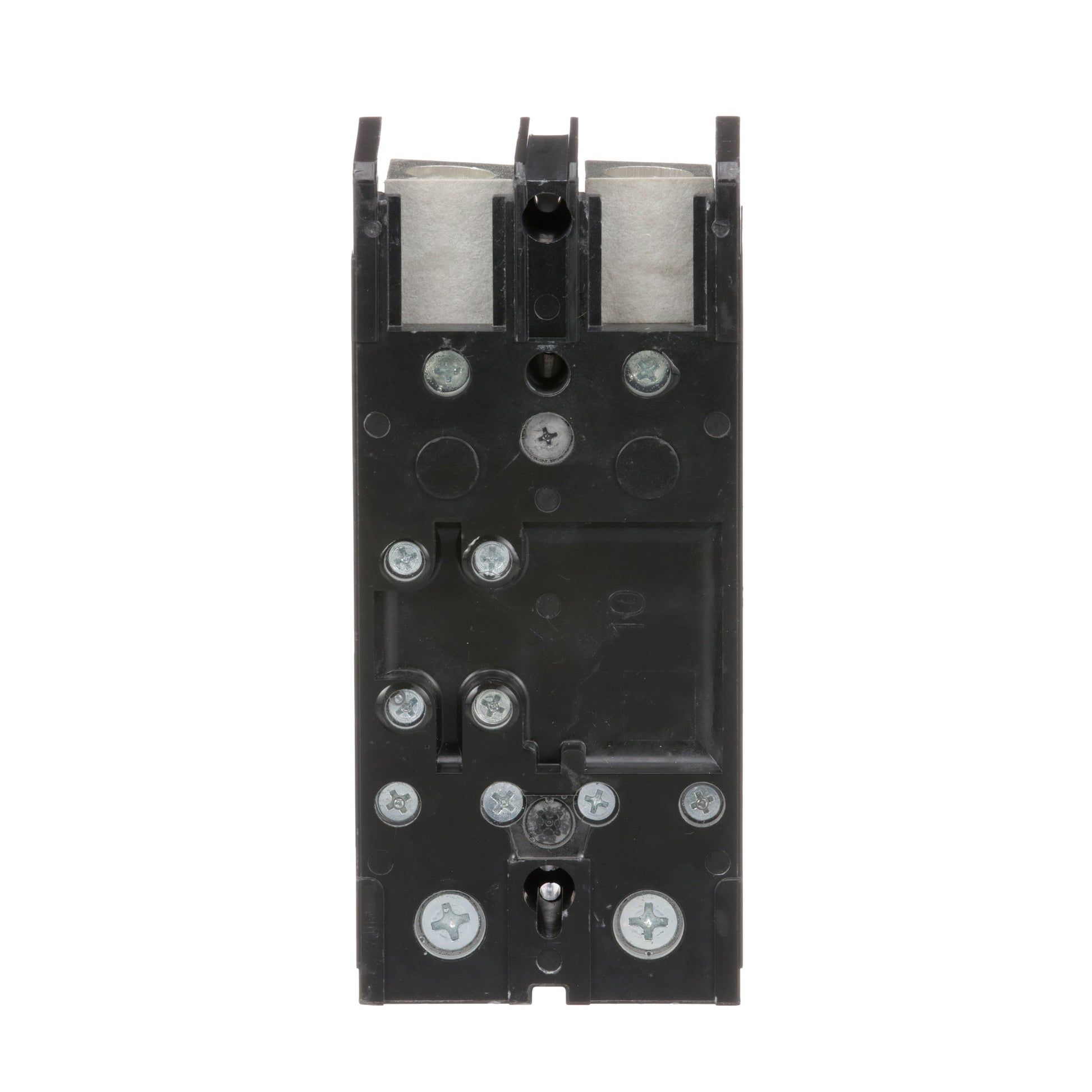

The Square D QBL22200 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with 240V voltage and 200A amperage rating, suitable for industrial and commercial applications. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@240V. It uses a Bolt-On connection for secure installation.
Key Features:
✔ Part Number: QBL22200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240
✔ Amperage: 200
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/QB
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901412632
✔ GTIN: 00785901412632
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.47 in
✔ Weight: 1.54 lb
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
