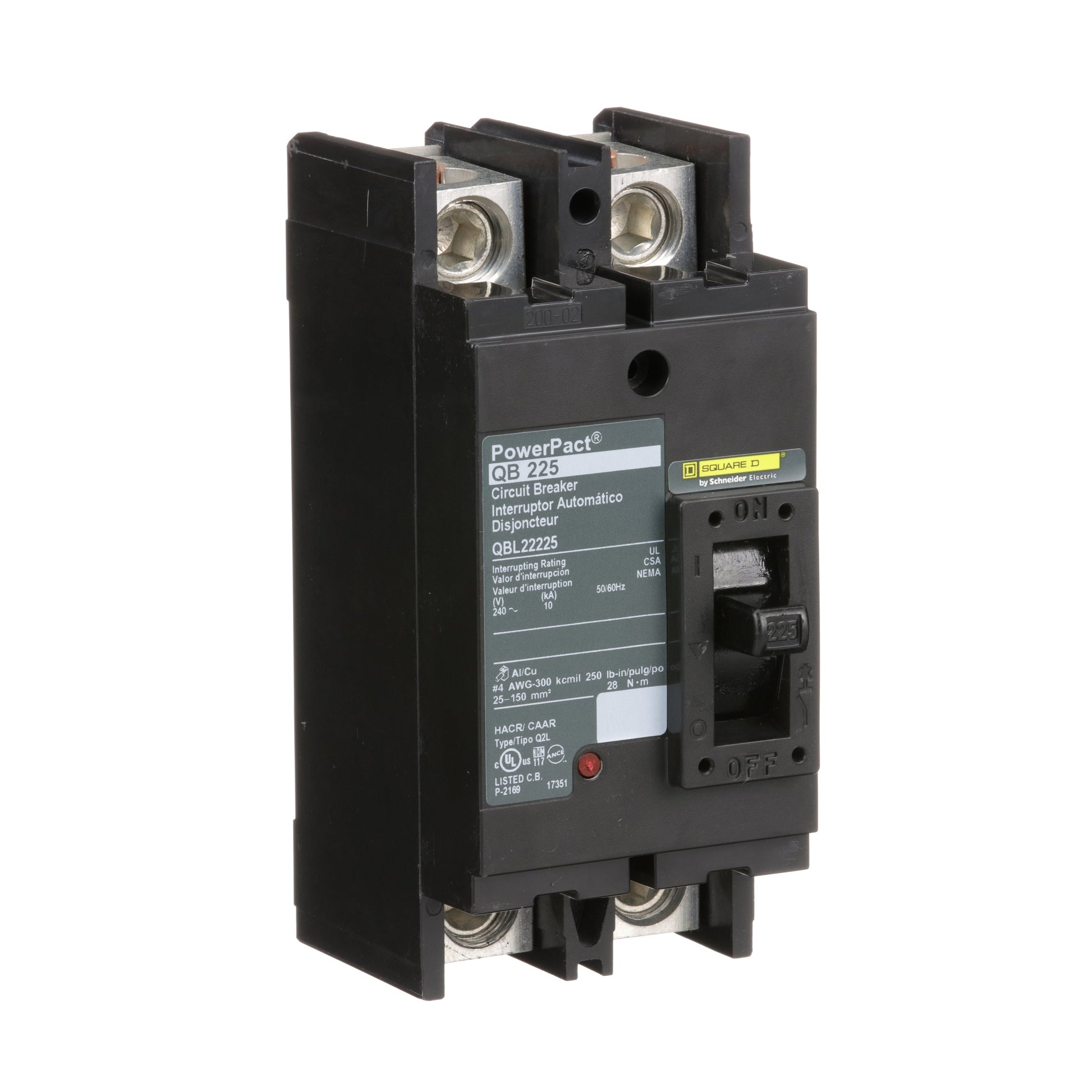

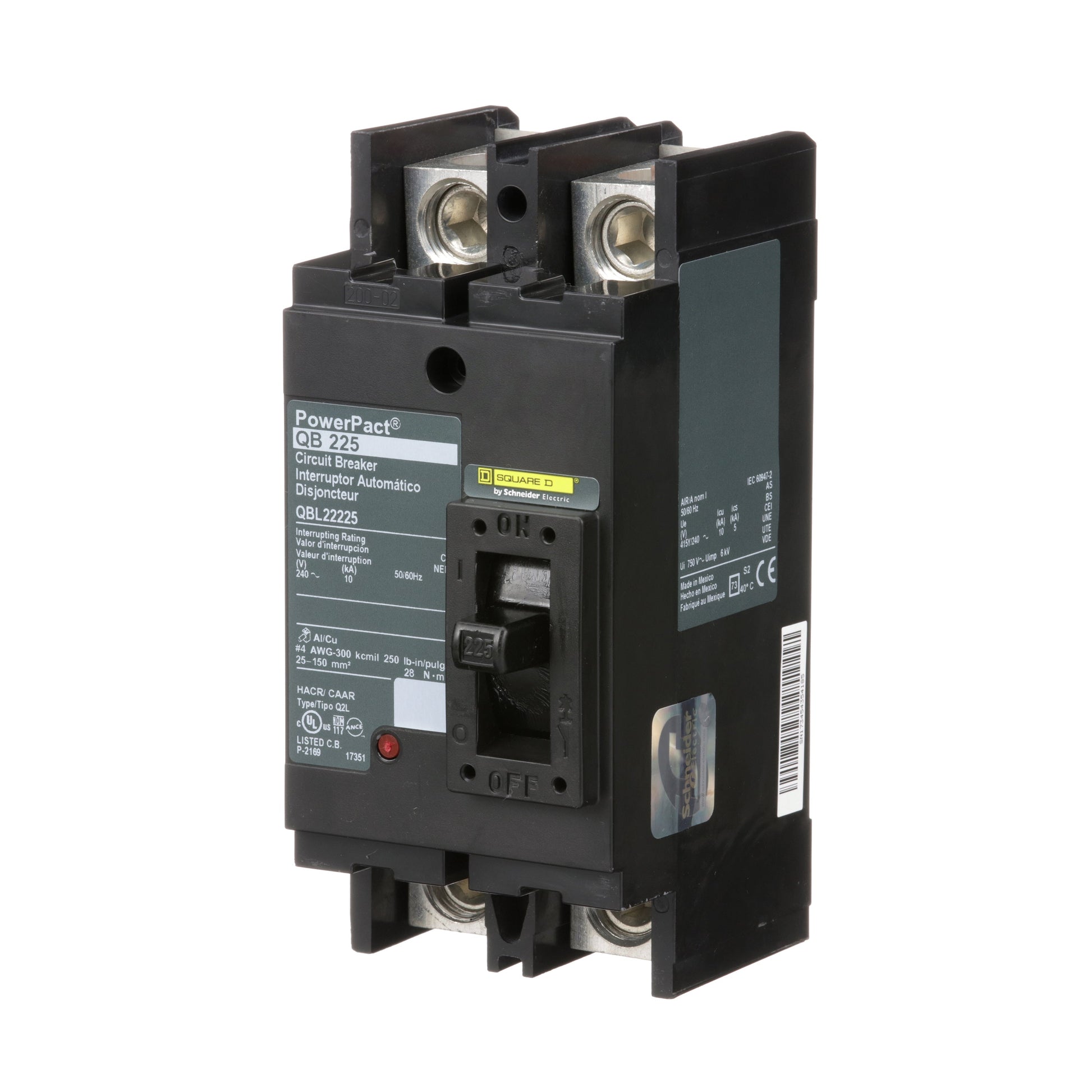

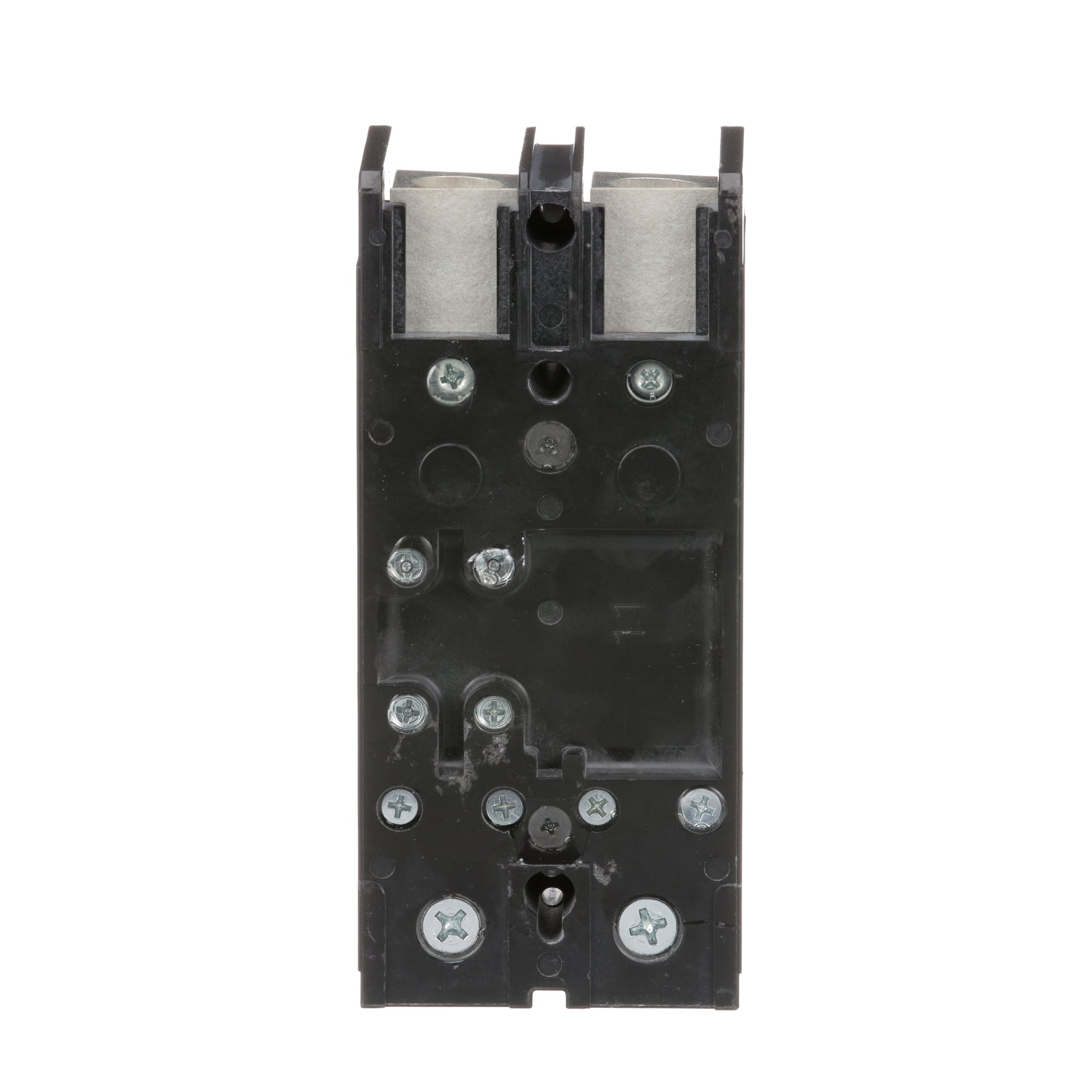

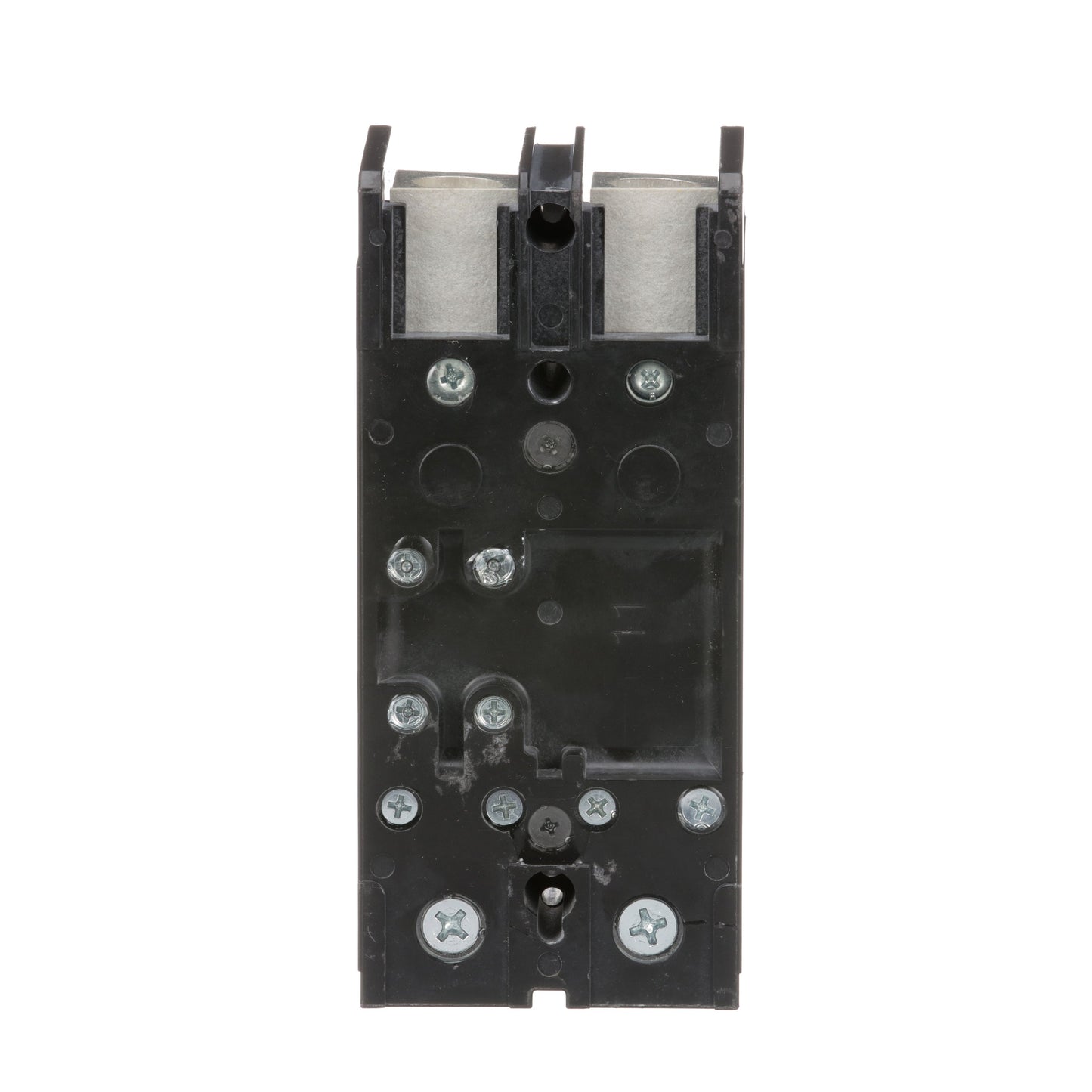

Square D QBL22225 Circuit Breaker | 240V 225A 2P 10kA@240V Bolt-On Powerpact

Product Description:
The Square D QBL22225 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 225 amp breaker rated for 240 volts with an AIC rating of 10kA@240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for reliable circuit protection in electrical systems.

Key Features:
✔ Part Number: QBL22225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240
✔ Amperage: 225
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/QB
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901412663
✔ GTIN: 00785901412663
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 6.47 in
✔ Weight: 1.53
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
