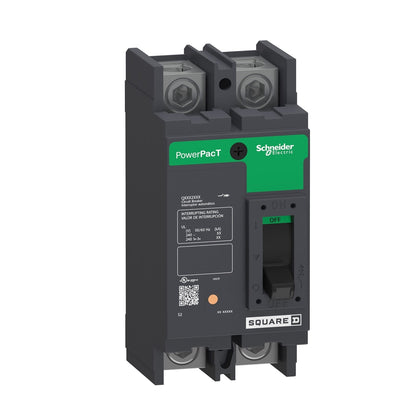

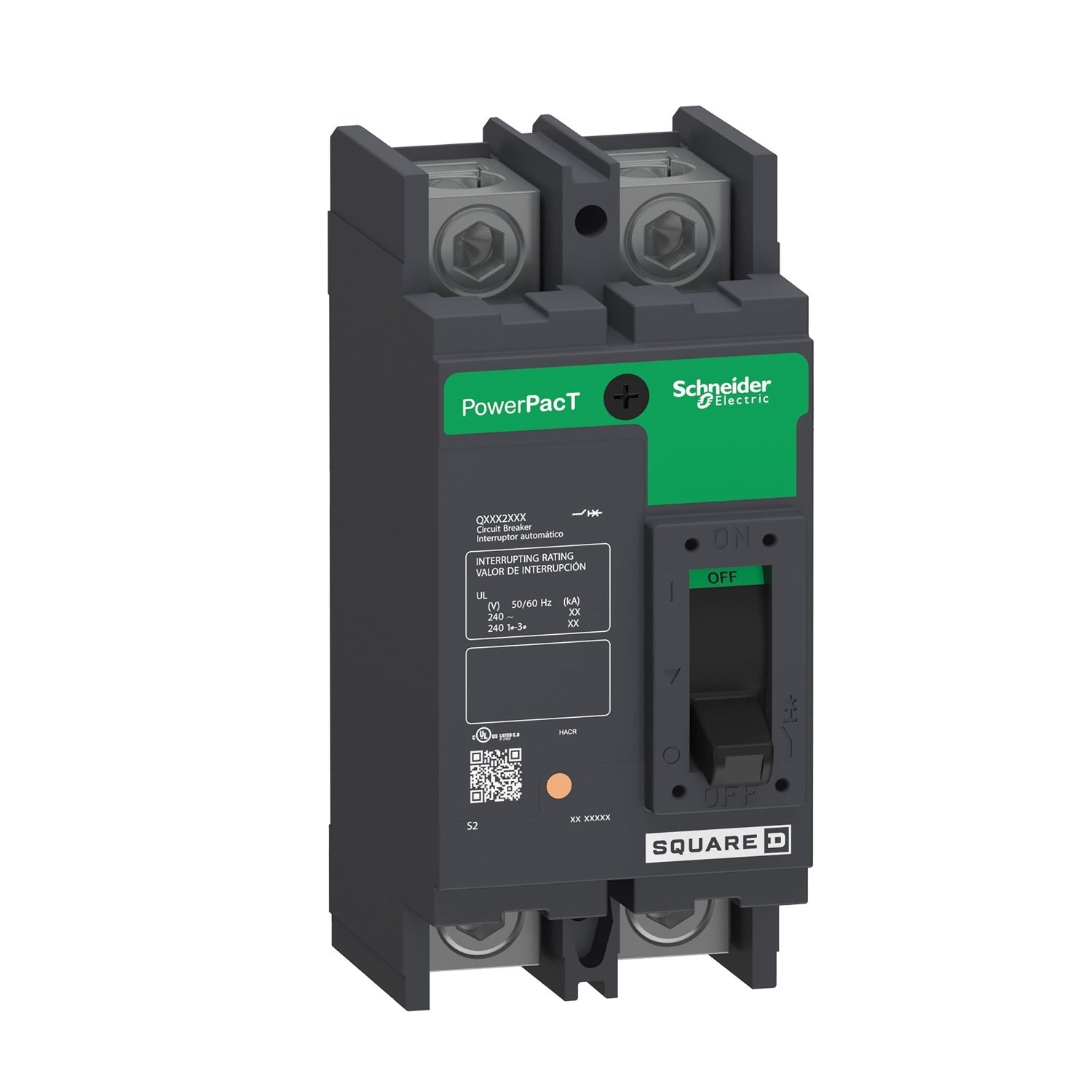

Square D QBL22250 Circuit Breaker | Powerpact QBL 240V 250A
Square D QBL22250 Circuit Breaker | Powerpact QBL 240V 250A
Price:
Sale
Sold out
Regular price
$349.48 USD
Regular price
$693.00 USD
Sale price
$349.48 USD
Unit price
per
Shipping calculated at checkout.
Stock:
64 in stock
Couldn't load pickup availability
Product Description:
The Square D QBL22250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 240V, 250A rating and a 10kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is suitable for temperatures between 40-70°C.
Key Features:
✔ Part Number: QBL22250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240V
✔ Amperage: 250A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: Q
✔ Temp Rating: 104-158°F (40-70°C)
✔ Certification: UL, CSA, NEMA, NOM
✔ UPC: 785901528869
✔ GTIN: 00785901528869
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x
The Square D QBL22250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 240V, 250A rating and a 10kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is suitable for temperatures between 40-70°C.
Key Features:
✔ Part Number: QBL22250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240V
✔ Amperage: 250A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: Q
✔ Temp Rating: 104-158°F (40-70°C)
✔ Certification: UL, CSA, NEMA, NOM
✔ UPC: 785901528869
✔ GTIN: 00785901528869
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x
