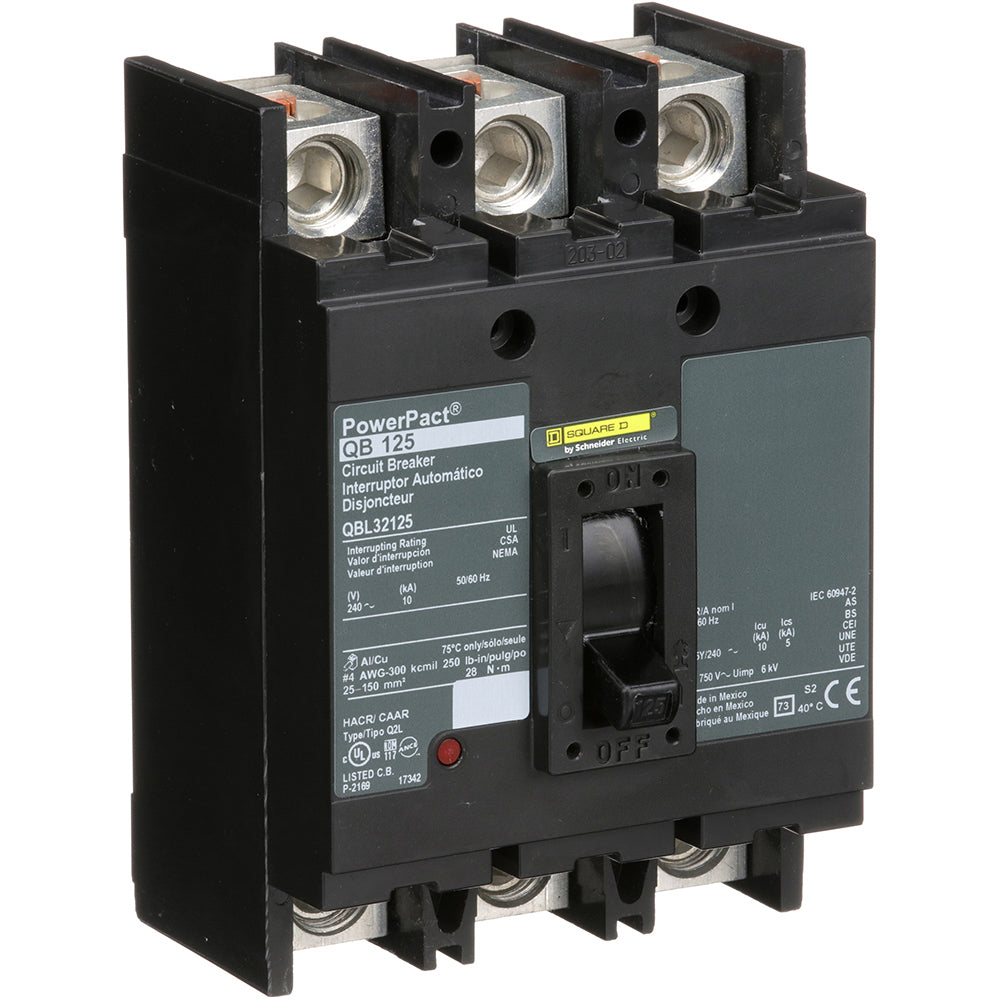

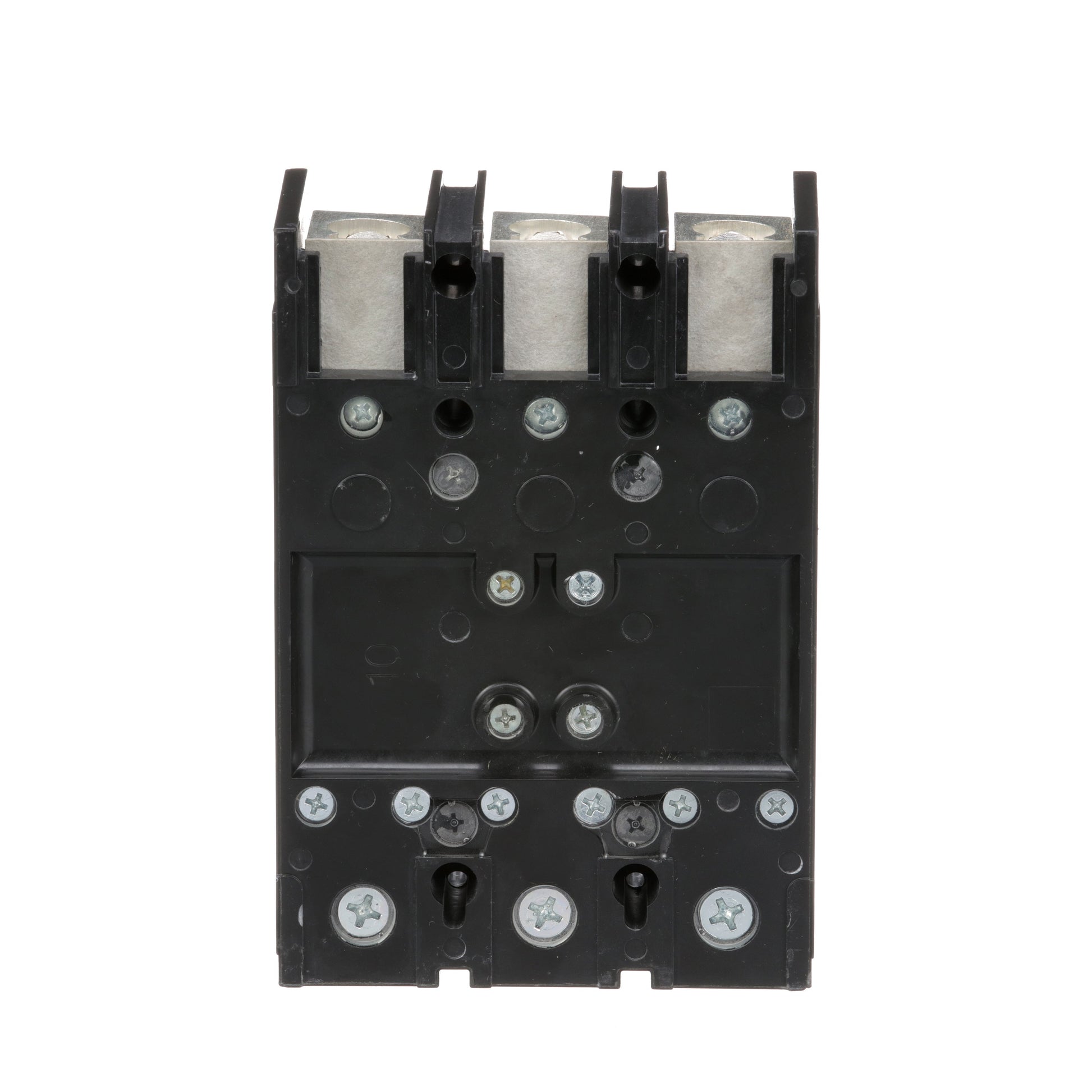

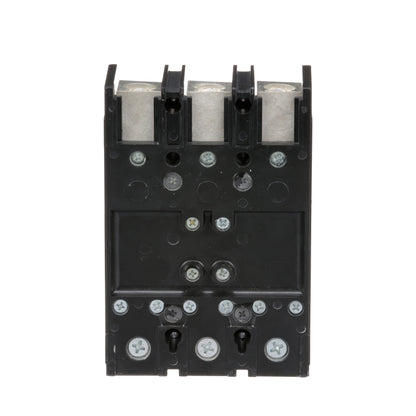

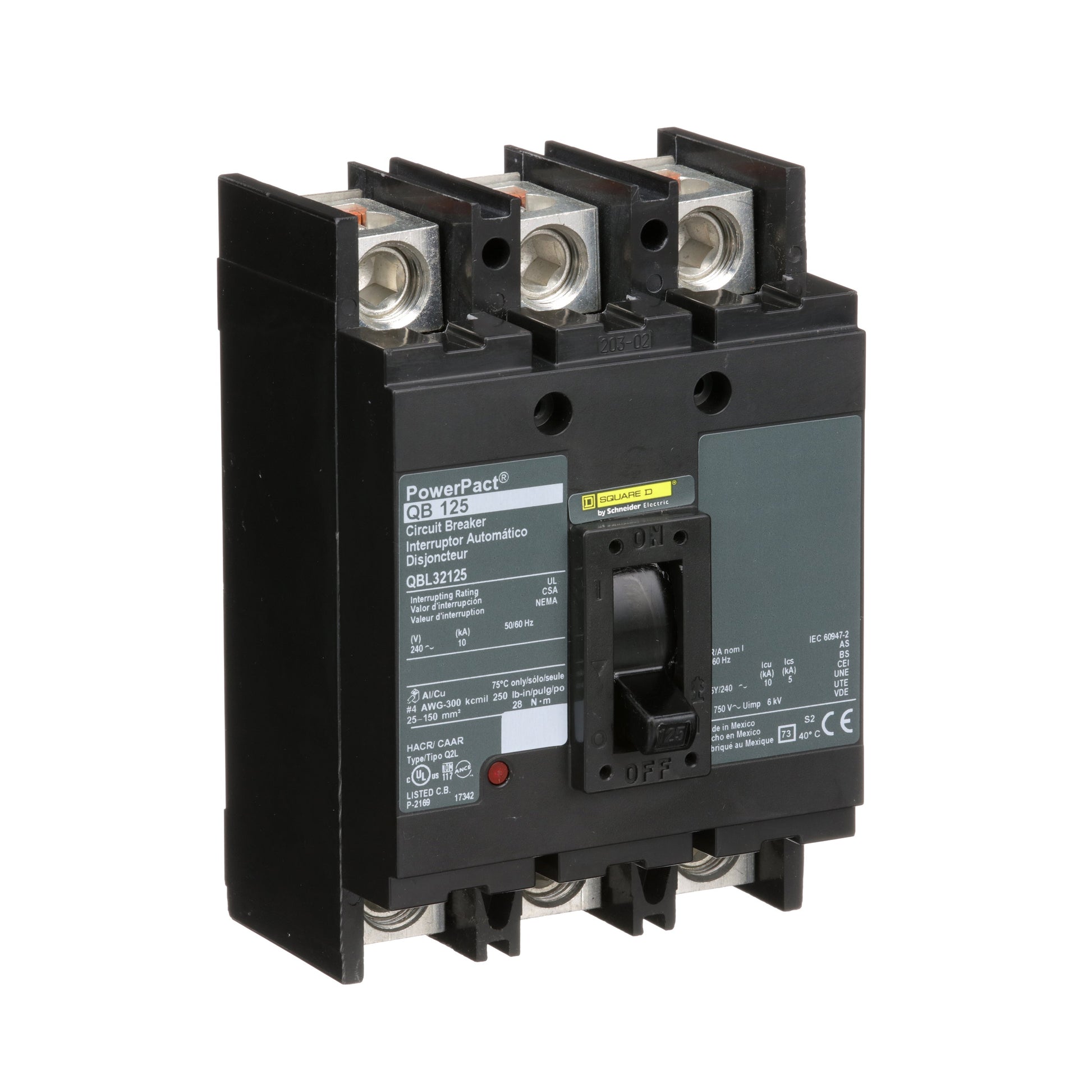

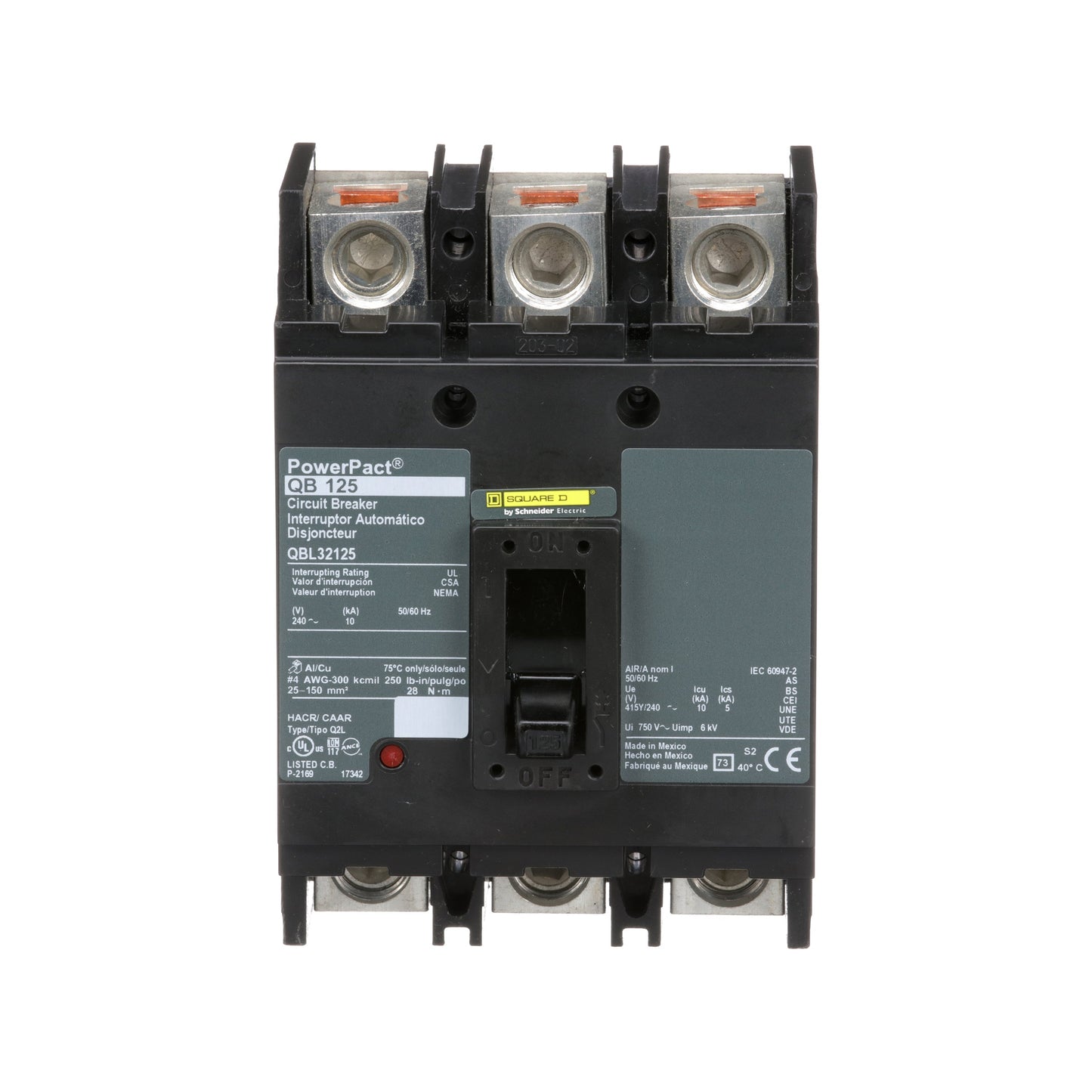

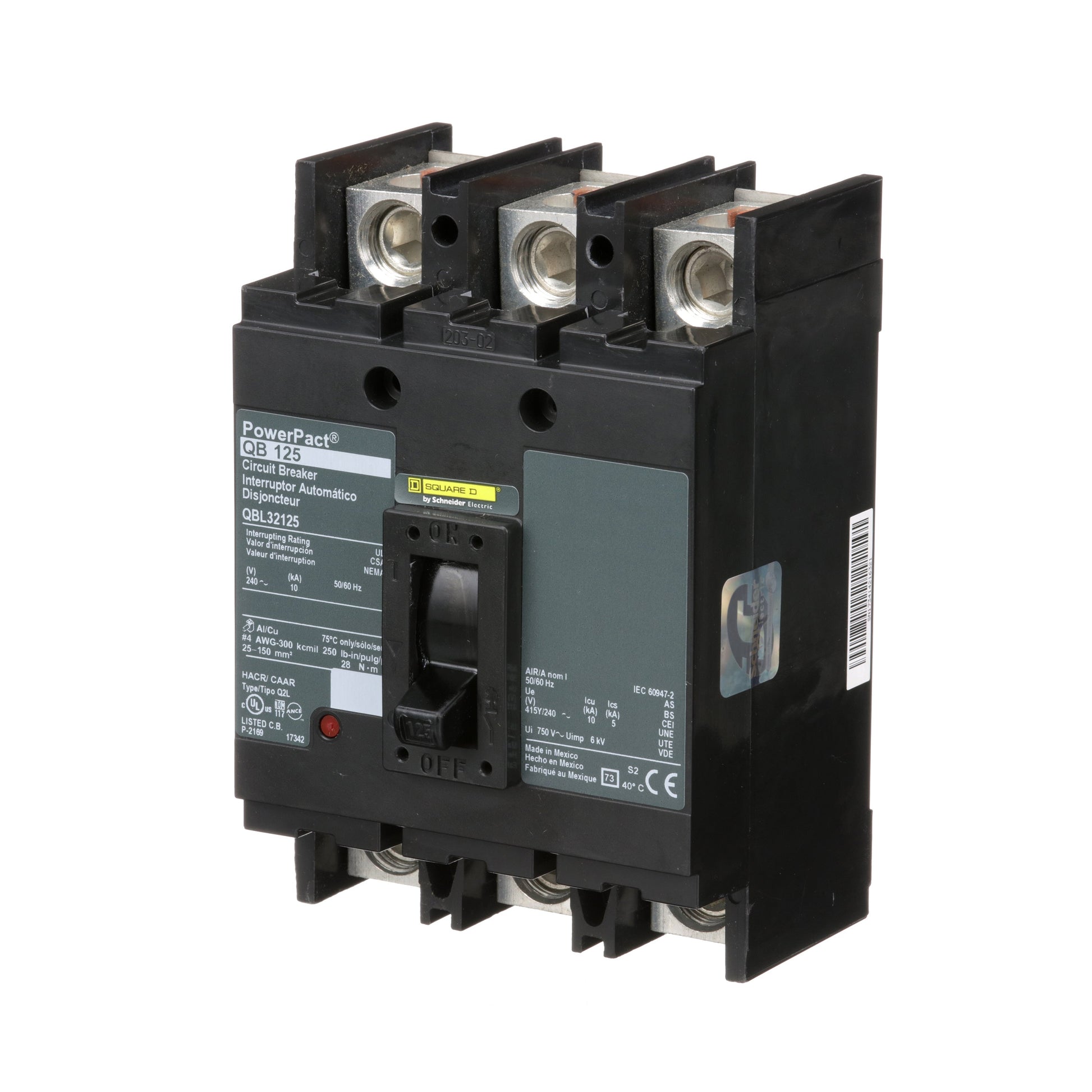

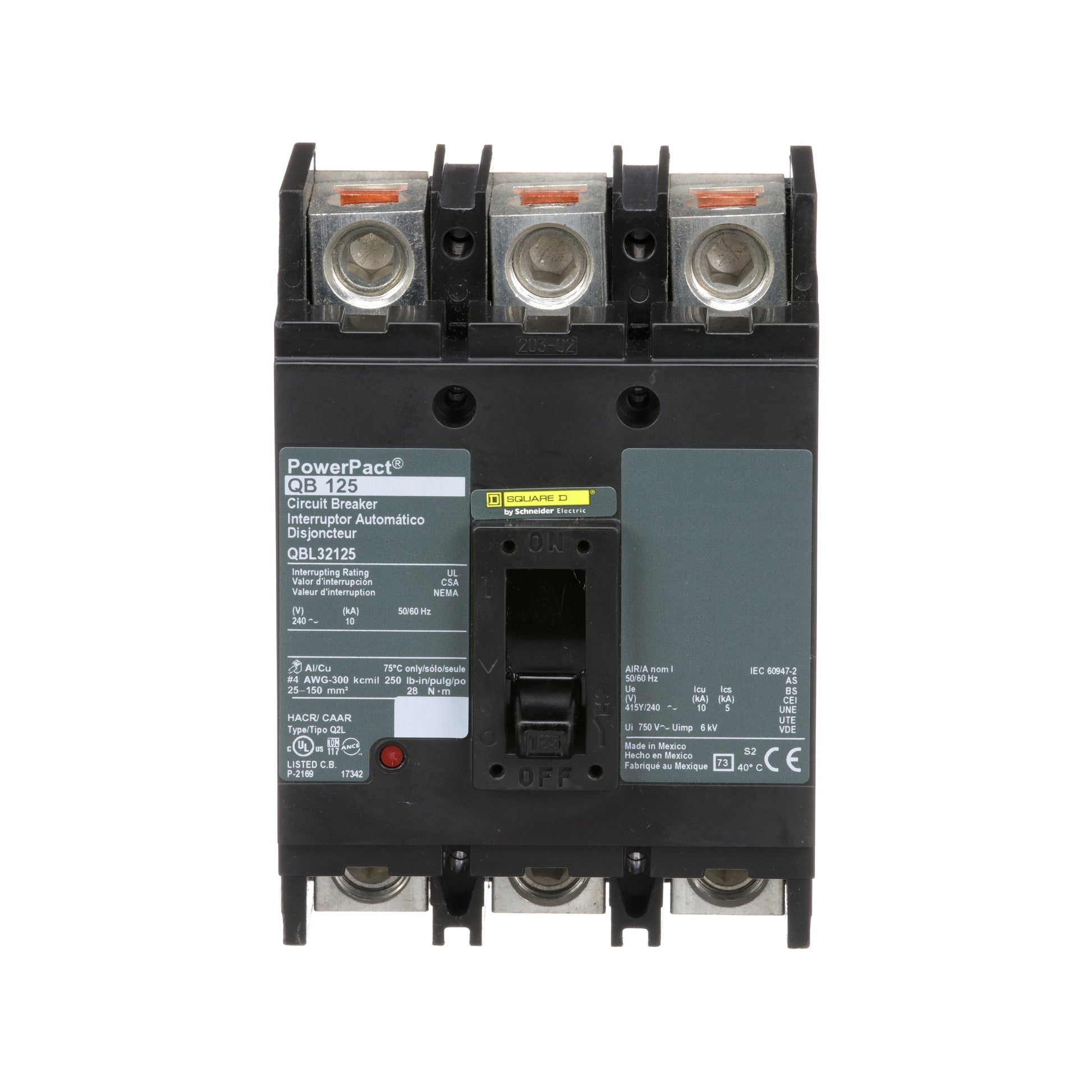

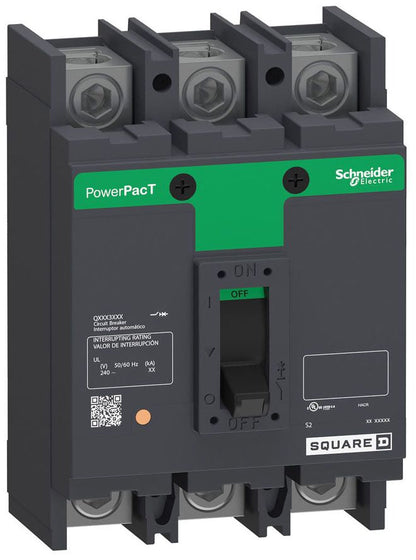

Square D QBL32125 Circuit Breaker | 240V 125A 3P 10kA@240V Feed-Thru Powerpact

Product Description:
The Square D QBL32125 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 240V, 125A rating and a 10kA@240V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance. It is ideal for industrial and commercial electrical systems.

Key Features:
✔ Part Number: QBL32125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QBL
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/QB
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 78590141781
✔ GTIN: 00785901417811
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 6.47 in
✔ Weight: 4.86
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
