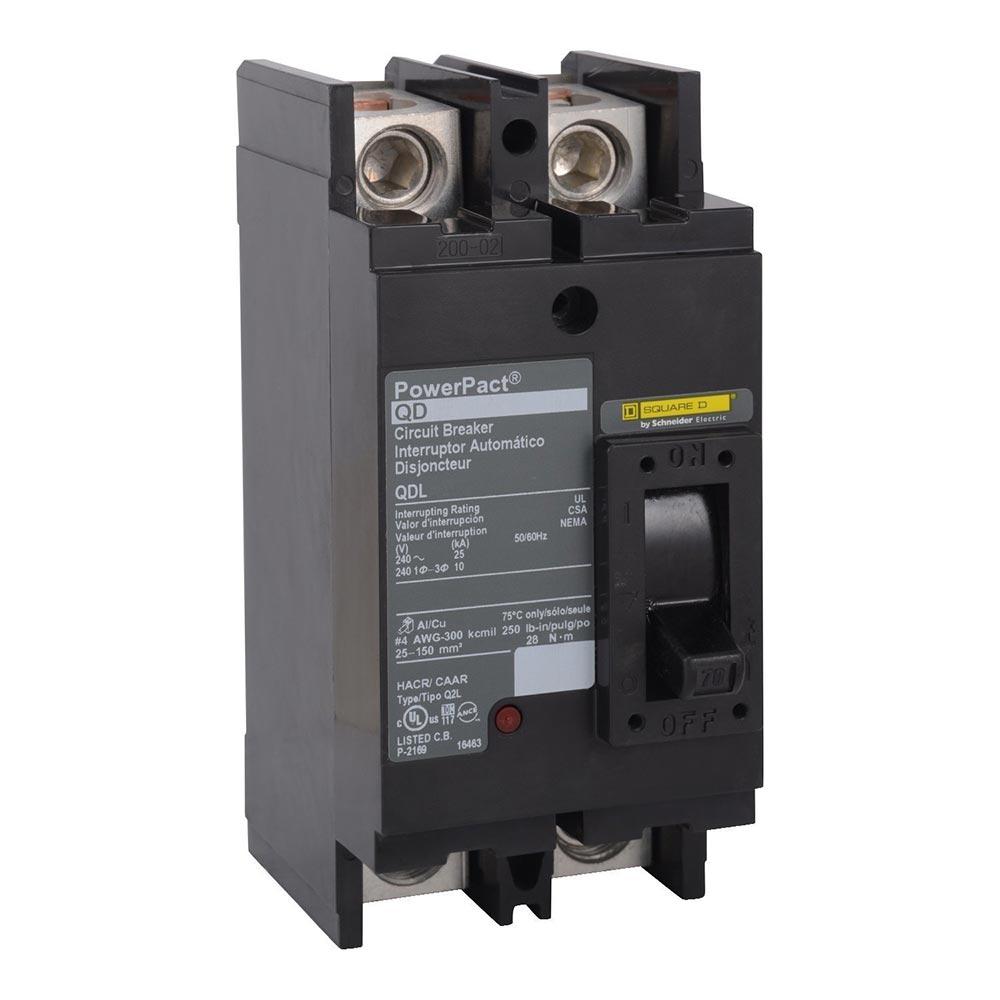

Square D QDL22150 Circuit Breaker | 240V 150A 2P 25kA@240V Bolt-On Powerpact QDL

Product Description:
The Square D QDL22150 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 240 Volt, 150 amp rated breaker with a 25kA@240V AIC rating. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit management.

Key Features:
✔ Part Number: QDL22150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240
✔ Amperage: 150
✔ Poles: 2
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901412595
✔ GTIN: 00785901412595
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.51
✔ Standards: CSA, IEC, UL Listed
