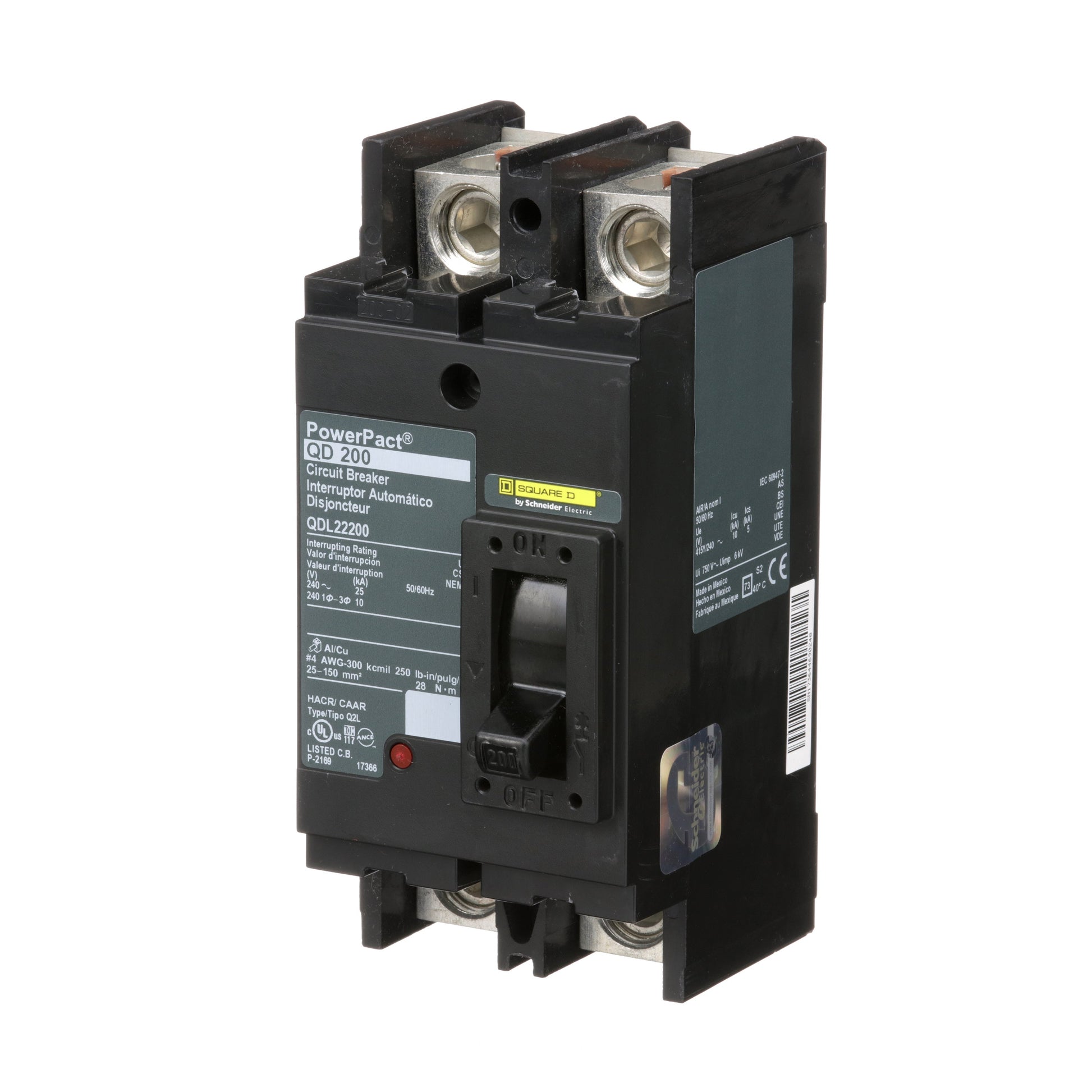

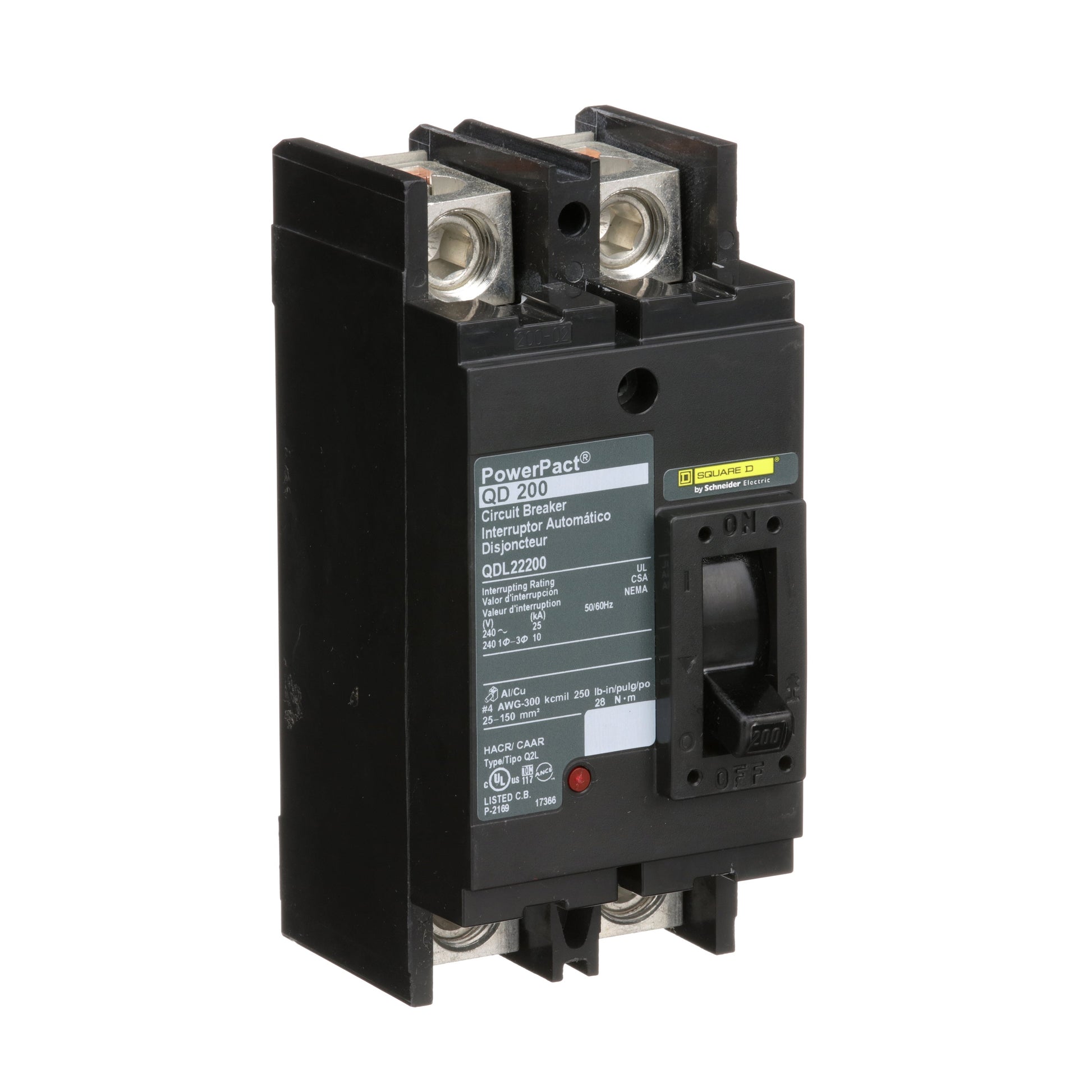

Square D QDL22200 Circuit Breaker | Powerpact QDL 240V 200A
Square D QDL22200 Circuit Breaker | Powerpact QDL 240V 200A
Price:
Sale
Sold out
Regular price
$366.84 USD
Regular price
$1,143.00 USD
Sale price
$366.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D QDL22200 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 240V, 200A breaker with a 25kA@240V AIC rating and Bolt-On connection. This thermal magnetic breaker is designed for standard applications with a temperature rating of 40-70°C.
Key Features:
✔ Part Number: QDL22200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240V
✔ Amperage: 200A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. 4 AWG, Max. 300 MCM
✔ Breaker Type: Standard
✔ Temp Rating: 40-70°C
✔ Certification: CSA, IEC, UL Listed
✔ UPC: 785901417804
✔ GTIN: 007859014
The Square D QDL22200 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 240V, 200A breaker with a 25kA@240V AIC rating and Bolt-On connection. This thermal magnetic breaker is designed for standard applications with a temperature rating of 40-70°C.
Key Features:
✔ Part Number: QDL22200
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240V
✔ Amperage: 200A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. 4 AWG, Max. 300 MCM
✔ Breaker Type: Standard
✔ Temp Rating: 40-70°C
✔ Certification: CSA, IEC, UL Listed
✔ UPC: 785901417804
✔ GTIN: 007859014
