Square D QDL32125 Circuit Breaker | 240V 125A 3P 25kA@240V Bolt-On Powerpact

Product Description:

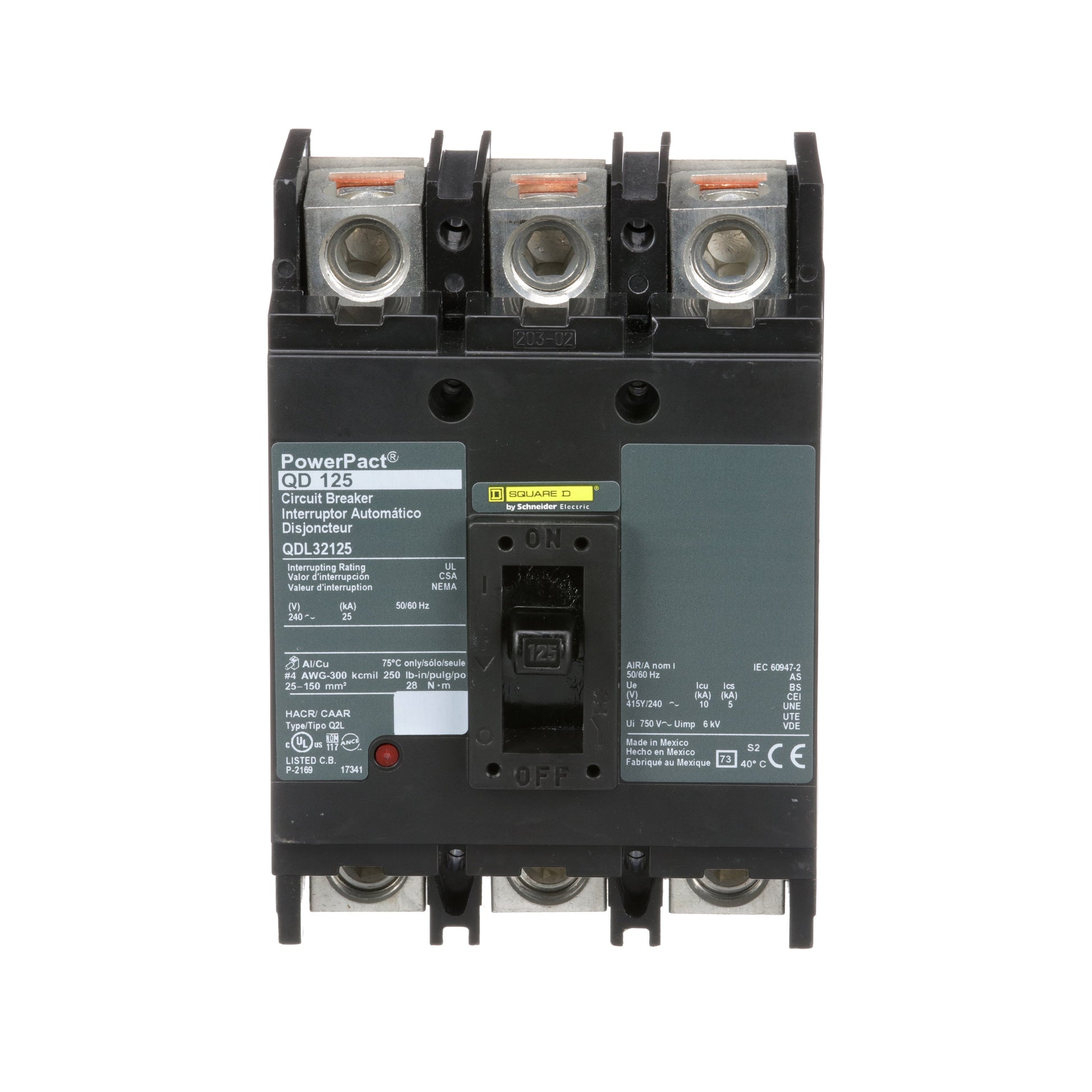

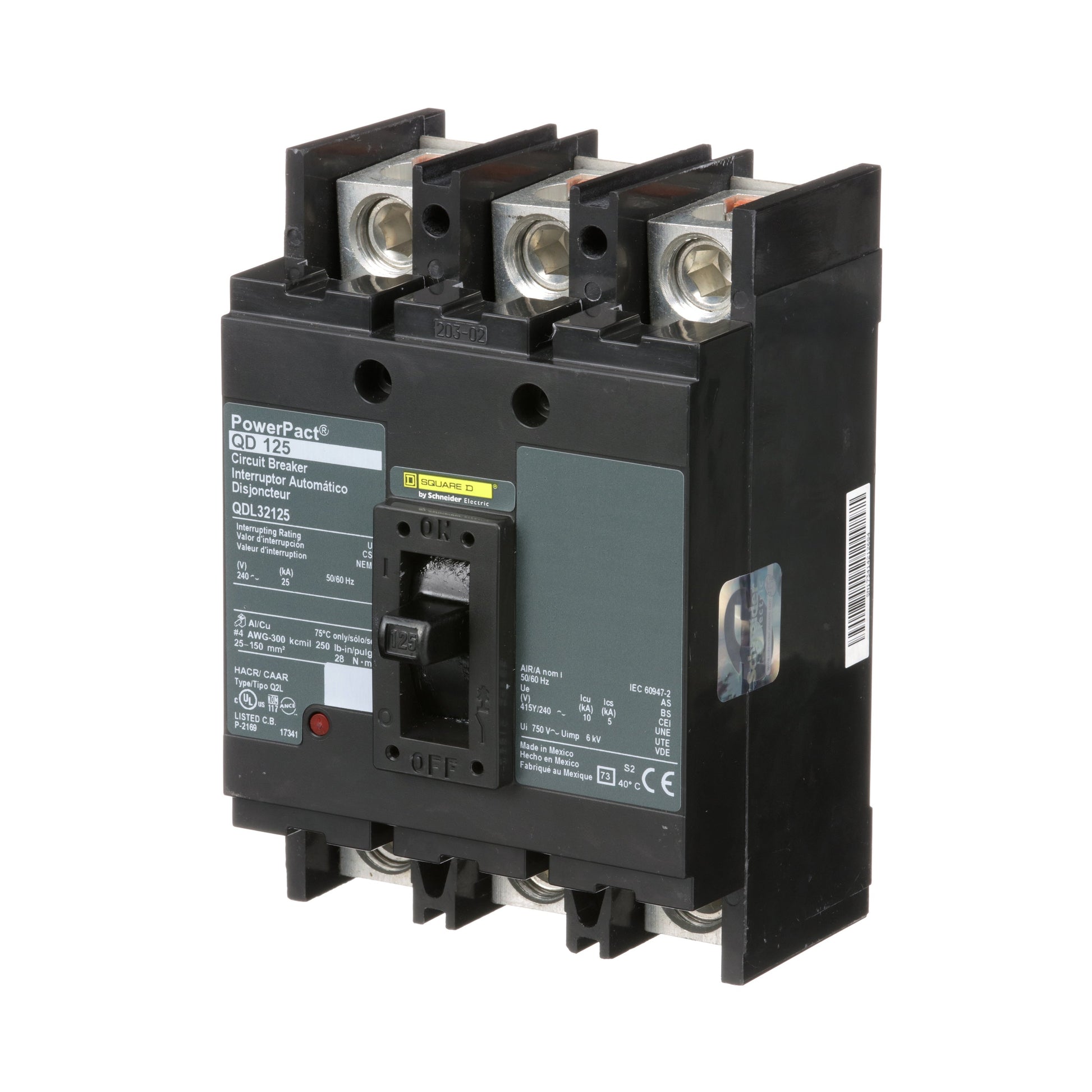

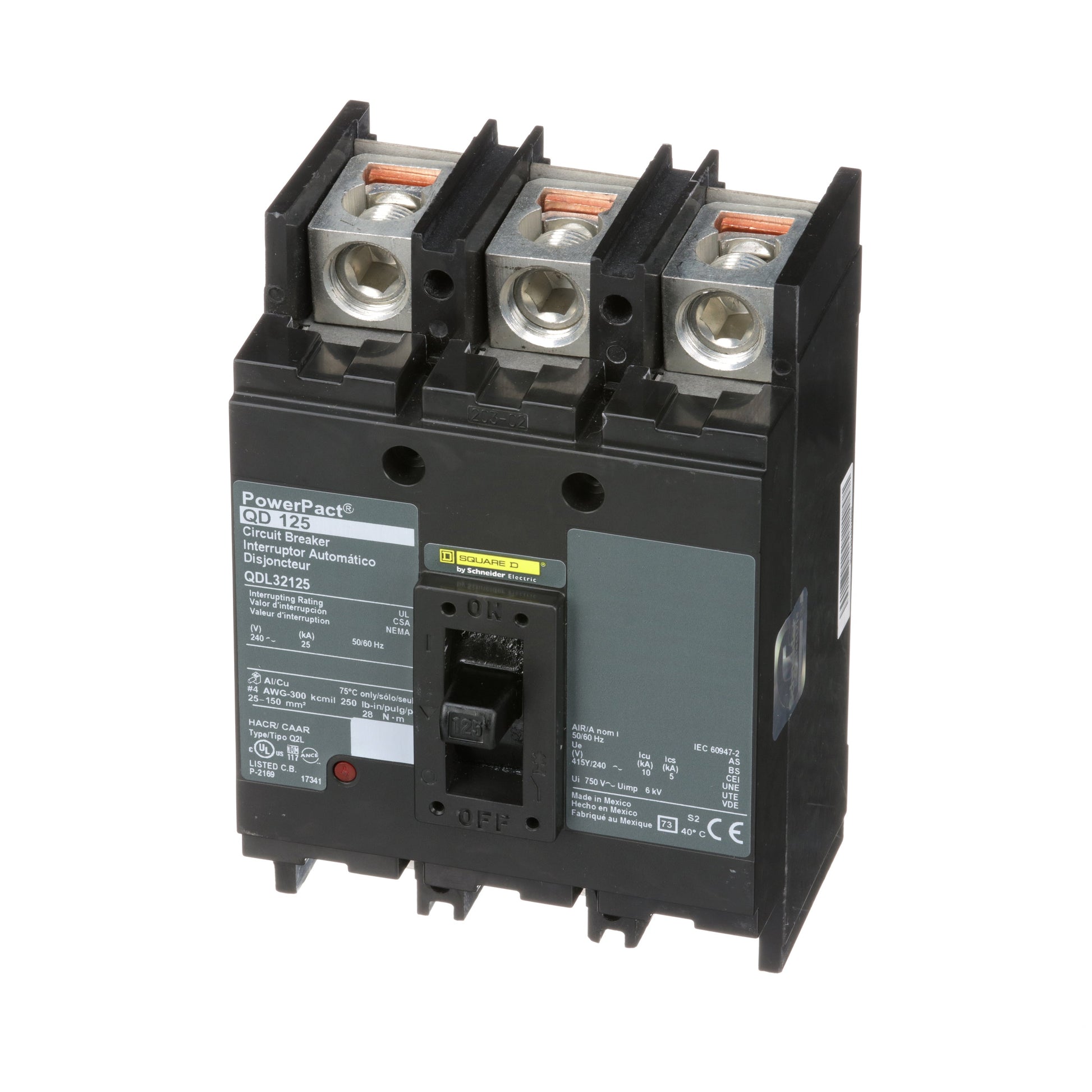

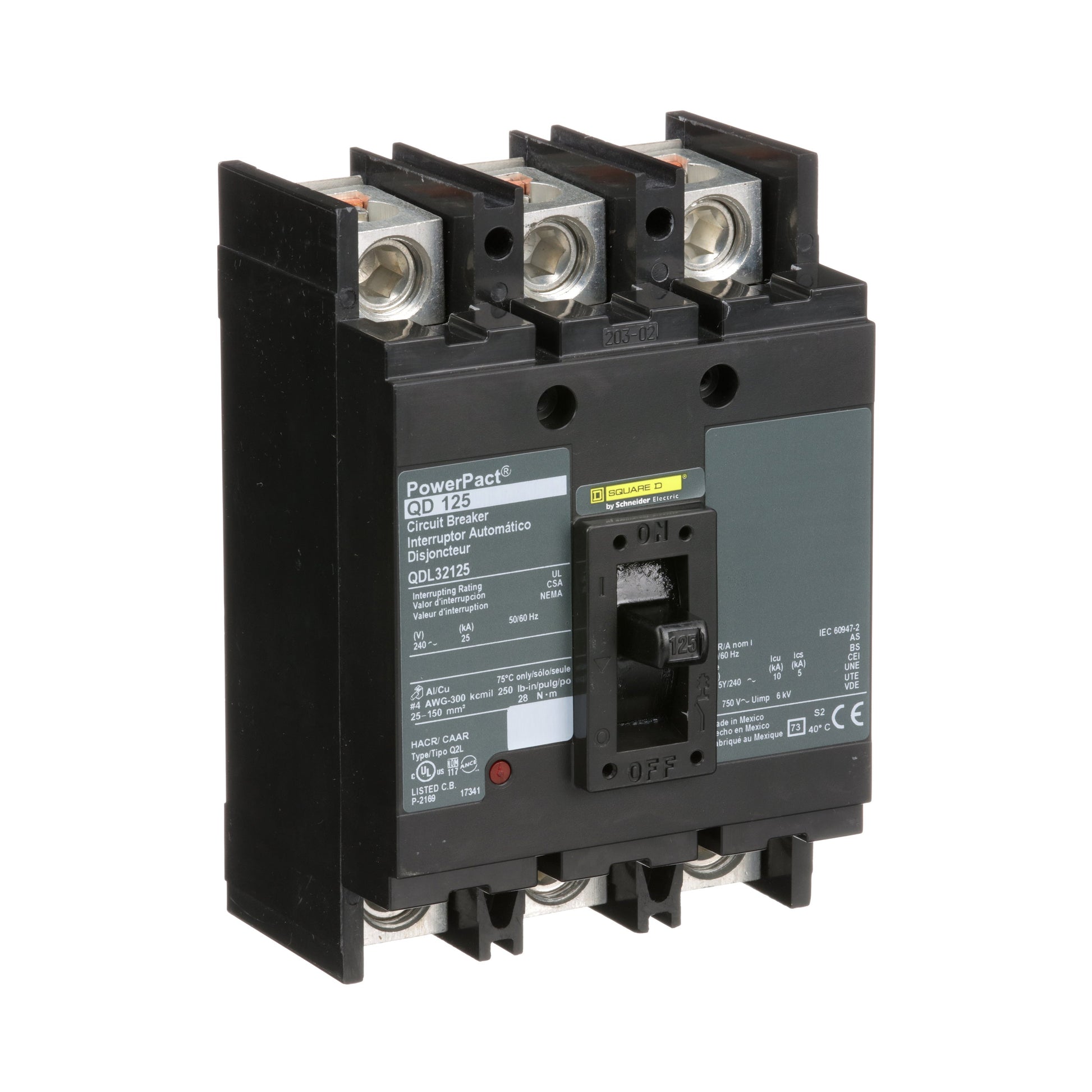

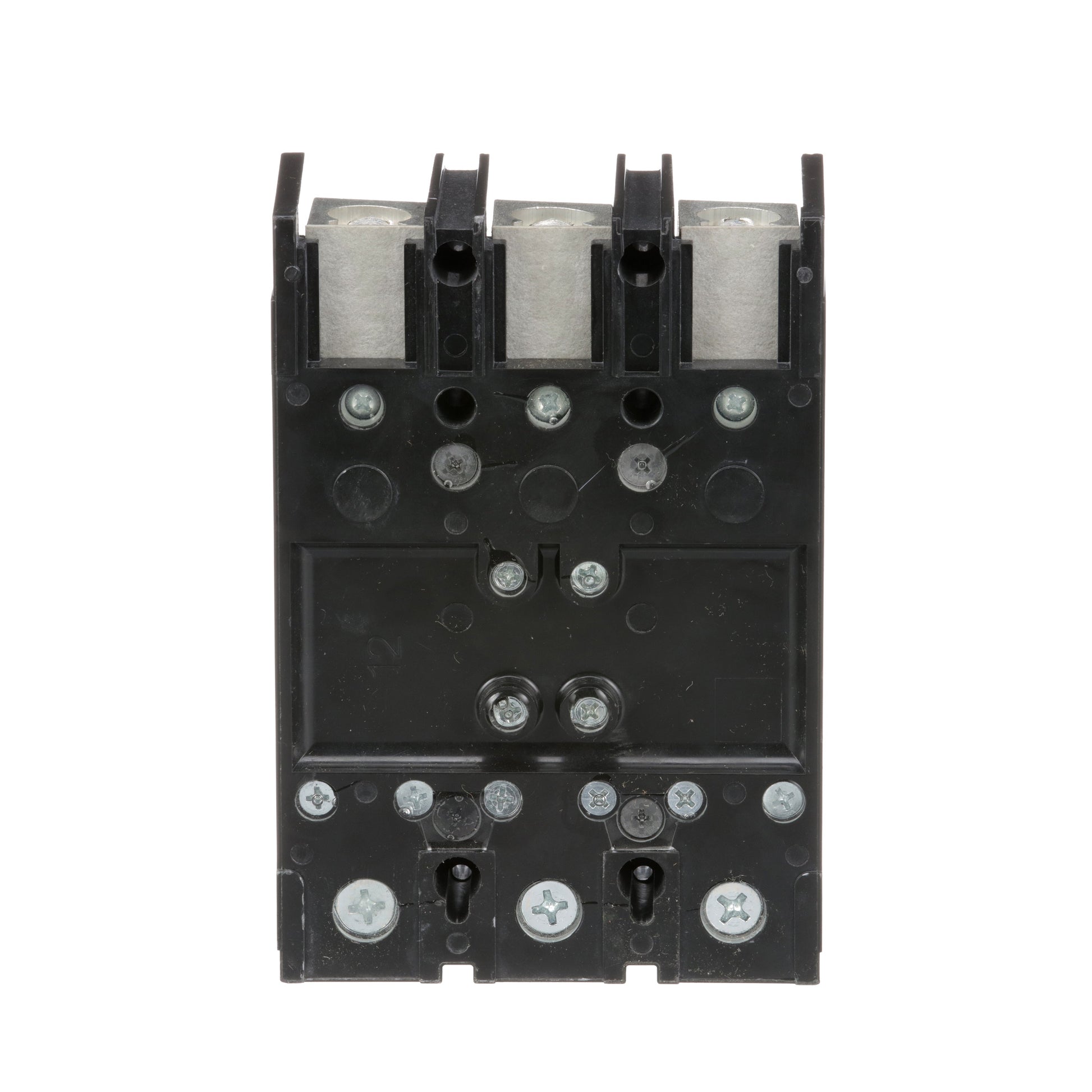

The Square D QDL32125 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 125 amp breaker rated for 240 volts with a 25kA interrupting capacity. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QDL32125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901522980
✔ GTIN: 00785901522980
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 6.47 in
✔ Weight: 2.16
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
