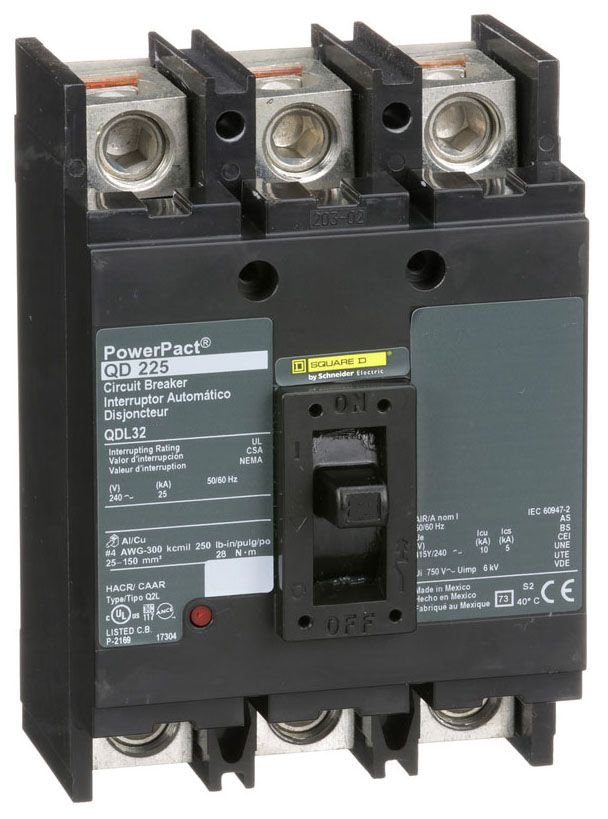

Square D QDL32175 Circuit Breaker | 240V 175A 3P 25kA@240V Bolt-On Powerpact

Product Description:
The Square D QDL32175 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 175 amp breaker rated for 240 volts with an AIC rating of 25kA@240V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: QDL32175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901523062
✔ GTIN: 00785901523062
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.47 in (164.34 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2.15
✔ Standards: CSA, IEC, UL Listed
