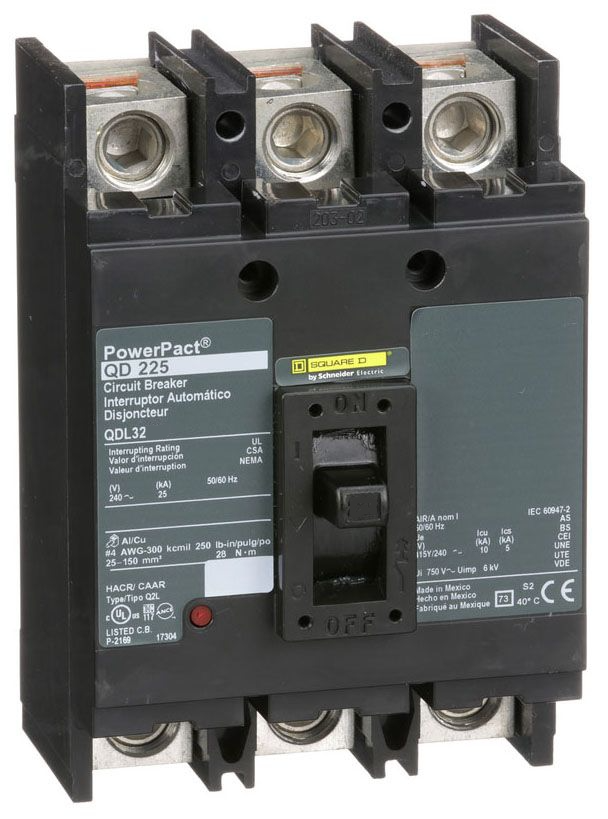

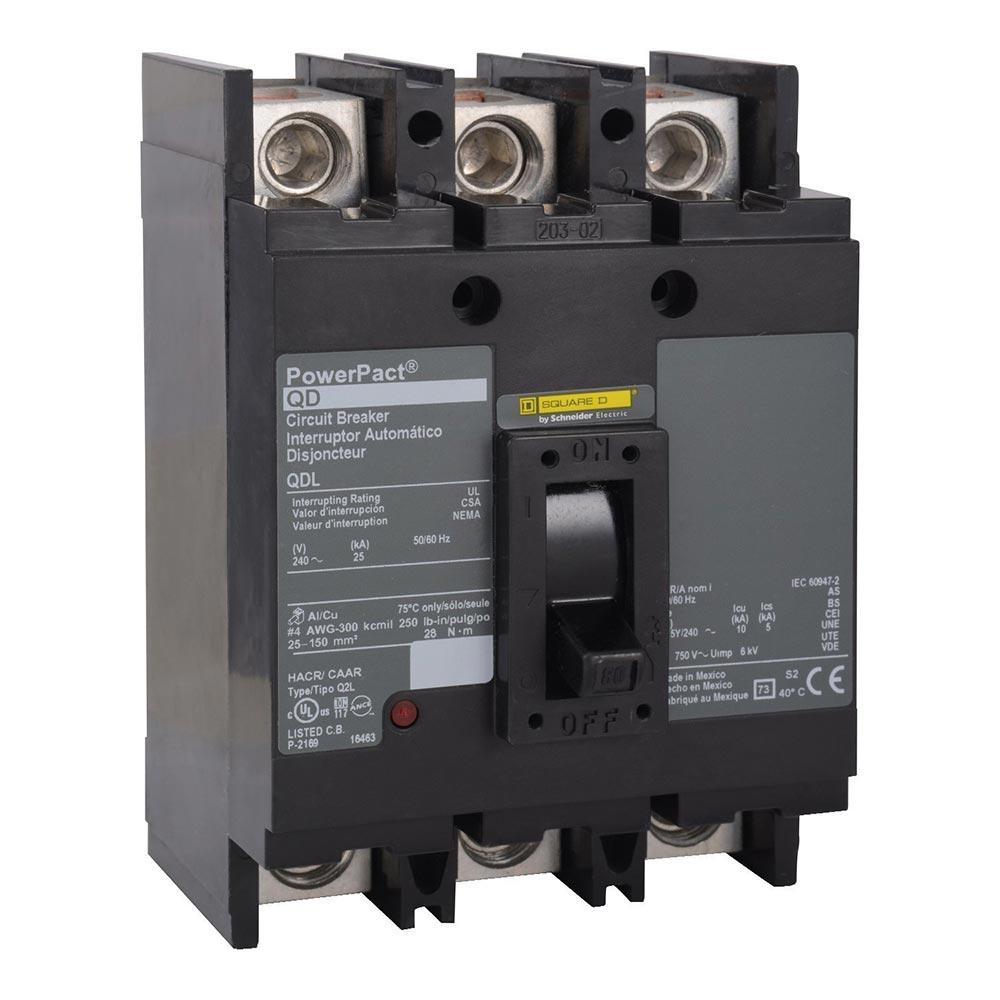

Square D QDL32250 Circuit Breaker | Powerpact QDL 240V 250A
Square D QDL32250 Circuit Breaker | Powerpact QDL 240V 250A
Price:
Sale
Sold out
Regular price
$1,010.61 USD
Regular price
$2,442.00 USD
Sale price
$1,010.61 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Square D QDL32250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 240V, 250A rating and a 25kA@240V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: QDL32250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: QDL
✔ Voltage: 240V
✔ Amperage: 250A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 25kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 250A/QD
✔ MCM Size: Min. Wire Size 4 AWG, Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Temp Rating: 104-158 °F (40-70 °C)
✔ Certification: CSA, IEC, UL Listed
✔ UPC: 785901542902
✔ GT
The Square D QDL32250 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 240V, 250A rating and a 25kA@240V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.
