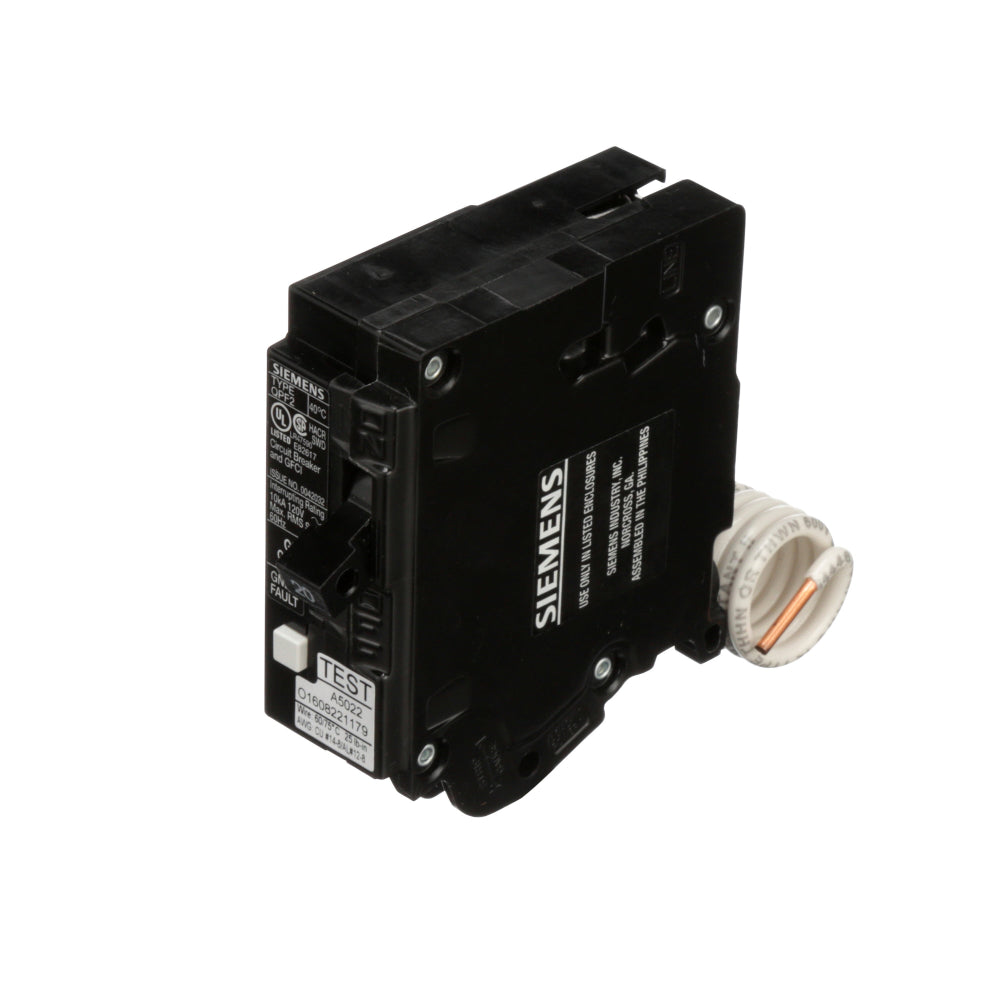

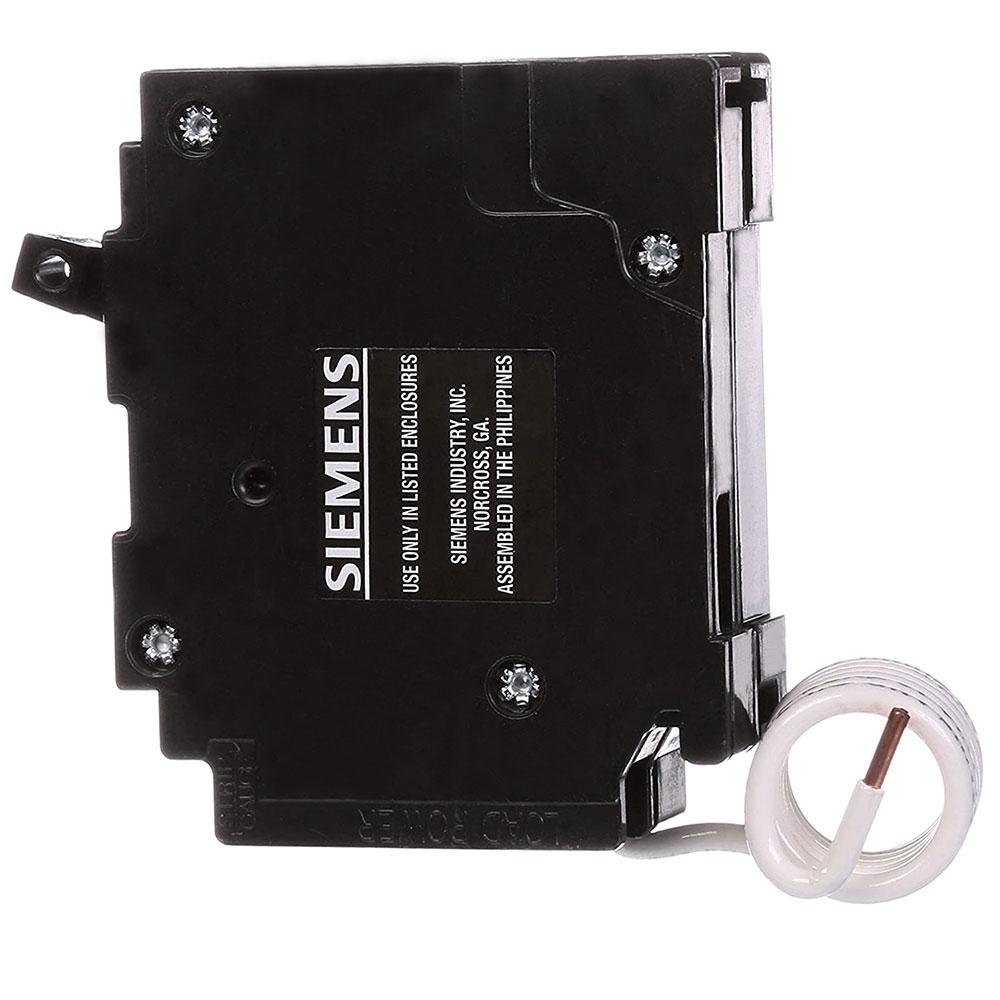

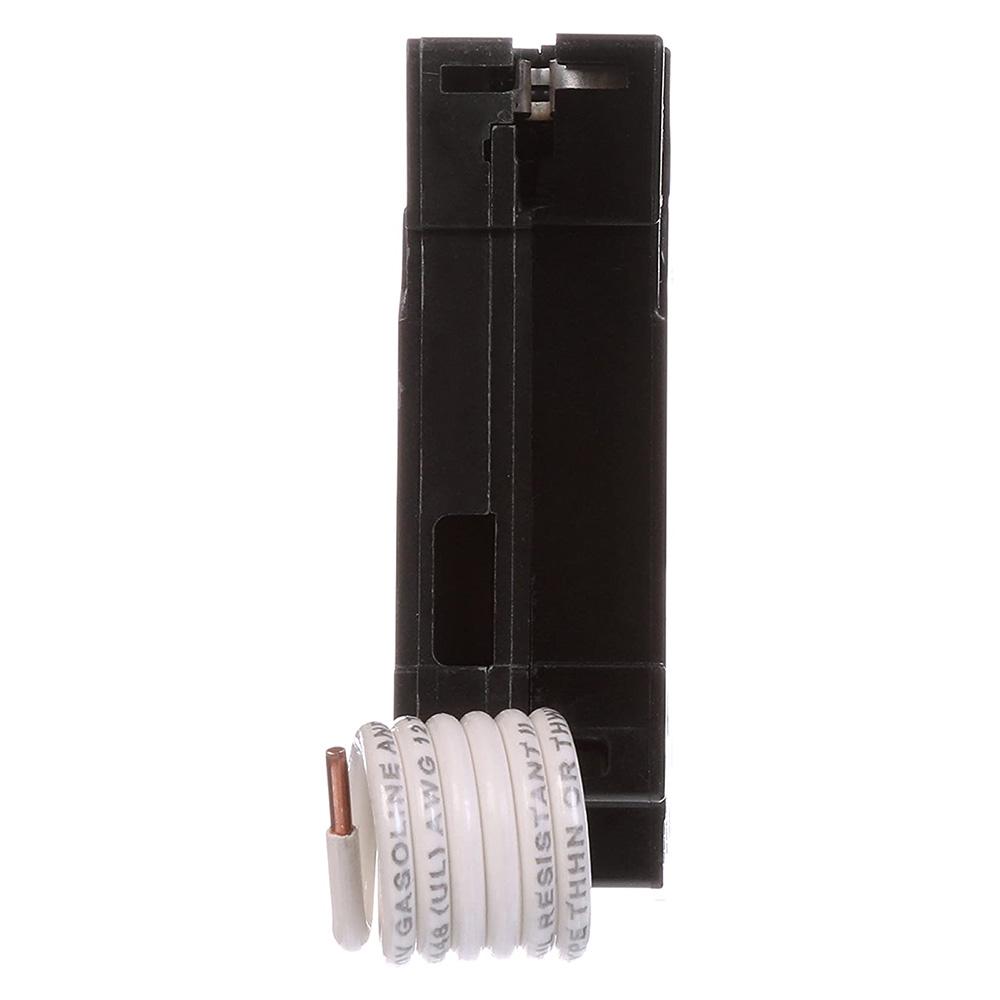

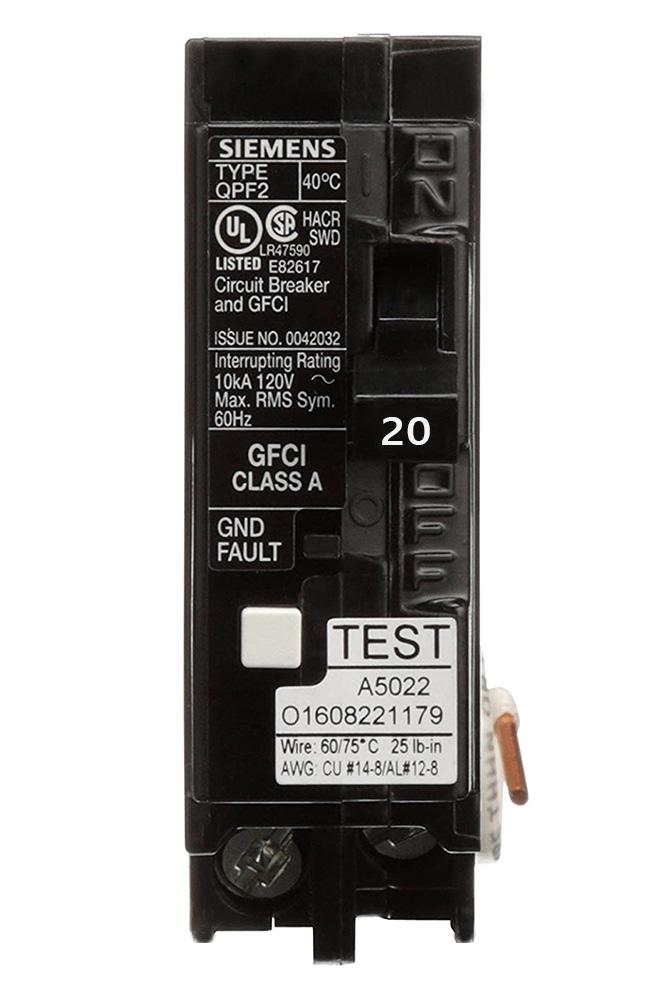

Siemens QF120A Circuit Breaker | 120V 20A 1P 10kA@120V Plug-In Q Series

Product Description:
The Siemens QF120A is a Molded Case Circuit Breaker from the Q Series family, specifically the QPF2 type. It is a 1-pole, 20 amp breaker rated for 120 volts with a 10kA AIC rating. This plug-in breaker provides thermal magnetic protection and is designed for use in Siemens load centers.

Key Features:
✔ Part Number: QF120A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QPF2
✔ Voltage: 120
✔ Amperage: 20
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 225A/QF
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621216559
✔ GTIN: 00887621216559
✔ Country of Origin: Philippines
✔ Dimensions: 1 in x 2.88 in x 2.88 in
✔ Weight: 0.24 lb
✔ Panel Type: Siemens Load Centers
✔ Standards: CSA-C22.2, UL 489
✔ Certification: CSA-C22.2, UL 489
