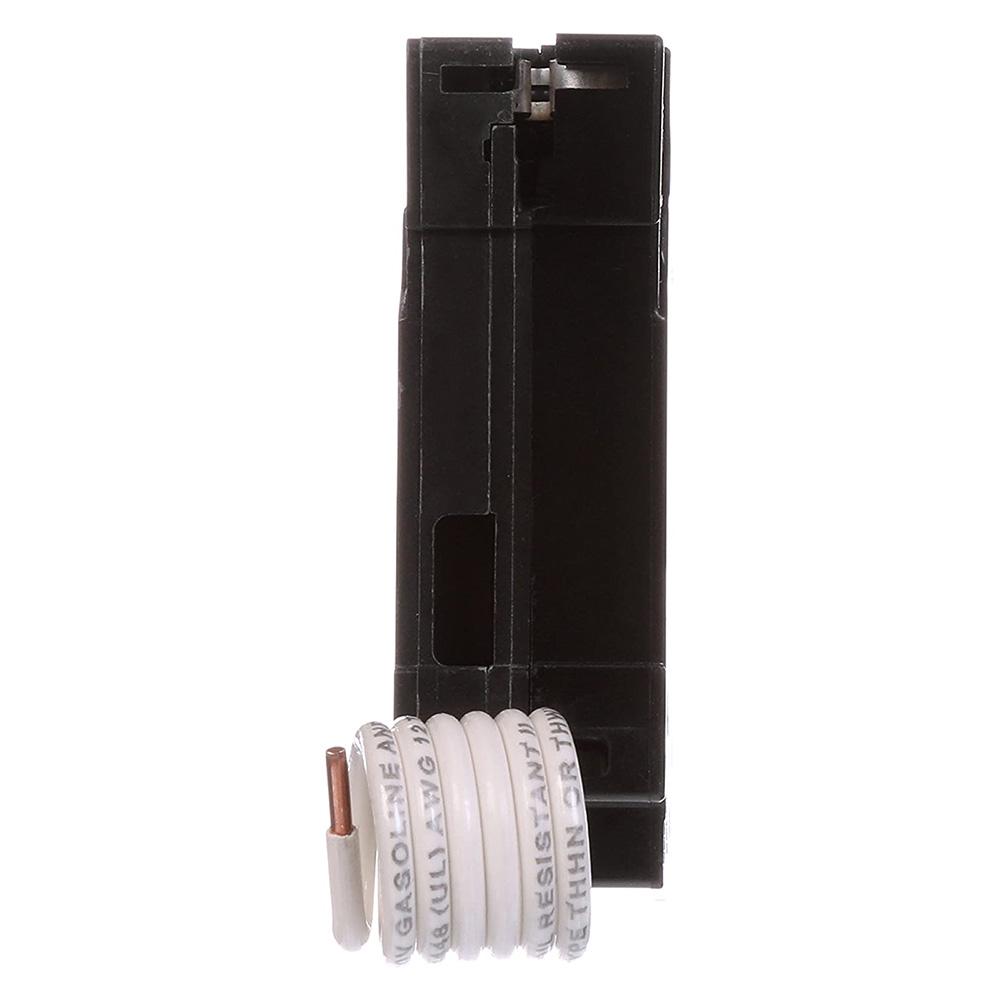

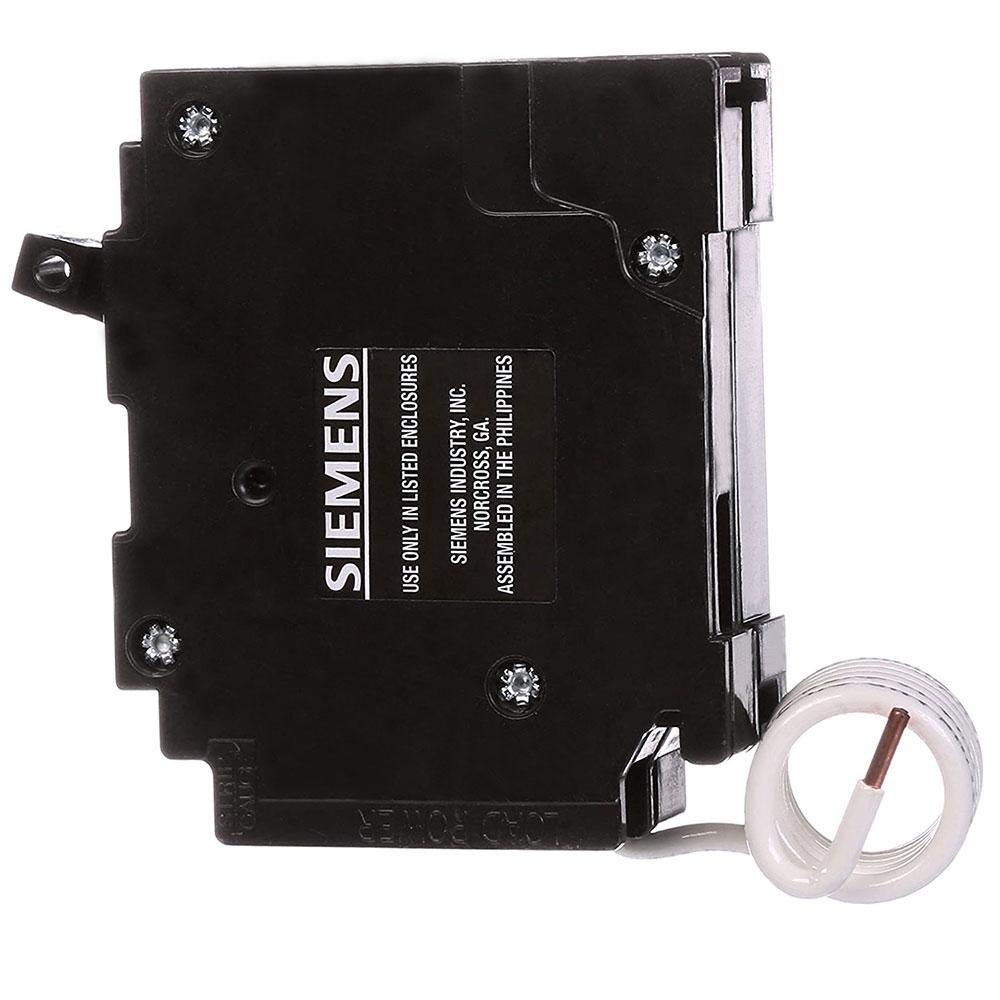

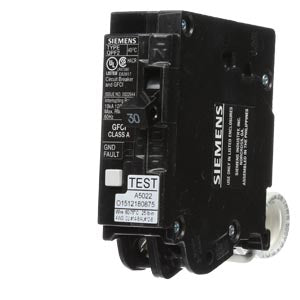

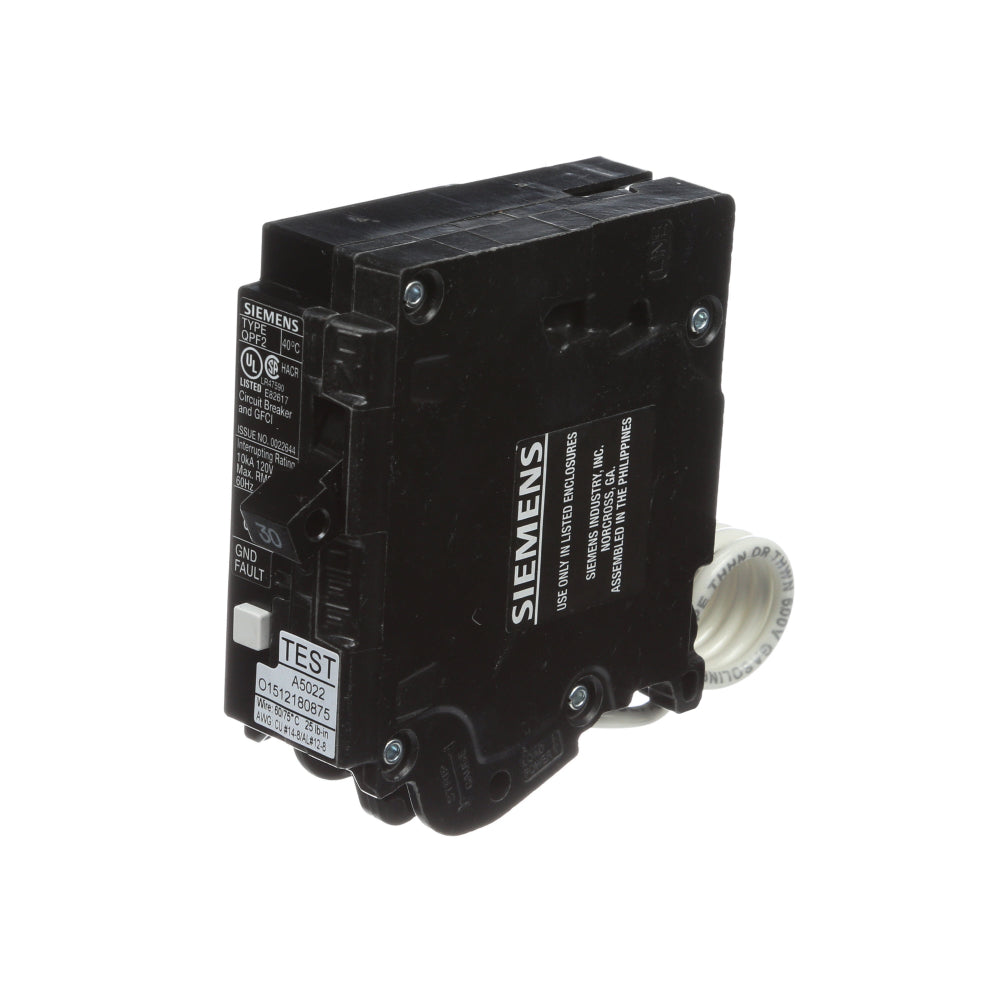

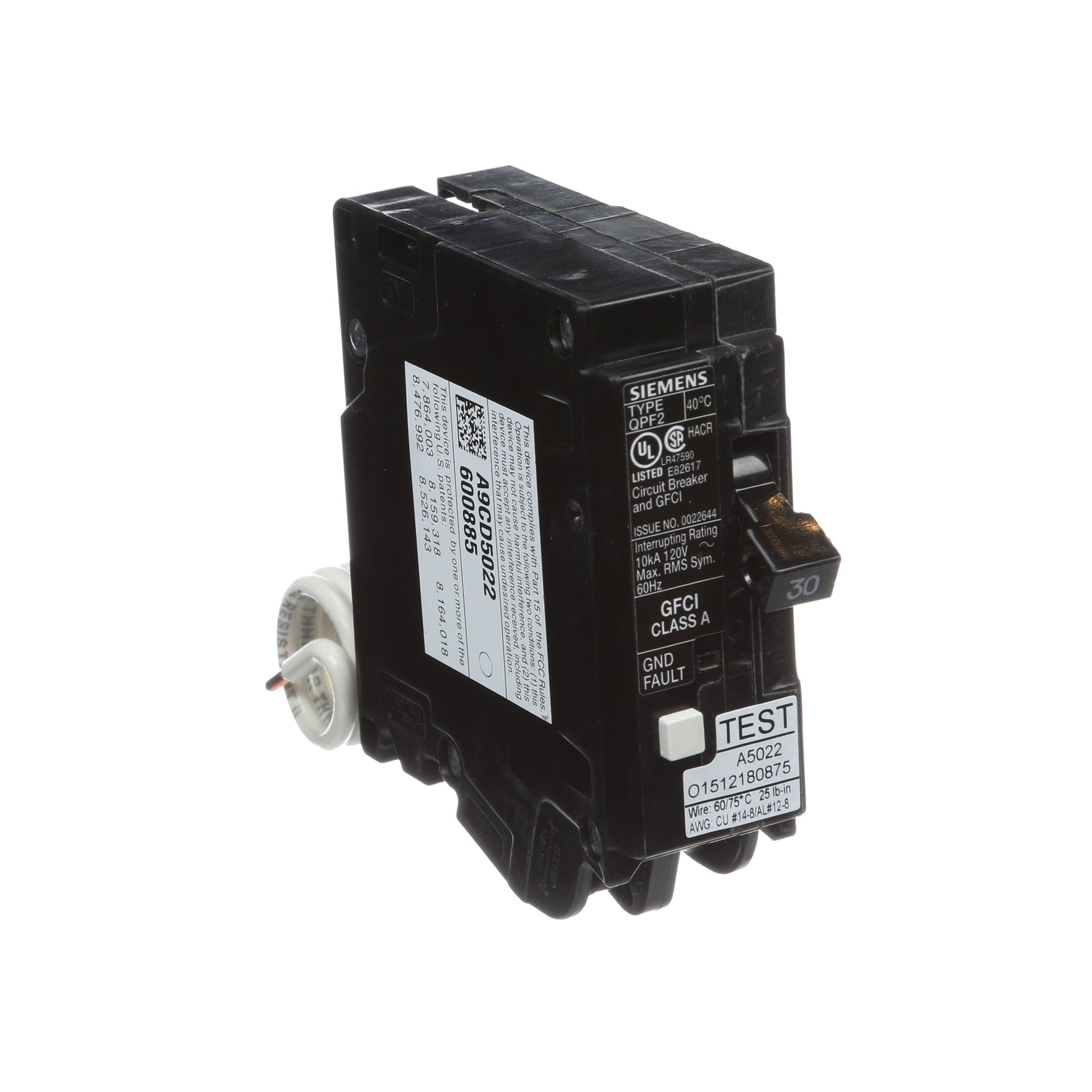

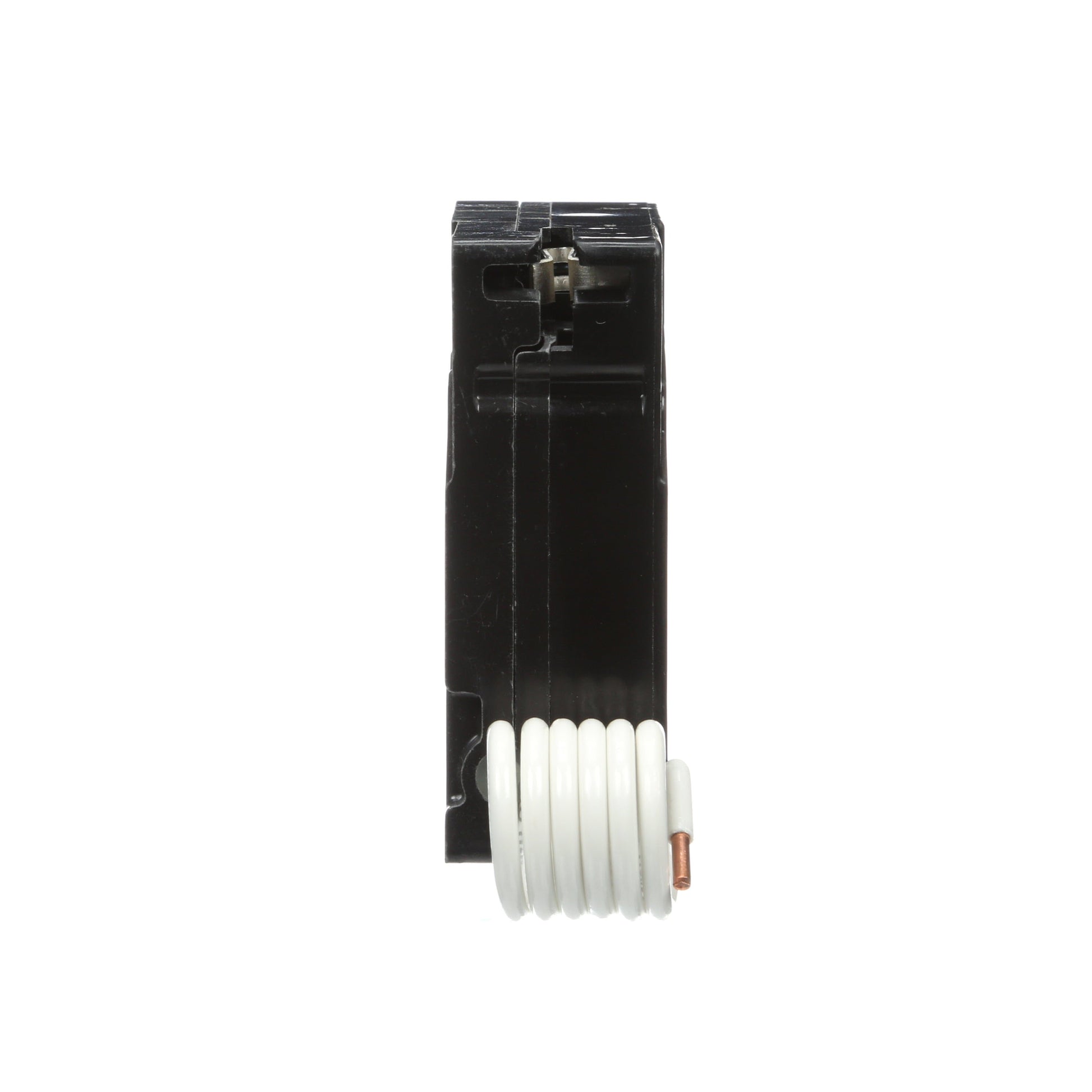

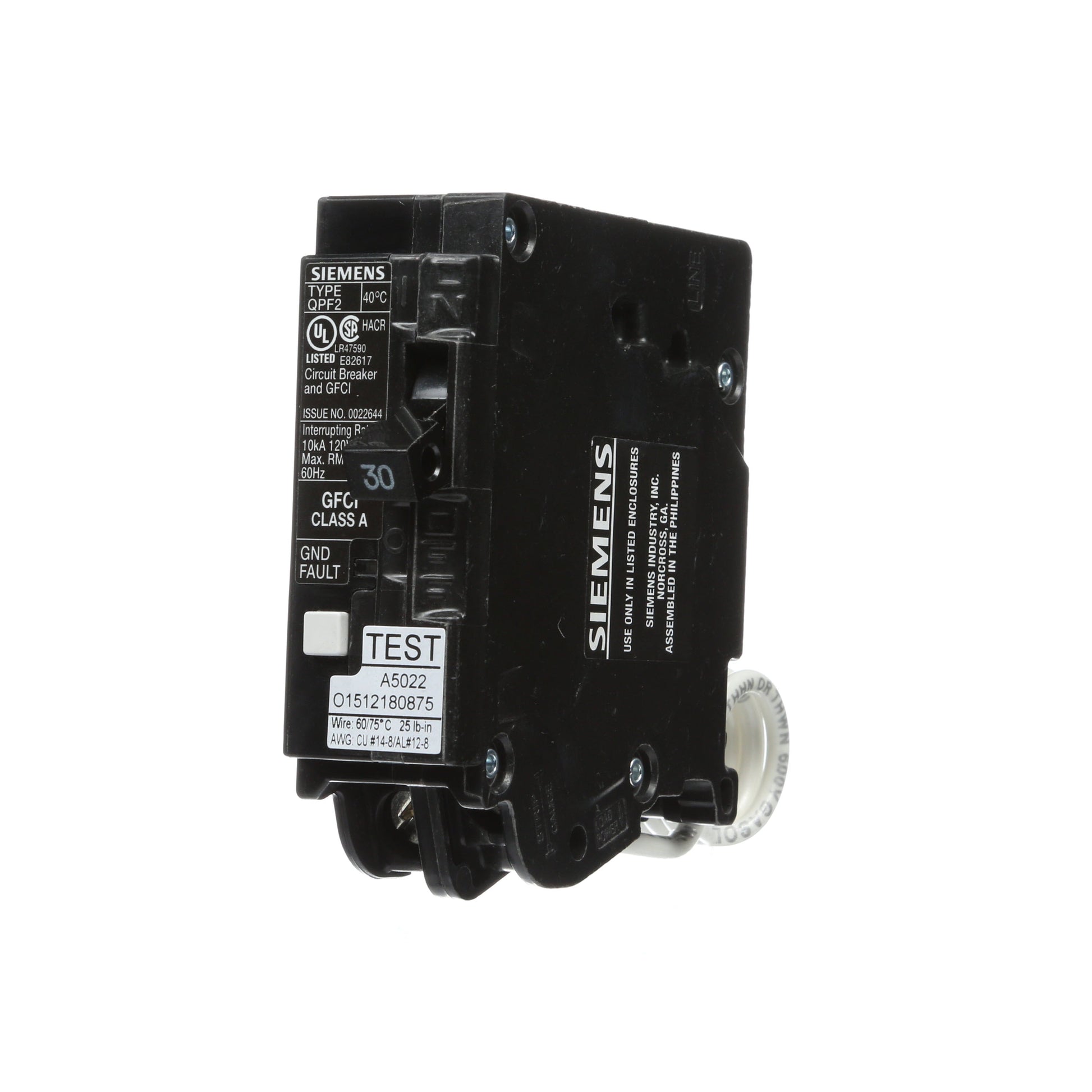

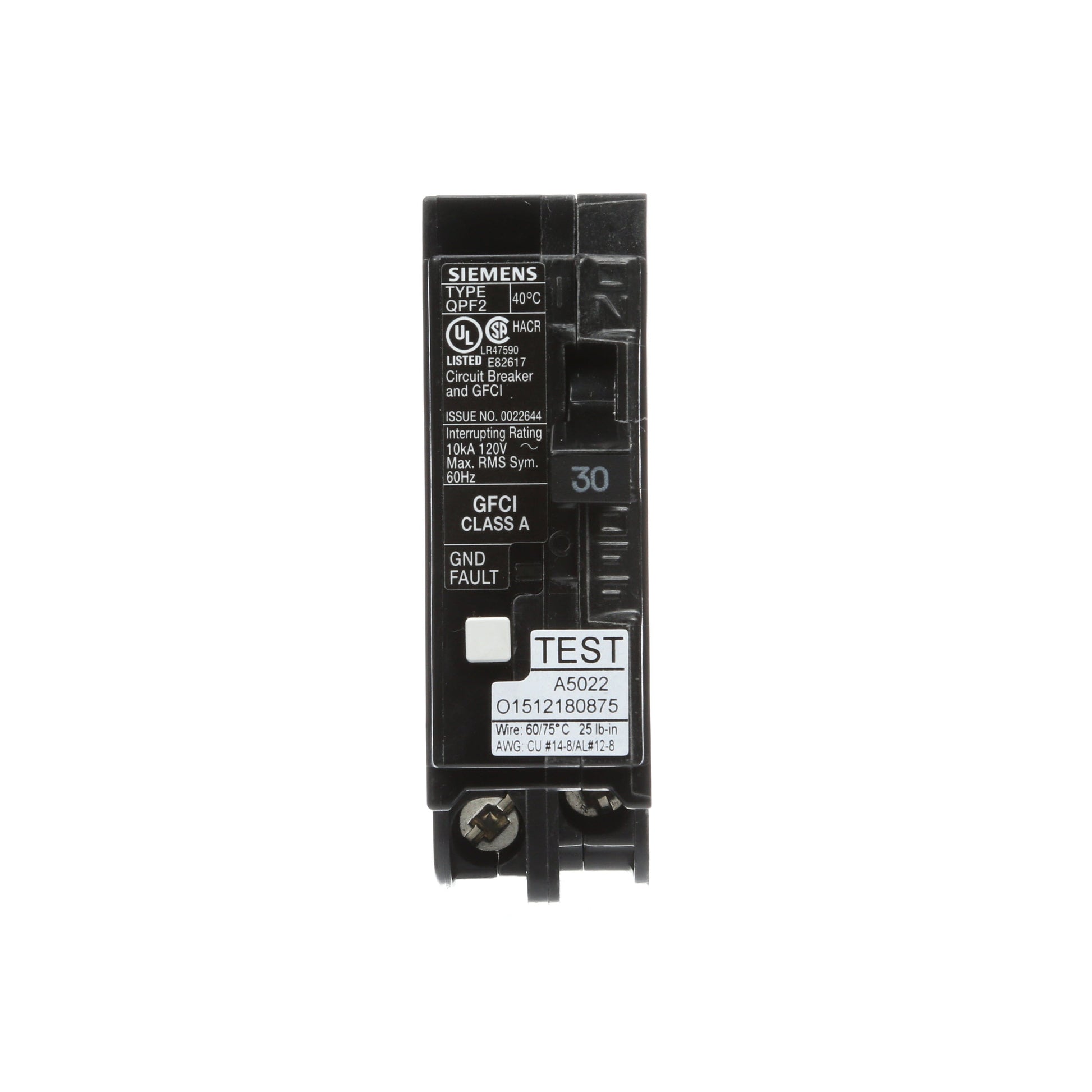

Siemens QF130A Circuit Breaker | 120V 30A 1 Pole 10kA@120V Plug-In Q Series

Product Description:
The Siemens QF130A is a Molded Case Circuit Breaker from the Q Series family. It is a 1 pole, 30 amp breaker rated for 120 volts with a 10kA AIC rating. This QPF2 type breaker uses a plug-in connection and provides thermal magnetic protection. It is designed for use in Siemens load centers and meets industry standards.

Key Features:
✔ Part Number: QF130A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QPF2
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 225A/QF
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621216603
✔ GTIN: 00887621216603
✔ Country of Origin: Philippines
✔ Dimensions: 4 in x 12.7 in x 12.7 in
✔ Weight: 0.24 lb
✔ Panel Type: Siemens Load Centers
✔ Standards: CSA-C22.2 IEC 60947-2, UL 489
✔ Certification: CSA-C22.2 IEC 60947-2, UL 489
