Product Description:

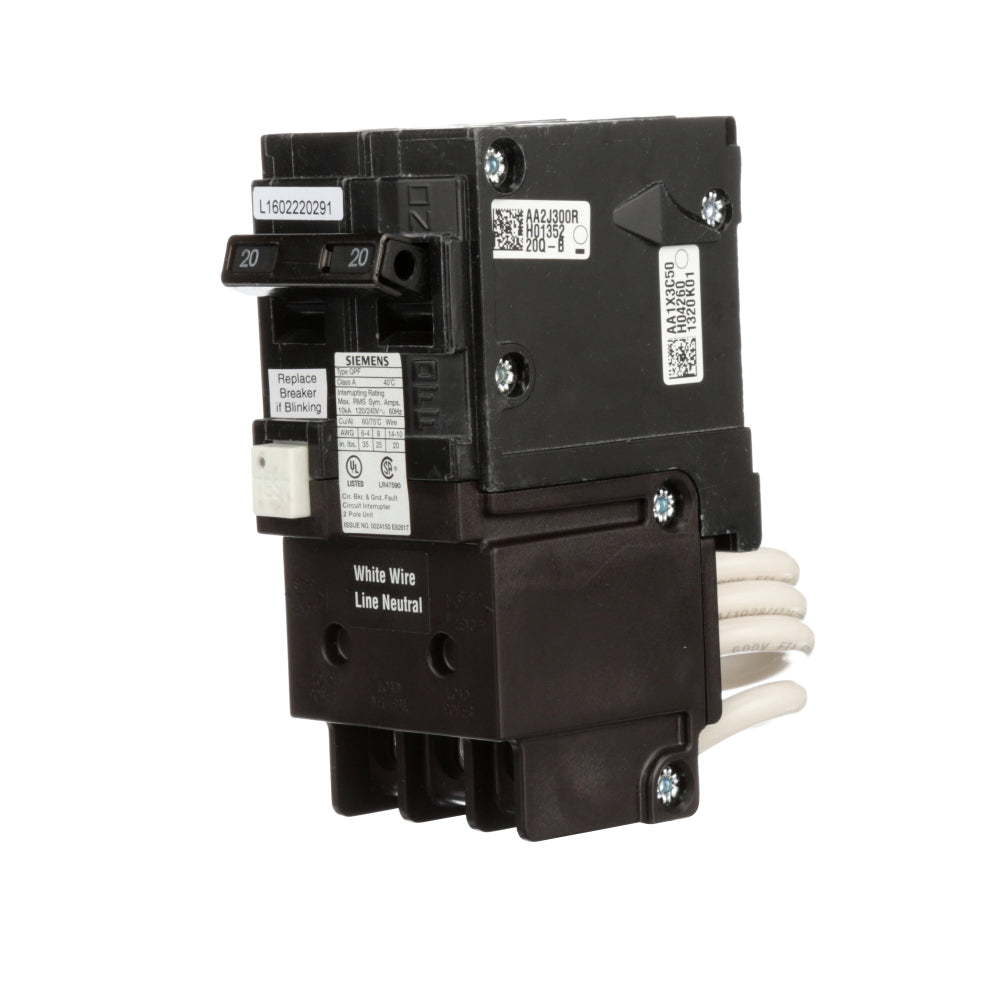

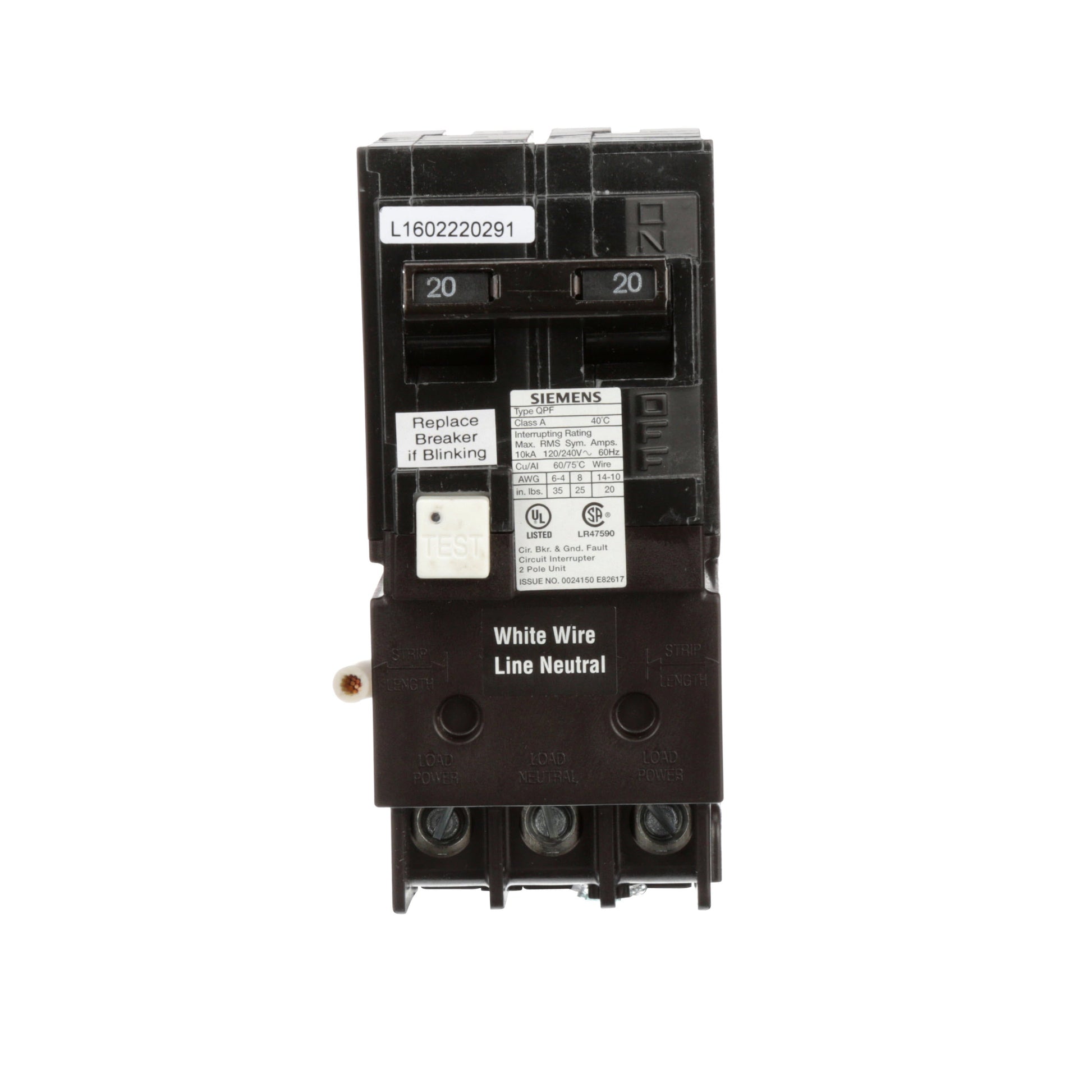

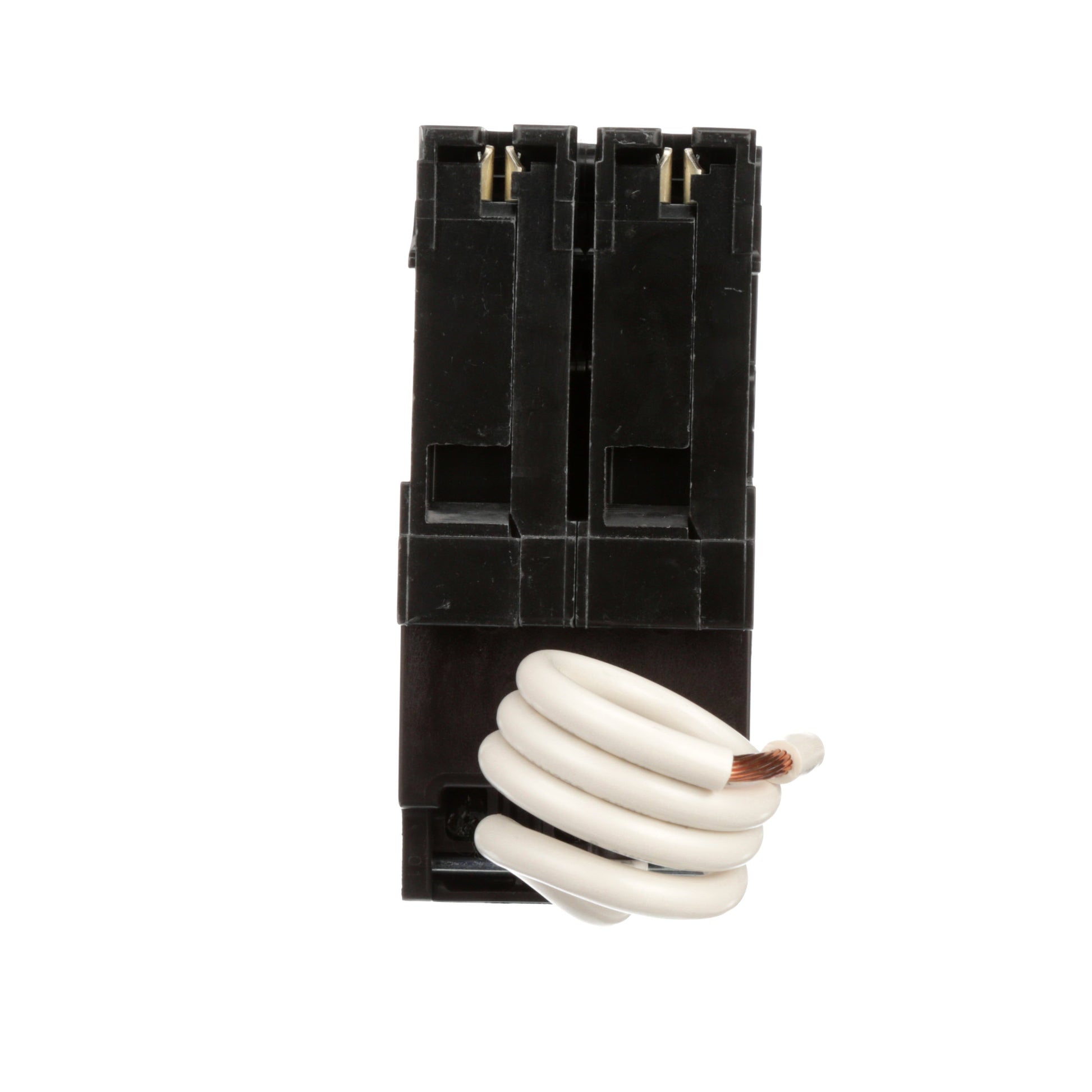

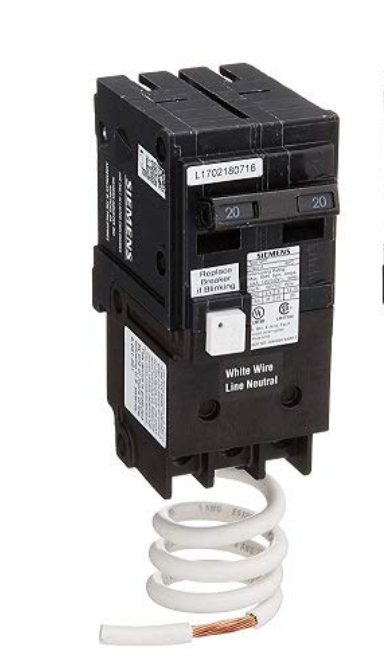

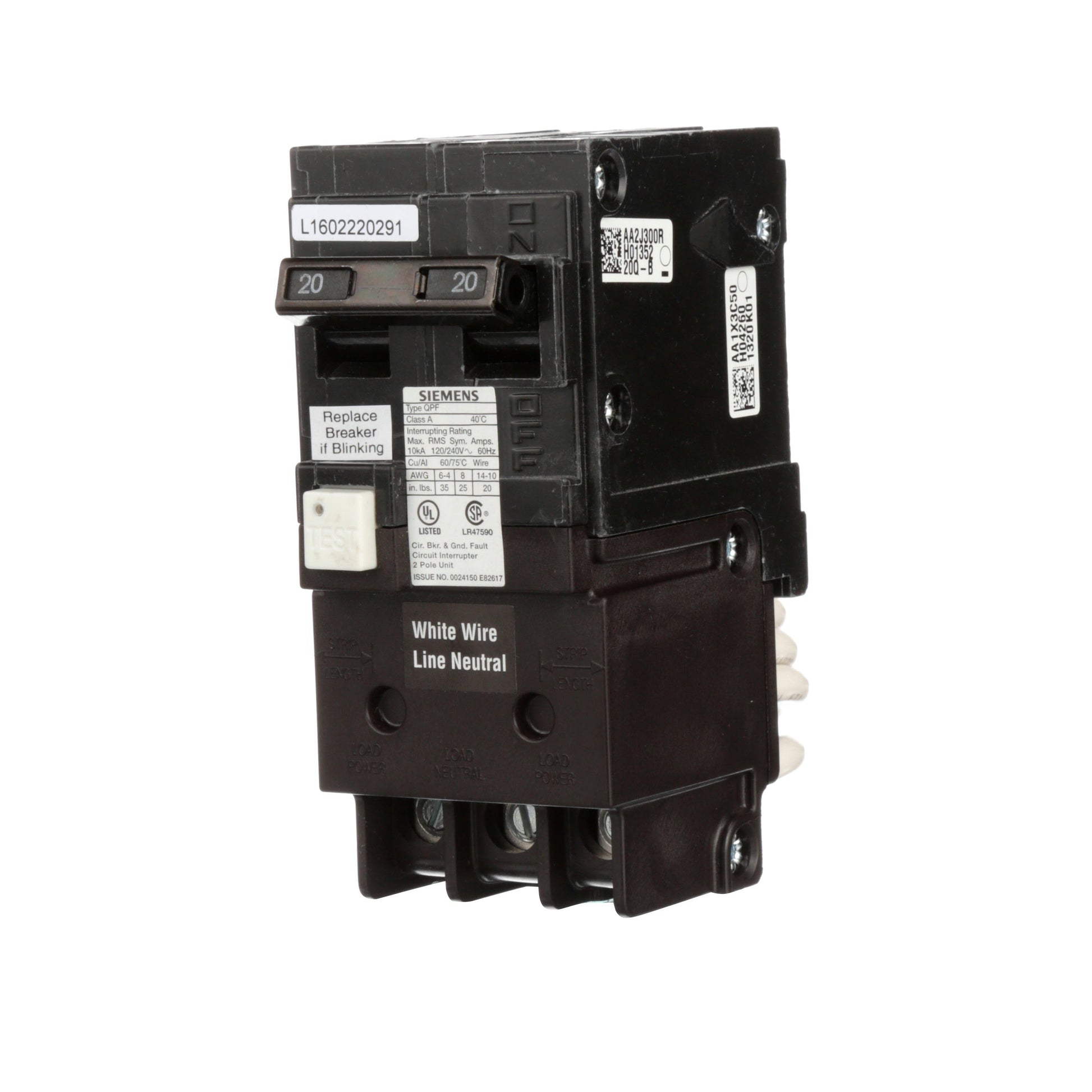

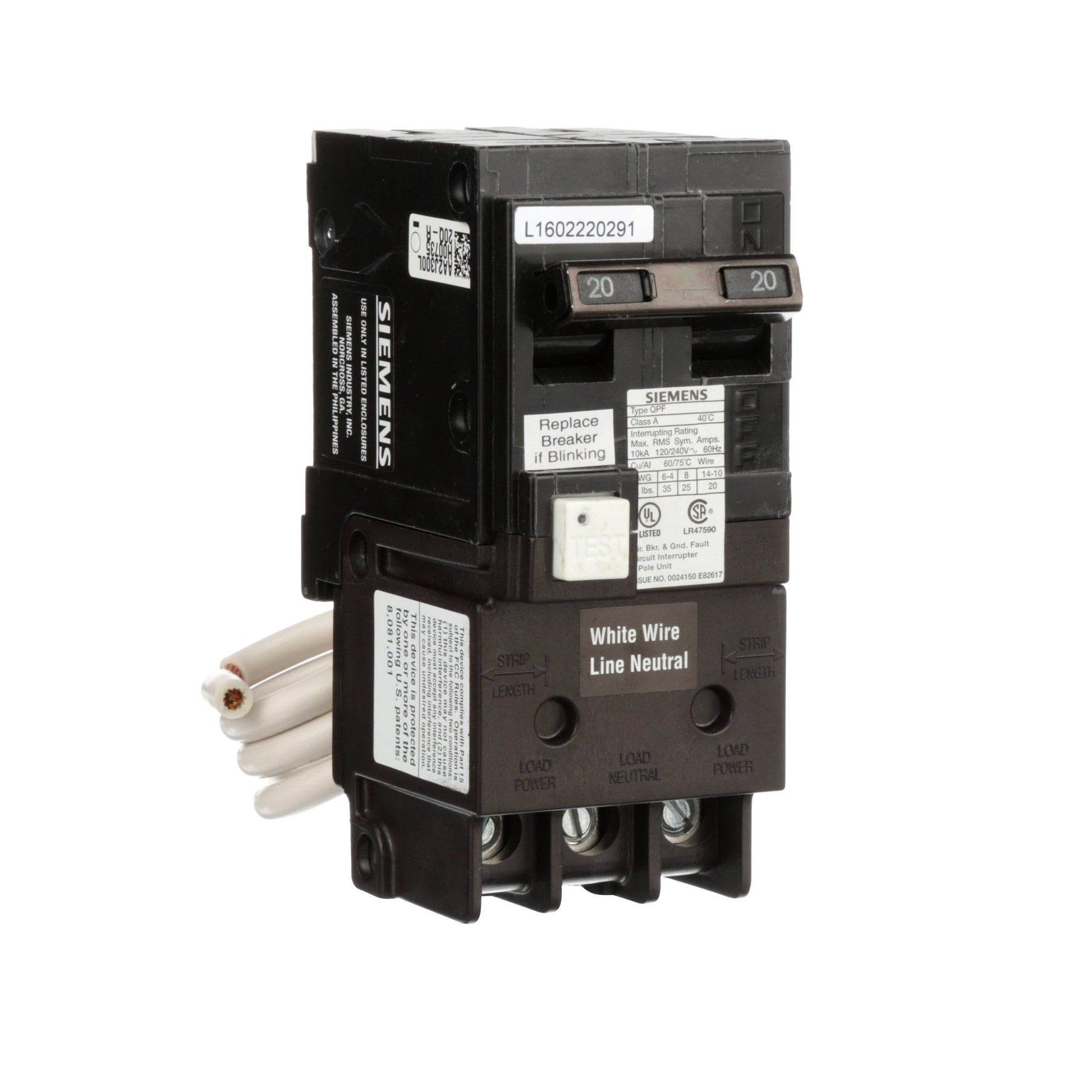

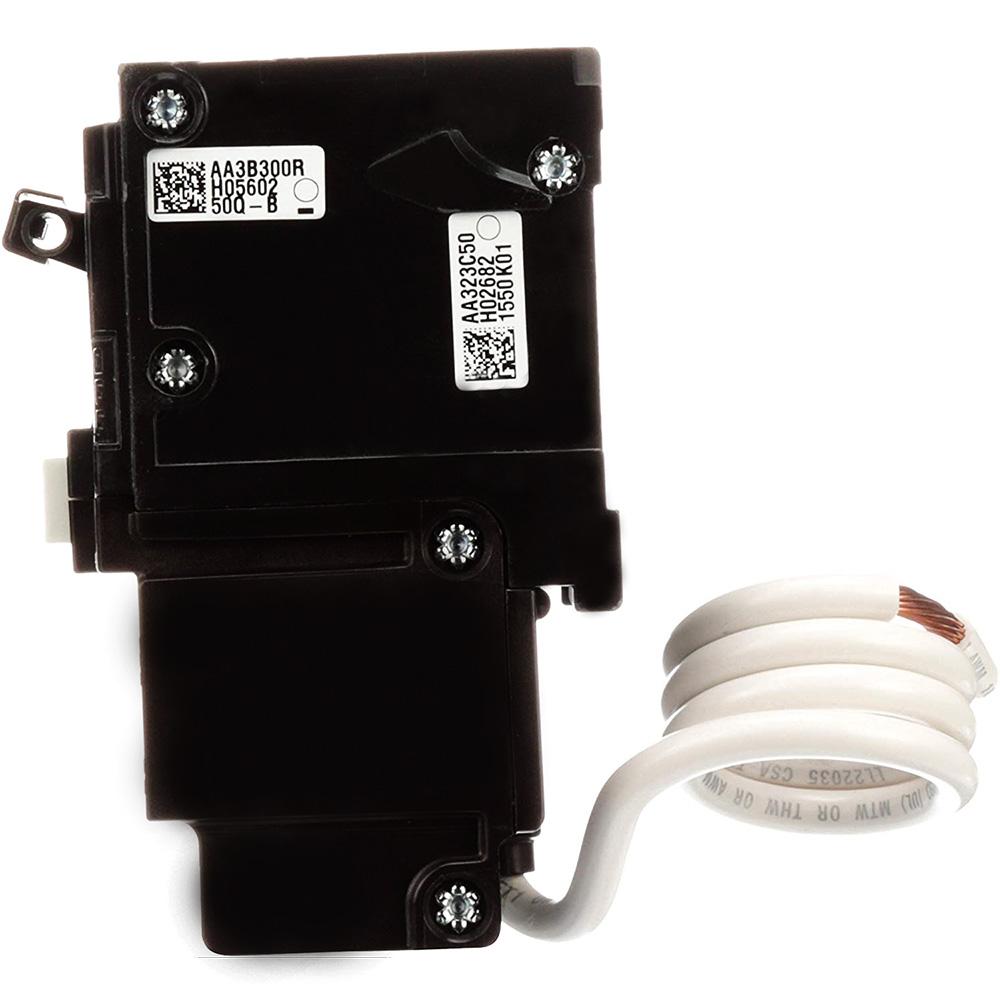

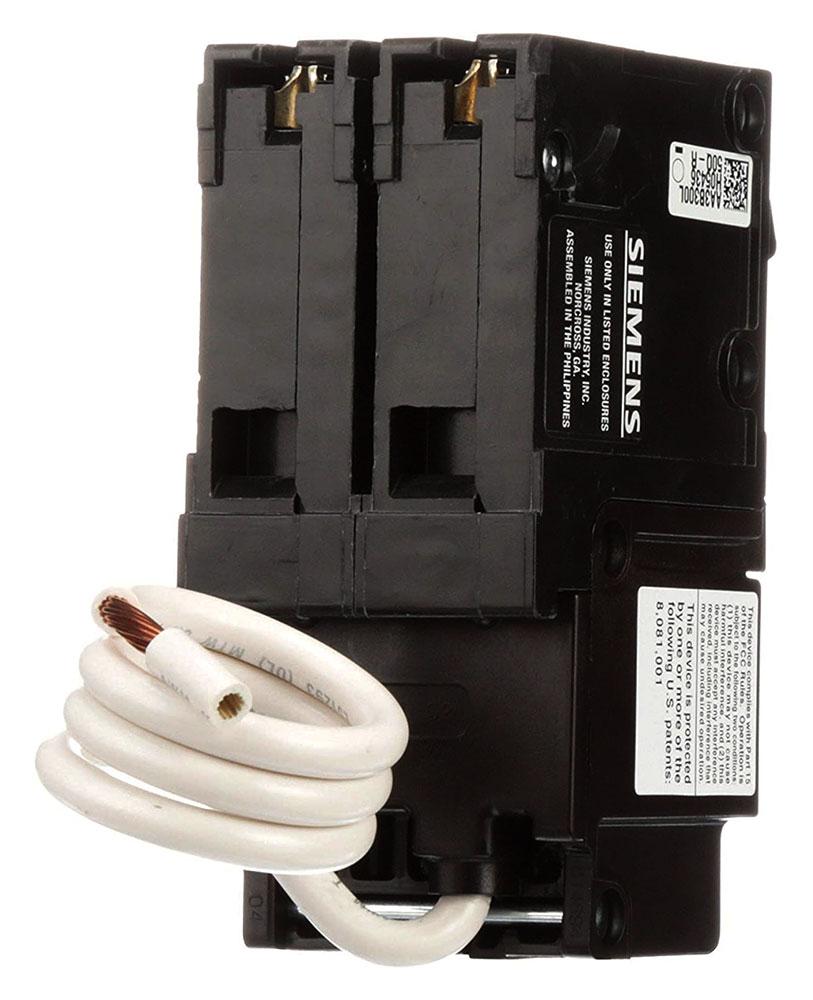

The Siemens QF220A is a Molded Case Circuit Breaker from the Q Series family. It features 2 poles, 120/240 VAC voltage, and a 20 amp rating with a 10kA@240V AIC rating. This QPF-type breaker uses a Plug-In connection and offers Thermal Magnetic protection. It is compatible with Siemens Load Centers and meets CSA, HACR, and UL standards.
Key Features:
✔ Part Number: QF220A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QPF
✔ Voltage: 120/240 VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 225A/QF
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621216665
✔ GTIN: 00887621216665
✔ Country of Origin: Philippines
✔ Dimensions: 2 in x 12.6 in x 12.6 in
✔ Weight: 2.31 lb
✔ Panel Type: Siemens Load Centers
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
✔ Wire Size: 14 - 10 AWG (Copper) 12 - 8 AWG (Aluminium)
