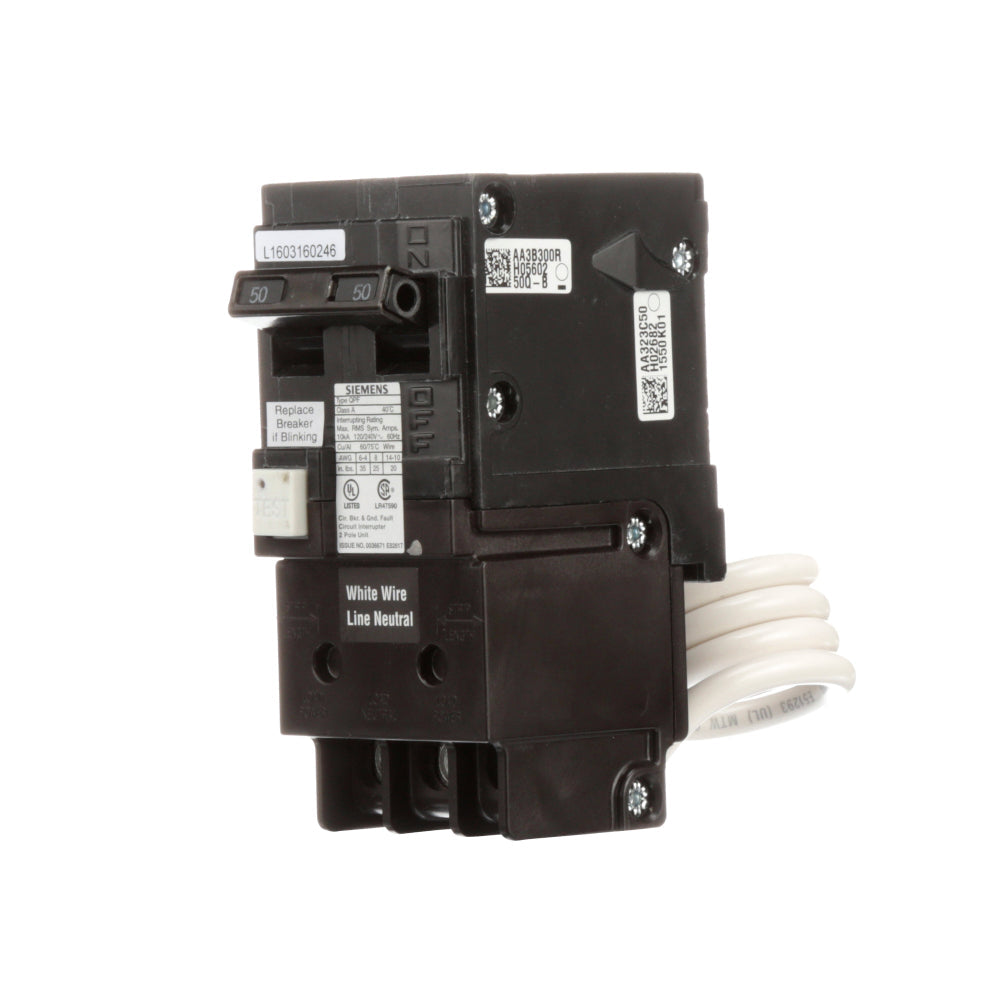

Siemens QF250A Circuit Breaker | 120/240V 50A 2P Plug-In 10kA@240V Q Series

Product Description:
The Siemens QF250A is a Molded Case Circuit Breaker from the Q Series family. It is a 2-pole, 50 amp breaker rated for 120/240 volts with a 10kA interrupting capacity. This plug-in circuit breaker provides thermal magnetic protection and is designed for use in Siemens load centers.

Key Features:
✔ Part Number: QF250A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q Series
✔ Type: QPF
✔ Voltage: 120/240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 225A/QF
✔ Wire Size: Min. 8 AWG Max. 6 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621216757
✔ GTIN: 00887621216757
✔ Country of Origin: Philippines
✔ Dimensions: 2 in x 2.88 in x 2.88 in
✔ Weight: 0.99 lb
✔ Panel Type: Siemens Load Centers
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
