Product Description:

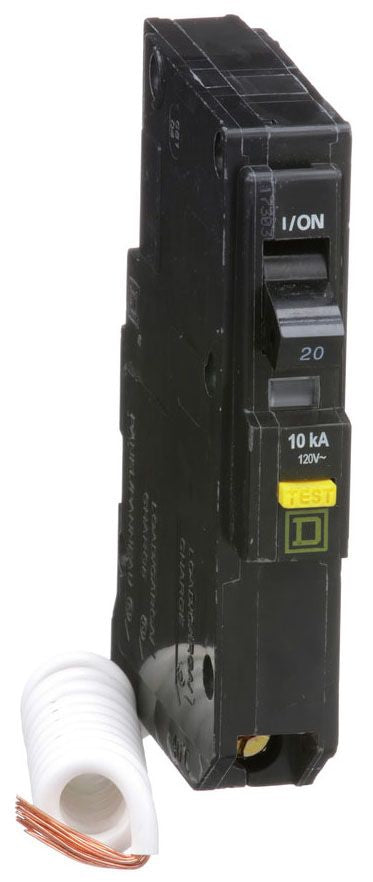

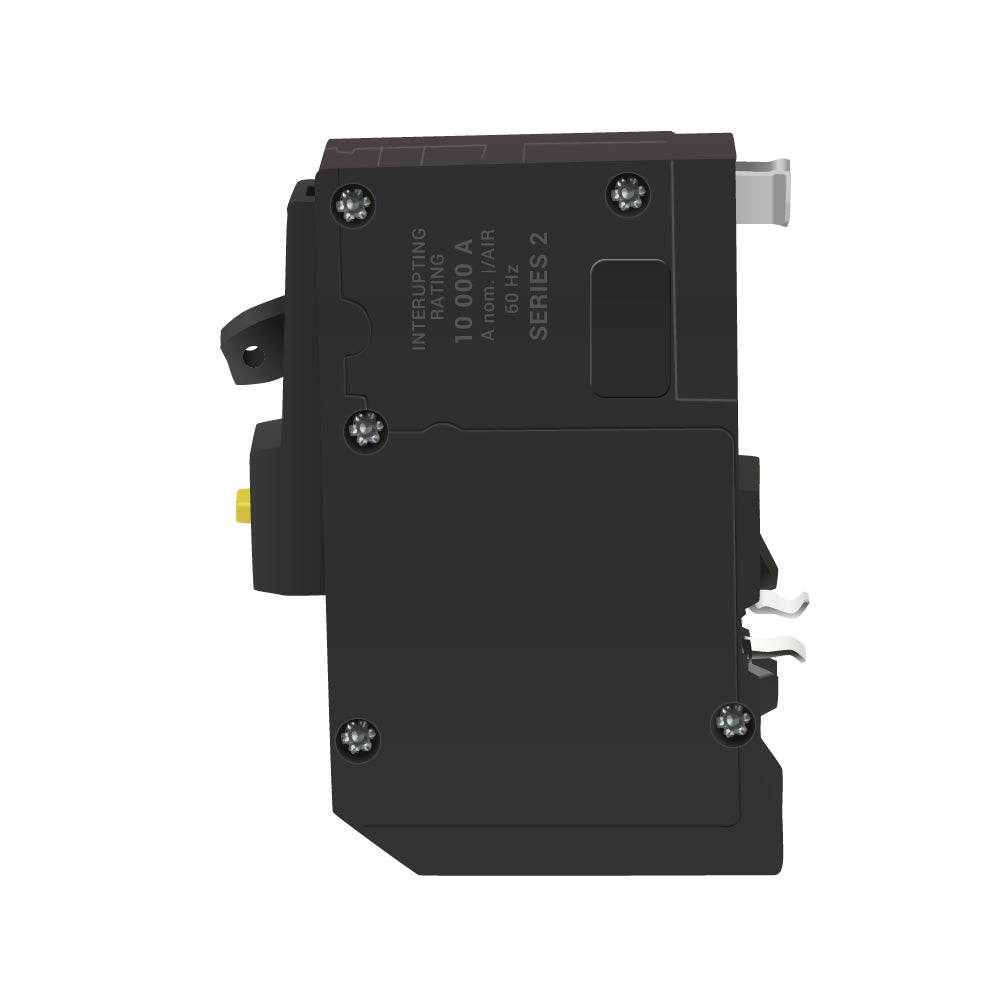

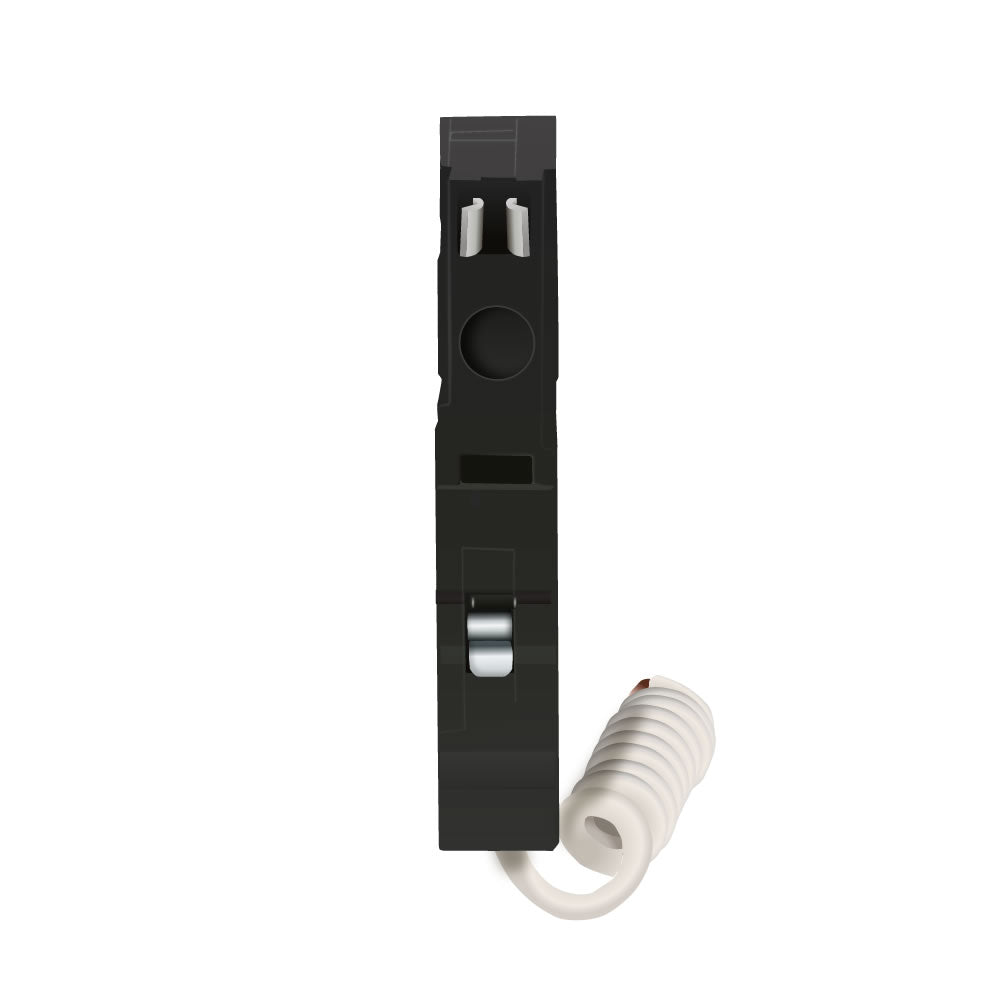

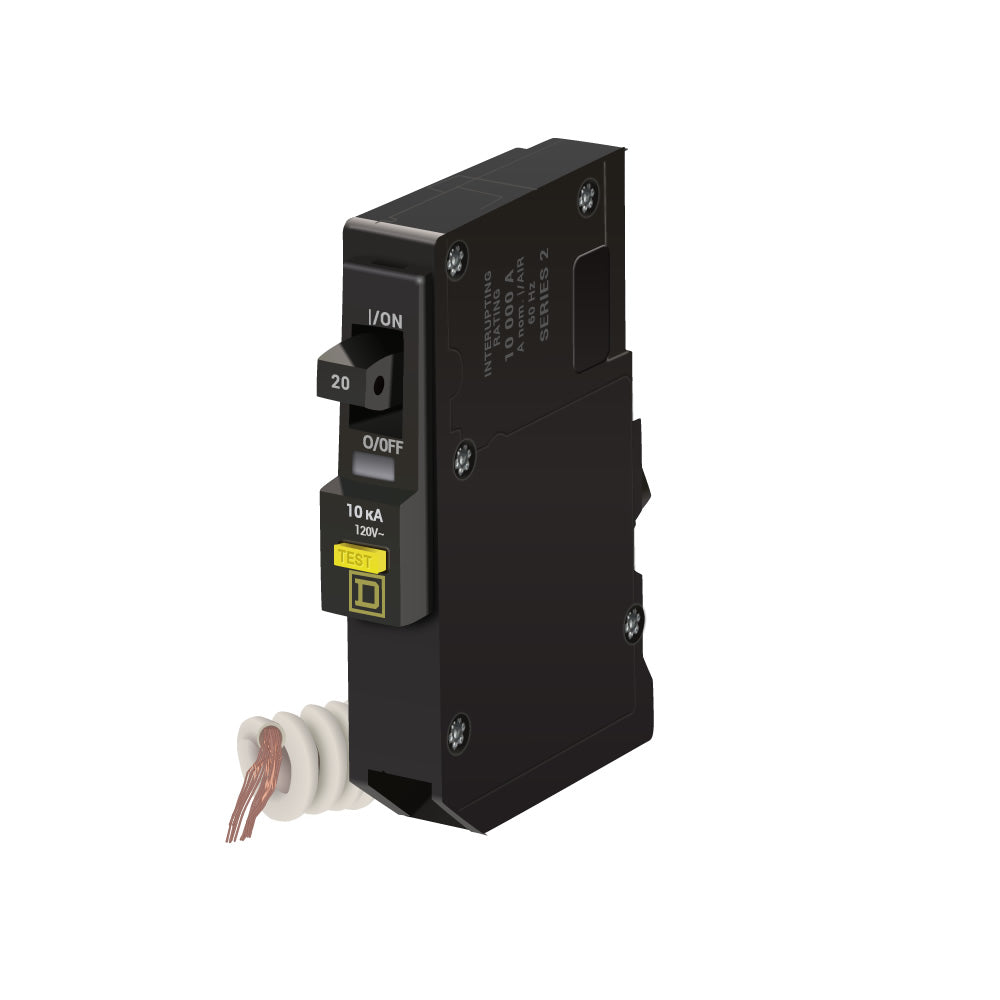

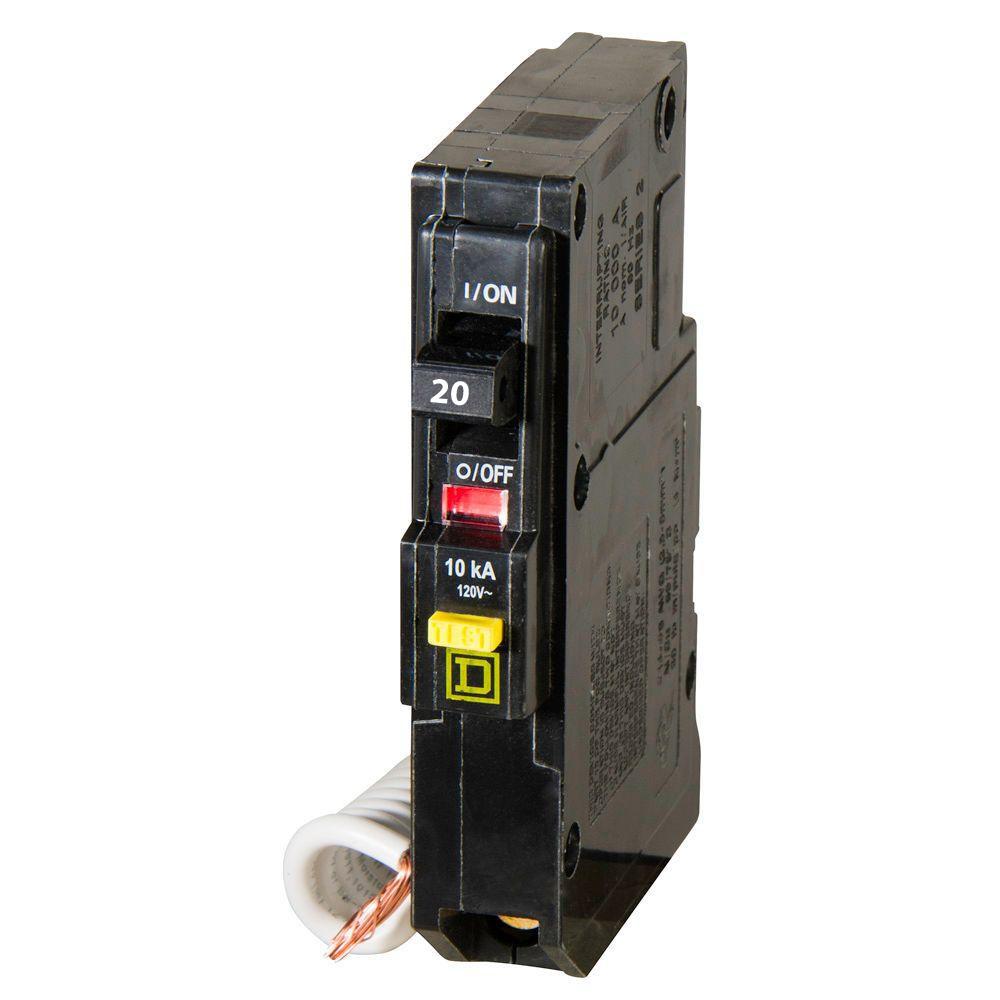

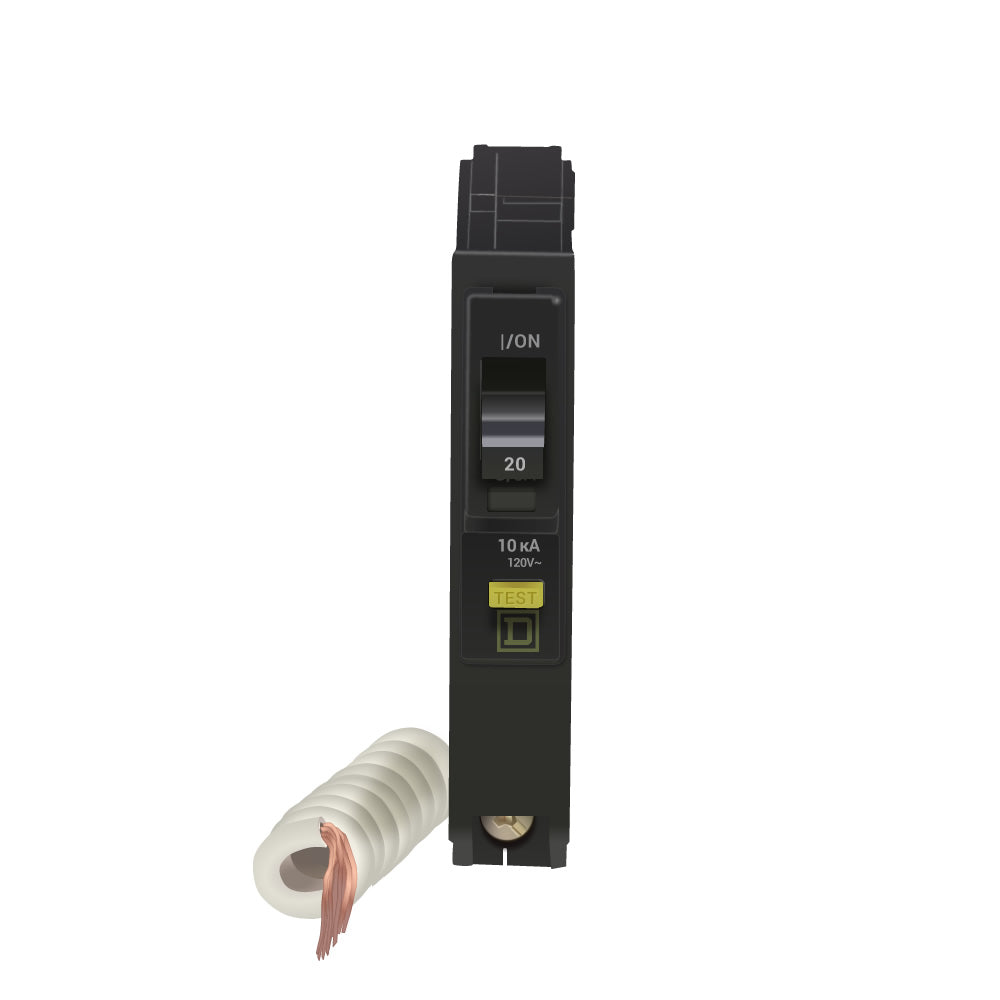

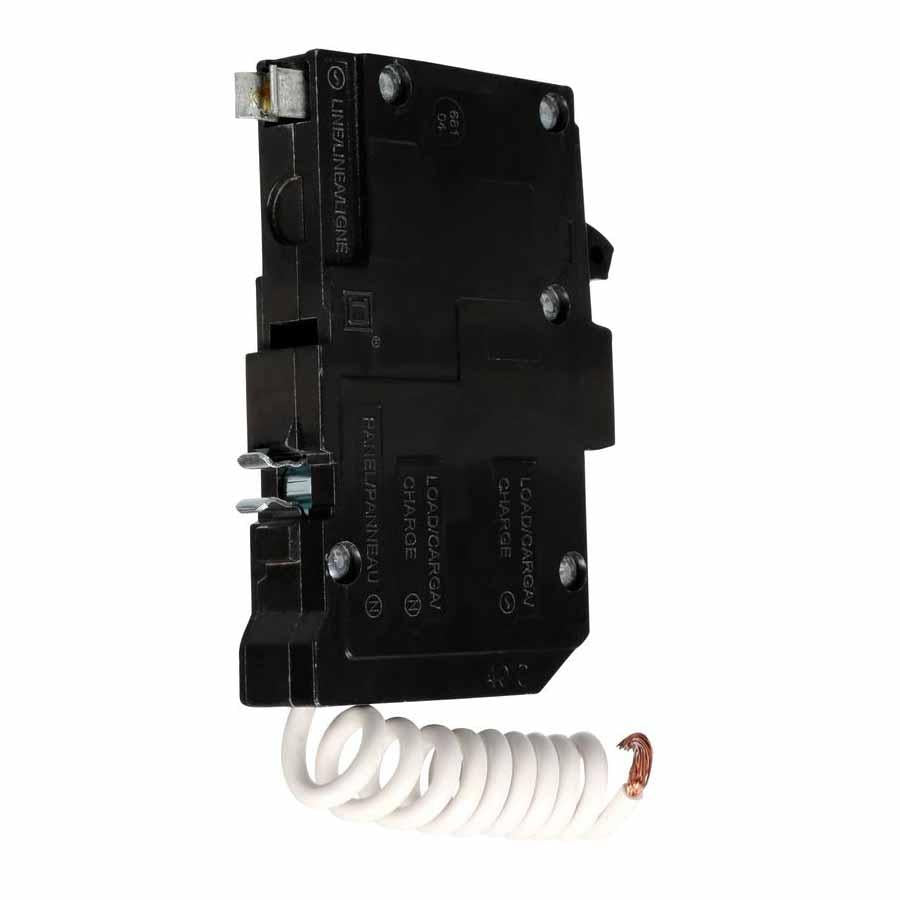

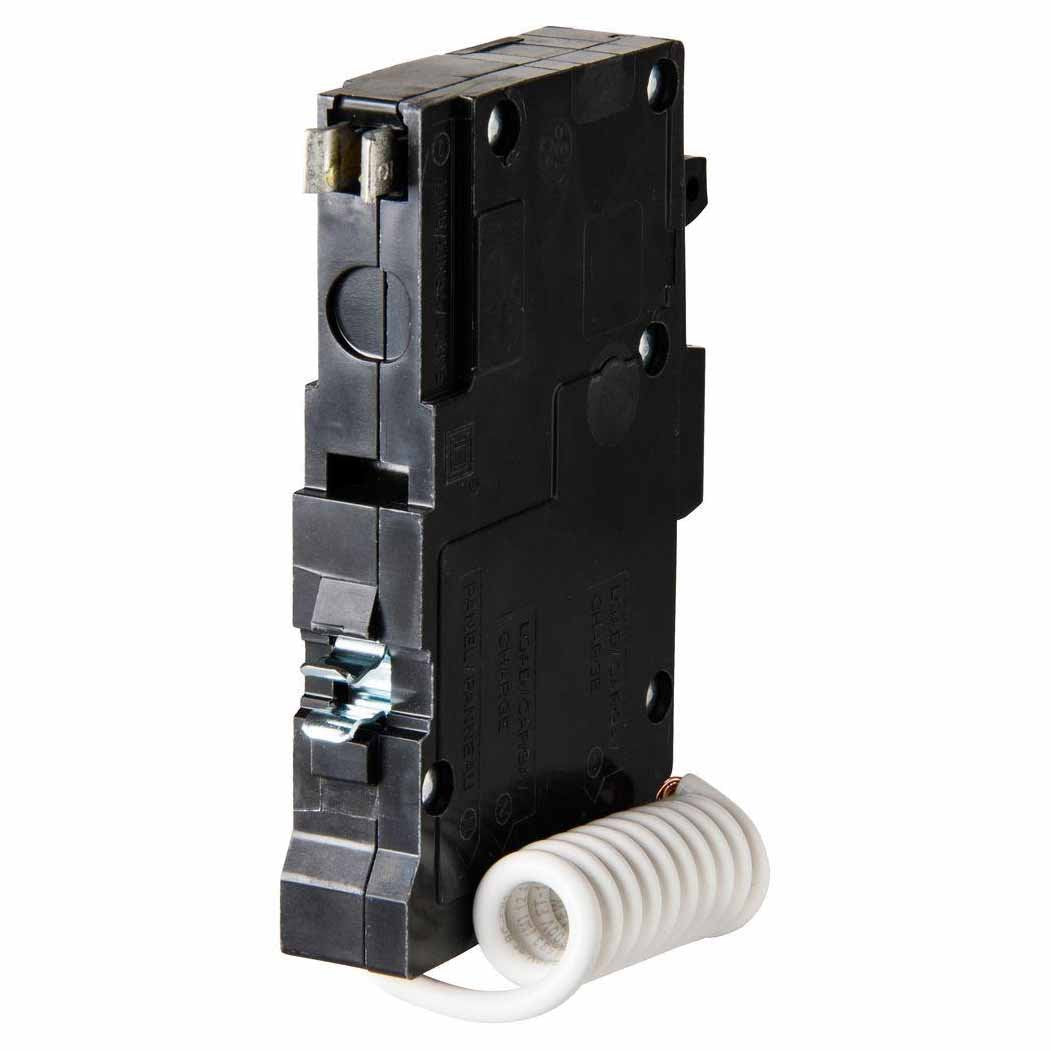

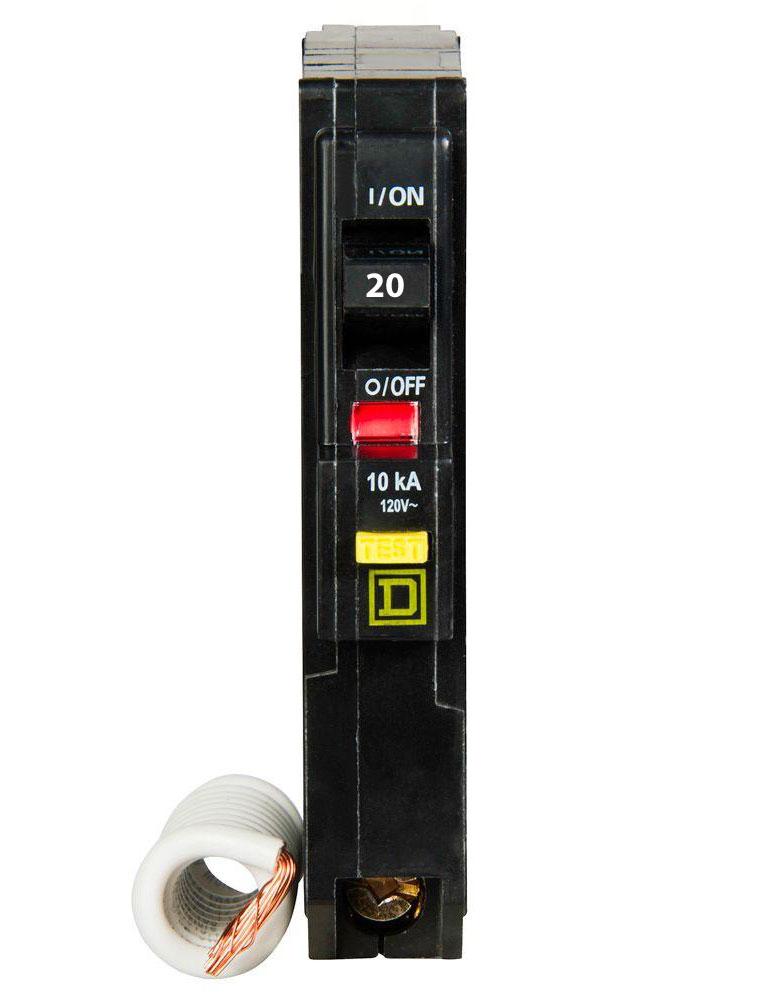

The Square D QO120GFI is a 1-pole Molded Case Circuit Breaker with a 20A rating and 120VAC voltage. It features thermal magnetic protection and a plug-in connection for easy installation. This GFCI breaker has a 10kA@120V AIC rating and is compatible with QO Load Centers and NQ Panelboards. It meets CSA and UL standards for safety and reliability.
Key Features:
✔ Part Number: QO120GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO SEries
✔ Type: QO-GF
✔ Voltage: 120VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901255079
✔ GTIN: 00785901255079
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.12 in x 4.13 in
✔ Weight: 0.34 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12-8 AWG (Aluminum) 14-8 AWG (Copper)
